Stainless Steel Take Up Bearings

Stainless Steel Take Up Bearings 1

Stainless steel take-up bearings and frames are designed to align the belt tracks and can be adjusted to maintain tension on the belt. Our stainless steel take-up bearings are made of high-quality food-grade stainless steel.

Category:
Get a Free Quote

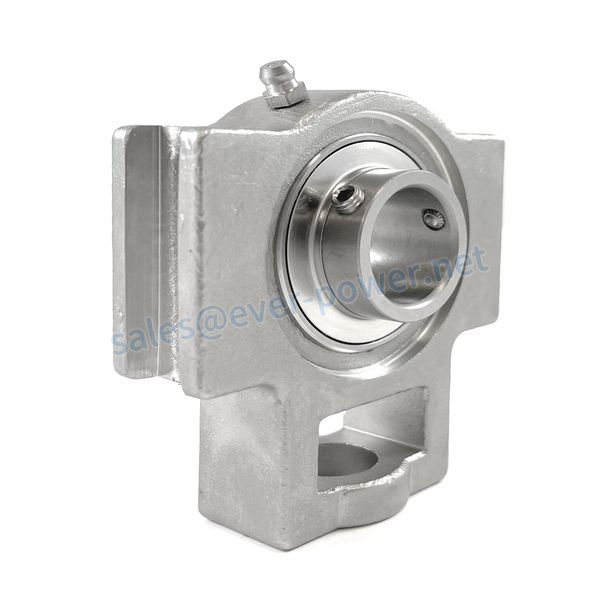

Stainless Steel Take Up Bearings

Stainless steel take-up bearings and frames are designed to align the belt tracks and can be adjusted to maintain tension on the belt. Our stainless steel take-up bearings are made of high-quality food-grade stainless steel. We offer a variety of shaft locking configurations such as set screws, eccentric locking, concentric locking, and wide inner rings. We have imperial and metric stainless steel take-up bearings and stainless steel take-up frames. Due to the sheer nature of the intended application, high-quality take-up bearings are recommended.

Stainless Steel Take Up Bearing Sizes

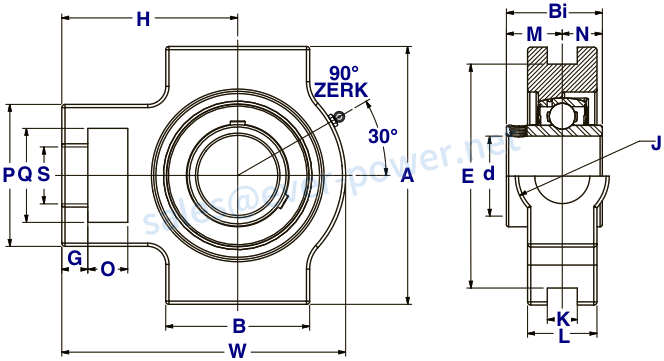

(1)SUCSTM 200 Normal Duty Stainless Steel take Up Bearing With Set Screws
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUCSTM201 12 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC201 204 2.0
SUCSTM201-8 1/2 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC201-8 204 2.0
SUCSTM202 15 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC202 204 2.0
SUCSTM202-10 5/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC202-10 204 2.0
SUCSTM203 17 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC203 204 2.0
SUCSTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC204-12 204 2.0
SUCSTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC204 204 2.0
SUCSTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205-14 205 2.2
SUCSTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205-15 205 2.2
SUCSTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205 205 2.2
SUCSTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205-16 205 2.2
SUCSTM206-17 1 11/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-17 206 3.2
SUCSTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-18 206 3.2
SUCSTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206 206 3.2
SUCSTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-19 206 3.2
SUCSTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-20 206 3.2
SUCSTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.0000 4,683 2,626 SUC207-20 207 4.0
SUCSTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207-21 207 4.0
SUCSTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207-22 207 4.0
SUCSTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207 207 4.0
SUCSTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207-23 207 4.0
SUCSTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9370 0.7480 1.1890 5,294 3,057 SUC208-24 208 5.9
SUCSTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9370 0.7480 1.1890 5,294 3,057 SUC208-25 208 5.9
SUCSTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9370 0.7480 1.890 5,294 3,057 SUC208 208 5.9
SUCSTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209-26 209 6.6
SUCSTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209-27 209 6.6
SUCSTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209-28 209 6.6
SUCSTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209 209 6.6
SUCSTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 6,402 4,046 SUC210-30 210 6.6
SUCSTM210-31 1 15/16 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 5,402 4,046 SUC210-31 210 6.6
SUCSTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 5,402 4,046 SUC210 210 6.6
SUCSTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 5,402 4,046 SUC210-32 210 6.6
SUCSTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211-32 211 9.9
SUCSTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211-34 211 9.9
SUCSTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211 211 9.9
SUCSTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211-35 211 9.9
SUCSTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212-36 212 12.3
SUCSTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212 212 12.3
SUCSTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212-38 212 12.3
SUCSTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212-39 212 12.3

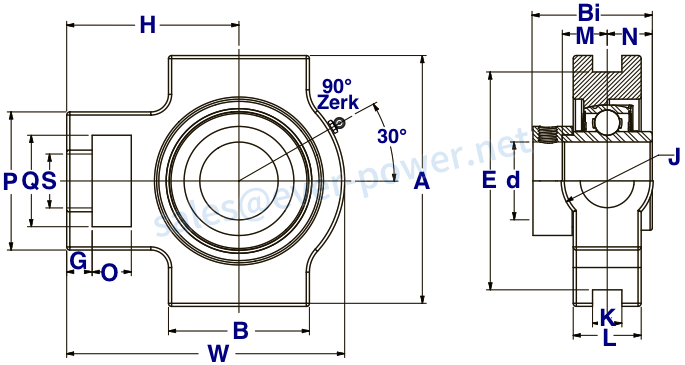

(2)SNCSTM 200 Normal Duty Stainless Steel take Up Bearing With Eccentric Locking Collar
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SNCSTM201-8 1/2 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC201-8 STM 204 2.0
SNCSTM202-10 5/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC202-10 STM 204 2.0
SNCSTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC204-12 STM 204 2.0
SNCSTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC204 STM 204 2.0
SNCSTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220 0.5630 0.6890 2,542 1,349 SNC205-14 STM 205 2.2
SNCSTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220 0.5630 0.6890 2,542 1,349 SNC205-15 STM 205 2.2
SNCSTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220 0.5630 0.6890 2,542 1,349 SNC205 STM 205 2.2
SNCSTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220. 0.5630 0.6890 2,542 1,349 SNC205-16 STM 205 2.2
SNCSTM206-17 1 1/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3,554 1,942 SNC206-17 STM 206 3.3
SNCSTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206-18 STM 206 3.3
SNCSTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206 STM 206 3.3
SNCSTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206-19 STM 206 3.3
SNCSTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206-20 STM 206 3.3
SNCSTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-20 STM 207 4.2
SNCSTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-21 STM 207 4.2
SNCSTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-22 STM 207 4.2
SNCSTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207 STM 207 4.2
SNCSTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-23 STM 207 4.2
SNCSTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 2.1220 0.7480 0.8425 5294 3057 SNC208-24 STM 208 6.2
SNCSTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 2.1220 0.7480 0.8425 5294 3057 SNC208-25 STM 208 6.2
SNCSTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 2.1220 0.7480 0.8425 5294 3057 SNC208 STM 205 6.2
SNCSTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209-26 STM 209 6.9
SNCSTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209-27 STM 209 6.9
SNCSTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209-23 STM 209 6.9
SNCSTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209 STM 209 6.9
SNCSTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210-30 STM 210 7.1
SNCSTM210-31 1 15/16 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210-31 STM 210 7.1
SNCSTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210 STM 210 7.1
SNCSTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210-30 STM 210 7.1
SNCSTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211-32 STM 211 10.7
SNCSTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211-34 STM 211 10.7
SNCSTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211 STM 211 10.7
SNCSTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211-35 STM 211 10.7
SNCSTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212-36 STM 212 13.1
SNCSTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212 STM 212 13.1
SNCSTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212-38 STM 212 13.1
SNCSTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212-39 STM 212 13.1

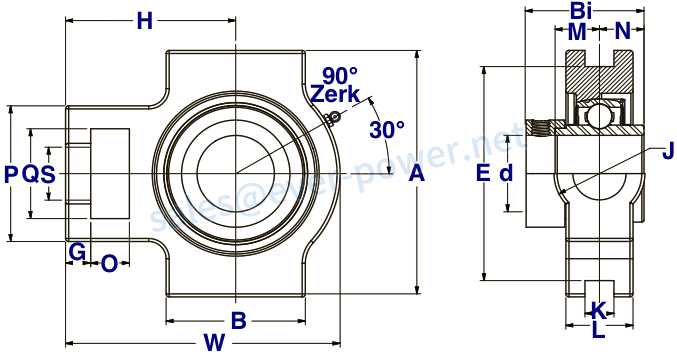

(3)SHCSTM 200 Normal Duty Stainless Steel take Up Bearing With Eccentric Locking Collar and Wide Inner Ring
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
 Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SHCSTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.7205 0.6732 0.6732 2331 1142 SHC 204-12 STM204 2.0
SHCSTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.7205 0.6732 0.6732 2331 1142 SHC 204 STM204 2.0
SHCSTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205-14 STM205 2.2
SHCSTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205-15 STM205 2.2
SHCSTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205 STM205 2.2
SHCSTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205-16 STM205 2.2
SHCSTM206-17 1 1/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-17 STM206 3.3
SHCSTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-18 STM206 3.3
SHCSTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206 STM206 3.3
SHCSTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-19 STM206 3.3
SHCSTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-20 STM206 3.3
SHCSTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-20 STM207 4.2
SHCSTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-21 STM207 4.2
SHCSTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-22 STM207 4.2
SHCSTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207 STM207 4.2
SHCSTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-23 STM207 4.2
SHCSTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.476 2.2165 0.8425 0.8425 5293 3057 SHC 208-24 STM208 6.2
SHCSTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.476 2.2165 0.8425 0.8425 5293 3057 SHC 208-25 STM208 6.2
SHCSTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.476 2.2165 0.8425 0.8425 5293 3057 SHC 208 STM208 6.2
SHCSTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3507 SHC 209-26 STM209 6.9
SHCSTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 209-27 STM209 6.9
SHCSTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 209-28 STM209 6.9
SHCSTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 209 STM209 6.9
SHCSTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 210-30 STM210 6.9
SHCSTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 210 STM210 6.9
SHCSTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 210-32 STM210 6.9
SHCSTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211-32 STM211 10.7
SHCSTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211-34 STM211 10.7
SHCSTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211 STM211 10.7
SHCSTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211-35 STM211 10.7
SHCSTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212-36 STM212 13.1
SHCSTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212 STM212 13.1
SHCSTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212-38 STM212 13.1
SHCSTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212-39 STM212 13.1

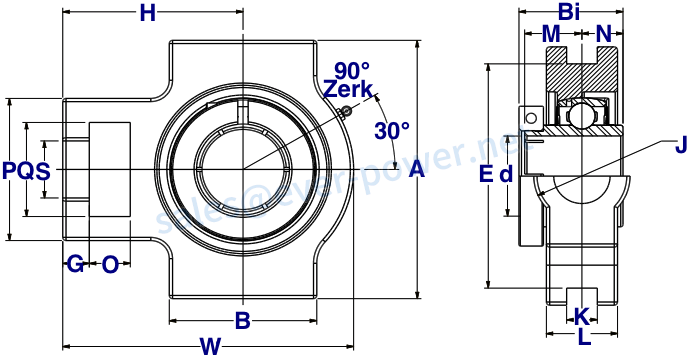

(4)SUESTM 200 Normal Duty Stainless Steel take Up Bearing With Tru-Loc Concentric Locking Collar
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUESTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2992 0.5000 0.7205 2331 1142 SUE 204-12 STM 204 2.0
SUESTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2992 0.5000 0.7205 2331 1142 SUE 204 STM 204 2.0
SUESTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205-14 STM 205 2.2
SUESTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205-15 STM 205 2.2
SUESTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205 STM 205 2.2
SUESTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205-16 STM 205 2.2
SUESTM206-17 1 1/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE 206-17 STM 206 3.3
SUESTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE0206-18 STM 206 3.3
SUESTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE 206 STM 206 3.3
SUESTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE 206-19 STM 206 3.3
SUESTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 苏206 - 20 STM 206 3.3
SUESTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-20 STM 207 4.0
SUESTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-21 STM 207 4.0
SUESTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-22 STM 207 4.0
SUESTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207 STM 207 4.0
SUESTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-23 STM 207 4.0
SUESTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9764 0.7480 1.1890 5294 3057 SUE 208-24 STM 208 6.0
SUESTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9764 0.7480 1.1890 5294 3057 SUE 208-25 STM 208 6.0
SUESTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9764 0.7480 1.1890 5294 3057 SUE 208 STM 208 6.0
SUESTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209-26 STM 209 6.7
SUESTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209-27 STM 209 6.7
SUESTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209-28 STM 209 6.7
SUESTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209 STM 209 6.7
SUESTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210-30 STM 210 6.7
SUESTM210-31 1 15/16 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210-31 STM 210 6.7
SUESTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210 STM 210 6.7
SUESTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210-32 STM 210 6.7
SUESTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211-32 STM 211 10.1
SUESTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211-34 STM 211 10.1
SUESTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211 STM 211 10.1
SUESTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211-35 STM 211 10.1
SUESTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212-36 STM 212 12.5
SUESTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212 STM 212 12.5
SUESTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212-38 STM 212 12.5
SUESTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212-39 STM 212 12.5

Load directions for Stainless Steel Take Up Bearings

Take-up stainless steel bearing units are intended for loads acting vertically towards the base plate support. Therefore, if the bearing housing is supported over its entire base, loads are limited only by the load limits of the bearing insert. If loads acting in other directions occur or if the housing is not supported over its entire base area, check that the magnitude of the load is permissible for the bolt assembly attached to the machine frame.

一个pplications of Stainless Steel Take Up Bearings

Stainless steel take-up bearings and frames are typically used in conveyor lines. They align conveyor belt tracks and maintain belt tension. Conveyor take-up bearings are manufactured from a variety of materials, but are typically made from cast iron, and feature a chrome steel bearing.

Stainless steel take-up bearings typically operate belt-driven machines. They are used with blowers and fans, as well as conveyor belts. Businesses in the food-processing, manufacturing, mining, quarrying, construction, and agricultural industries rely on stainless steel take-up bearings to keep their lines moving efficiently.

输送机belts require stainless steel take-up bearings when it is necessary to adjust the shafts and tighten the belts. We offer bearings with a variety of locking features to suit your needs.

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such asdeep groove ball bearings, spherical roller bearings,self-aligning ball bearings、圆柱滚子轴承、圆锥滚子熊ings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need stainless steel bearings, please contact us.

FAQ

Q. Are you a trading company or a manufacturer?

一个: We are a manufacturer.

Q: How long is your stainless steel bearings delivery time?

一个: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples for stainless steel bearings? Is it free or extra?

一个: Yes, we could offer the sample for free but do not pay the freight cost.

Q: Could you accept OEM and customize stainless steel bearings?

一个: We can customize it for you according to the sample or drawing.

Q: What are your terms of payment?

一个: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

Q: Will you check these products before shipment?

一个: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.

Q: What will we do if you are unsatisfied with the product?

一个: If you have any abnormalities, please get in touch with us for the first time, and we will immediately process them.

Q: How to place orders?

一个: 1. Email us the model, brand and quantity, consignee information, shipping way, and payment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirmed the PI;

4. Confirm Payment and arrange the production.

If you need stainless steel bearings or any models of bearings, please contact me!

Related products

Produc

一个gricultural Parts
3 Point Quick Hitch
Point Linkage
Post Hole Digger
PTO Shaft
PTO Shaft Parts
Skid Steer Auger
Tiller Blade
Universal Joints
一个ir Compressor
一个ir Compressor Applications
Oil-free Air Compressors
Oil-free screw air compressor
Piston Air Compressor
Screw Air Compressor
Scroll Air Compressor
一个luminium Die Casting
Bearing
Ball Bearing
角接触球轴承
Deep Groove Ball Bearing
Self-aligning Ball Bearing
Thrust Ball Bearings
Pillow Block Bearings
Roller Bearing
Crossed Roller Bearings
Cylindrical Roller Bearing
Needle Roller Bearing
Spherical Roller Bearings
Tapered Roller Bearings
Thrust Roller Bearings
Slewing Bearings
Spherical Plain Bearing
Stainless Steel Bearings
Thin Section Bearings
Belt
Bevel Gearboxes
Bushings & Hubs
QD bushings
Split Taper Bushings
stainless steel taper lock bushing
taper lock bushing
Cantilever Bracket
Chains
一个gricultural Chain
一个ttachment Chains
输送机Chains
Corrosion Resistant Chain
Drag Chain
Engineering Chain
Leaf Chains
Mega Chains
Special Chain
Stainless steel Chains
Standard Roller Chains
Transmission Chain
Transmission Roller Chains
Coupling
Drive Shaft Cardan Shaft
Gear
Bevel Gear
Double Helical Gear
Helical Gear
Internal Gear
Plastic Gears
Ring Gear
Spiral Bevel Gear
Spur Gear
Worm Gear
Gear Rack
Gearboxes & Reducer
一个gricultural Gearbox
Helical Gearbox
Planetary Gearbox
Worm Gearbox
温室部分
Connect parts
Greenhouse Motor
Hydraulic Systems
Hydraulic Cylinder
linear motion
Locking Assembly
Motor
一个c Motor
DC Motor
Electric Motor
gear motor
Motor Base
Motors & Brake Motors
permanent magnet synchronous motor
Servo Motor
Synchronous Motors
YE3 series asynchronous motor
Pneumatic Cylinder
Pulleys
汽车汽车滑轮
Flat Belt Pulley
Timing Pulley
V Pulley
Shaft Collar
Sheet Metal Parts
Slewing Drive
Speed Variators
Sprocket
Torque Arm
Uncategorized
Vacuum Pump
Vortex Gas Pump

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • 包装按客户的需求。

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

我们的大部分产品都是出口到欧洲或Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

一个nnealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
