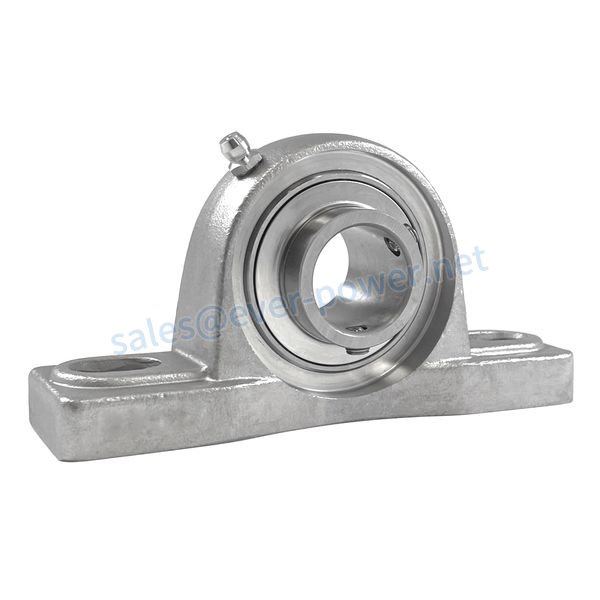

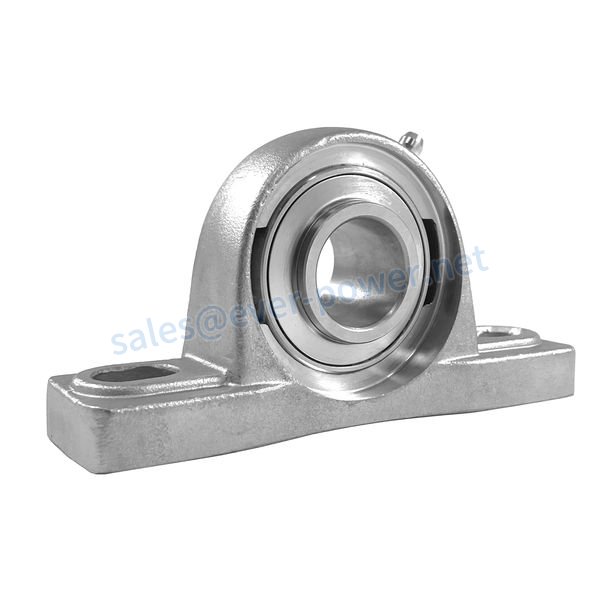

Stainless Steel 2-Bolt Pillow Block Bearings
Stainless steel 2-bolt pillow block bearings feature a stainless steel pillow block housing with stainless steel insert bearings with grease fittings. We offer plain and medium-duty stainless steel pillow block bearings with two setscrews or eccentric locking rings for securing the bearing to the shaft.
Stainless Steel 2-Bolt Pillow Block Bearings
Stainless steel 2-bolt pillow block bearings feature a stainless steel pillow block housing with stainless steel insert bearings with grease fittings. We offer plain and medium-duty stainless steel pillow block bearings with two setscrews or eccentric locking rings for securing the bearing to the shaft.
EVER-POWER has a large stock of stainless steel pillow block mounted bearings. These industrial bearing units mount with two bolts (not included) for many applications in Industrial and Scientific purposes. The inserts come with the pillow block and are in metric (mm) and inch dimensions. The housings are made of stainless steel with pressed steel bearings and bearing balls. Accommodations are also available in cast iron and Thermo-plastic.
Product parameters

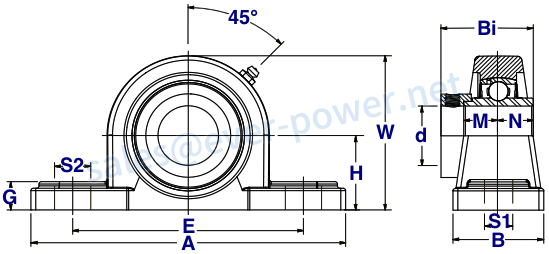

(1) SUCSPM 200 Normal Duty 2-Bolt Pillow Block Bearings With Set Screws
 |
 |
|
Bearing # |
Shaft Diameter (d) |
(H) |
(B) |
(S2) |
(S1) |
(G) |
(W) |
(Bi) |
(N) |
(M) |
Bolt |
Dynamic Load Rating (LBS) |
Static Load Rating (LBS) |
Bearing Insert |
Housing Number |
Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUCSPM201 | 12mm | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.2205" | 0.5000" | 0.7205" | 3/8" | 2,331 | 1,142 | SUC201 | SPM204 | 1.5 |
| SUCSPM201-8 | 1/2" | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.2205" | 0.5000" | 0.7205" | 3/8" | 2,331 | 1,142 | SUC201-8 | SPM204 | 1.5 |
| SUCSPM202 | 15mm | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.2205" | 0.5000" | 0.7205" | 3/8" | 2,331 | 1,142 | SUC202 | SPM204 | 1.5 |
| SUCSPM202-10 | 5/8" | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.2205" | 0.5000" | 0.7205" | 3/8" | 2,331 | 1,142 | SUC202-10 | SPM204 | 1.5 |
| SUCSPM203 | 17mm | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.2205" | 0.5000" | 0.7205" | 3/8" | 2,331 | 1,142 | SUC203 | SPM204 | 1.5 |
| SUCSPM204-12 | 3/4" | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.2205" | 0.5000" | 0.7205" | 3/8" | 2,331 | 1,142 | SUC204-12 | SPM204 | 1.5 |
| SUCSPM204 | 20mm | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.2205" | 0.5000" | 0.7205" | 3/8" | 2,331 | 1,142 | SUC204 | SPM204 | 1.5 |
| SUCSPM205-14 | 7/8" | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.3425" | 0.5630" | 0.7795" | 3/8" | 2,542 | 1,349 | SUC205-14 | SPM205 | 1.8 |
| SUCSPM205-15 | 15/16" | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.3425" | 0.5630" | 0.7795" | 3/8" | 2,542 | 1,349 | SUC205-15 | SPM205 | 1.8 |
| SUCSPM205 | 25mm | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.3425" | 0.5630" | 0.7795" | 3/8" | 2,542 | 1,349 | SUC205 | SPM205 | 1.8 |
| SUCSPM205-16 | 1" | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.3425" | 0.5630" | 0.7795" | 3/8" | 2,542 | 1,349 | SUC205-16 | SPM205 | 1.8 |
| SUCSPM206-17 | 1 1/16" | 1.689" | 1.84" | 0.83" | 0.51" | 0.63" | 2.78" | 1.3425" | 0.5630" | 0.7795" | 3/8" | 3,554 | 1,942 | SUC206-17 | SPM206 | 2.1 |
| SUCSPM206-18 | 1 1/8" | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.5000" | 0.6260" | 0.8740" | 1/2" | 3,554 | 1,942 | SUC206-18 | SPM206 | 2.1 |
| SUCSPM206 | 30mm | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.5000" | 0.6260" | 0.8740" | 1/2" | 3,554 | 1,942 | SUC206 | SPM206 | 2.1 |
| SUCSPM206-19 | 1 3/16" | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.5000" | 0.6260" | 0.8740" | 1/2" | 3,554 | 1,942 | SUC206-19 | SPM206 | 2.1 |
| SUCSPM206-20 | 1 1/4" | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.5000" | 0.6260" | 0.8740" | 1/2" | 3,554 | 1,942 | SUC206-20 | SPM206 | 2.1 |
| SUCSPM207-20 | 1 1/4" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.6890" | 0.6890" | 1.0000" | 1/2" | 4,683 | 2,626 | SUC207-20 | SPM207 | 3.3 |
| SUCSPM207-21 | 1 5/16" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.6890" | 0.6890" | 1.0000" | 1/2" | 4,683 | 2,626 | SUC207-21 | SPM207 | 3.3 |
| SUCSPM207-22 | 1 3/8" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.6890" | 0.6890" | 1.0000" | 1/2" | 4,683 | 2,626 | SUC207-22 | SPM207 | 3.3 |
| SUCSPM207 | 35mm | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.6890" | 0.6890" | 1.0000" | 1/2" | 4,683 | 2,626 | SUC207 | SPM207 | 3.3 |
| SUCSPM207-23 | 1-7/16" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.6890" | 0.6890" | 1.0000" | 1/2" | 4,683 | 2,626 | SUC207-23 | SPM207 | 3.3 |
| SUCSPM208-24 | 1 1/2" | 1.938" | 2.11" | 0.83" | 0.67" | 0.71" | 3.92" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 5,294 | 3,057 | SUC208-24 | SPM208 | 4.4 |
| SUCSPM208-25 | 1 9/16" | 1.938" | 2.11" | 0.83" | 0.67" | 0.71" | 3.92" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 5,294 | 3,057 | SUC208-25 | SPM208 | 4.4 |
| SUCSPM208 | 40mm | 1.938" | 2.11" | 0.83" | 0.67" | 0.71" | 3.92" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 5,294 | 3,057 | SUC208 | SPM208 | 4.4 |
| SUCSPM209-26 | 1 5/8" | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 5,923 | 3,507 | SUC209-26 | SPM209 | 5.8 |
| SUCSPM209-27 | 1 11/16" | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 5,923 | 3,507 | SUC209-27 | SPM209 | 5.8 |
| SUCSPM209-28 | 1 3/4" | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 5,923 | 3,507 | SUC209-28 | SPM209 | 5.8 |
| SUCSPM209 | 45mm | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 5,923 | 3,507 | SUC209 | SPM209 | 5.8 |
| SUCSPM210-30 | 1 7/8" | 2.250" | 2.34" | 0.98" | 0.79" | 0.88" | 4.43" | 2.0315" | 0.7480" | 1.2835" | 5/8" | 6,402 | 4,046 | SUC210-30 | SPM210 | 6.1 |
| SUCSPM210-31 | 1 15/16" | 2.250" | 2.34" | 0.98" | 0.79" | 0.88" | 4.43" | 2.0315" | 0.7480" | 1.2835" | 5/8" | 6,402 | 4,046 | SUC210-31 | SPM210 | 6.1 |
| SUCSPM210 | 50mm | 2.250" | 2.34" | 0.98" | 0.79" | 0.88" | 4.43" | 2.0315" | 0.7480" | 1.2835" | 5/8" | 6,402 | 4,046 | SUC210 | SPM210 | 6.1 |
| SUCSPM210-32 | 2" | 2.250" | 2.34" | 0.98" | 0.79" | 0.88" | 4.43" | 2.0315" | 0.7480" | 1.2835" | 5/8" | 6,402 | 4,046 | SUC210-32 | SPM210 | 6.1 |
| SUCSPM211-32 | 2" | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.1890" | 0.8740" | 1.3150" | 5/8" | 7,931 | 5,036 | SUC211-32 | SPM211 | 7.8 |
| SUCSPM211-34 | 2 1/8" | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.1890" | 0.8740" | 1.3150" | 5/8" | 7,931 | 5,036 | SUC211-34 | SPM211 | 7.8 |
| SUCSPM211 | 55mm | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.1890" | 0.8740" | 1.3150" | 5/8" | 7,931 | 5,036 | SUC211 | SPM211 | 7.8 |
| SUCSPM211-35 | 2 3/16" | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.1890" | 0.8740" | 1.3150" | 5/8" | 7,931 | 5,036 | SUC211-35 | SPM211 | 7.8 |
| SUCSPM212-36 | 2 1/4" | 2.750" | 2.72" | 0.98" | 0.79" | 0.98" | 5.35" | 2.5630" | 1.0000" | 1.5630" | 5/8" | 9,554 | 5,921 | SUC212-36 | SPM212 | 9.8 |
| SUCSPM212 | 60mm | 2.750" | 2.72" | 0.98" | 0.79" | 0.98" | 5.35" | 2.5630" | 1.0000" | 1.5630" | 5/8" | 9,554 | 5,921 | SUC212 | SPM212 | 9.8 |
| SUCSPM212-38 | 2 3/8" | 2.750" | 2.72" | 0.98" | 0.79" | 0.98" | 5.35" | 2.5630" | 1.0000" | 1.5630" | 5/8" | 9,554 | 5,921 | SUC212-38 | SPM212 | 9.8 |
| SUCSPM212-39 | 2 7/16" | 2.750" | 2.72" | 0.98" | 0.79" | 0.98" | 5.35" | 2.5630" | 1.0000" | 1.5630" | 5/8" | 9,554 | 5,921 | SUC212-39 | SPM212 | 9.8 |

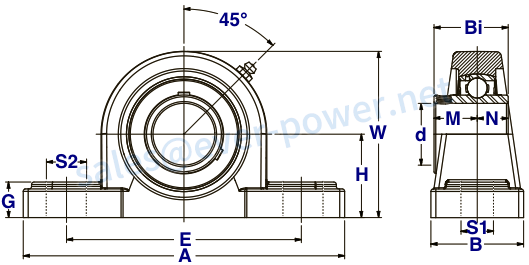

(2)SNCSPM 200 Normal Duty 2-Bolt Pillow Block Bearings With Eccentric Locking Collar
 |
 |
|
Bearing # |
Shaft Diameter (d) |
(H) |
(B) |
(S2) |
(S1) |
(G) |
(W) |
(Bi) |
(N) |
(M) |
Bolt |
Dynamic Load Rating (LBS) |
Static Load Rating (LBS) |
Bearing Insert |
Housing Number |
Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SNCSPM201-8 | 1/2" | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.5472" | 0.5000" | 0.6732" | 3/8" | 2,331 | 1,142 | SNC201-8 | SPM204 | 1.6 |
| SNCSPM202-10 | 5/8" | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.5472" | 0.5000" | 0.6732" | 3/8" | 2,331 | 1,142 | SNC202-10 | SPM204 | 1.6 |
| SNCSPM204-12 | 3/4" | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.5472" | 0.5000" | 0.6732" | 3/8" | 2,331 | 1,142 | SNC204-12 | SPM204 | 1.6 |
| SNCSPM204 | 20mm | 1.313" | 1.46" | 0.75" | 0.51" | 0.59" | 2.52" | 1.5472" | 0.5000" | 0.6732" | 3/8" | 2,331 | 1,142 | SNC204 | SPM204 | 1.6 |
| SNCSPM 205-14 | 7/8" | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.6220" | 0.5630" | 0.6850" | 3/8" | 2,542 | 1,349 | SNC205-14 | SPM205 | 1.9 |
| SNCSPM 205-15 | 15/16" | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.6220" | 0.5630" | 0.6850" | 3/8" | 2,542 | 1,349 | SNC205-15 | SPM205 | 1.9 |
| SNCSPM 205 | 25mm | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.6220" | 0.5630" | 0.6850" | 3/8" | 2,542 | 1,349 | SNC205 | SPM205 | 1.9 |
| SNCSPM 205-16 | 1" | 1.438" | 1.48" | 0.75" | 0.51" | 0.63" | 2.78" | 1.6220" | 0.5630" | 0.6850" | 3/8" | 2,542 | 1,349 | SNC205-16 | SPM205 | 1.9 |
| SNCSPM 206-17 | 1 1/16" | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.8110" | 0.6260" | 0.7165" | 1/2" | 3,554 | 1,942 | SNC206-17 | SPM206 | 2.2 |
| SNCSPM 206-18 | 1 1/8" | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.8110" | 0.6260" | 0.7165" | 1/2" | 3,554 | 1,942 | SNC206-18 | SPM206 | 2.2 |
| SNCSPM 206 | 30mm | 1.689" | 1.84' | 0.83" | 0.67" | 0.67" | 3.27" | 1.8110" | 0.6260" | 0.7165" | 1/2" | 3,554 | 1,942 | SNC206 | SPM206 | 2.2 |
| SNCSPM 206-19 | 1 3/16" | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.8110" | 0.6260" | 0.7165" | 1/2" | 3,554 | 1,942 | SNC206-19 | SPM206 | 2.2 |
| SNCSPM 206-20 | 1 1/4" | 1.689" | 1.84" | 0.83" | 0.67" | 0.67" | 3.27" | 1.8110" | 0.6260" | 0.7165" | 1/2" | 3,554 | 1,942 | SNC206-20 | SPM206 | 2.2 |
| SNCSPM 207-20 | 1 1/4" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.9606" | 0.6890" | 0.7402" | 1/2" | 4,683 | 2,626 | SNC207-20 | SPM207 | 3.5 |
| SNCSPM 207-21 | 1 5/16" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.9606" | 0.6890" | 0.7402" | 1/2" | 4,683 | 2,626 | SNC207-21 | SPM207 | 3.5 |
| SNCSPM 207-22 | 1 3/8" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.9606" | 0.6890" | 0.7402" | 1/2" | 4,683 | 2,626 | SNC207-22 | SPM207 | 3.5 |
| SNCSPM 207 | 35mm | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.9606" | 0.6890" | 0.7402" | 1/2" | 4,683 | 2,626 | SNC207 | SPM207 | 3.5 |
| SNCSPM 207-23 | 1 7/16" | 1.875" | 1.88" | 0.83" | 0.67" | 0.69" | 3.66" | 1.9606" | 0.6890" | 0.7402" | 1/2 | 4,683 | 2,626 | SNC207-23 | SPM207 | 3.5 |
| SNCSPM 208-24 | 1 1/2" | 1.938" | 2.11" | 0.83" | 0.67" | 0.71" | 3.92" | 2.1220" | 0.7480" | 0.8425" | 1/2" | 5,294 | 3,057 | SNC208-24 | SPM208 | 4.7 |
| SNCSPM 208-25 | 1 9/16" | 1.938" | 2.11" | 0.83" | 0.67" | 0.71" | 3.92" | 2.1220" | 0.7480" | 0.8425" | 1/2" | 5,294 | 3,057 | SNC208-25 | SPM208 | 4.7 |
| SNCSPM 208 | 40mm | 1.938" | 2.11" | 0.83" | 0.67" | 0.71" | 3.92" | 2.1220" | 0.7480" | 0.8425" | 1/2" | 5,294 | 3,057 | SNC208 | SPM208 | 4.7 |
| SNCSPM 209-26 | 1 5/8" | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 2.1220" | 0.7480" | 0.8425" | 1/2" | 5,923 | 3,507 | SNC209-26 | SPM209 | 6.1 |
| SNCSPM 209-27 | 1 11/16" | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 2.1220" | 0.7480" | 0.8425" | 1/2" | 5,923 | 3,507 | SNC209-27 | SPM209 | 6.1 |
| SNCSPM 209-28 | 1 3/4" | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 2.1220" | 0.7480" | 0.8425" | 1/2" | 5,923 | 3,507 | SNC209-28 | SPM209 | 6.1 |
| SNCSPM 209 | 45mm | 2.125" | 2.11" | 0.83" | 0.67" | 0.79" | 4.15" | 2.1220" | 0.7480" | 0.8425" | 1/2" | 5,923 | 3,507 | SNC209 | SPM209 | 6.1 |
| SNCSPM 210-30 | 1 7/8" | 2.250" | 2.34" | 0.98" | 0.79" | 0.79" | 4.43" | 2.2480" | 0.7480" | 0.9685" | 5/8" | 6,402 | 4,046 | SNC210-30 | SPM210 | 6.6 |
| SNCSPM 210-31 | 1 15/16" | 2.250" | 2.34" | 0.98" | 0.79" | 0.79" | 4.43" | 2.2480" | 0.7480" | 0.9685" | 5/8" | 6,402 | 4,046 | SNC210-31 | SPM210 | 6.6 |
| SNCSPM 210 | 50mm | 2.250" | 2.34" | 0.98" | 0.79" | 0.79" | 4.43" | 2.2480" | 0.7480" | 0.9685" | 5/8" | 6,402 | 4,046 | SNC210 | SPM210 | 6.6 |
| SNCSPM 210-32 | 2" | 2.250" | 2.34" | 0.98" | 0.79" | 0.79" | 4.43" | 2.2480" | 0.7480" | 0.9685" | 5/8" | 6,402 | 4,046 | SNC210-32 | SPM210 | 6.6 |
| SNCSPM 211-32 | 2" | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.5905" | 0.8740" | 1.0906" | 5/8" | 7,931 | 5,036 | SNC211-32 | SPM211 | 8.5 |
| SNCSPM 211-34 | 2 1/8" | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.5905" | 0.8740" | 1.0906" | 5/8" | 7,931 | 5,036 | SNC211-34 | SPM211 | 8.5 |
| SNCSPM 211 | 55mm | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.5905" | 0.8740" | 1.0906" | 5/8" | 7,931 | 5,036 | SNC211 | SPM211 | 8.5 |
| SNCSPM 211-35 | 2 3/16" | 2.500" | 2.31" | 0.98" | 0.79" | 0.91" | 4.92" | 2.5905" | 0.8740" | 1.0906" | 5/8" | 7,931 | 5,036 | SNC211-35 | SPM211 | 8.5 |
| SNCSPM 212-36 | 2 1/4" | 2.750" | 2.72" | 0.98' | 0.79" | 0.98" | 5.35 | 2.8425 72.2 | 1.0000 25.4 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SNC 212-36 | SPM 212 | 10.6 4.8 |
| SNCSPM 212 | 60mm | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 2.8425 72.2 | 1.0000 25.4 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SNC 212 | SPM 212 | 10.6 4.8 |
| SNCSPM 212-38 | 2 3/8" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 2.8425 72.2 | 1.0000 25.4 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SNC 212-38 | SPM 212 | 10.6 4.8 |
| SNCSPM 212-39 | 2 7/16" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 2.8425 72.2 | 1.0000 25.4 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SNC 212-39 | SPM 212 | 10.6 4.8 |

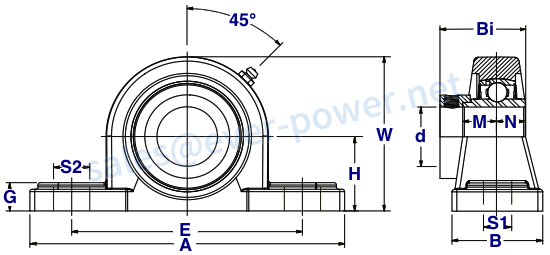

(3)SHCSPM 200 Normal Duty 2-Bolt Pillow Block Bearings With Eccentric Locking Collar and Wide Inner Ring
 |
|
Bearing # |
Shaft Diameter (d) |
(H) |
(B) |
(S2) |
(S1) |
(G) |
(W) |
(Bi) |
(N) |
(M) |
Bolt |
Dynamic Load Rating (LBS) |
Static Load Rating (LBS) |
Bearing Insert |
Housing Number |
Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHCSPM 204-12 | 3/4" | 1.313 33.3 | 1.46 37.0 | 1.46 37.0 | 0.51 13.0 | 0.59 15.0 | 2.52 64.0 | 1.7205 43.7 | 0.6732 17.1 | 0.6732 17.1 | 3/8 M10 | 2,331 10.37 | 1,142 5.08 | SHC 204-12 | SPM 204 | 1.6 0.7 |
| SHCSPM 204 | 20mm | 1.313 33.3 | 1.46 37.0 | 1.46 37.0 | 0.51 13.0 | 0.59 15.0 | 2.52 64.0 | 1.7205 43.7 | 0.6732 17.1 | 0.6732 17.1 | 3/8 M10 | 2,331 10.37 | 1,142 5.08 | SHC 204 | SPM 204 | 1.6 0.7 |
| SHCSPM 205-14 | 7/8" | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.7480 44.4 | 0.6890 17.5 | 0.6850 17.4 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SHC 205-14 | SPM 205 | 1.9 0.9 |
| SHCSPM 205-15 | 15/16" | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.7480 44.4 | 0.6890 17.5 | 0.6850 17.4 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SHC 205-15 | SPM 205 | 1.9 0.9 |
| SHCSPM 205 | 25mm | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.7480 44.4 | 0.6890 17.5 | 0.6850 17.4 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SHC 205 | SPM 205 | 1.9 0.9 |
| SHCSPM 205-16 | 1" | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.7480 44.4 | 0.6890 17.5 | 0.6850 17.4 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SHC 205-16 | SPM 205 | 1.9 0.9 |
| SHCSPM 206-17 | 1 1/16" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.9055 48.4 | 0.7205 18.3 | 0.7165 18.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SHC 206-17 | SPM 206 | 2.2 1.0 |
| SHCSPM 206-18 | 1 1/8" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.9055 48.4 | 0.7205 18.3 | 0.7165 18.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SHC 206-18 | SPM 206 | 2.2 1.0 |
| SHCSPM 206 | 30mm | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.9055 48.4 | 0.7205 18.3 | 0.7165 18.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SHC 206 | SPM 206 | 2.2 1.0 |
| SHCSPM 206-19 | 1 3/16" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.9055 48.4 | 0.7205 18.3 | 0.7165 18.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SHC 206-19 | SPM 206 | 2.2 1.0 |
| SHCSPM 206-20 | 1 1/4" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.9055 48.4 | 0.7205 18.3 | 0.7165 18.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SHC 206-20 | SPM 206 | 2.2 1.0 |
| SHCSPM 207-20 | 1 1/4" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 2.0118 51.1 | 0.7402 18.8 | 0.7402 18.8 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SHC 207-20 | SPM 207 | 3.5 1.6 |
| SHCSPM 207-21 | 1 5/16" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 2.0118 51.1 | 0.7402 18.8 | 0.7402 18.8 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SHC 207-21 | SPM 207 | 3.5 1.6 |
| SHCSPM 207-22 | 1 3/8" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 2.0118 51.1 | 0.7402 18.8 | 0.7402 18.8 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SHC 207-22 | SPM 207 | 3.5 1.6 |
| SHCSPM 207 | 35mm | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 2.0118 51.1 | 0.7402 18.8 | 0.7402 18.8 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SHC 207 | SPM 207 | 3.5 1.6 |
| SHCSPM 207-23 | 1 7/16" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 2.0118 51.1 | 0.7402 18.8 | 0.7402 18.8 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SHC 207-23 | SPM 207 | 3.5 1.6 |
| SHCSPM 208-24 | 1 1/2" | 1.938 49.2 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.71 18.0 | 3.92 99.5 | 2.2165 56.3 | 0.8425 21.4 | 0.8425 21.4 | 1/2 M14 | 5,294 23.55 | 3,057 13.60 | SHC 208-24 | SPM 208 | 4.7 2.1 |
| SHCSPM 208-25 | 1 9/16" | 1.938 49.2 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.71 18.0 | 3.92 99.5 | 2.2165 56.3 | 0.8425 21.4 | 0.8425 21.4 | 1/2 M14 | 5,294 23.55 | 3,057 13.60 | SHC 208-25 | SPM 208 | 4.7 2.1 |
| SHCSPM 208 | 40mm | 1.938 49.2 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.71 18.0 | 3.92 99.5 | 2.2165 56.3 | 0.8425 21.4 | 0.8425 21.4 | 1/2 M14 | 5,294 23.55 | 3,057 13.60 | SHC 208 | SPM 208 | 4.7 2.1 |
| SHCSPM 209-26 | 1 5/8" | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 2.2165 56.3 | 0.8425 21.4 | 0.8425 21.4 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SHC 209-26 | SPM 209 | 6.1 2.8 |
| SHCSPM 209-27 | 1 11/16" | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 2.2165 56.3 | 0.8425 21.4 | 0.8425 21.4 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SHC 209-27 | SPM 209 | 6.1 2.8 |
| SHCSPM 209-28 | 1 3/4" | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 2.2165 56.3 | 0.8425 21.4 | 0.8425 21.4 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SHC 209-28 | SPM 209 | 6.1 2.8 |
| SHCSPM 209 | 45mm | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 2.2165 56.3 | 0.8425 21.4 | 0.8425 21.4 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SHC 209 | SPM 209 | 6.1 2.8 |
| SHCSPM 210-30 | 1 7/8" | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.4685 62.7 | 0.9685 24.6 | 0.9685 24.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SHC 210-30 | SPM 210 | 6.6 3.0 |
| SHCSPM 210-31 | 1 15/16" | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.4685 62.7 | 0.9685 24.6 | 0.9685 24.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SHC 210-31 | SPM 210 | 6.6 3.0 |
| SHCSPM 210 | 50mm | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.4685 62.7 | 0.9685 24.6 | 0.9685 24.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SHC 210 | SPM 210 | 6.6 3.0 |
| SHCSPM 210-32 | 2" | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.4685 62.7 | 0.9685 24.6 | 0.9685 24.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SHC 210-32 | SPM 210 | 6.6 3.0 |
| SHCSPM 211-32 | 2" | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.8110 71.4 | 1.0945 27.8 | 1.0906 27.7 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SHC 211-32 | SPM 211 | 8.5 3.9 |
| SHCSPM 211-34 | 2 1/8" | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.8110 71.4 | 1.0945 27.8 | 1.0906 27.7 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SHC 211-34 | SPM 211 | 8.5 3.9 |
| SHCSPM 211 | 55mm | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.8110 71.4 | 1.0945 27.8 | 1.0906 27.7 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SHC 211 | SPM 211 | 8.5 3.9 |
| SHCSPM 211-35 | 2 3/16" | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.8110 71.4 | 1.0945 27.8 | 1.0906 27.7 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SHC 211-35 | SPM 211 | 8.5 3.9 |
| SHCSPM 212-36 | 2 1/4" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 3.0630 77.8 | 1.2205 31.0 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SHC 212-36 | SPM 212 | 10.6 4.8 |
| SHCSPM 212 | 60mm | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 3.0630 77.8 | 1.2205 31.0 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SHC 212 | SPM 212 | 10.6 4.8 |
| SHCSPM 212-38 | 2 3/8" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 3.0630 77.8 | 1.2205 31.0 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SHC 212-38 | SPM 212 | 10.6 4.8 |
| SHCSPM 212-39 | 2 7/16" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 3.0630 77.8 | 1.2205 31.0 | 1.2165 30.9 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SHC 212-39 | SPM 212 | 10.6 4.8 |

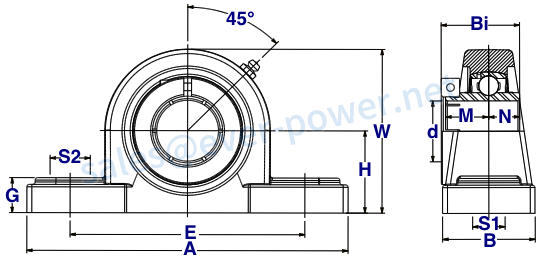

(4)SUESPM 200 Normal Duty 2-Bolt Pillow Block Bearings With Tru-Loc Clamp
 |
|
Bearing # |
Shaft Diameter (d) |
(H) |
(B) |
(S2) |
(S1) |
(G) |
(W) |
(Bi) |
(N) |
(M) |
Bolt |
Dynamic Load Rating (LBS) |
Static Load Rating (LBS) |
Bearing Insert |
Housing Number |
Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUESPM 204-12 | 3/4" | 1.313 33.3 | 1.46 37.0 | 0.75 19.0 | 0.51 13.0 | 0.59 15.0 | 2.52 64.0 | 1.2992 33.0 | 0.5000 12.7 | 0.7205 18.3 | 3/8 M10 | 2,331 10.37 | 1,142 5.08 | SUE 204-12 | SPM 204 | 1.5 0.7 |
| SUESPM 204 | 20mm | 1.313 33.3 | 1.46 37.0 | 0.75 19.0 | 0.51 13.0 | 0.59 15.0 | 2.52 64.0 | 1.2992 33.0 | 0.5000 12.7 | 0.7205 18.3 | 3/8 M10 | 2,331 10.37 | 1,142 5.08 | SUE 204 | SPM 204 | 1.5 0.7 |
| SUESPM 205-14 | 7/8" | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.3937 35.4 | 0.5630 14.3 | 0.7795 19.8 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SUE 205-14 | SPM 205 | 1.8 0.8 |
| SUESPM 205-15 | 15/16" | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.3937 35.4 | 0.5630 14.3 | 0.7795 19.8 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SUE 205-15 | SPM 205 | 1.8 0.8 |
| SUESPM 205 | 25mm | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.3937 35.4 | 0.5630 14.3 | 0.7795 19.8 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SUE 205 | SPM 205 | 1.8 0.8 |
| SUESPM 205-16 | 1" | 1.438 36.5 | 1.48 37.5 | 0.75 19.0 | 0.51 13.0 | 0.63 16.0 | 2.78 70.5 | 1.3937 35.4 | 0.5630 14.3 | 0.7795 19.8 | 3/8 M10 | 2,542 11.31 | 1,349 6.00 | SUE 205-16 | SPM 205 | 1.8 0.8 |
| SUESPM 206-17 | 1 1/16" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.5669 39.8 | 0.6260 15.9 | 0.8740 22.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SUE 206-17 | SPM 206 | 2.1 1.0 |
| SUESPM 206-18 | 1 1/8" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.5669 39.8 | 0.6260 15.9 | 0.8740 22.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SUE 206-18 | SPM 206 | 2.1 1.0 |
| SUESPM 206 | 30mm | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.5669 39.8 | 0.6260 15.9 | 0.8740 22.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SUE 206 | SPM 206 | 2.1 1.0 |
| SUESPM 206-19 | 1 3/16" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.5669 39.8 | 0.6260 15.9 | 0.8740 22.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | SUE 206-19 | SPM 206 | 2.1 1.0 |
| SUESPM 206-20 | 1 1/4" | 1.689 42.9 | 1.84 47.0 | 0.83 21.0 | 0.67 17.0 | 0.67 17.0 | 3.27 83.0 | 1.5669 39.8 | 0.6260 15.9 | 0.8740 22.2 | 1/2 M14 | 3,554 15.81 | 1,942 8.64 | 苏206 - 20 | SPM 206 | 2.1 1.0 |
| SUESPM 207-20 | 1 1/4" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 1.7283 43.9 | 0.6890 17.5 | 1.0000 25.4 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SUE 207-20 | SPM 207 | 3.3 1.5 |
| SUESPM 207 - 21 | 1 5/16" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 1.7283 43.9 | 0.6890 17.5 | 1.0000 25.4 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SUE 207-21 | SPM 207 | 3.3 1.5 |
| SUESPM 207 - 22 | 1 3/8" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 1.7283 43.9 | 0.6890 17.5 | 1.0000 25.4 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SUE 207-22 | SPM 207 | 3.3 1.5 |
| SUESPM 207 | 35mm | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 1.7283 43.9 | 0.6890 17.5 | 1.0000 25.4 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SUE 207 | SPM 207 | 3.3 1.5 |
| SUESPM 207-23 | 1 7/16" | 1.875 47.6 | 1.88 47.5 | 0.83 21.0 | 0.67 17.0 | 0.69 17.5 | 3.66 93.0 | 1.7283 43.9 | 0.6890 17.5 | 1.0000 25.4 | 1/2 M14 | 4,683 20.83 | 2,626 11.68 | SUE 207-23 | SPM 207 | 3.3 1.5 |
| SUESPM 208-24 | 1 1/2" | 1.938 49.2 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.71 18.0 | 3.92 99.5 | 1.9764 50.2 | 0.7480 19.0 | 1.1890 30.2 | 1/2 M14 | 5,294 23.55 | 3,057 13.60 | SUE 208-24 | SPM 208 | 4.6 2.1 |
| SUESPM 208-25 | 1 9/16" | 1.938 49.2 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.71 18.0 | 3.92 99.5 | 1.9764 50.2 | 0.7480 19.0 | 1.1890 30.2 | 1/2 M14 | 5,294 23.55 | 3,057 13.60 | SUE 208-25 | SPM 208 | 4.6 2.1 |
| SUESPM 208 | 40mm | 1.938 49.2 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.71 18.0 | 3.92 99.5 | 1.9764 50.2 | 0.7480 19.0 | 1.1890 30.2 | 1/2 M14 | 5,294 23.55 | 3,057 13.60 | SUE 208 | SPM 208 | 4.6 2.1 |
| SUESPM 209-26 | 1 5/8" | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 1.9764 50.2 | 0.7480 19.0 | 1.1890 30.2 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SUE 209-26 | SPM 209 | 5.9 2.7 |
| SUESPM 209-27 | 1 11/16" | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 1.9764 50.2 | 0.7480 19.0 | 1.1890 30.2 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SUE 209-27 | SPM 209 | 5.9 2.7 |
| SUESPM 209-28 | 1 3/4" | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 1.9764 50.2 | 0.7480 19.0 | 1.1890 30.2 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SUE 209-28 | SPM 209 | 5.9 2.7 |
| SUESPM 209 | 45mm | 2.125 54.0 | 2.11 53.5 | 0.83 21.0 | 0.67 17.0 | 0.79 20.0 | 4.15 105.5 | 1.9764 50.2 | 0.7480 19.0 | 1.1890 30.2 | 1/2 M14 | 5,923 26.35 | 3,507 15.60 | SUE 209 | SPM 209 | 5.9 2.7 |
| SUESPM 210-30 | 1 7/8" | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.0709 52.6 | 0.7480 19.0 | 1.2835 32.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SUE 210-30 | SPM 210 | 6.4 2.9 |
| SUESPM 210-31 | 1 15/16" | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.0709 52.6 | 0.7480 19.0 | 1.2835 32.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SUE 210-31 | SPM 210 | 6.4 2.9 |
| SUESPM 210 | 50mm | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.0709 52.6 | 0.7480 19.0 | 1.2835 32.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SUE 210 | SPM 210 | 6.4 2.9 |
| SUESPM 210-32 | 2" | 2.250 57.2 | 2.34 59.5 | 0.98 25.0 | 0.79 20.0 | 0.88 22.0 | 4.43 112.5 | 2.0709 52.6 | 0.7480 19.0 | 1.2835 32.6 | 5/8 M16 | 6,402 28.48 | 4,046 18.00 | SUE 210-32 | SPM 210 | 6.4 2.9 |
| SUESPM 211-32 | 2" | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.2283 56.6 | 0.8740 22.2 | 1.3150 33.4 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SUE 211-32 | SPM 211 | 7.9 3.6 |
| SUESPM 211-34 | 2 1/8" | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.2283 56.6 | 0.8740 22.2 | 1.3150 33.4 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SUE 211-34 | SPM 211 | 7.9 3.6 |
| SUESPM 211 | 55mm | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.2283 56.6 | 0.8740 22.2 | 1.3150 33.4 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SUE 211 | SPM 211 | 7.9 3.6 |
| SUESPM 211-35 | 2 3/16" | 2.500 63.5 | 2.31 59.0 | 0.98 25.0 | 0.79 20.0 | 0.91 23.0 | 4.92 125.0 | 2.2283 56.6 | 0.8740 22.2 | 1.3150 33.4 | 5/8 M16 | 7,931 35.28 | 5,036 22.40 | SUE 211-35 | SPM 211 | 7.9 3.6 |
| SUESPM 212-36 | 2 1/4" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 2.6220 66.6 | 1.0000 25.4 | 1.5630 39.7 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SUE 212-36 | SPM 212 | 9.9 4.5 |
| SUESPM 212 | 60mm | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 2.6220 66.6 | 1.0000 25.4 | 1.5630 39.7 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SUE 212 | SPM 212 | 9.9 4.5 |
| SUESPM 212-38 | 2 3/8" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 2.6220 66.6 | 1.0000 25.4 | 1.5630 39.7 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SUE 212-38 | SPM 212 | 9.9 4.5 |
| SUESPM 212-39 | 2 7/16" | 2.750 69.9 | 2.72 69.0 | 0.98 25.0 | 0.79 20.0 | 0.98 25.0 | 5.35 136.0 | 2.6220 66.6 | 1.0000 25.4 | 1.5630 39.7 | 5/8 M16 | 9,554 42.50 | 5,921 26.34 | SUE 212-39 | SPM 212 | 9.9 4.5 |
Stainless Steel Pillow Block Units
Stainless Steel Pillow Blocks mounted units are made of corrosion-resistant stainless steel and are ideal for the food handling industry, water treatment plants, and saltwater desalinization plants. Balls & Rings are made out of 440 Stainless Steel, Set Screws 410 Stainless Steel, slinger & Seal Frame 302 Stainless Steel, Retainer 302 Stainless Steel, Set Screw locking Collar (SNA only) 304 Stainless Steel, Seal Silicone Rubber Lubrication H-1 Food Grade Grease Operating Temp. Range -10° F to 250° F. Housings are 304 Stainless Steel. They are generally the most effective solution for highly corrosive applications. They do not experience the same flaking, cracking, deformation, or discoloration issues associated with other corrosion-resistant housing materials. They are virtually unaffected by scrapes and can easily handle significant radial loads.
Company Information
We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings,angular contact ball bearings, needle roller bearings,thrust roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need pillow block bearing, please feel free to contact us.
FAQ
Q. Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: How long is your pillow block bearings delivery time?
A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.
Q: Do you provide samples for pillow block bearings? Is it free or extra?
A: Yes, we could offer the sample for free but do not pay the freight cost.
Q: Could you accept OEM and customize pillow block bearings?
A: We can customize it for you according to the sample or drawing.
Q: What are your terms of Payment?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
Q: Will you check these products before shipment?
A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.
Q: What will we do if you are unsatisfied with the product?
A: If you have any abnormalities, please get in touch with us for the first time, and we will immediately process them.
Q: How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way, and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirmed the PI;
4. Confirm Payment and arrange the production.
If you need pillow block bearings or any models of bearings, please get in touch with us!
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- 包装按客户的需求。
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
我们的大部分产品都是出口到欧洲或Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
