Stainless Steel 4-Bolt Flange Bearings

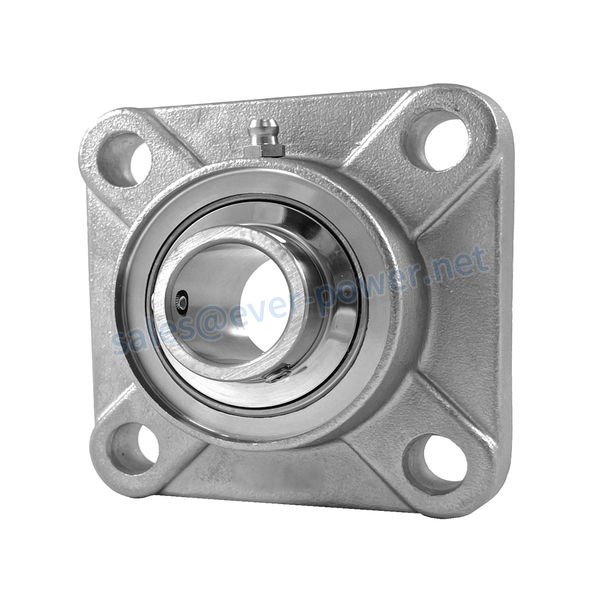

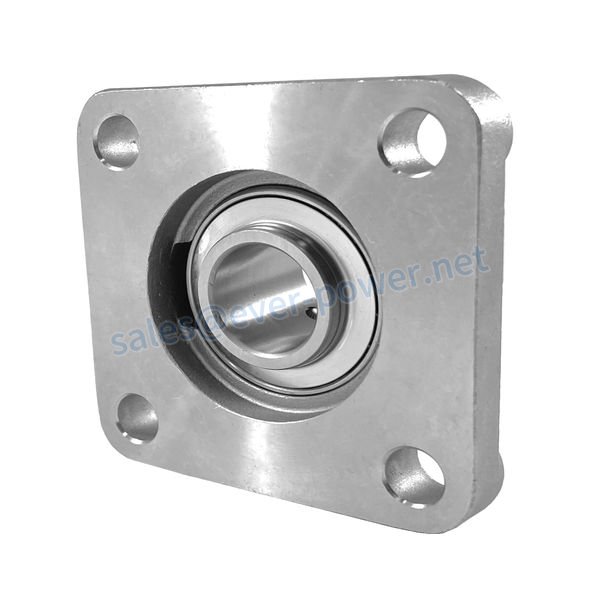

Stainless Steel 4 Bolt Flange Bearings 1

Stainless steel 4-bolt flanged bearing units are designed with a square shape and four mounting holes. The benefit of this design is that with four mounting points, they can handle higher loads than three-bolt or two-bolt flange/flannel units.

Category:
Get a Free Quote

Stainless Steel 4-Bolt Flange Bearings

Stainless steel 4-bolt flanged bearing units are designed with a square shape and four mounting holes. The benefit of this design is that with four mounting points, they can handle higher loads than three-bolt or two-bolt flange/flannel units. Our stainless steel four-bolt flanged bearings are manufactured from high-quality food-grade stainless steel and feature special features that extend bearing life and enhance performance.

Features of Stainless Steel 4-Bolt Flange Bearings

This 4-bolt flange unit can be used in applications with ample space for mounting the housing. The four bolts provide substantial mounting security for high-load applications. Because the housing is made of stainless steel (grade 316), it is rustproof and resistant to corrosion from seawater. It is also resistant to all cleaning products and chemicals. Because of the rounded corners and smooth surfaces, these units are elementary to clean.

Stainless 4-Bolt Flange Bearing Sizes

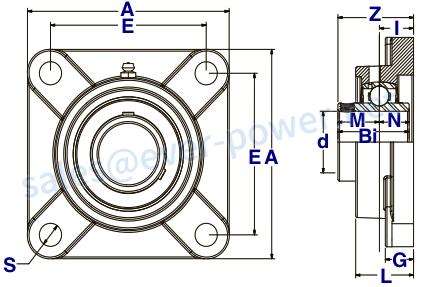

(1)SUCSFM 200 Normal Duty 4-Bolt Flange Bearing With Set Screws
Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUCSFM 201 12 3.38 2.500 0.59 0.47 1.00 0.47 1.31 1.2205 0.5000 0.7205 3/8 2,331 1,142 SUC 201 SFM 204 1.8
SUCSFM 201-8 1/2 3.38 2.500 0.59 0.47 1.00 0.47 1.31 1.2205 0.5000 0.7205 3/8 2,331 1,142 SUC 201-8 SFM 204 1.8
SUCSFM 202 15 3.38 2.500 0.59 0.47 1.00 0.47 1.31 1.2205 0.5000 0.7205 3/8 2,331 1,142 SUC 202 SFM 204 1.8
SUCSFM 202-10 5/8 3.38 2.500 0.59 0.47 1.00 0.47 1.31 1.2205 0.5000 0.7205 3/8 2,331 1,142 SUC 202-10 SFM 204 1.8
SUCSFM 203 17 3.38 2.500 0.59 0.47 1.00 0.47 1.31 1.2205 0.5000 0.7205 3/8 2,331 1,142 SUC 203 SFM 204 1.8
SUCSFM 204-12 3/4 3.38 2.500 0.59 0.47 1.00 0.47 1.31 1.2205 0.5000 0.7205 3/8 2,331 1,142 SUC 204-12 SFM 204 1.8
SUCSFM 204 20 3.38 2.500 0.59 0.47 1.00 0.47 1.31 1.2205 0.5000 0.7205 3/8 2,331 1,142 SUC 204 SFM 204 1.8
SUCSFM 205-14 7/8 3.75 2.750 0.63 0.55 1.06 0.47 1.41 1.3425 0.5630 0.7795 7/16 2,542 1,349 SUC 205-14 SFM 205 2.4
SUCSFM 205-15 15/16 3.75 2.750 0.63 0.55 1.06 0.47 1.41 1.3425 0.5630 0.7795 7/16 2,542 1,349 往下205 - 15 SFM 205 2.4
SUCSFM 205 25 3.75 2.750 0.63 0.55 1.06 0.47 1.41 1.3425 0.5630 0.7795 7/16 2,542 1,349 SUC 205 SFM 205 2.4
SUCSFM 205-16 1 3.75 2.750 0.63 0.55 1.06 0.47 1.41 1.3425 0.5630 0.7795 7/16 2,542 1,349 SUC 205-16 SFM 205 2.4
SUCSFM 206-17 1-1/16 4.25 3.250 0.71 0.55 1.22 0.47 1.58 1.5000 0.6260 0.8740 7/16 3,554 1,942 SUC 206-17 SFM 206 3.1
SUCSFM 206-18 1-1/8 4.25 3.250 0.71 0.55 1.22 0.47 1.58 1.5000 0.6260 0.8740 7/16 3,554 1,942 SUC 206-18 SFM 206 3.1
SUCSFM 206 30 4.25 3.250 0.71 0.55 1.22 0.47 1.58 1.5000 0.6260 0.8740 7/16 3,554 1,942 SUC 206 SFM 206 3.1
SUCSFM 206-19 1-3/16 4.25 3.250 0.71 0.55 1.22 0.47 1.58 1.5000 0.6260 0.8740 7/16 3,554 1,942 SUC 206-19 SFM 206 3.1
SUCSFM 206-20 1-1/4 4.25 3.250 0.71 0.55 1.22 0.47 1.58 1.5000 0.6260 0.8740 7/16 3,554 1,942 SUC 206-20 SFM 206 3.1
SUCSFM 207-20 1-1/4 4.56 3.625 0.75 0.63 1.34 0.55 1.75 1.6890 0.6890 1.0000 1/2 4,683 2,626 SUC 207-20 SFM 207 4.6
SUCSFM 207-21 1-5/16 4.56 3.625 0.75 0.63 1.34 0.55 1.75 1.6890 0.6890 1.0000 1/2 4,683 2,626 SUC 207-21 SFM 207 4.6
SUCSFM 207-22 1-3/8 4.56 3.625 0.75 0.63 1.34 0.55 1.75 1.6890 0.6890 1.0000 1/2 4,683 2,626 SUC 207-22 SFM 207 4.6
SUCSFM 207 35 4.56 3.625 0.75 0.63 1.34 0.55 1.75 1.6890 0.6890 1.0000 1/2 4,683 2,626 SUC 207 SFM 207 4.6
SUCSFM 207-23 1-7/16 4.56 3.625 0.75 0.63 1.34 0.55 1.75 1.6890 0.6890 1.0000 1/2 4,683 2,626 SUC 207-23 SFM 207 4.6
SUCSFM 208-24 1-1/12 5.13 4.000 0.83 0.63 1.42 0.63 2.02 1.9370 0.7480 1.1890 9/16 5,294 3,057 SUC 208-24 SFM 208 5.5
SUCSFM 208-25 1-9/16 5.13 4.000 0.83 0.63 1.42 0.63 2.02 1.9370 0.7480 1.1890 9/16 5,294 3,057 SUC 208-25 SFM 208 5.5
SUCSFM 208 40 5.13 4.000 0.83 0.63 1.42 0.63 2.02 1.9370 0.7480 1.1890 9/16 5,294 3,057 SUC 208 SFM 208 5.5
SUCSFM 209-26 1-5/8 5.38 4.125 0.87 0.71 1.50 0.63 2.06 1.9370 0.7480 1.1890 9/16 5,923 3,507 SUC 209-26 SFM 209 6.8
SUCSFM 209-27 1-11/16 5.38 4.125 0.87 0.71 1.50 0.63 2.06 1.9370 0.7480 1.1890 9/16 5,923 3,507 SUC 209-27 SFM 209 6.8
SUCSFM 209-28 1-3/4 5.38 4.125 0.87 0.71 1.50 0.63 2.06 1.9370 0.7480 1.1890 9/16 5,923 3,507 SUC 209-28 SFM 209 6.8
SUCSFM 209 45 5.38 4.125 0.87 0.71 1.50 0.63 2.06 1.9370 0.7480 1.1890 9/16 5,923 3,507 SUC 209 SFM 209 6.8
SUCSFM 210-30 1-7/8 5.63 4.375 0.87 0.71 1.57 0.63 2.15 2.0315 0.7480 1.2835 9/16 6,402 4,046 SUC 210-30 SFM 210 7.5
SUCSFM 210-31 1-15/16 5.63 4.375 0.87 0.71 1.57 0.63 2.15 2.0315 0.7480 1.2835 9/16 6,402 4,046 SUC 210-31 SFM 210 7.5
SUCSFM 210 50 5.63 4.375 0.87 0.71 1.57 0.63 2.15 2.0315 0.7480 1.2835 9/16 6,402 4,046 SUC 210 SFM 210 7.5
SUCSFM 210-32 2 5.63 4.375 0.87 0.71 1.57 0.63 2.15 2.0315 0.7480 1.2835 9/16 6,402 4,046 SUC 210-32 SFM 210 7.5
SUCSFM 211-32 2 6.38 5.125 0.98 0.79 1.69 0.75 2.31 2.1890 0.8740 1.3150 5/8 7,931 5,036 SUC 211-32 SFM 211 10.1
SUCSFM 211-34 2-1/8 6.38 5.125 0.98 0.79 1.69 0.75 2.31 2.1890 0.8740 1.3150 5/8 7,931 5,036 SUC 211-34 SFM 211 10.1
SUCSFM 211 55 6.38 5.125 0.98 0.79 1.69 0.75 2.31 2.1890 0.8740 1.3150 5/8 7,931 5,036 SUC 211 SFM 211 10.1
SUCSFM 211-35 2-3/16 6.38 5.125 0.98 0.79 1.69 0.75 2.31 2.1890 0.8740 1.3150 5/8 7,931 5,036 SUC 211-35 SFM 211 10.1
SUCSFM 212-36 2-1/4 6.88 5.625 1.13 0.79 1.89 0.75 2.71 2.5630 1.0000 1.5630 5/8 9,554 5,921 SUC 212-36 SFM 212 12.5
SUCSFM 212 60 6.88 5.625 1.13 0.79 1.89 0.75 2.71 2.5630 1.0000 1.5630 5/8 9,554 5,921 SUC 212 SFM 212 12.5
SUCSFM 212-38 2-3/8 6.88 5.625 1.13 0.79 1.89 0.75 2.71 2.5630 1.0000 1.5630 5/8 9,554 5,921 SUC 212-38 SFM 212 12.5
SUCSFM 212-39 2-7/16 6.88 5.625 1.13 0.79 1.89 0.75 2.71 2.5630 1.0000 1.5630 5/8 9,554 5,921 SUC 212-39 SFM 212 12.5

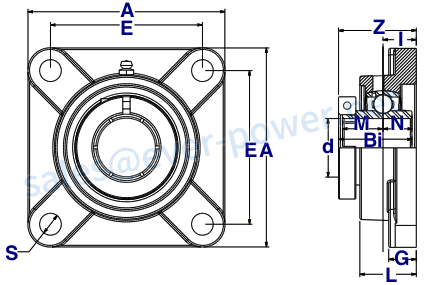

(2)SNCSFM 200 Normal Duty 4-Bolt Flange Bearing With Eccentric Locking Collar
Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(Z)
(Bi)
(N)
(M)
 Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SNCSFM 201-8 1/2 3.8 2.500 0.59 0.47 1.00 0.47 1.64 1.5472 0.5000 0.6732 3/8 2,331 1,142 SNC 201-8 SFM 204 1.8
SNCSFM 202-10 5/8 3.8 2.500 0.59 0.47 1.00 0.47 1.64 1.5472 0.5000 0.6732 3/8 2,331 1,142 SNC 202-10 SFM 204 1.8
SNCSFM 204-12 3/4 3.8 2.500 0.59 0.47 1.00 0.47 1.64 1.5472 0.5000 0.6732 3/8 2,331 1,142 SNC 204-12 SFM 204 1.8
SNCSFM 204 20 3.8 2.500 0.59 0.47 1.00 0.47 1.64 1.5472 0.5000 0.6732 3/8 2,331 1,142 SNC 204 SFM 204 1.8
SNCSFM 205-14 7/8 3.75 2.750 0.63 0.55 1.06 0.47 1.69 1.6220 0.5630 0.6850 7/16 2,542 1,142 SNC 205-14 SFM 205 2.5
SNCSFM 205-15 15/16 3.75 2.750 0.63 0.55 1.06 0.47 1.69 1.6220 0.5630 0.6850 7/16 2,542 1,349 SNC 205-15 SFM 205 2.5
SNCSFM 205 25 3.75 2.750 0.63 0.55 1.06 0.47 1.69 1.6220 0.5630 0.6850 7/16 2,542 1,349 SNC 205 SFM 205 2.5
SNCSFM 205-16 1 3.75 2.750 0.63 0.55 1.06 0.47 1.69 1.6220 0.5630 0.6850 7/16 2,542 1,349 SNC 205-16 SFM 205 2.5
SNCSFM 206-17 1-1/16 4.25 3.250 0.71 0.55 1.22 0.47 1.89 1.8110 0.6260 0.7165 7/16 3,554 1,942 SNC 206-17 SFM 206 3.2
SNCSFM 206-18 1-1/8 4.25 3.250 0.71 0.55 1.22 0.47 1.89 1.8110 0.6260 0.7165 7/16 3,554 1,942 SNC 206-18 SFM 206 3.2
SNCSFM 206 30 4.25 3.250 0.71 0.55 1.22 0.47 1.89 1.8110 0.6260 0.7165 7/16 3,554 1,942 SNC 206 SFM 206 3.2
SNCSFM 206-19 1-3/16 4.25 3.250 0.71 0.55 1.22 0.47 1.89 1.8110 0.6260 0.7165 7/16 3,554 1,942 SNC 206-19 SFM 206 3.2
SNCSFM 206-20 1-1/4 4.25 3.250 0.71 0.55 1.22 0.47 1.89 1.8110 0.6260 0.7165 7/16 3,554 1,942 SNC 206-20 SFM 206 3.2
SNCSFM 207-20 1-1/4 4.56 3.625 0.75 0.63 1.34 0.55 2.02 1.9606 0.6890 0.7402 1/2 4,683 2,626 SNC 207-20 SFM 207 4.8
SNCSFM 207-21 1-5/16 4.56 3.625 0.75 0.63 1.34 0.55 2.02 1.9606 0.6890 0.7402 1/2 4,683 2,626 SNC 207-21 SFM 207 4.8
SNCSFM 207-22 1-3/8 4.56 3.625 0.75 0.63 1.34 0.55 2.02 1.9606 0.6890 0.7402 1/2 4,683 2,626 SNC 207-22 SFM 207 4.8
SNCSFM 207 35 4.56 3.625 0.75 0.63 1.34 0.55 2.02 1.9606 0.6890 0.7402 1/2 4,683 2,626 SNC 207 SFM 207 4.8
SNCSFM 207-23 1-7/16 4.56 3.625 0.75 0.63 1.34 0.55 2.02 1.9606 0.6890 0.7402 1/2 4,683 2,626 SNC 207-23 SFM 207 4.8
SNCSFM 208-24 1-1/2 5.13 4.000 0.83 0.63 1.42 0.63 2.20 2.1220 0.7480 0.8425 9/16 5,294 3,507 SNC 208-24 SFM 208 5.8
SNCSFM 208-25 1-9/16 5.13 4.000 0.83 0.63 1.42 0.63 2.20 2.1220 0.7480 0.8425 9/16 5,294 3,507 SNC 208-25 SFM 208 5.8
SNCSFM 208 40 5.13 4.000 0.83 0.63 1.42 0.63 2.20 2.1220 0.7480 0.8425 9/16 5,294 3,507 SNC 208 SFM 208 5.8
SNCSFM 209-26 1-5/8 5.38 4.125 0.87 0.71 1.50 0.63 2.24 2.1220 0.7480 0.8425 9/16 5,923 3,507 SNC 209-26 SFM 209 7.1
SNCSFM 209-27 1-11/16 5.38 4.125 0.87 0.71 1.50 0.63 2.24 2.1220 0.7480 0.8425 9/16 5,923 3,507 SNC 209-27 SFM 209 7.1
SNCSFM 209-28 1-3/4 5.38 4.125 0.87 0.71 1.50 0.63 2.24 2.1220 0.7480 0.8425 9/16 5,923 3,507 SNC 209 - 28 SFM 209 7.1
SNCSFM 209 45 5.38 4.125 0.87 0.71 1.50 0.63 2.24 2.1220 0.7480 0.8425 9/16 5,923 3,507 SNC 209 SFM 209 7.1
SNCSFM 210-32 1-7/8 5.63 4.375 0.87 0.71 1.57 0.63 2.37 2.2480 0.7480 0.9685 9/16 6,402 4,046 SNC 210-32 SFM 210 8.0
SNCSFM 210-31 1-15/16 5.63 4.375 0.87 0.71 1.57 0.63 2.37 2.2480 0.7480 0.9685 9/16 6,402 4,046 SNC 210-31 SFM 210 8.0
SNCSFM 210 50 5.63 4.375 0.87 0.71 1.57 0.63 2.37 2.2480 0.7480 0.9685 9/16 6,402 4,046 SNC 210 SFM 210 8.0
SNCSFM 210-32 2 5.63 4.375 0.87 0.71 1.57 0.63 2.37 2.2480 0.7480 0.9685 9/16 6,402 4,046 SNC 210-32 SFM 210 8.0
SNCSFM 211-32 2 6.38 5.125 0.98 0.79 1.69 0.75 2.70 2.5906 0.8740 1.0905 5/8 7,931 5,036 SNC 211-32 SFM 211 10.8
SNCSFM 211-34 2-1/8 6.38 5.125 0.98 0.79 1.69 0.75 2.70 2.5906 0.8740 1.0905 5/8 7,931 5,036 SNC 211-34 SFM 211 10.8
SNCSFM 211 55 6.38 5.125 0.98 0.79 1.69 0.75 2.70 2.5906 0.8740 1.0905 5/8 7,931 5,036 SNC 211 SFM 211 10.8
SNCSFM 211-35 2-3/16 6.38 5.125 0.98 0.79 1.69 0.75 2.70 2.5906 0.8740 1.0905 5/8 7,931 5,036 SNC 211-35 SFM 211 10.8
SNCSFM 212-36 2-1/4 6.88 5.625 1.13 0.79 1.89 0.75 2.98 2.8430 1.0000 1.2165 5/8 9,554 5,921 SNC 212-36 SFM 212 13.4
SNCSFM 212 60 6.88 5.625 1.13 0.79 1.89 0.75 2.98 2.8430 1.0000 1.2165 5/8 9,554 5,921 SNC 212 SFM 212 13.4
SNCSFM 212-38 2-3/8 6.88 5.625 1.13 0.79 1.89 0.75 2.98 2.8430 1.0000 1.2165 5/8 9,554 5,921 SNC 212-38 SFM 212 13.4
SNCSFM 212-39 2-7/16 6.88 5.625 1.13 0.79 1.89 0.75 2.98 2.8430 1.0000 1.2165 5/8 9,554 5,921 SNC 212-39 SFM 212 13.4

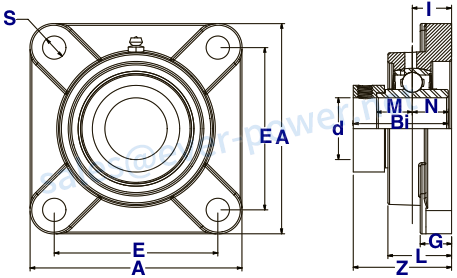

(3)SUESFM 200 Normal Duty 4-Bolt Flange Bearing With Concentric Locking Collar Clamp
Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUESFM 204-12 3/4 3.8 2.500 0.59 0.47 1.00 0.47 1.39 1.2992 0.5000 0.7205 3/8 2,331 1,142 SUE 204-12 SFM 204 1.8
SUESFM 204 20 3.8 2.500 0.59 0.47 1.00 0.47 1.39 1.2992 0.5000 0.7205 3/8 2,331 1,142 SUE 204 SFM 204 1.8
SUESFM 205-14 7/8 3.75 2.750 0.63 0.55 1.06 0.47 1.46 1.3937 0.5630 0.7795 7/16 2,542 1,349 SUE 205-14 SFM 205 2.4
SUESFM 205-15 15/16 3.75 2.750 0.63 0.55 1.06 0.47 1.46 1.3937 0.5630 0.7795 7/16 2,542 1,349 SUE 205-15 SFM 205 2.4
SUESFM 205 25 3.75 2.750 0.63 0.55 1.06 0.47 1.46 1.3937 0.5630 0.7795 7/16 2,542 1,349 SUE 205 SFM 205 2.4
SUESFM 205-16 1 3.75 2.750 0.63 0.55 1.06 0.47 1.46 1.3937 0.5630 0.7795 7/16 2,542 1,349 SUE 205-16 SFM 205 2.4
SUESFM 206-17 1-1/16 4.25 3.250 0.71 0.55 1.22 0.47 1.65 1.5669 0.6260 0.8740 7/16 3,554 1,942 SUE 206-17 SFM 206 3.1
SUESFM 206-18 1-1/8 4.25 3.250 0.71 0.55 1.22 0.47 1.65 1.5669 0.6260 0.8740 7/16 3,554 1,942 SUE 206-18 SFM 206 3.1
SUESFM 206 30 4.25 3.250 0.71 0.55 1.22 0.47 1.65 1.5669 0.6260 0.8740 7/16 3,554 1,942 SUE 206 SFM 206 3.1
SUESFM 206-19 1-3/16 4.25 3.250 0.71 0.55 1.22 0.47 1.65 1.5669 0.6260 0.8740 7/16 3,554 1,942 SUE 206-19 SFM 206 3.1
SUESFM 206-20 1-1/14 4.25 3.250 0.71 0.55 1.22 0.47 1.65 1.5669 0.6260 0.8740 7/16 3,554 1,942 苏206 - 20 SFM 206 3.1
SUESFM 207-20 1-1/4 4.56 3.625 0.75 0.63 1.34 0.55 1.79 1.7283 0.6890 1.0000 1/2 4,683 2,626 SUE 207-20 SFM 207 4.6
SUESFM 207-21 1-5/16 4.56 3.625 0.75 0.63 1.34 0.55 1.79 1.7283 0.6890 1.0000 1/2 4,683 2,626 SUE 207-21 SFM 207 4.6
SUESFM 207-22 1-3/8 4.56 3.625 0.75 0.63 1.34 0.55 1.79 1.7283 0.6890 1.0000 1/2 4,683 2,626 SUE 207-22 SFM 207 4.6
SUESFM 207 35 4.56 3.625 0.75 0.63 1.34 0.55 1.79 1.7283 0.6890 1.0000 1/2 4,683 2,626 SUE 207 SFM 207 4.6
SUESFM 207-23 1-7/16 4.56 3.625 0.75 0.63 1.34 0.55 1.79 1.7283 0.6890 1.0000 1/2 4,683 2,626 SUE 207-23 SFM 207 4.6
SUESFM 208-24 1-1/2 5.13 4.000 0.83 0.63 1.42 0.63 2.06 1.9764 0.7480 1.1890 9/16 5,924 3,057 SUE 208-24 SFM 208 5.6
SUESFM 208-25 1-9/16 5.13 4.000 0.83 0.63 1.42 0.63 2.06 1.9764 0.7480 1.1890 9/16 5,924 3,057 SUE 208-25 SFM 208 5.6
SUESFM 208 40 5.13 4.000 0.83 0.63 1.42 0.63 2.06 1.9764 0.7480 1.1890 9/16 5,924 3,057 SUE 208 SFM 208 5.6
SUESFM 209-26 1-5/8 5.38 4.125 0.87 0.71 1.50 0.63 2.09 1.9764 0.7480 1.1890 9/16 5,923 3,507 SUE 209-26 SFM 209 6.9
SUESFM 209-27 1-11/16 5.38 4.125 0.87 0.71 1.50 0.63 2.09 1.9764 0.7480 1.1890 9/16 5,923 3,507 SUE 209-27 SFM 209 6.9
SUESFM 209-28 1-3/4 5.38 4.125 0.87 0.71 1.50 0.63 2.09 1.9764 0.7480 1.1890 9/16 5,923 3,507 SUE 209-28 SFM 209 6.9
SUESFM 209 45 5.38 4.125 0.87 0.71 1.50 0.63 2.09 1.9764 0.7480 1.1890 9/16 5,923 3,507 SUE 209 SFM 209 6.9
SUESFM 210-30 1-7/8 5.63 4.375 0.87 0.71 1.57 0.63 2.19 2.0709 0.7480 1.2835 9/16 6,402 4,046 SUE 210-30 SFM 210 7.6
SUESFM 210-31 1-15/16 5.63 4.375 0.87 0.71 1.57 0.63 2.19 2.0709 0.7480 1.2835 9/16 6,402 4,046 SUE 210-31 SFM 210 7.6
SUESFM 210 50 5.63 4.375 0.87 0.71 1.57 0.63 2.19 2.0709 0.7480 1.2835 9/16 6,402 4,046 SUE 210 SFM 210 7.6
SUESFM 210-32 2 5.63 4.375 0.87 0.71 1.57 0.63 2.19 2.0709 0.7480 1.2835 9/16 6,402 4,046 SUE 210-32 SFM 210 7.6
SUESFM 211-32 2 6.38 5.125 0.98 0.79 1.69 0.75 2.34 2.2283 0.8740 1.3150 5/8 7,931 5,036 SUE 211-32 SFM 211 10.3
SUESFM 211-34 2-1/8 6.38 5.125 0.98 0.79 1.69 0.75 2.34 2.2283 0.8740 1.3150 5/8 7,931 5,036 SUE 211-34 SFM 211 10.3
SUESFM 211 55 6.38 5.125 0.98 0.79 1.69 0.75 2.34 2.2283 0.8740 1.3150 5/8 7,931 5,036 SUE 211 SFM 211 10.3
SUESFM 211-35 2-3/16 6.38 5.125 0.98 0.79 1.69 0.75 2.34 2.2283 0.8740 1.3150 5/8 7,931 5,036 SUE 211-35 SFM 211 10.3
SUESFM 212-36 2-1/4 6.88 5.625 1.13 0.79 1.89 0.75 2.76 2.6220 1.0000 1.5630 5/8 9,554 5,921 SUE 212-36 SFM 212 12.8
SUESFM 212 60 6.88 5.625 1.13 0.79 1.89 0.75 2.76 2.6220 1.0000 1.5630 5/8 9,554 5,921 SUE 212 SFM 212 12.8
SUESFM 212-38 2-3/8 6.88 5.625 1.13 0.79 1.89 0.75 2.76 2.6220 1.0000 1.5630 5/8 9,554 5,921 SUE 212-38 SFM 212 12.8
SUESFM 212-39 2-7/16 6.88 5.625 1.13 0.79 1.89 0.75 2.76 2.6220 1.0000 1.5630 5/8 9,554 5,921 SUE 212-39 SFM 212 12.8

We Also Supply Other Series Bearings

Company Information

我们是一家专业轴承出口商在中国,producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings,needle roller bearings, crossed roller bearings, pillow block bearing,slewing bearings、普通轴承等。轴承还可以提供OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need stainless steel bearings, please contact us.

FAQ

Q. Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: How long is your delivery time for stainless steel 2-bolt pillow block bearings?

A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples for stainless steel bearings? Is it free or extra?

A: Yes, we could offer the sample for free but do not pay the freight cost.

问:你能接受OEM和定制不锈钢圣eel bearings?

A: We can customize it for you according to the sample or drawing.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

问:你会在装船前检查这些产品吗?

A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.

Q: What will we do if you are unsatisfied with the product?

A: If you have any abnormal, Please contact us for the first time, and we will immediately process them.

Q: How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way, and payment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirmed the PI;

4. Confirm Payment and arrange the production.

Please contact me if you need stainless steel bearings or any models of bearings please contact me!

Related products

Produc

Agricultural Parts
3 Point Quick Hitch
Point Linkage
Post Hole Digger
PTO Shaft
PTO Shaft Parts
Skid Steer Auger
Tiller Blade
Universal Joints
Air Compressor
Air Compressor Applications
Oil-free Air Compressors
Oil-free screw air compressor
Piston Air Compressor
Screw Air Compressor
Scroll Air Compressor
Aluminium Die Casting
Bearing
Ball Bearing
Angular Contact Ball Bearing
Deep Groove Ball Bearing
Self-aligning Ball Bearing
Thrust Ball Bearings
Pillow Block Bearings
Roller Bearing
Crossed Roller Bearings
Cylindrical Roller Bearing
Needle Roller Bearing
Spherical Roller Bearings
Tapered Roller Bearings
Thrust Roller Bearings
Slewing Bearings
Spherical Plain Bearing
Stainless Steel Bearings
Thin Section Bearings
Belt
Bevel Gearboxes
Bushings & Hubs
QD bushings
Split Taper Bushings
stainless steel taper lock bushing
taper lock bushing
Cantilever Bracket
Chains
Agricultural Chain
Attachment Chains
Conveyor Chains
Corrosion Resistant Chain
Drag Chain
Engineering Chain
Leaf Chains
Mega Chains
Special Chain
Stainless steel Chains
Standard Roller Chains
Transmission Chain
Transmission Roller Chains
Coupling
Drive Shaft Cardan Shaft
Gear
Bevel Gear
Double Helical Gear
Helical Gear
Internal Gear
Plastic Gears
Ring Gear
Spiral Bevel Gear
Spur Gear
Worm Gear
Gear Rack
Gearboxes & Reducer
Agricultural Gearbox
Helical Gearbox
Planetary Gearbox
Worm Gearbox
Greenhouse Parts
Connect parts
Greenhouse Motor
Hydraulic Systems
Hydraulic Cylinder
linear motion
Locking Assembly
Motor
Ac Motor
DC Motor
Electric Motor
gear motor
Motor Base
Motors & Brake Motors
permanent magnet synchronous motor
Servo Motor
Synchronous Motors
YE3 series asynchronous motor
Pneumatic Cylinder
Pulleys
Auto Vehicle Pulley
Flat Belt Pulley
Timing Pulley
V Pulley
Shaft Collar
Sheet Metal Parts
Slewing Drive
Speed Variators
Sprocket
Torque Arm
Uncategorized
Vacuum Pump
Vortex Gas Pump

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • 包装按客户的德mand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
