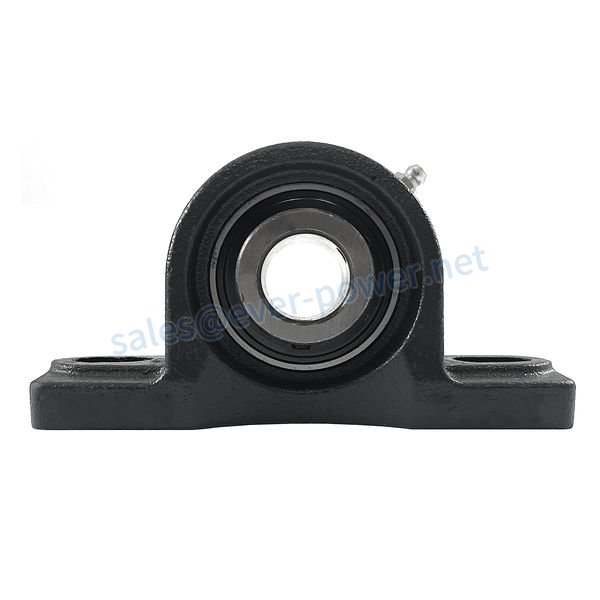

UCPX00 Pillow Block Bearings
UCPX00 pillow block bearings are medium-duty 2-bolt bearings secured to the shaft using two set screws. Our UCPX00 pillow block bearings feature high-performance C3 precision insert bearings housed in high-strength cast housings; they are manufactured to industry standard dimensions and are directly interchangeable with other brands.
UCPX00 Pillow Block Bearings
UCPX00 pillow block bearings are medium-duty 2-bolt bearings secured to the shaft using two set screws. Our UCPX00 pillow block bearings feature high-performance C3 precision insert bearings housed in high-strength cast housings; they are manufactured to industry standard dimensions and are directly interchangeable with other brands. We stock a full range of inch and metric bore UCPX00 pillow block bearings and a range of bearing accessories. For more information or a quote for a UCPX00 pillow block bearings, please get in touch with our customer support team, and we will be happy to assist you.

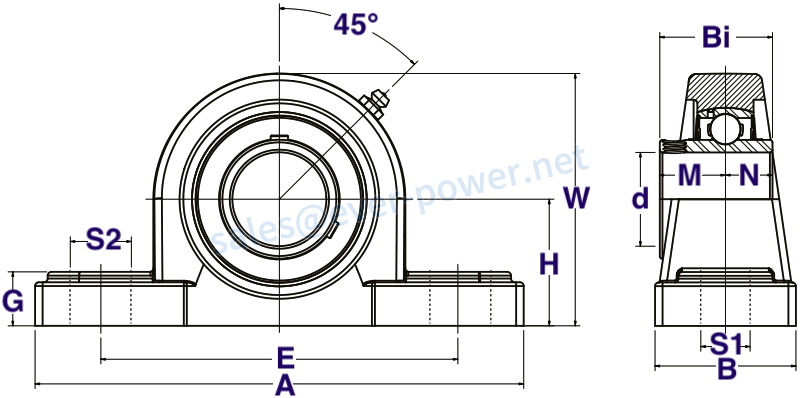

UCPX00 Pillow Block Bearing Sizes
 |
 |
| Bearing # | Shaft Dia. | (H) | (A) | (E) | (B) | (S2) | (S1) | (G) | (W) | (Bi) | (N) | (M) | Bolt Used | Dynamic Load Rating | Static Load Rating | Bearing Insert | Housing Number | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCPX05-14 | 7/8" | 1.750" | 6.25" | 4.69" | 2.00" | 0.98" | 0.56" | 0.71" | 3.38" | 1.5000" | 0.6260" | 0.8740" | 1/2" | 4,377 | 2,569 | UCX 05-14 | PX 05 | 3.1 |
| UCPX05-15 | 15/16" | 1.750" | 6.25" | 4.69" | 2.00" | 0.98" | 0.56" | 0.71" | 3.38" | 1.5000" | 0.6260" | 0.8740" | 1/2" | 4,377 | 2,569 | UCX 05-15 | PX 05 | 3.1 |
| UCPX05 | 25mm | 44.5mm | 159.0mm | 119.0mm | 51.0mm | 25.0mm | 14.2mm | 18.0mm | 85.0mm | 38.1mm | 15.9mm | 22.2mm | M12 | 19.47 kN | 11.43 kN | UCX 05 | PX 05 | 3.1 |
| UCPX05-16 | 1" | 1.750" | 6.25" | 4.69" | 2.00" | 0.98" | 0.56" | 0.71" | 3.38" | 1.5000" | 0.6260" | 0.8740" | 1/2" | 4,377 | 2,569 | UCX 05-16 | PX 05 | 3.1 |
| UCPX06-18 | 1-1/8" | 1.875" | 6.98" | 5.00" | 2.25" | 0.98" | 0.56" | 0.79" | 3.69" | 1.6890" | 0.6890" | 1.0000" | 1/2" | 5,775 | 3,497 | UCX 06-18 | PX 06 | 4.1 |
| UCPX06 | 30mm | 47.6mm | 175.0mm | 127.0mm | 57.0mm | 25.0mm | 14.2mm | 20.0mm | 94.0mm | 42.9mm | 17.5mm | 25.4mm | M12 | 25.69 kN | 15.56 kN | UCX 06 | PX 06 | 4.1 |
| UCPX06-19 | 1-3/16" | 1.875" | 6.98" | 5.00" | 2.25" | 0.98" | 0.56" | 0.79" | 3.69" | 1.6890" | 0.6890" | 1.0000" | 1/2" | 5,775 | 3,497 | UCX 06-19 | PX 06 | 4.1 |
| UCPX06-20 | 1-1/4" | 1.875" | 6.98" | 5.00" | 2.25" | 0.98" | 0.56" | 0.79" | 3.69" | 1.6890" | 0.6890" | 1.0000" | 1/2"" | 5,775 | 3,497 | UCX 06-20 | PX 06 | 4.1 |
| UCPX07-22 | 1-3/8" | 2.125" | 8.00" | 5.69" | 2.25" | 1.18" | 0.56" | 0.88" | 4.13" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 6,634 | 4,079 | UCX 07-22 | PX 07 | 5.3 |
| UCPX07 | 35mm | 54.0mm | 203.0mm | 144.0mm | 57.0mm | 30.0mm | 14.2mm | 22.0mm | 105.0mm | 49.2mm | 19.0mm | 30.2mm | M12 | 29.51kN | 18.14kN | UCX 07 | PX 07 | 5.3 |
| UCPX07-23 | 1-7/16" | 2.125" | 8.00" | 5.69" | 2.25" | 1.18" | 0.56" | 0.88" | 4.13" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 6,634 | 4,079 | UCX 07-23 | PX 07 | 5.3 |
| UCPX08-24 | 1-1/2" | 2.313" | 8.75" | 6.13" | 2.63" | 1.25" | 0.59" | 1.00" | 4.44" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 7,160 | 4,676 | UCX 08-24 | PX 08 | 6.6 |
| UCPX08 | 40mm | 58.7mm | 222.0mm | 156.0mm | 67.0mm | 32.0mm | 15.0mm | 26.0mm | 113.0mm | 49.2mm | 19.0mm | 30.2mm | M14 | 31.85 kN | 20.80 kN | UCX 08 | PX 08 | 6.6 |
| UCPX09-26 | 1-5/8" | 2.313" | 8.75" | 6.13" | 2.63" | 1.31" | 0.72" | 1.00" | 4.56" | 2.0315" | 0.7480" | 1.2835" | 5/8" | 7,867 | 5,330 | UCX 09-26 | PX 09 | 7.3 |
| UCPX09-27 | 1-11/16" | 2.313" | 8.75" | 6.13" | 2.63" | 1.31" | 0.72" | 1.00" | 4.56" | 2.0315" | 0.7480" | 1.2835" | 5/8" | 7,867 | 5,330 | UCX 09-27 | PX 09 | 7.3 |
| UCPX09-28 | 1-3/4" | 2.313" | 8.75" | 6.13" | 2.63" | 1.31" | 0.72" | 1.00" | 4.56" | 2.0315" | 0.7480" | 1.2835" | 5/8" | 7,867 | 5,330 | UCX 09-28 | PX 09 | 7.3 |
| UCPX09 | 45mm | 58.7mm | 222.0mm | 156.0mm | 67.0mm | 33.0mm | 18.3mm | 26.0mm | 116.0mm | 51.6mm | 19.0mm | 32.6mm | M16 | 35.00 kN | 23.71 kN | UCX 09 | PX 09 | 7.3 |
| UCPX10-30 | 1-7/8" | 2.500" | 9.50" | 6.75" | 2.88" | 1.44" | 0.72" | 1.06" | 4.94" | 2.1890" | 0.8740" | 1.3150" | 5/8" | 9,743 | 6,608 | UCX 10-30 | PX 10 | 9.0 |
| UCPX10-31 | 1-15/16" | 2.500" | 9.50" | 6.75" | 2.88" | 1.44" | 0.72" | 1.06" | 4.94" | 2.1890" | 0.8740" | 1.3150" | 5/8" | 9,743 | 6,608 | UCX 10-31 | PX 10 | 9.0 |
| UCPX10 | 50mm | 69.9mm | 260.0mm | 184.0mm | 79.0mm | 36.0mm | 19.8mm | 30.0mm | 139.0mm | 65.1mm | 25.4mm | 39.7mm | M18 | 47.69 kN | 33.43 kN | UCX 10 | PX 10 | 9.0 |
| UCPX10-32 | 2" | 2.500" | 9.50" | 6.75" | 2.88" | 1.44" | 0.72" | 1.06" | 4.94" | 2.1890" | 0.8740" | 1.3150" | 5/8" | 9,743 | 6,608 | UCX 10-32 | PX 10 | 9.0 |
| UCPX11-34 | 2-1/8" | 2.750" | 10.25" | 7.25" | 3.13" | 1.44" | 0.78" | 1.19" | 5.50" | 2.5630” | 1.0000" | 1.5630" | 5/8" | 10,720 | 7,516 | UCX 11-34 | PX 11 | 12.8 |
| UCPX11 | 55mm | 69.9mm | 260.0mm | 184.0mm | 79.0mm | 36.0mm | 19.8mm | 30.0mm | 139.0mm | 65.1mm | 25.4mm | 39.7mm | M18 | 47.69 kN | 33.43 kN | UCX 11 | PX 11 | 12.8 |
| UCPX11-35 | 2-3/16" | 2.750" | 10.25" | 7.25" | 3.13" | 1.44" | 0.78" | 1.19" | 5.50" | 2.5630” | 1.0000" | 1.5630" | 5/8" | 10,720 | 7,516 | UCX 11-35 | PX 11 | 12.8 |
| UCPX11-36 | 2-1/4" | 2.750" | 10.25" | 7.25" | 3.13" | 1.44" | 0.78" | 1.19" | 5.50" | 2.5630” | 1.0000" | 1.5630" | 5/8" | 10,720 | 7,516 | UCX 11-36 | PX 11 | 12.8 |
| UCPX12 | 60mm | 76.2mm | 286.0mm | 203.0mm | 83.0mm | 41.0mm | 20.4mm | 32.0mm | 151.0mm | 65.1mm | 25.4mm | 39.7mm | M18mm | 57.20 kN | 40.01 kN | UCX 12 | PX 12 | 14.8 |
| UCPX12-38 | 2-3/8" | 3.000" | 11.25" | 8.00" | 3.25" | 1.63" | 0.81" | 1.25" | 5.94" | 2.5630” | 1.0000" | 1.5630" | 5/8" | 12,859 | 8,994 | UCX 12-38 | PX 12 | 14.8 |
| UCPX12-39 | 2-7/16" | 3.000" | 11.25" | 8.00" | 3.25" | 1.63" | 0.81" | 1.25" | 5.94" | 2.5630” | 1.0000" | 1.5630" | 5/8" | 12,859 | 8,994 | UCX 12-39 | PX 12 | 14.8 |
| UCPX13-40 | 2-1/2" | 3.000" | 11.25" | 8.00" | 3.25" | 1.63" | 0.81" | 1.25" | 6.06" | 2.9370" | 1.1890" | 1.7480" | 5/8" | 13,981 | 9,869 | UCX 13-40 | PX 13 | 15.9 |
| UCPX13 | 65mm | 76.2mm | 286.0mm | 203.0mm | 83.0mm | 41.0mm | 20.4mm | 32.0mm | 154.0mm | 74.6mm | 30.2mm | 44.4mm | M18 | 62.19 kN | 43.90 kN | UCX 13 | PX 13 | 15.9 |
| UCPX14-43 | 2-11/16" | 3.500" | 13.00" | 9.00" | 3.50" | 2.00" | 1.06" | 1.38" | 6.75" | 3.0630" | 1.3110" | 1.7520" | 7/8" | 14,974 | 10,757 | UCX 14-43 | PX 14 | 20.9 |
| UCPX14 | 70mm | 88.9mm | 330.0mm | 229.0mm | 89.0mm | 51.0mm | 27.0mm | 35.0mm | 172.0mm | 77.8mm | 33.3mm | 44.5mm | M22 | 66.61 kN | 47.85 kN | UCX 14 | PX 14 | 20.9 |
| UCPX15-47 | 2-15/16" | 3.500" | 13.00" | 9.00" | 3.50" | 2.00" | 1.06" | 1.38" | 7.00" | 3.2520" | 1.3110" | 1.9409" | 7/8" | 16,325 | 11,992 | UCX 15-47 | PX 15 | 22.0 |
| UCPX15 | 75mm | 88.9mm | 330.0mm | 223.0mm | 89.0mm | 51.0mm | 27.0mm | 35.0mm | 177.0mm | 82.6mm | 33.3mm | 49.3mm | M22 | 72.62 kN | 53.35 kN | UCX 15 | PX 15 | 22.0 |
| UCPX15-48 | 3" | 3.500" | 13.00" | 9.00" | 3.50" | 2.00" | 1.06" | 1.38" | 7.00" | 3.2520" | 1.3110" | 1.9409" | 7/8" | 16,325 | 11,992 | UCX 15-48 | PX 15 | 22.0 |
| UCPX17 | 85mm | 101.6mm | 381.0mm | 283.0mm | 102.0mm | 59.0mm | 27.0mm | 42.0mm | 202.0mm | 85.7mm | 34.1mm | 51.6mm | M22 | 95.84 kN | 72.64 kN | UCX 17 | PX 17 | 33.9 |
| UCPX17-55 | 3-7/16" | 4.000" | 15.00" | 11.13" | 4.00" | 2.31" | 1.06" | 1.65" | 7.94" | 3.3740" | 1.3425" | 2.0315" | 7/8" | 21,546 | 16,329 | UCX 17-55 | PX 17 | 33.9 |
| UCPX17-56 | 3-1/2" | 4.000" | 15.00" | 11.13" | 4.00" | 2.31" | 1.06" | 1.65" | 7.94" | 3.3740" | 1.3425" | 2.0315" | 7/8" | 21,546 | 16,329 | UCX 17-56 | PX 17 | 33.9 |
| UCPX20 | 100mm | 127.0mm | 432.0mm | 337.0mm | 102.0mm | 51.0mm | 29.0mm | 46.0mm | 250.0mm | 96.0mm | 39.7mm | 56.3mm | M24 | 130.51 kN | 102.94 kN | UCX 20 | PX 20 | 66.2 |
| UCPX20-63 | 3-15/16" | 5.000" | 17.00" | 13.25" | 4.00" | 2.00" | 1.13" | 1.81" | 9.88" | 3.7795" | 1.5630" | 2.2165" | 1" | 29,339 | 23,141 | UCX 20-63 | PX 20 | 66.2 |
| UCPX20-64 | 4" | 5.000" | 17.00" | 13.25" | 4.00" | 2.00" | 1.13" | 1.81" | 9.88" | 3.7795" | 1.5630" | 2.2165" | 1" | 29,339 | 23,141 | UCX 20-64 | PX 20 | 66.2 |
Applications of Pillow block bearing
Pillow block bearing housing material is commonly made of iron or special steel.Pillow Block Bearings广泛应用于采矿、电动马达、转入吗g Mill, tractors, Construction Machinery, Home appliances, Transmission, and other fields.

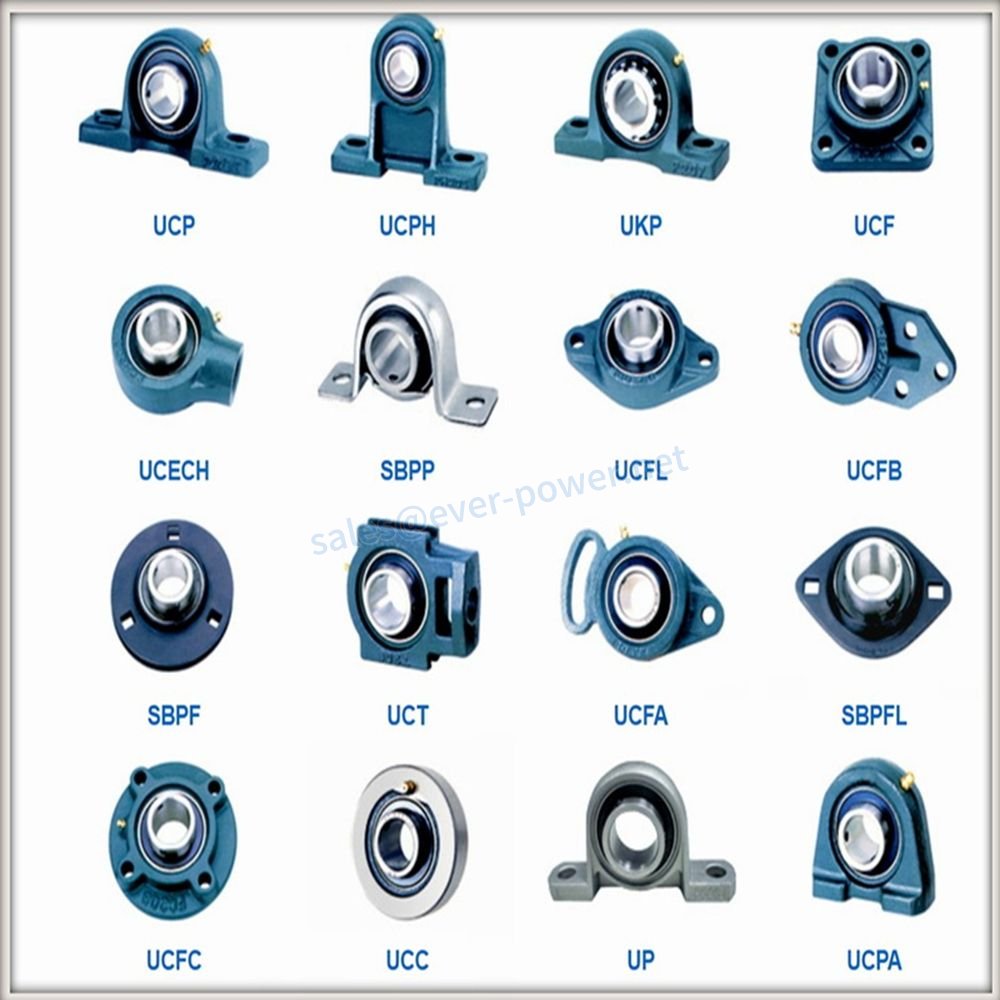

Other series of bearings
