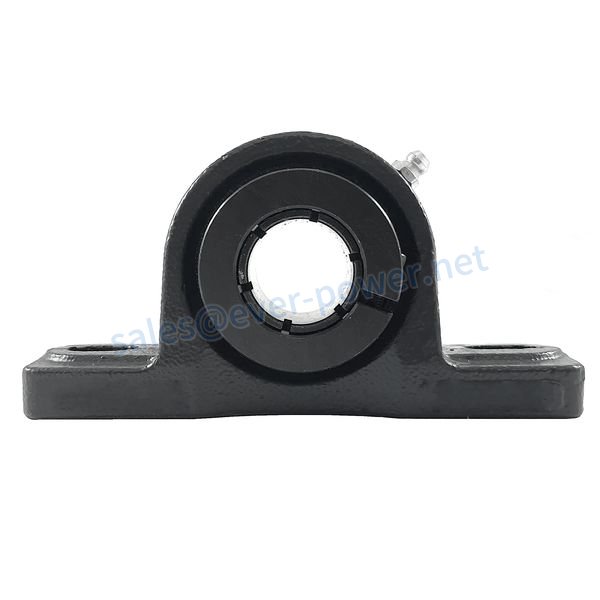

UEP200 Pillow Block Bearings

UEP200 Pillow Block Bearings are plain 2-bolt bearings secured to the shaft using a Tru-Loc device. Our UEP200 bearings feature high-performance C3 precision bearings housed in high-strength cast housings; they are manufactured to industry standard dimensions and are directly interchangeable with other brands. We stock a full range of inch and metric bore UEP200 bearings and a range of bearing accessories.

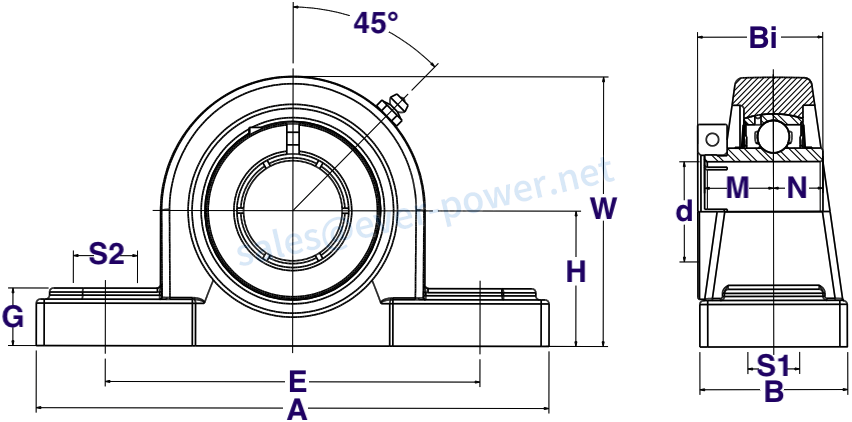

UEP200 Pillow Block Bearing Sizes

The Installation of Pillow Block Bearing

Mounting steps for pillow block bearing:

1. Check whether the position tolerance of the connecting hole at the mounting position of the pillow block bearing and the flatness of the fixed base surface of the pillow block bearing meet the requirements.
2. Cleanpillow block bearingand pillow block bearing to be installed on the base position and the surface of the shaft with a cleaning agent to keep the surface free of impurities and dust, and coat the surface with a layer of anti-rust oil.
3. Install the shaft into the bore of inserted bearing; during the installation process, only use tools such as a rubber hammer or nylon rod to strike the end face of the insert bearing's inner race to move, and do not strike other positions of other bearing housings.
4. 房颤ter the pillow block bearing is installed in the proper position of the shaft, fix the pillow block bearing on the base, and tighten the bolts according to the specified torque requirements.
5. 房颤ter installing the pillow block bearings at both ends, the shaft should be able to move axially between the bearing holes with a certain amount of force, ensuring good alignment of the pillow block bearing at both ends. Otherwise, it is necessary to reposition and adjust the pillow block bearing.
6. Use appropriate torque to alternately tighten the eccentric sleeves on the inner ring of the bearing at both ends to ensure that the bearing is firmly fastened to the shaft.
