Four Point Contact Ball Slewing Bearings

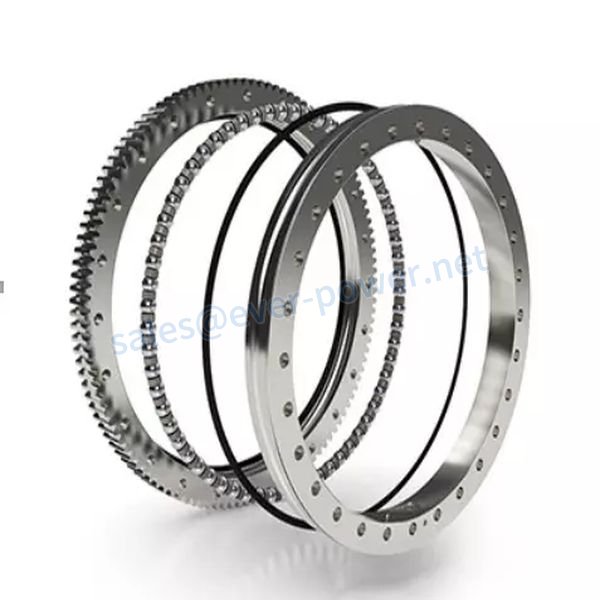

Four-point contact ball slewing bearing is a different type of bearing. It can also be said that it is an angular contact ball bearing that can handle the biaxial axial load. Four-point contact ball slewing bearing mainly consists of an inner ring, an outer ring, a row of steel balls, and a cage (or spacer). The inner and outer ring raceways are peach-shaped cross-sections. When there is no load or pure radial load, the steel ball and the ferrule appear as four-point contact, which is the origin of this name.

Features of Four-point Contact Ball Slewing Bearing

• Four-point contact ball slewing bearing requires a minimum amount of space and can carry either pure axial or combined loading.
• Four-point contact ball slewing bearing can be separated, i.e., the outer ring with ball and cage assembly can be mounted separately from the two inner ring halves. The split inner circle leads to easier mounting and dismounting of the bearing.
• Many balls are incorporated, giving the bearing its high load-carrying capacity.

The basic structures of four-point contact ball slewing bearing are as below:

(1) Without gear

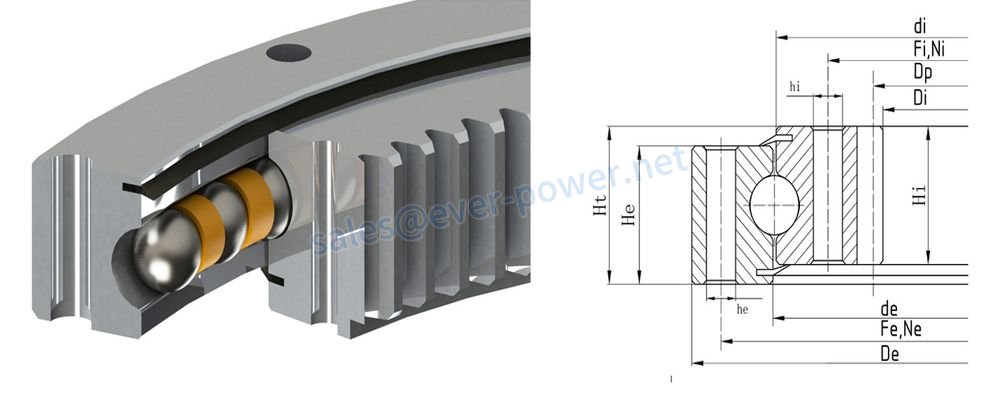

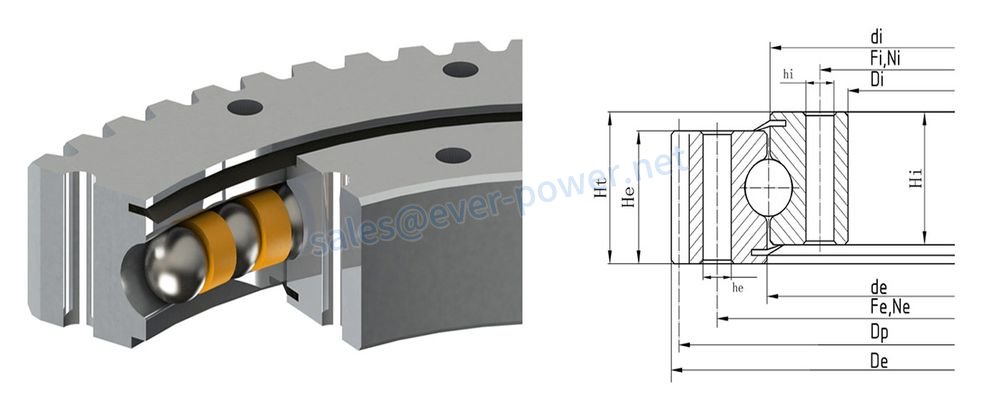

(2) External gear

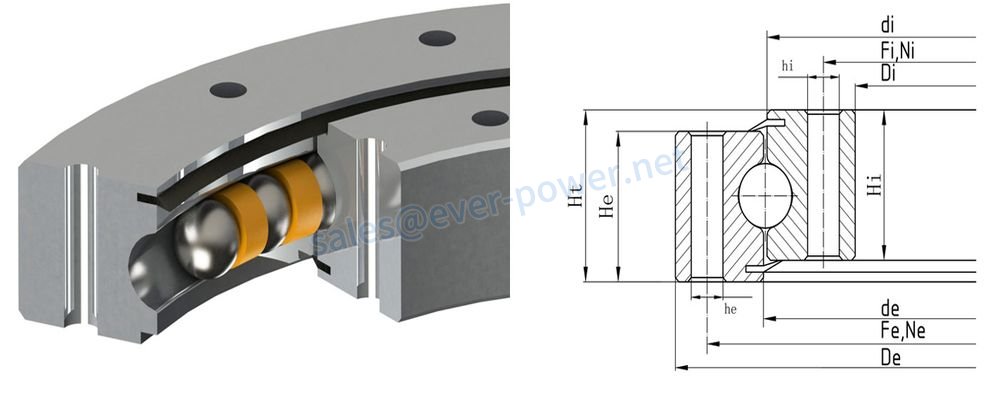

(3) Internal gear

产品标准ameters

(1) Model parameters of external gear type four-point contact ball slewing bearing

Model	Dimensions							Installation size						Tooth parameters				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
1B12-E-0181	244	182	180	125	25	25	25	214	24	11	144.5	20	11	2	120	–	240	–	–
1B17-E-0235	318	236	234	169	37	34	45	275	20	13.5	195	20	M12	3	104	–	312	–	–
1B20-E-0289	379	290	288	210	40	40	45	335	24	13.5	240	24	13.5	4	92	–	372	–	–
1B20-E-0314	404	315.5	312.5	242	45.5	45.5	56	355	20	M12	268	20	14	5	79	–	395	30	23
1B20-E-0414	504	415.5	412.5	342	45.5	45.5	56	455	20	M12	368	24	14	5	99	–	495	30	32
1B20-E-0544	640.8	545.5	542.5	472	45.5	45.5	56	585	28	M12	498	32	14	6	105	–	630	36	43
1B20-E-0644	742.8	645.5	642.5	572	45.5	45.5	56	685	32	M12	598	36	14	6	122	–	732	36	52
1B20-E-0744	838.8	745.5	742.5	672	45.5	45.5	56	785	36	M12	698	40	14	6	138	–	828	36	58
1B20-E-0844	950.4	845.5	842.5	772	45.5	45.5	56	885	36	M12	798	40	14	8	117	–	936	48	71
1B20-E-0944	1046.4	945.5	942.5	872	45.5	45.5	56	985	40	M12	898	44	14	8	129	–	1032	48	77
1B20-E-1094	1198.4	1095.5	1092.5	1022	45.5	45.5	56	1135	44	M12	1048	48	14	8	148	–	1184	48	90
1B25-E-0455	590.4	454	456	355	71	54	80	516	18	M20	395	18	22	8	72	–	576	77.2	74
1B25-E-0555	694.4	554	556	455	71	54	80	616	20	M20	495	20	22	8	85	–	680	77.2	93
1B25-E-0655	798.4	654	656	555	71	54	80	716	24	M20	595	24	22	8	98	–	784	77.2	111
1B25-E-0755	898	754	756	655	71	54	80	816	24	M20	695	24	22	9	98	–	882	86.8	125
1B25-E-0855	997	854	856	755	71	54	80	916	28	M20	795	28	22	9	109	–	981	86.8	145
1B25-E-0955	1096	954	956	855	71	54	80	1016	30	M20	895	30	22	9	120	–	1080	86.8	155
1B25-E-1055	1198	1054	1056	955	71	54	80	1116	30	M20	995	30	22	10	118	–	1180	96.6	171
1B25-E-1155	1298	1154	1156	1055	71	54	80	1216	36	M20	1095	36	22	10	128	–	1280	96.6	186
1B25-E-1255	1398	1254	1256	1155	71	54	80	1316	42	M20	1195	42	22	10	138	–	1380	96.6	201
1B25-E-1355	1498	1354	1356	1255	71	54	80	1416	42	M20	1295	42	22	10	148	–	1480	96.6	218
1B25-E-1455	1598	1454	1456	1355	71	54	80	1516	48	M20	1395	48	22	10	158	–	1580	96.6	233
1B25-E-1204	1338	1207.5	1200.5	1119	58	58	68	1257	45	16	1151	45	16	10	131	5	1310	92.8	154
1B25-E-1314	1448	1317.5	1310.5	1229	58	58	68	1367	50	16	1261	50	16	10	142	5	1420	92.8	166
1B25-E-1424	1558	1427.5	1420.5	1339	58	58	68	1477	54	16	1371	54	16	10	153	5	1530	92.8	180
1B25-E-1534	1668	1537.5	1530.5	1449	58	58	68	1587	60	16	1481	60	16	10	164	5	1640	92.8	193
1B25-E-1644	1791	1647.5	1640.5	1536	58	58	68	1708	54	22	1580	54	22	10	176	6.5	1760	92.8	237
1B25-E-1754	1901	1757.5	1750.5	1646	58	58	68	1818	60	22	1690	60	22	10	187	6.5	1870	92.8	257
1B25-E-1904	2073	1907.5	1900.5	1796	58	58	68	1968	64	22	1840	64	22	14	145	6.5	2030	130	300
1B50-E-1900	2139.2	1898	1902	1729	100	99	109	2005	36	33	1795	36	33	14	150	7	2100	257	820
1B50-E-2130	2380.8	2128	2132	1959	100	99	109	2235	48	33	2025	48	33	16	146	8	2336	293.6	931

(2) Internal gear type four-point contact ball slewing bearing model parameters

Model	Dimensions							Installation size						Tooth parameters				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
1B15-I-0245	300	246	244	174.5	32	32	40	280	20	11	210	20	11	3	60	–	180	–	–
1B20-I-0307	385	309.5	306.5	217	45	45	55	358	24	13.5	259	24	13.5	4	56	–	224	–	–
1B20-I-0314	386	315.5	312.5	225	45.5	45.5	56	360	24	14	275	24	M12	5	47	–	235	31	22
1B20-I-0414	486	415.5	412.5	325	45.5	45.5	56	460	24	14	375	24	M12	5	67	–	335	31	31
1B20-I-0544	616	545.5	542.5	444	45.5	45.5	56	590	32	14	505	32	M12	6	76	–	456	37.4	43
1B20-I-0644	716	645.5	642.5	546	45.5	45.5	56	690	36	14	605	36	M12	6	93	–	558	37.4	50
1B20-I-0744	816	745.5	742.5	648	45.5	45.5	56	790	40	14	705	40	M12	6	110	–	660	37.4	57
1B20-I-0844	916	845.5	842.5	736	45.5	45.5	56	890	40	14	805	40	M12	8	94	–	752	50	69
1B20-I-0944	1016	945.5	942.5	840	45.5	45.5	56	990	44	14	905	44	M12	8	107	–	856	50	75
1B20-I-1094	1166	1095.5	1092.5	984	45.5	45.5	56	1140	48	14	1055	48	M12	8	125	–	1000	50	91
1B25-I-0455	555	454	456	304	54	71	80	515	18	22	394	18	M20	8	40	–	320	80.4	64
1B25-I-0555	655	554	556	416	54	71	80	615	20	22	494	20	M20	8	54	–	432	80.4	76
1B25-I-0655	755	654	656	512	54	71	80	715	24	22	594	24	M20	8	66	–	528	80.4	102
1B25-I-0755	855	754	756	610	54	71	80	815	24	22	694	24	M20	10	63	–	630	100.6	119
1B25-I-0855	955	854	856	710	54	71	80	915	28	22	794	28	M20	10	73	–	730	100.6	137
1B25-I-0955	1055	954	956	810	54	71	80	1015	30	22	894	30	M20	10	83	–	830	100.6	149
1B25-I-1055	1155	1054	1056	910	54	71	80	1115	30	22	994	30	M20	10	93	–	930	100.6	165
1B25-I-1155	1255	1154	1156	1010	54	71	80	1215	36	22	1094	36	M20	10	103	–	1030	100.6	180
1B25-I-1255	1355	1254	1256	1110	54	71	80	1315	42	22	1194	42	M20	10	113	–	1130	100.6	195
1B25-I-1355	1455	1354	1356	1210	54	71	80	1415	42	22	1294	42	M20	10	123	–	1230	100.6	212
1B25-I-1455	1555	1454	1456	1310	54	71	80	1515	48	22	1394	48	M20	10	133	–	1330	100.6	227
1B25-I-1204	1289	1207.5	1200.5	1072	58	58	68	1257	45	16	1151	45	16	10	108	-5	1080	96.6	145
1B25-I-1314	1399	1317.5	1310.5	1182	58	58	68	1367	50	16	1261	50	16	10	119	-5	1190	96.6	159
1B25-I-1424	1509	1427.5	1420.5	1292	58	58	68	1477	54	16	1371	54	16	10	130	-5	1300	96.6	172
1 b25 - i - 1534	1619	1537.5	1530.5	1402	58	58	68	1587	60	16	1481	60	16	10	141	-5	1410	96.6	186
1B25-I-1644	1752	1647.5	1640.5	1495	58	58	68	1708	54	22	1580	54	22	10	150	-6.5	1500	96.6	236
1B25-I-1754	1862	1757.5	1750.5	1605	58	58	68	1818	60	22	1690	60	22	10	161	-6.5	1610	96.6	252
1B25-I-1904	2012	1907.5	1900.5	1729	58	58	68	1968	64	22	1840	64	22	14	124	-6.5	1736	135.2	299
1B50-I-1800	1971	1798	1802	1554	99	100	109	1905	36	33	1695	36	33	14	112	-7	1568	257	762
1B50-I-2000	2171	1998	2002	1764	99	100	109	2105	40	33	1895	40	33	14	127	-7	1778	257	843
1B50-I-2240	2411	2238	2242	1984	99	100	109	2345	48	33	2135	48	33	16	125	-8	2000	293.6	961
1B50-I-2490	2661	2488	2492	2240	99	100	109	2595	54	33	2385	54	33	16	141	-8	2256	293.6	1053
1B50-I-2800	2971	2798	2802	2544	99	100	109	2905	60	33	2695	60	33	16	160	-8	2560	293.6	1205

(3) Gearless four-point contact ball slewing bearing model parameters

Model	Dimensions							Installation size						Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]	[mm]	[mm]	[-]	[mm]	[kg]
1B12-U-0181	234	182	180	125	25	25	25	214	24	11	144.5	20	11	5
1B19-U-0217	290	218	216	150	41.5	40	41.5	265	16	14	175	16	M12	14
1B20-U-0260	329	261	259	190	44	44	45	305	16	14	215	16	14	17
1B20-U-0314	386	315.5	312.5	242	45.5	45.5	56	360	20	14	268	20	14	21
1B20-U-0414	486	415.5	412.5	342	45.5	45.5	56	460	24	14	368	24	14	29
1B20-U-0544	616	545.5	542.5	472	45.5	45.5	56	590	32	14	498	32	14	37
1B20-U-0644	716	645.5	642.5	572	45.5	45.5	56	690	36	14	598	36	14	44
1B20-U-0744	816	745.5	742.5	672	45.5	45.5	56	790	40	14	698	40	14	52
1B20-U-0844	916	845.5	842.5	772	45.5	45.5	56	890	40	14	798	40	14	59
1B20-U-0944	1016	945.5	942.5	872	45.5	45.5	56	990	44	14	898	44	14	66
1B20-U-1094	1166	1095.5	1092.5	1022	45.5	45.5	56	1140	48	14	1048	48	14	77
1B25-U-0455	555	454	456	355	54	54	63	515	18	22	395	18	22	53
1B25-U-0555	655	554	556	455	54	54	63	615	20	22	495	20	22	65
1B25-U-0655	755	654	656	555	54	54	63	715	24	22	595	24	22	76
1B25-U-0755	855	754	756	655	54	54	63	815	24	22	695	24	22	90
1B25-U-0855	955	854	856	755	54	54	63	915	28	22	795	28	22	101
1B25-U-0955	1055	954	956	855	54	54	63	1015	30	22	895	30	22	115
1B25-U-1055	1155	1054	1056	955	54	54	63	1115	30	22	995	30	22	128
1B25-U-1155	1255	1154	1156	1055	54	54	63	1215	36	22	1095	36	22	139
1B25-U-1255	1355	1254	1256	1155	54	54	63	1315	42	22	1195	42	22	150
1B25-U-1355	1455	1354	1356	1255	54	54	63	1415	42	22	1295	42	22	163
1B25-U-1455	1555	1454	1456	1355	54	54	63	1515	48	22	1395	48	22	174
1B25-U-1204	1289	1206	1202	1119	58	58	68	1257	45	16	1151	45	16	121
1B25-U-1314	1399	1316	1312	1229	58	58	68	1367	50	16	1261	50	16	132
1B25-U-1424	1509	1426	1422	1339	58	58	68	1477	54	16	1371	54	16	143
1B25-U-1534	1619	1536	1532	1449	58	58	68	1587	60	16	1481	60	16	154
1B25-U-1644	1752	1646	1642	1536	58	58	68	1708	54	22	1580	54	22	209
1B25-U-1754	1862	1756	1752	1646	58	58	68	1818	60	22	1690	60	22	222
1B25-U-1904	2012	1906	1902	1796	58	58	68	1968	64	22	1840	64	22	241

Application of Four-point Contact Ball Slewing Bearing

• Aerial platform vehicles

Aerial work platform vehicles typically employ such a slewing ring and are compact. This type of slewing bearing is also subjected to axial force, radial force and tilting moment, and is widely used in small and medium-sized construction machinery.

• Truck crane

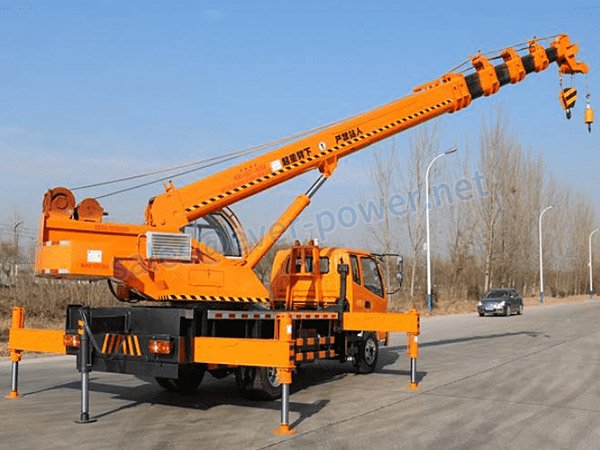

Truck cranes are usually using large single-row four-point contact ball slewing bearings. This slewing bearing can bear more enormous axial, radial, and tilting, enabling the crane to lift heavy loads stably and reliably.

• Excavator

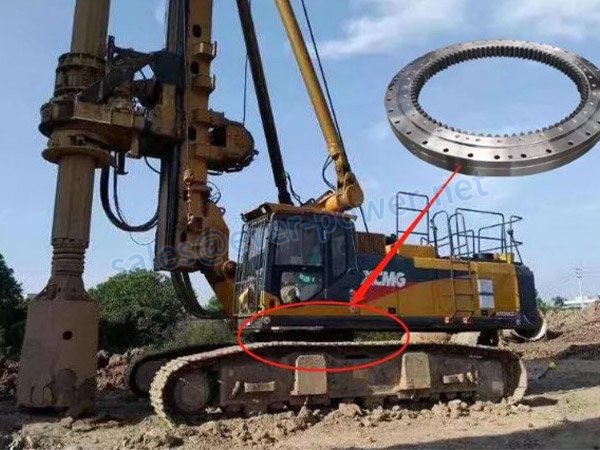

Excavator is usually using internally quenched gear single-row four-point contact ball slewing bearing. This slewing bearing can bear axial load, radial load, and tilting moment and can withstand significant impacts. Rotation is flexible and stable.
