Cross Roller Slewing Bearings

Cross Roller Slew Bearing is with rolling elements in a 90°cross arrangement at 1:1. Due to the roller transmitting load in a single direction and the contact area of the roller being more significant than the ball, the rotational torque is less than a ball-type design. It can provide higher rigidity and strength. Although the crossed roller slew bearing has less load capacity than the ball type with the same size rolling elements, the crossed roller type bearing has higher stability.

Category:Slewing Bearings

Get a Free Quote

Description

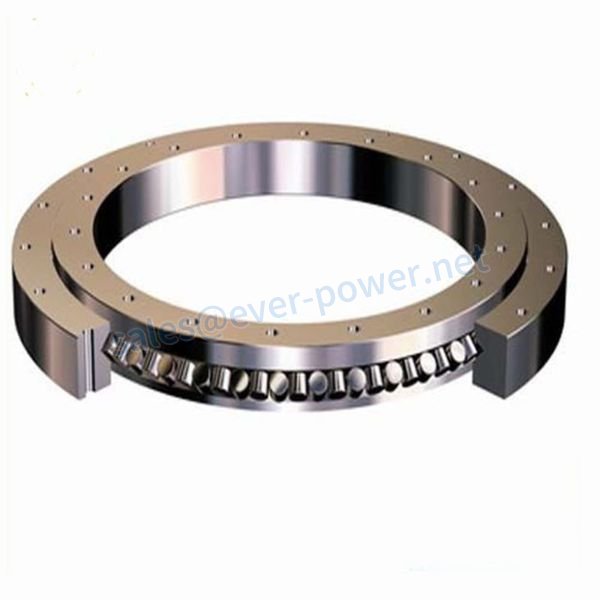

Cross Roller Slewing Bearings

Crossed roller slewing bearing incorporates two rings and is designed with compact construction, lightweight, high precision, and small assembling clearance. The rollers are crossed one by one, enabling the slewing bearing to accommodate high axial, radial, and tilting moment loads. Gear teeth on the outer ring, inner ring or without gear teeth, bearing rings with through-holes or threaded holes for fixing screws.

旋臂交叉滚子轴承由一个内部ring, outer ring, single row roller, cage (gasket), and sealing device. Crossed roller slewing bearings can bear axial load, overturning moment, and radial load at the same time. The design and application of the cross roller slewing ring are the same as the four-point contact ball slewing ring. The difference is that the rolling element is replaced from the ball to the roller, and the contact method between the rolling part and the ring is changed. Point contact becomes line contact. These changes increase load carrying capacity, but wear and friction moment loads also increase.

Features of crossed roller slewing bearing

For mid-to-heavy load applications
High precision and accuracy
High stiffness and rigidity
常数rotational resistance
更高的旋转扭矩
Accept all combinations of axial, radial, and tilting moment loads
Available in gearless, internally geared, and externally gear versions
Available in induction hardened gears
Typical sizes range from 300mm-2000mm, with other sizes upon request.
Available with different corrosion protection coatings
Matching pinions are available for all slewing bearings.

The basic structures of crossed roller slewing bearings are as below:

(1) Without gear

(2) External gear

(3) Internal gear

Product parameters

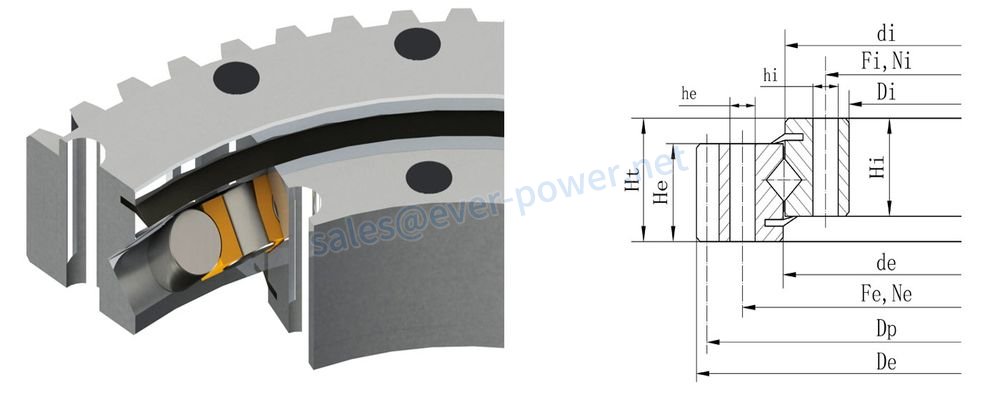

(1) Model parameters of external gear crossed roller slewing bearings

Model	Dimensions							Installation size						Tooth parameters				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
1X14-E-0414	503.3	417	413	342	44.5	44.5	56	455	20	M12	368	24	14	5	99	–	495	30.26	32
1X14-E-0544	640.3	547	543	472	44.5	44.5	56	585	28	M12	498	32	14	6	105	–	630	36.31	43
1X14-E-0644	742.3	647	643	572	44.5	44.5	56	685	32	M12	598	36	14	6	122	–	732	36.31	52
1X14-E-0744	838.1	747	743	672	44.5	44.5	56	785	36	M12	698	40	14	6	138	–	828	36.31	58
1X14-E-0844	950.1	847	843	772	44.5	44.5	56	885	36	M12	798	40	14	8	117	–	936	48.42	71
1X14-E-0944	1046.1	947	943	872	44.5	44.5	56	985	40	M12	898	44	14	8	129	–	1032	48.42	77
1X14-E-1044	1198.1	1097	1093	1022	44.5	44.5	56	1135	44	M12	1048	48	14	8	148	–	1184	48.42	90
1X16-E-1204	1338	1206	1202	1119	58	58	68	1257	45	16	1151	45	16	10	131	–	1310	92.8	154
1X16-E-1314	1448	1316	1312	1229	58	58	68	1367	50	16	1261	50	16	10	142	–	1420	92.8	168
1X16-E-1424	1558	1426	1422	1339	58	58	68	1477	54	16	1371	54	16	10	153	–	1530	92.8	182
1X16-E-1534	1668	1536	1532	1449	58	58	68	1587	60	16	1481	60	16	10	164	–	1640	92.8	195
1X16-E-1644	1791	1646	1642	1536	58	58	68	1708	54	22	1580	54	22	10	176	–	1760	92.8	242
1X16-E-1754	1901	1756	1752	1646	58	58	68	1818	60	22	1690	60	22	10	187	–	1870	92.8	258
1X20-E-1904	2073.4	1906	1902	1796	58	58	68	1968	64	22	1840	64	22	14	145	–	2030	129.92	306
1X20-E-0307	403.5	308	306	234	47	45	55	358	24	13	259	28-1	13	4.5	88	–	396	15.12	24
1 25 -E-0400	535	401.5	398.5	305	63	63	75	466	18	20	336	18	20	8	65	–	520	35.2	61
1 25 - e - 0475	589	476.5	473.5	383	63	63	75	540	18	20	410	18	20	5	116	–	580	22	63
1X30-E-0508	654	509.5	506.5	391	73	73	85	582	30	22	432	30-1	22	8	80	–	640	38.44	97
1 25 -E-0574	700	575.5	572.5	479	64	64	77	640	36	18	508	36-1	18	6	114	3	690	34.78	82
1 25 -E-0675	816	676.5	673.5	573	73	70	90	753	18	22	604	18	22	6	132	6.552	805.1	37.68	124
1 25 -E-0734	886	735.5	732.5	614	75	70	85	810	30	22	658	30	22	8	108	4	872	57.97	155
1X30-E-0823	979	824.5	821.5	717	79	82	100	893	36	22	753	36-1	22	10	94	11	962	62.8	178
1X30-E-0980	1144	981.5	978.5	869	79	84	100	1050	36	22	910	36	22	10	111	8	1126	64.73	228
1X36-E-1116	1289.5	1118	1114	984	90	94	114	1198	40	22	1035	40	22	10	125	10.5	1271	75.4	335
1X36-E-1250	1476	1252	1248	1079	91	100	110	1350	40	26	1150	40	26	10	144	8．6	1457.2	75.4	505
1X45-E-1390	1604	1392	1388	1204	112	116	130	1500	48	30	1280	48	30	10	157	7.5	1585	87	620
1X45-E-1595	1836	1597	1593	1436	120	115	135	1700	45	30	1485	45	30	16	112	8	1808	185.5	791
1X45-E-1790	2027	1792	1788	1616	130	128	150	1905	48	30	1675	48	30	14	142	7	2002	175.8	1004
1X50-E-2002	2267	2004	2000	1821	129	119	140	2124	72	30	1880	72	30	16	139	8	2240	199.4	1174
1X50-E-2242	2534	2244	2240	2048	132	122	144	2373	60	33	2112	60	33	18	138	9	2502	229.6	1482
1X50-E-2500	2790	2502	2498	2296	148	142	164	2640	72	33	2360	72	33	18	151	19.8	2757.6	257.4	1895
1X50-E-2810	3116	2812	2808	2606	148	142	164	2950	80	33	2670	80	33	20	152	20	3080	286	2200

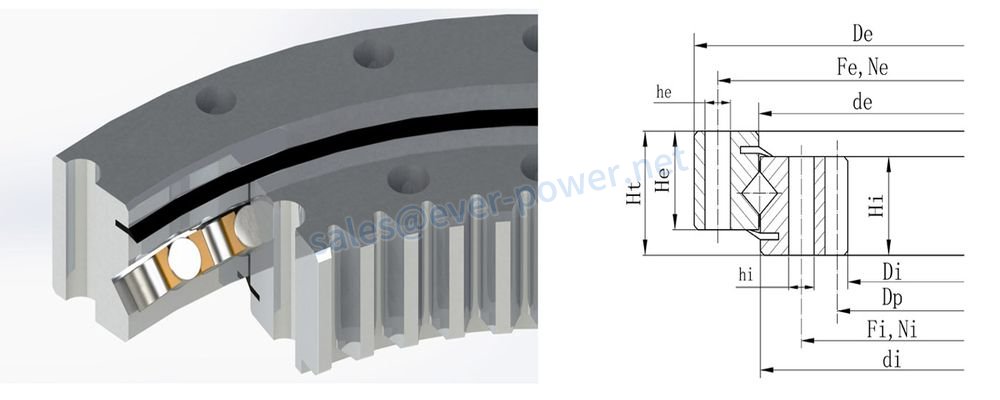

(2) Internal gear type cross roller slewing bearing model parameters

Model	Dimensions							Installation size						Tooth parameters				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	–	[mm]	[kN]	[kg]
1X14-I-0414	484	415	411	325	44.5	44.5	56	460	24	14	375	24	M12	5	67	–	335	26.2	31
1X14-I-0544	614	545	541	444	44.5	44.5	56	590	32	14	505	32	M12	6	76	–	456	35	43
1X14-I-0644	714	645	641	546	44.5	44.5	56	690	36	14	605	36	M12	6	93	–	558	35	50
1X14-I-0744	814	745	741	648	44.5	44.5	56	790	40	14	705	40	M12	6	110	–	660	35	58
1X14-I-0844	914	845	841	736	44.5	44.5	56	890	40	14	805	40	M12	8	94	–	752	46.7	69
1X14-I-0944	1014	945	941	840	44.5	44.5	56	990	44	14	905	44	M12	8	107	–	856	46.7	76
1X14-I-1094	1164	1095	1091	984	44.5	44.5	56	1140	48	14	1055	48	M12	8	125	–	1000	46.7	91
1X16-I-1204	1289	1206	1202	1072	58	58	68	1257	45	16	1151	45	16	10	108	–	1080	96.67	148
1X16-I-1314	1399	1316	1312	1182	58	58	68	1367	50	16	1261	50	16	10	119	–	1190	96.67	161
1X16-I-1424	1509	1426	1422	1292	58	58	68	1477	54	16	1371	54	16	10	130	–	1300	96.67	175
1X16-I-1534	1619	1536	1532	1402	58	58	68	1587	60	16	1481	60	16	10	141	–	1410	96.67	189
1X16-I-1644	1752	1646	1642	1495	58	58	68	1708	54	22	1580	54	22	10	150	–	1500	96.67	239
1X16-I-1754	1862	1756	1752	1605	58	58	68	1818	60	22	1690	60	22	10	161	–	1610	96.67	256
1X20-I-1904	2012	1906	1902	1729	58	58	68	1968	64	22	1840	64	22	14	124	–	1736	135.33	304
1X16-I-0380	451	381	379	291	45	45	55	425	24	13.5	335	24	13.5	5	60	–	300	–	28
1X20-I-0489	562	490.5	487.5	385	50	50	60	538	30	14	440	30	14	6	66	–	396	–	44
1X20-I-0573	665	574.5	571.5	457	50	50	60	630	28	17.5	518	28	17.5	6	77	-3	468	–	62
1 25 -I-0673	771	674.5	671.5	541	60	60	70	736	32	17.5	610	32	17.5	6	91	-3	552	–	96
1 25 -I-0714	825	715.5	712.5	567.5	62	78	90	785	26	18	640	20	18	7	82	–	581	–	135
1 25 -I-0770	871	771.5	768.5	634	60	60	70	833	36	17.5	707	36	17.5	8	80	-4	648	–	112
1 25 -I-0849	960	850.5	847.5	706	65	65	70	914	30	22	784	30	22	8	89	-4	720	–	14.4
1 25 -I-0946	1066	947.5	944.5	785	65	75	85	1015	36	22	880	36	22	10	79	-6.52	803.04	–	190
1 25 -I-1050	1170	1052	1048	882	80	88	98	1125	40	22	975	40	22	10	89	–	900	–	258
1X30-I-1140	1251	1143	1138	979	75	75	91	1212	40	22	1068	40	22	10	99	-3.2	996.4	–	239
1X30-I-1304	1431	1306	1302	1132	82	85	97	1380	48	22	1228	48	22	10	115	–	1150	–	323
1X40-I-1385	1530	1387	1383	1178	107	107	130	1480	36	26	1290	36	26	12	100	–	1200	–	541
1X45-I-1606	1770	1608	1604	1375	125	125	150	1710	48	30	1500	48	30	14	100	–	1400	–	802
1X45-I-1830	2002	1832	1828	1595	125	125	150	1940	54	30	1720	54	30	14	115	-4.9	1619.8	–	951
1X50-I-1997	2190	1999	1995	1731	127	132	144	2130	72	30	1880	72	30	16	109	-8	1760	–	1199
1X50-I-2400	2590	2402	2398	2110	135	145	160	2520	80	30	2280	80	30	18	118	-9	2142	–	1626
1X50-I-2810	3020	2812	2808	2495	140	148	158	2950	72	36	2670	72	36	20	126	-6	2532	–	2154

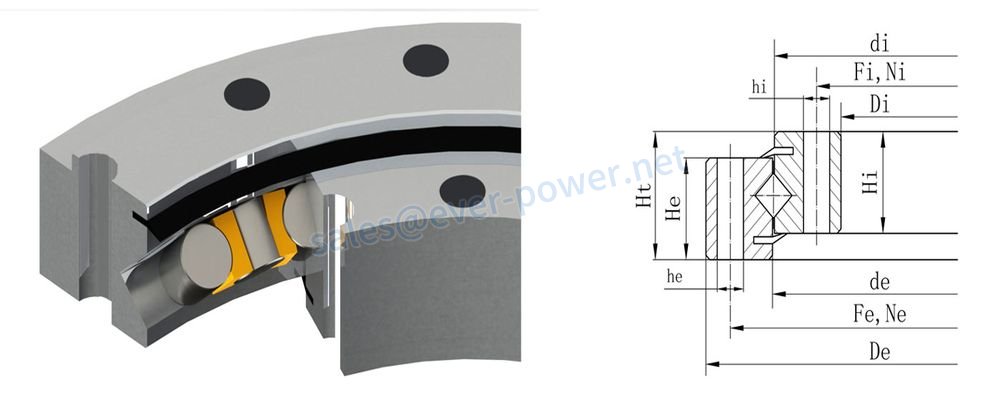

(3) Model parameters of gearless cross roller slewing bearings

Model	Dimensions							Installation size						Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi
	[mm]	[mm]	[mm]	[-]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[kg]
1X16-U-0220	300	221	219	140	44	44	52	270	12	18	170	12	18	16
1X16-U-0270	350	271	269	190	44	44	52	320	16	18	220	16	18	20
1X20-U-0307	403.5	308	306	234	47	45	55	358	24	13	259	28	13	26
1X20-U-0340	440	341.5	338.5	240	53	53	60	400	18	22	280	18	22	37
1X14-U-0414	486	415	413	342	44.5	44.5	56	460	24	14	368	24	14	28
1X14-U-0544	616	545	543	472	44.5	44.5	56	590	32	14	498	32	14	38
1X14-U-0644	716	645	643	572	44.5	44.5	56	690	36	14	598	36	14	44
1X14-U-0744	816	745	743	672	44.5	44.5	56	790	40	14	698	40	14	52
1X14-U-0844	916	845	843	772	44.5	44.5	56	890	40	14	798	40	14	60
1X14-U-0944	1016	945	943	872	44.5	44.5	56	990	44	14	898	44	14	67
1X14-U-1094	1166	1095	1093	1022	44.5	44.5	56	1140	48	14	1048	48	14	77
1X16-U-1204	1289	1206	1202	1119	58	58	68	1257	45	16	1151	45	16	124
1X16-U-1314	1399	1316	1312	1229	58	58	68	1367	50	16	1261	50	16	135
1X16-U-1424	1509	1426	1422	1339	58	58	68	1477	54	16	1371	54	16	146
1X16-U-1534	1619	1536	1532	1449	58	58	68	1587	60	16	1481	60	16	158
1X16-U-1644	1752	1646	1642	1536	58	58	68	1708	54	22	1580	54	22	214
1X16-U-1754	1862	1756	1752	1646	58	58	68	1818	60	22	1690	60	22	228
1X16-U-1904	2012	1906	1902	1796	58	58	68	1968	64	22	1840	64	22	248

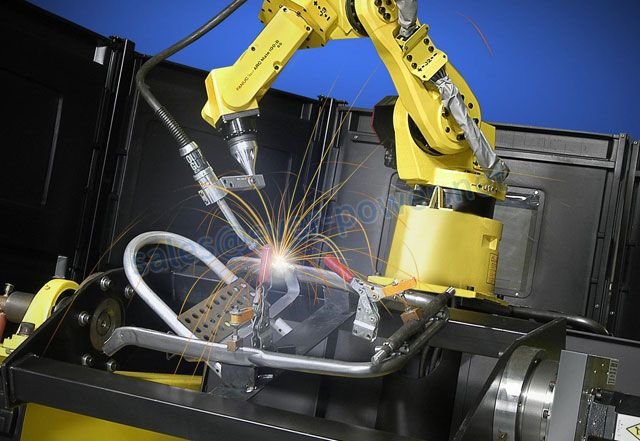

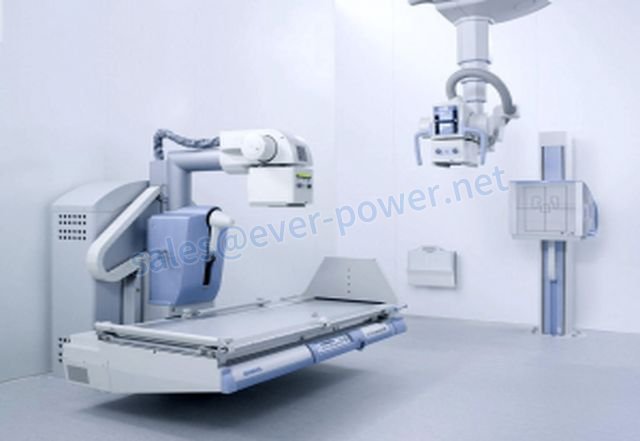

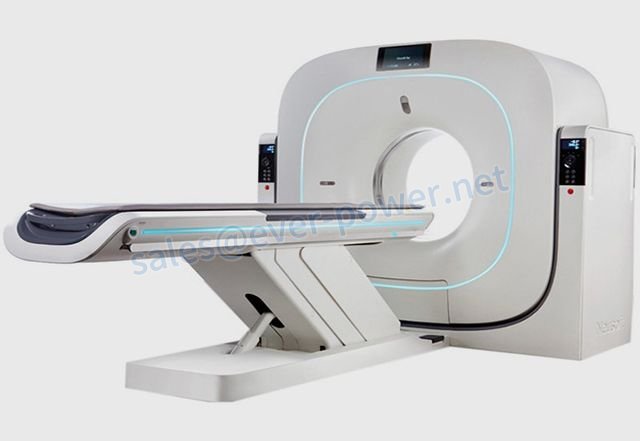

Application of cross roller slewing bearings

Cross roller slewing bearings are successfully used in applications requiring low torque, including Military turrets, Machine tools, construction machinery, Joint units of robots, precision rotary table, hollow, rotating platforms, radar, precision measuring instruments,.and artificial intelligence, etc.

FAQ

Q. Are you a factory or a trading company?

A: We are a manufacturer.

Q: Do you accept ODM&OEM orders?

A: Yes, we provide ODM&OEM services to worldwide customers, we can customize housings in different styles and sizes in other brands, and we also customize packaging boxes as per your requirements.

Q: Do you offer free samples?

A: Yes, we offer free small samples to distributors and wholesalers. Pls, note that if your bearings are more significant, we will send you the same materials/identical brands, for example. However, customers should bear the freight.

We DO NOT offer free samples to end-users.

Q: What's the MOQ?

A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance.

Q: How long is the lead time?

A: Normally, the lead time is about 3-7days. If it is a customized order, the lead time will be reconfirmed, about 10-15days.

Q: How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way, and payment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirmed the PI;

4. Confirm Payment and arrange the production.

Product Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
包ing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

包age & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
