XSU Series Crossed Roller Bearings

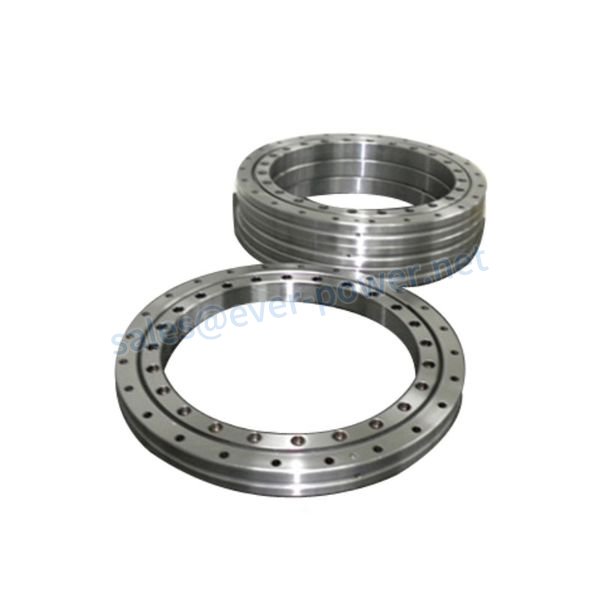

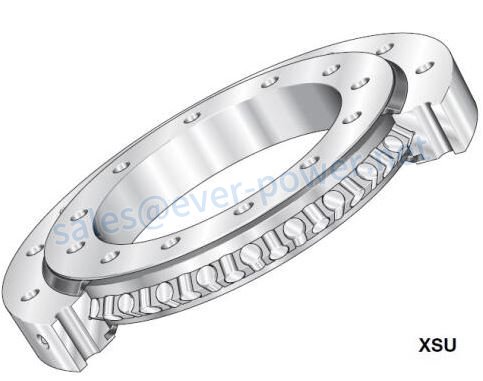

XSU系列交叉滚子轴承(积分类型of outer ring and inner ring), because the outer ring and the inner ring have mounting holes, there is no need to fix the flange and support seat during installation. In addition, because the outer ring and the inner ring are integral structures, the installation has almost no impact on performance, so it can obtain stable rotation accuracy and torque and can be used in situations where the outer ring and inner ring rotate. This type of bearing is widely used in industrial robots, work machinery, medical facilities, etc., where high rigidity, tightness, and high speed can still ensure accuracy.

Technical data

(1) XSU08 series Crossed Roller Bearing Catalogue:

shaft diameter	Model number	Main dimensions (mm)							Basic load rating(axial)		Basic load rating (radial)		Limiting speed	weight

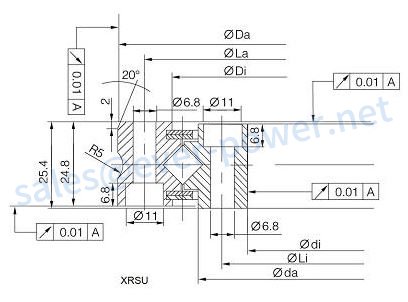

		inner ring d	outer ring D	width B	nB	chamfer r(min)	①La	(DLi	Ca kN	Coa KN	Cr KN	Cor KN	r/min	Kg
130	XSU080168	130	205	25.4	12	1.1	190	145	66	240	42	96	227	3.3
150	XSU080188	150	225	25.4	16	1.1	210	165	71	275	46	110	203	3.7
180	XSU080218	180	255	25.4	20	1.1	240	195	77	315	49	127	175	4.3
220	XSU080258	220	295	25.4	24	1.5	280	235	84	375	54	151	148	5.1
280	XSU080318	280	355	25.4	28	1.5	340	295	93	465	59	185	120	6.3
360	XSU080398	360	435	25.4	36	2	420	375	106	590	68	236	96	7.8

(2) XSU14 series Crossed Roller Bearing Catalogue:

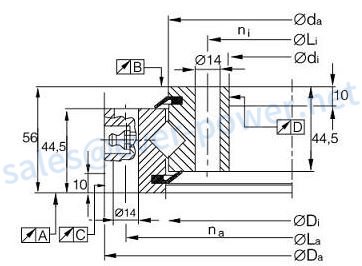

Type code	Da	di	La	na/ni	Li	Di	da	A	B	C	D	Weight/kg
XSU140414	484	344	460	24	368	415	413	0.04	0.04	0.04	0.06	28
XSU140544	614	474	590	32	498	545	543	0.04	0.04	0.04	0.07	38
XSU140644	714	574	690	36	598	645	643	0.05	0.05	0.05	0.08	44
XSU140744	814	674	790	40	698	745	743	0.05	0.05	0.05	0.09	52
XSU140844	914	774	890	40	798	845	843	0.06	0.06	0.06	0.09	60
XSU140944	1014	874	990	44	898	945	943	0.11	0.11	0.11	0.11	67

XSU Series Crossed Roller Bearing Features:

1. Excellent rotation accuracy. The XSU series crossed roller bearings produced by HZPT Machinery Equipment Co., Ltd can provide negative clearance types, and accuracy grades P5 / P4 / P2.

2. Simplified installation. XSU series cross roller bearings have mounting holes on the inner and outer rings. No flange or support is required for installation. In addition, because the outer ring and the inner ring are integral structures, the installation has almost no impact on performance, so it can obtain stable rotation accuracy and torque and can be used in situations where the outer ring and inner ring rotate.

3. Withstand large axial and radial loads. Because the rollers are arranged perpendicular to each other on the raceway through the spacer, they are in line contact with the raceway, not point contact with the ball turntable bearing.

4, greatly save installation space.

5. Reduce the shaft length and processing cost. The thermal expansion causes limited changes in geometric dimensions.

6. Using nylon divider, low moment of inertia, low starting torque, easy to control angular division.

7. Optimized pre-tightening force, high rigidity, and high precision of guide roller operation.

Installation Procedure:

1. Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.

2. Since the Cross-Roller Ring is a thin-wall bearing type and therefore tends to misalign when installed, for ease of this situation, gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.

3. Place the presser flange onto the Cross-Roller Ring. Rock the flange several times to match the bolt holes.

4. Insert the presser bolts into the holes. Manually turn the bolts and ensure they do not display skewing caused by the misalignment of the holes.

5. Tighten the presser bolts in three to four steps from light to complete tightening by repeatedly securing the bolts in a diagonal order. When drawing (the separable inner or outer ring, slightly turning the integral outer or inner circle will correct the dislocation between the ring and the body.

Applications

Robots, machine tools, handling systems, precision rotary tables, hollow rotating platforms, radar, precision measuring instruments, etc.
