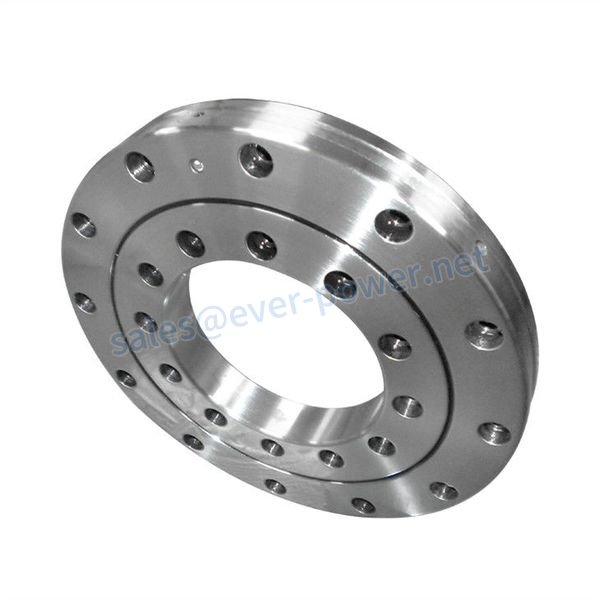

XU Series Crossed Roller Bearings

XU series crossed roller bearings are available with mounting holes. This mode does not require a fixed flange or housing. In addition, due to its integrated inner and outer ring structure and gaskets, it is virtually unaffected by the installation process, ensuring stable rotation, precision, and torque. The XU series crossed roller bearings can be used for both inner and outer ring rotation.

XU series crossed roller bearing is both inner ring and outer ring integrated type crossed roller bearing. Bearings are arranged between the vertically arranged rollers in the bearing to prevent the tilting of the rollers and the mutual friction between the rollers, reducing the rotational torque. In addition, compared with the previous steel plate cages, there will be no roller contact or locking phenomenon on one side.

Application:

•Industrial Robotic arm, Reducer drive

•precision Turntable, NC rotary table

•Rotation part of Machine tools

•Inspection instruments, Medical equipment

• Aviation equipment, Military radar, etc.

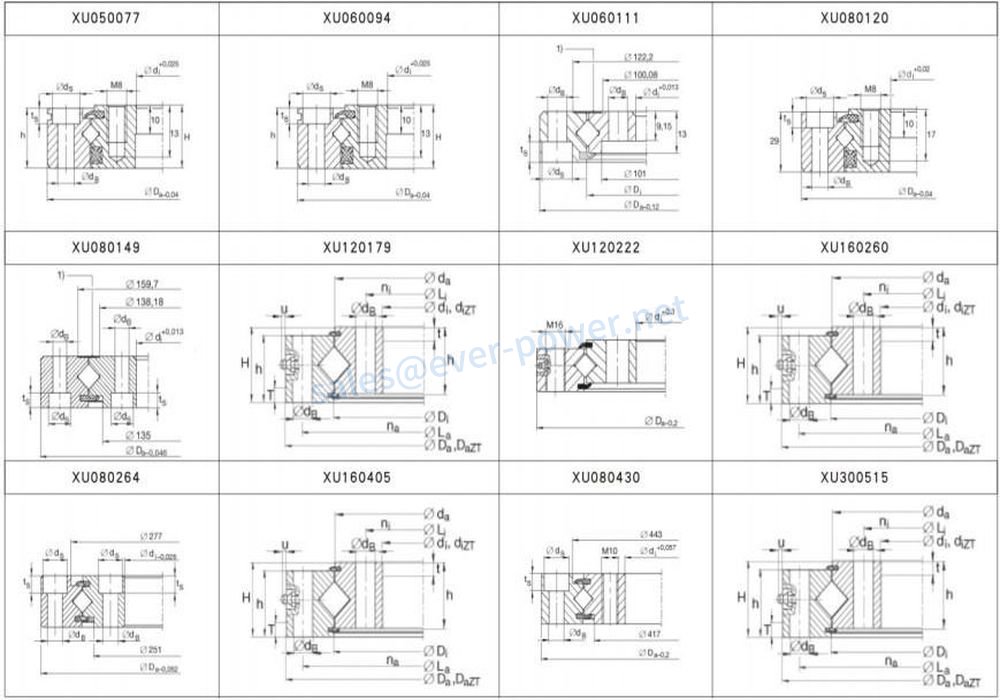

Technical data

Model number	Main dimensions (mm)								Basic load rating(axial)		Basic load rating(Radial)		weight
	inner ring	outer ring	DP	width		na		ni	Ca KN	Coa KN	Cr KN	Cor KN	Kg
					La		Li
XU050077	40	112	77	22	97	6-φ6.6	56	6-M8	22.4	29	14.3	14.2	1.4
XU060094	57	140	94	26	120	6-φ9	70	6-M8	32.5	37.5	20.7	18.4	2.4
XU060111	76.2	145.79	111	15.87	133.1	8-φ6.9	88.9	8-φ6.9	36	44.5	22.8	21.5	1.2
XU080120	69	170	120	30	148	6-φ9	90	6-M8	56	53	35.5	26	4
XU080149	101.6	196.85	149.6	22.22	177.8	16-φ6.9	115.8	16-φ6.9	63	66	40	32.5	3.6
XU120179	124.5	234	179	35	214	12-φ11	144.5	12-φ11	118	179	75	88	7
XU120222	140	300	222	36	270	12-M16	170	12-φ18	133	275	85	131	12
XU160260	191	329	260	46	305	20-φ14	215	2O-φ14	212	350	135	173	16
XU080264	215.9	311	264	25.4	295.3	12-φ8.7	231.8	12-φ8.7	85	117	54	57	6.9
XU160405	336	474	405	46	450	30-φ14	360	30-φ14	270	550	172	270	25
XU080430	380	480	430	26	462	20-φ9	398	20-M10	110	280	70	138	12
XU300515	384	646	515	86	598	18-φ26	432	18-φ26	720	1370	455	670	115

Our Advantage:

Good Quality: Our technical team can fully understand your specific requirements and ensure all our products correspond to your required standard. Our quality department has a strict control system for every process, from raw material and heat treatment to grinding and assembly.

Efficiency: We have a large stock of many types of standard crossed roller bearings. Usually, it takes seven days to get them ready. Once custom types are wanted, we can get them finished within 40 days.

Competitive price/ Reasonable Price: We can't guarantee to offer a cheap price, only a reasonable price with a quality guarantee.

Sample available:Once the sample is wanted, we can arrange the express delivery to our customer.

Small Order accepted: Large quantity in stock, small order is accepted. It helps you to save storage costs and risks.

2. Package as your requirements.

3. Small size Bearings: Plastic vacuum packaging bag+Paper Box/Neutral Carton

4. Large size Bearings: Plastic film+pergamyn paper+Roll tape+Wooden Box

5. Shipping: By air or By sea: DHL/TNT/UPS/EMS etc
