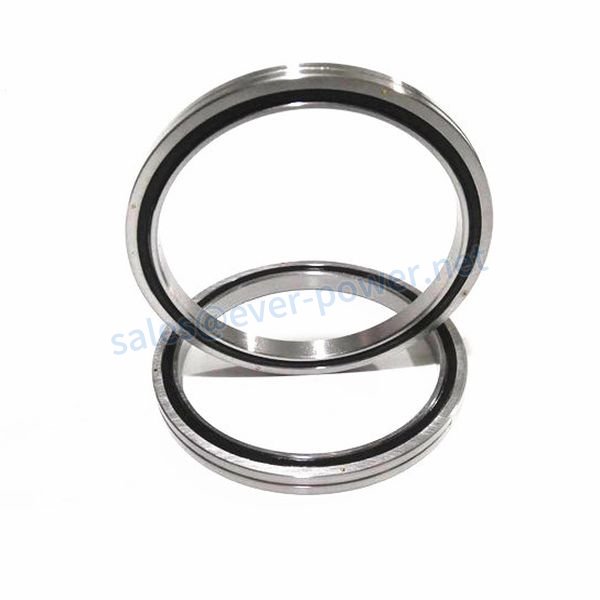

CRBS Series Crossed Roller Bearings
The CRBS series crossed roller bearing is a light and thin type of cross roller bearing. Its structure is divided into an outer ring and an inner ring. The overall structure of the inner circle is more suitable for the occasion of high rotation precision of the inner ring, and the stable rotation precision is up to a micrometer. The ultra-thin size design contributes to the light and slim design of the relevant structure.
CRBS Series Crossed Roller Bearings
The CRBS series crossed roller bearing is a light and thin type of cross roller bearing. Its structure is divided into an outer ring and an inner ring. The ultra-thin size design contributes to the light and slim design of the relevant structure. The overall structure of the inner circle is more suitable for the occasion of high rotation precision of the inner ring, and the stable rotation precision is up to a micrometer. It is ideal for precision detection instruments, robot joints, direct-drive torque motors, high-precision turntables, and other applications requiring high precision and rigidity.
CRBS series: Slim Type crossed roller bearing, with extremely thin inner and outer rings.
Features of CRBS Series Crossed Roller Bearings
(1) High Rigidity and Accuracy:The inner and outer rings have a solid one-piece construction. Can directly mount onto the equipment through prepared mounting holes. Therefore, high accuracy and rigidity are realized, and mounting error can be minimized.
(2) Space-Saving:Housing and fixing plates are not necessary for mounting, and the room around the bearing can be minimized.
(3) Smooth Rotation:Special separators are incorporated between cylindrical rollers allowing smooth and high-speed rotation.
 |
 |

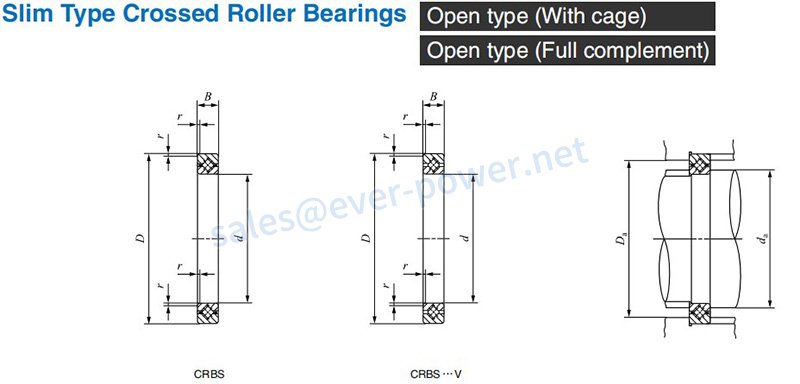

Technical data
| TYPE | Inner diameter | Outer diameter | Pitch diameter | Height | Shoulder size | Basic rated load(Radial) | Weight | ||
| d | D | Dpw | B | ds | Dh | Cr Kn | Cor Kn | KG | |
| CRBS508 | 50 | 66 | 57 | 8 | 53.5 | 60.5 | 5.1 | 7.18 | 0.08 |
| CRBS608 | 60 | 76 | 67 | 8 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
| CRBS708 | 70 | 86 | 77 | 8 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
| CRBS808 | 80 | 96 | 87 | 8 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
| CRBS908 | 90 | 106 | 97 | 8 | 93.5 | 100.5 | 6.67 | 12.4 | 0.12 |
| CRBS1008 | 100 | 116 | 107 | 8 | 103.5 | 110.5 | 7.15 | 13.9 | 0.16 |
| CRBS1108 | 110 | 126 | 117 | 8 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
| CRBS1208 | 120 | 136 | 127 | 8 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
| CRBS1308 | 130 | 146 | 137 | 8 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
| CRBS1408 | 140 | 156 | 147 | 8 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
| CRBS1508 | 150 | 166 | 157 | 8 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
| CRBS1613 | 160 | 186 | 172 | 13 | 165 | 179 | 23.3 | 44.9 | 0.59 |
| CRBS1713 | 170 | 196 | 182 | 13 | 175 | 189 | 23.5 | 46.5 | 0.64 |
| CRBS1813 | 180 | 206 | 192 | 13 | 185 | 199 | 24.5 | 49.8 | 0.68 |
| CRBS1913 | 190 | 216 | 202 | 13 | 195 | 209 | 24.9 | 51.5 | 0.69 |
| CRBS2013 | 200 | 226 | 212 | 13 | 205 | 219 | 25.8 | 54.7 | 0.71 |
The application of CRBS series crossed roller bearing
我们公司can produce交叉ed roller bearingsRA, RB, RE, RU series and CRB, CRBC, CRBH, CRBF, CRBS series, XSU, XU, SX Series cross cylindrical roller bearings. The products are widely used in industrial robots, CNC machine tools, reducers, printing machinery, medical equipment, accuracy measurement and control equipment, communication radar antennas, optical equipment, etc.
