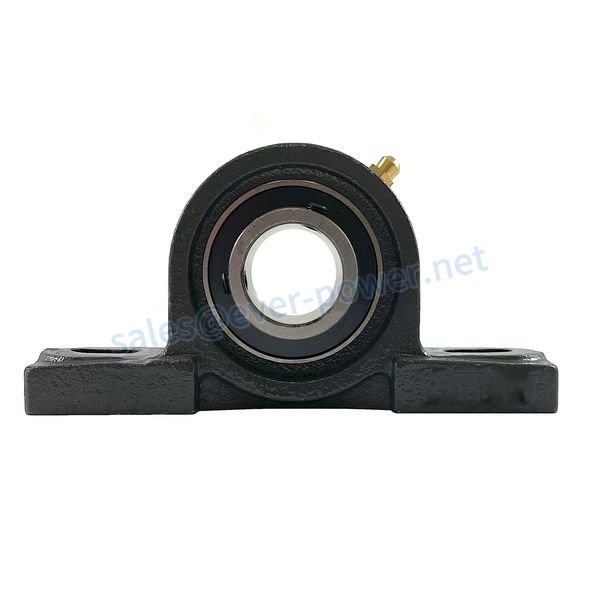

UCP200 Pillow Block Bearings

UCP200 pillow block bearings are plain type 2-bolt bearings secured to the shaft using two setscrews. Our UCP200 bearings feature high-performance C3 precision bearings housed in high-strength cast housings; they are manufactured to industry standard dimensions and are directly interchangeable with other brands. We stock a full range of inch and metric bore UCP200 bearings and a range of bearing accessories. For more information or to get a quote on UCP200 bearings, please contact our customer support team, and we will be happy to assist you.

Applications of Pillow Block Bearings

Pillow block bearing housing material is commonly made of iron or special steel.Pillow Block Bearingsare widely used in Mining, Electric motors, Rolling Mill, tractors, Construction Machinery, Home appliances, Transmission, and other fields.

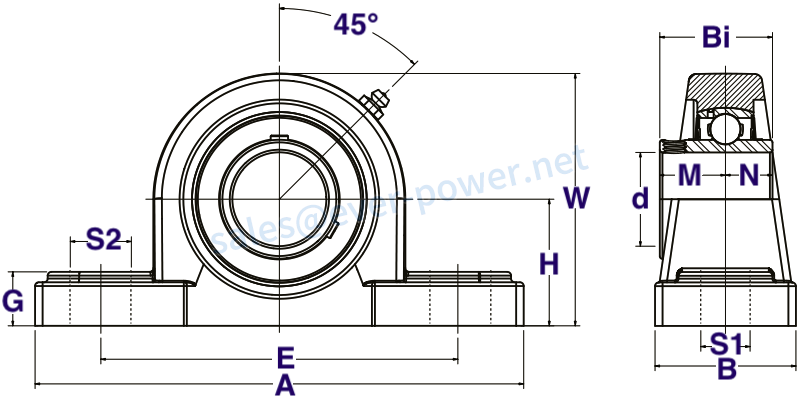

UCP200 Pillow Block Bearing Sizes

Product parameters

The Installation of Pillow Block Bearing

Mounting steps for pillow block bearing:

1. Check whether the position tolerance of the connecting hole at the mounting position of the pillow block bearing and the flatness of the fixed base surface of the pillow block bearing meet the requirements.
2. Clean pillow block bearing and pillow block bearing to be installed on the base position and the surface of the shaft with a cleaning agent to keep the surface free of impurities and dust, and coat the surface with a layer of anti-rust oil.
3. Install the shaft into the bore of inserted bearing; during the installation process, only use tools such as a rubber hammer or nylon rod to strike the end face of the insert bearing's inner race to move, and do not strike other positions of other bearing housings.
4. After the pillow block bearing is installed in the proper position of the shaft, fix the pillow block bearing on the base, and tighten the bolts according to the specified torque requirements.
5. 在安装轴承在枕头的块ends, the shaft should be able to move axially between the bearing holes with a certain amount of force, ensuring good alignment of the pillow block bearing at both ends. Otherwise, it is necessary to reposition and adjust the pillow block bearing.
6. Use appropriate torque to alternately tighten the eccentric sleeves on the inner ring of the bearing at both ends to ensure that the bearing is firmly fastened to the shaft.

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings,Self-aligning Ball Bearing, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need pillow block bearing, please feel free to contact us.
