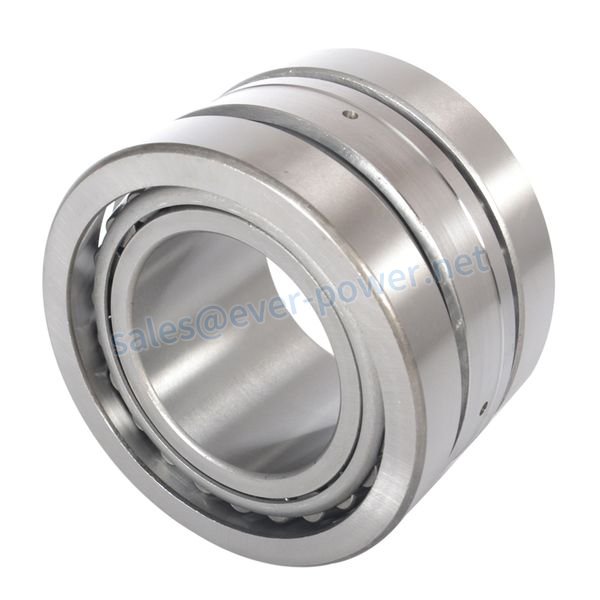

tdI Type Double-row Inch Size Tapered Roller Bearings

tdI Type double row inch size tapered roller bearings are a common type of tapered roller bearings. TDI Type double row inch tapered roller bearings consist of a single-piece (double) inner ring and two single outer rings. It is usually supplied complete with an outer-ring spacer as a pre-set assembly. TDI bearings can be used at fixed (locating) positions on rotating shaft applications. For revolving housing applications, the double inner ring of type TDI can be used to float on the stationary shaft.

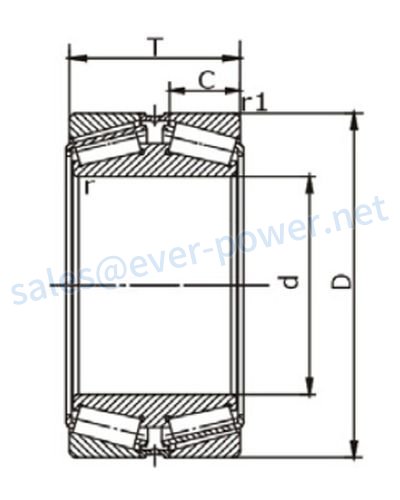

产品参数

系列TDI型双行锥形辊轴承

TDI类型的流行类型：

• 14126D/14276
• 13169D/13318
• 13176D/13318

TDI型双行锥形辊轴承的功能

• High load-carrying capacity
  tdI Type Double row tapered roller bearings are suitable for heavy radial and axial loads. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The contact angle size, usually between 10° and 30°, is related to the calculation factor e (from the product tables): the larger the value of e, the larger the contact angle.
• 两个方向的轴向载荷
  TDI型双行锥形滚子轴承均以特定的轴向间隙或预紧力在两个方向上定位。
• High stiffness
  tdI Type Double row tapered roller bearings provide a stiff bearing arrangement.
• Low friction
  the flange's optimized roller end design and surface finish promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
• Long service life
  the crowned raceway profiles of basic design bearings and the logarithmic raceway profiles optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends, and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.
• 增强的操作可靠性
  滚筒和跑道的接触表面上优化的表面饰面支持了流体动力润滑剂膜的形成。
• Consistency of roller profiles and sizes
  我们的TDI型双行锥形滚子轴承中包含的滚轮的制造具有几乎相同的近距离和几何公差。这提供了最佳的负载分布，减少了噪声和振动，并使预紧设置更准确。

TDI型双行锥形辊轴承的应用

• mining
• petroleum
• 重型机械
• 风力
• 工程机械
• 和其他行业
