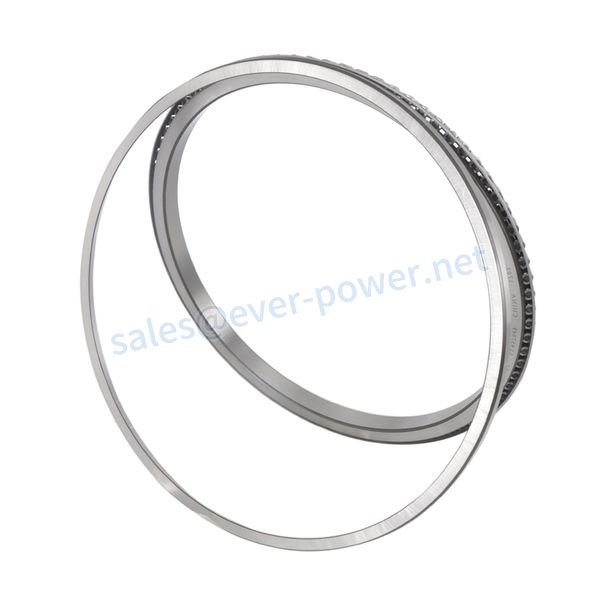

Single-row Inch Size Tapered Roller Bearings

单重尺寸的锥形辊轴承是可分离的锥形滚子轴承的常见类型。轴承的内环和外环都具有锥形赛道，滚筒的形状处于截短的锥形。滚轮和跑道处于线性接触，可以承受较重的径向和轴向载荷以及轴向载荷。接触角越大，轴向轴承能力越高；相反，接触角越小，轴向轴承能力越低。

The design of Single row inch size tapered roller bearings should extend the contact line between the roller and the inner and outer raceways and then intersect at the same point on the bearing axis for rolling.

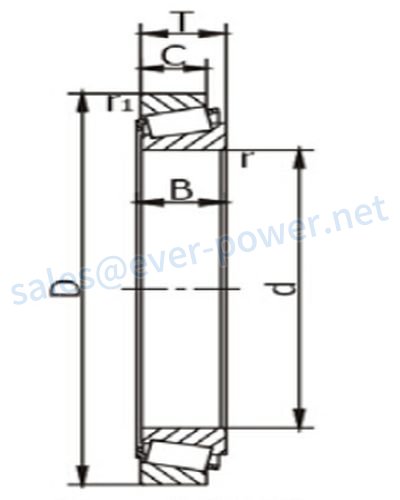

Product parameter

Series of Single row inch size tapered roller bearings

Popular types of Single inch size tapered roller bearings:

• A2031/A2126
• A2037/A2126
• A4044/A4138

Features of single row inch size tapered roller bearings

• Low friction
  The flange's optimized roller end design and surface finish promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
• Long service life
  基本设计轴承和对数跑道轮廓的冠冕跑道曲线优化了沿着接触表面的负载分布，减少滚子端处的应力峰，并降低对未对准和轴偏转的敏感性，与常规的直跑道配置文件相比。
• Enhanced operational reliability
  The optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
• 滚子曲线和尺寸的一致性
  锥形滚子轴承中掺入的滚轮的生产是具有实际相同的近尺寸和几何公差。这提供了最佳的负载分布，减少了噪声和振动，并使预紧设置更准确。
• 刚性轴承应用
  通常会根据第二个锥形滚子轴承调节单一英寸锥形滚子轴承。通过应用预紧力，可以实现刚性轴承的应用。
• Running-in period with reduced temperature peaks
  锥形辊子轴承通常具有耗时期，在此期间，传统的设计锥形滚子轴承会经历重大摩擦，从而导致磨损。这种效果被认为是温度峰值。只要轴承安装并正确润滑，凭借锥形辊轴承设计，摩擦，摩擦热和磨损就会显着降低。
• 可分开且可互换
  The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). This facilitates mounting, dismounting, and also maintenance inspection routines. Furthermore, the separable components are interchangeable.

Applications of Single row inch size tapered roller bearings

Single row inch size tapered roller bearings are widely used in industries:

• mining
• petroleum
• heavy machinery
• wind power
• engineering machinery
• 和other industries
