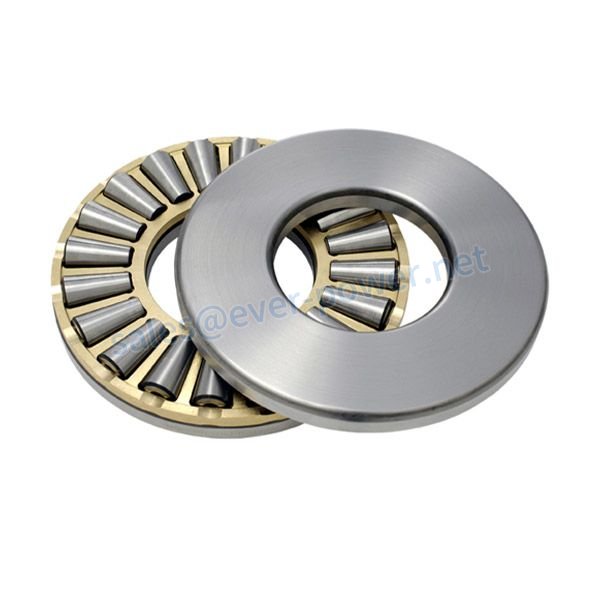

Tapered Thrust Roller Bearings

Tapered thrust roller bearings can only carry axial loads and limit axial displacement in one direction, so they can be used as axial locating bearings in one order. Compared withcylindrical thrust roller bearings, their loading capacity is higher, and relative slippage and limiting speed are lower.

Steel or brass cages are used in tapered thrust roller bearings. Tapered thrust roller bearings can be either single or double direction. They have a high carrying capacity for their small cross-section and long service life and can handle medium and heavy combined radial and axial loads. These qualities make them suitable for various industrial and automotive applications. As a result of the rollers' tapered shape, the load is evenly distributed between the rollers. In addition, the rollers' shape and design reduce friction and heat generation.

Features of tapered thrust roller bearings

• Separable design
  The shaft and housing washers and the roller and cage thrust assemblies of tapered thrust roller bearings with cages can be mounted separately.
• Low friction
  The flange's optimized roller end design and surface finish promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear.
• Long service life
  Depending on the design, crowned or logarithmic raceway profiles optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends, and reduce the sensitivity to misalignment compared with conventional straight raceway profiles.
• Enhanced operational reliability
  The surface finish on the contact surfaces on the rollers and raceways supports the formation of a hydrodynamic lubricant film.
• High load-carrying capacity
  The rollers incorporated in tapered thrust roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution and enables the bearings to accommodate heavy axial loads.

Applications of tapered thrust roller bearings

Single-direction taper thrust roller bearings are suitable for hook and oil drilling rig rotation. Double direction taper thrust roller bearings are ideal for rolling mill roll necks.

Product parameters

We Can Also Supply Angular Contact Ball Bearing & Spherical Roller Bearing

If you also need the spherical roller bearings, click here：//m.0x80040116.com/product-category/bearing/roller-bearing/spherical-roller-bearings/

公司信息

Our main bearing products include deep groove ball bearings, thin wall deep groove ball bearings, miniature bearings, ceramic and stainless steel bearings,angular contact ball bearings, self-aligning ball bearings, cylindrical roller bearings, spherical roller bearings, tapered roller bearings, Thrust ball bearings, thrust roller bearings, spherical bearings with seats, flange bearings, high-temperature bearings, guideway & needle roller & slider bearings, and many non-standard bearings are also in our product range. The annual output exceeds 10 million sets. Our factory has thoroughly modern closed dust-free workshops and warehouses with advanced detection technology. This enables us to produce many high-quality bearings and meet customer lead times. EVER-POWER has cooperated with many overseas customers and left a good reputation with high-quality product quality. With sufficient resources, strict quality control, high-quality service, and competitive prices, EVER-POWER has become the preferred bearing supplier for many customers. OEM is also welcome as an optional cooperation method.
