EWA14 Series Slewing Drive
Slewing drives work well in applications requiring high torque at low speeds due to their zero-backlash and smooth component operation. They offer superior precision in positioning accuracy and rotational movement. These mechanical devices are ideal for cranes, satellites, radar trackers, oil tool equipment, and various fields that rely on similar functions. They are made of phosphor bronze and steel or materials with associated wear and deformation properties. Rotary drives have housings that protect them from environmental elements, including dirt, dust, and water.
Slewing drives are gearboxes capable of handling radial and axial loads and delivering high rotational torque. These mechanisms produce rotational motion along a single axis or multiple combined axes. Finished gearboxes are assembled from seals, bearings, housings, gearing, motors, and other manufactured components.
Slewing drives work well in applications requiring high torque at low speeds due to their zero-backlash and smooth component operation. They offer superior precision in positioning accuracy and rotational movement. These mechanical devices are ideal for cranes, satellites, radar trackers, oil tool equipment, and various fields that rely on similar functions. They are made of phosphor bronze and steel or materials with associated wear and deformation properties. Rotary drives have housings that protect them from environmental elements, including dirt, dust, and water.
Performance Parameters

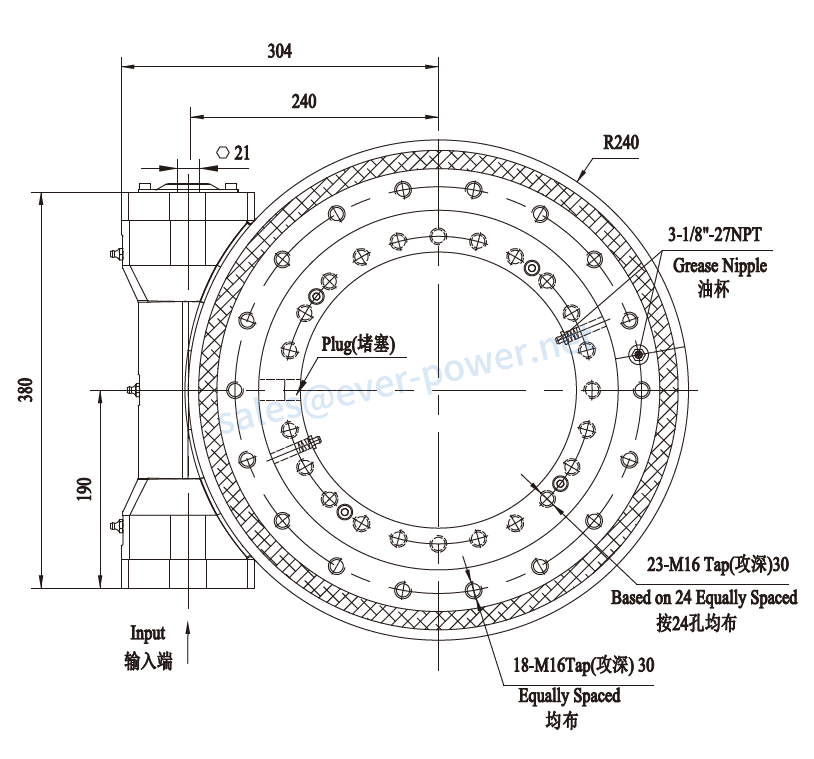

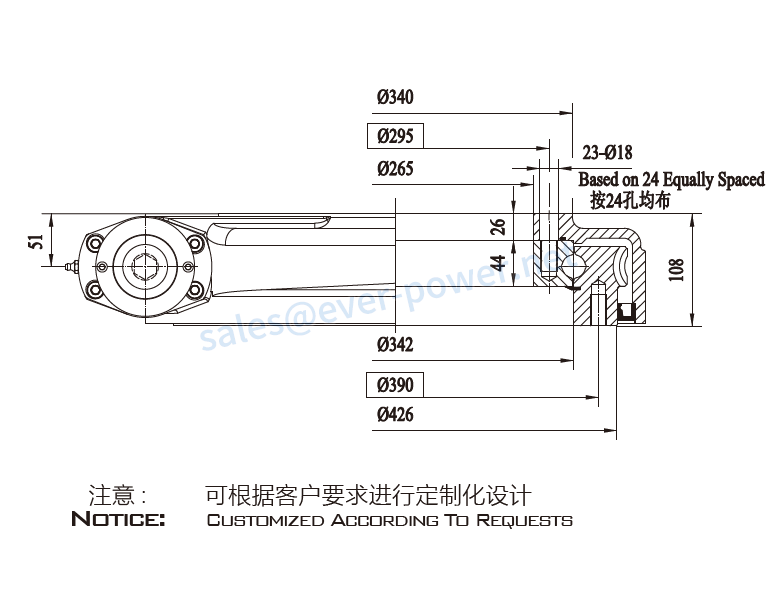

| Front View | Top View |
 |
 |
| Output torque | Tilting moment torque | Holding torque | Axial load | Radial load | Ratio | Backlash | 我们ight |
| 输出转矩 | 倾覆力矩 | 保持力矩 | 轴向承载力 | 径向承载力 | 速比 | 精度 | 重量 |
| 10.8 kN.m | 71.2 kN.m | 49.5 kN.m | 960 KN | 360 KN | 86:1 | <= 0.13 ° | 75Kg |
| 7070 Lbf.ft | 52500 Lbf.ft | 36500 Lbf.ft | 215800 Lbf | 80900 Lbf |
The Advantages of Slew Drive over Conventional Methods:
- These are sealed and compact drives
- Incorporate maximum load rating with a compact design
- Depending on the design, come in single or double-row ball
- Worm gear used is hardened and ground for maximum efficiency and long life
- Various ratios available
- Minimal maintenance cost
- Easy assembly
- Self-locking arrangement available
Applications of Slew Drive:
- Solar Trackers
- Wind Turbines
- Man Lifts
- Hydraulic Machinery
- Telescopic Handlers
- Digger Derricks
- Lifts
- Cranes
- Drilling equipment
- Military Equipment
- Turn tables
- Truck mounted cranes
Custom Slewing Drives
我们can provide custom solutions for specific applications as a globalslew drive杀了轴承制造商。我们have a long and proud engineering history starting in 1925 and have worked at the cutting edge of slew drive technology ever since.
Benefits of our slew drive technology
— Long-life performance.
— Smooth rotation.
— Slew bearing protection.
Why Choose Us As Your Slew Drive Manufacturers?
— We provide custom slewing drive solutions.
— We can provide on-site slew drive gearbox installation.
— All of our slew drive gearboxes come with dedicated engineering support.
FAQ
1. Where is your slew drive manufactured?
A: Our slew drives are all manufactured in China. We can design and produce slew drives, and the quality can also be guaranteed. At the same time, our slew drives price is more favorable.
2. I don't know which slew drive to use. Can you choose for me?
A: You can get our product catalog in the download or contact us. We will send the product catalog to you by email or other ways.
4. Can you customize products?
A: Yes, we can. Our engineers have an emotional experience in slew drive design. On the customized slew drives page, you can see some unique customized products designed by our engineers. These design solutions meet the particular needs of many customers. Our engineers can also work with you to design a new slew drive.
5: Can you provide accessories?
A: Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders compatible with slew drives.
6. Can you provide a 3D model?
A: Our slew drives warranty time is 12 months. When you install, use and store the slew drives, please refer to the slew drives instruction manual.
A: Yes. Our slew drives housing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
Additional information
| Edited | Yjx |
|---|
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
我们承诺将提供最好的价格由高quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
