EG Series Slewing Drive

A slewing drive is a gearbox that handles radial or axial loads with high rotational torque. In addition, the slewing ring bearing at the heart of the drive enables it to withstand high cantilever or moment loads. A descendant of the "worm" lead screw, slewing drives are found in construction machinery, manufacturing, military equipment, and many other applications where strength and precision are required.

Slewing drives are available in many configurations depending on the task at hand. These may be single-axis or dual-axis turning in unison.

An hourglass configuration expands the capability from a single gear tooth to as many as 11 to create rotational torque by contacting the worm screw. Multiple gear teeth interacting at once allows the equipment to be more efficient and generate more torque.

Slew drives work best for applications in which high torque can create precision positioning and rotational accuracy. This design results in a device that works smoothly and powerfully with minimal backlash.

Because of the power and dependability generated by slew drive technology, the functions of this engineering technology apply to many types of equipment. One particular use, for example, involves solar technology, tracking the sun’s movements in perfect time to generate maximum energy output.

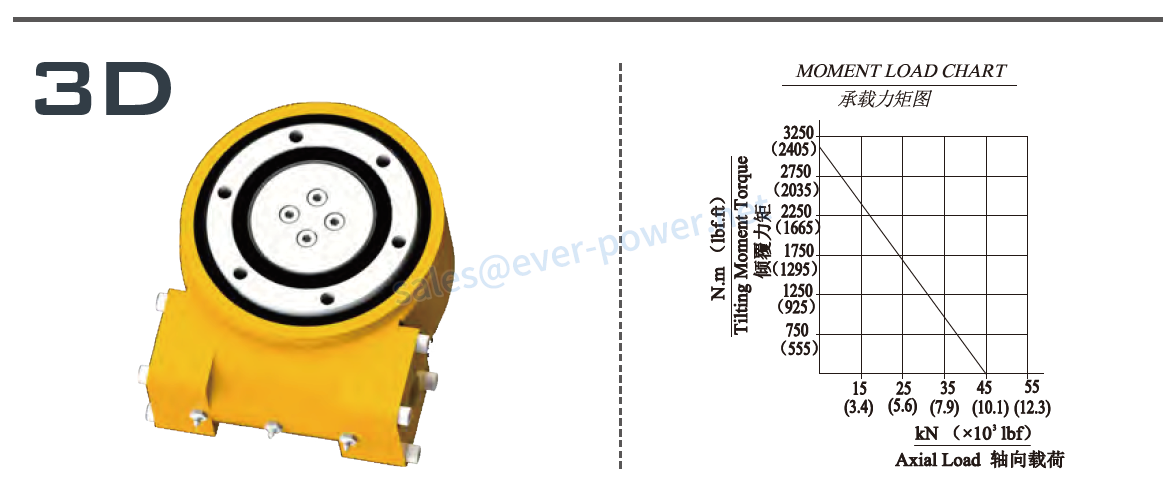

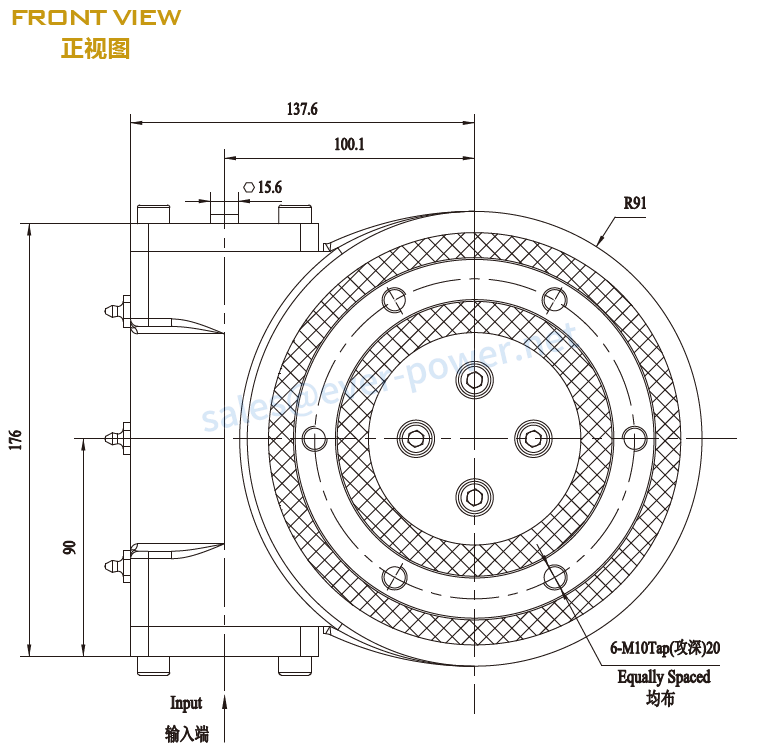

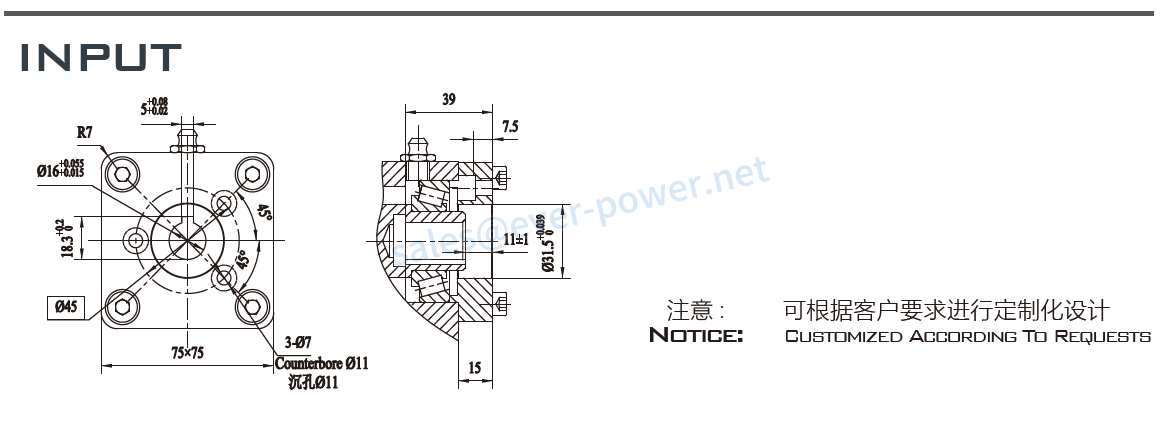

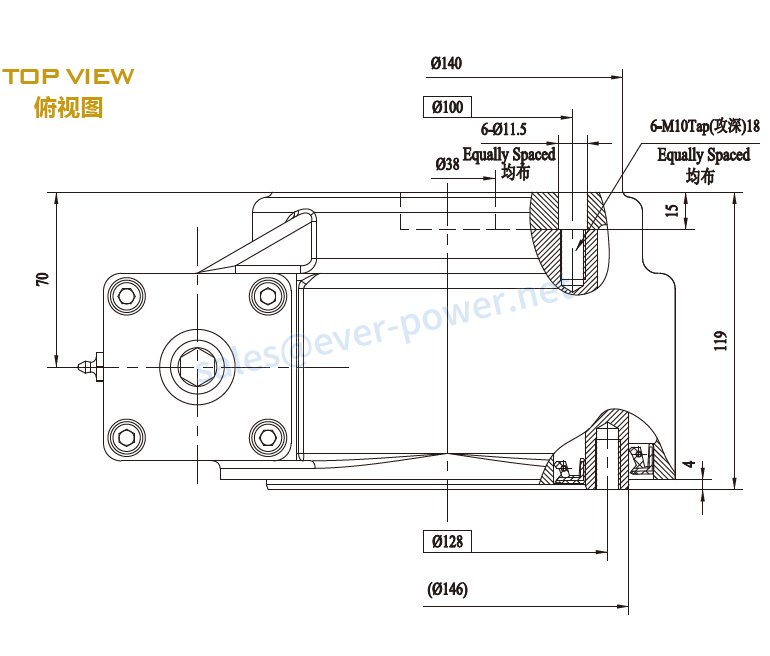

(1) EGA 5 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
600 kN.m	3.000 kN.m	5500 kN.m	45 KN	22 KN	62:1	<= 0.20 °	16Kg
443 Lbf.ft	2212.5 Lbf.ft	4056 Lbf.ft	1116 Lbf	4945 Lbf

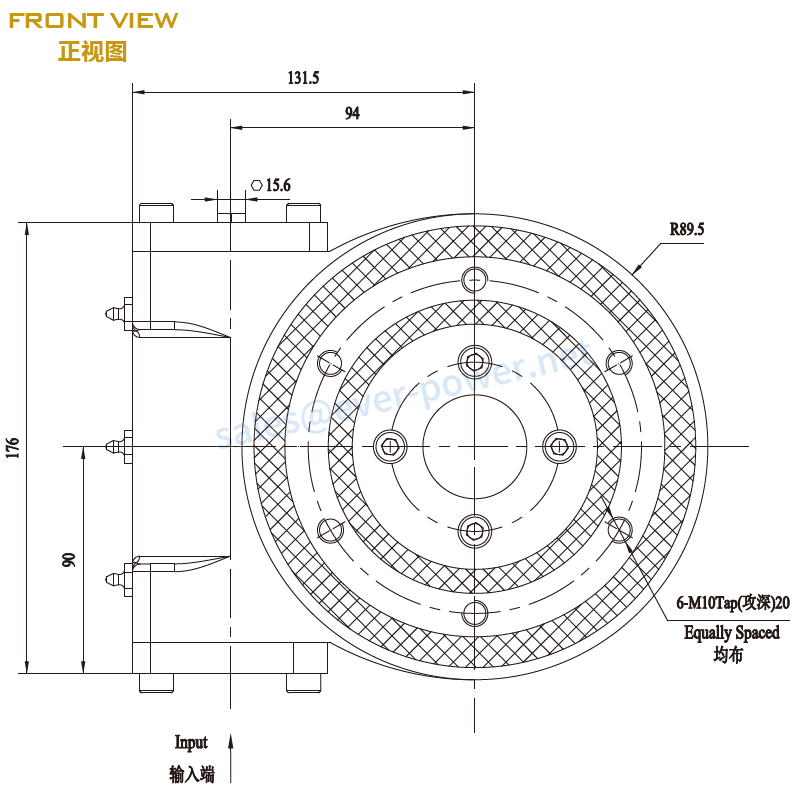

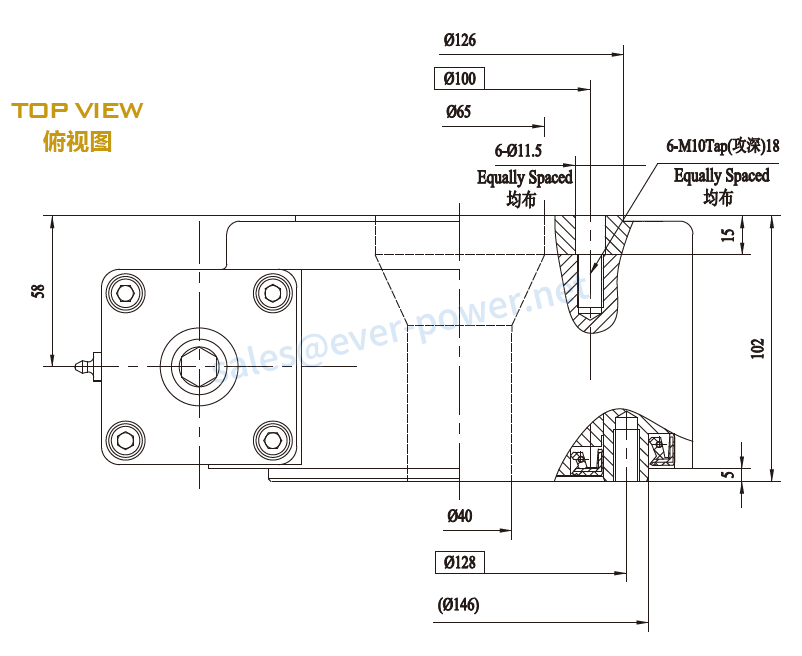

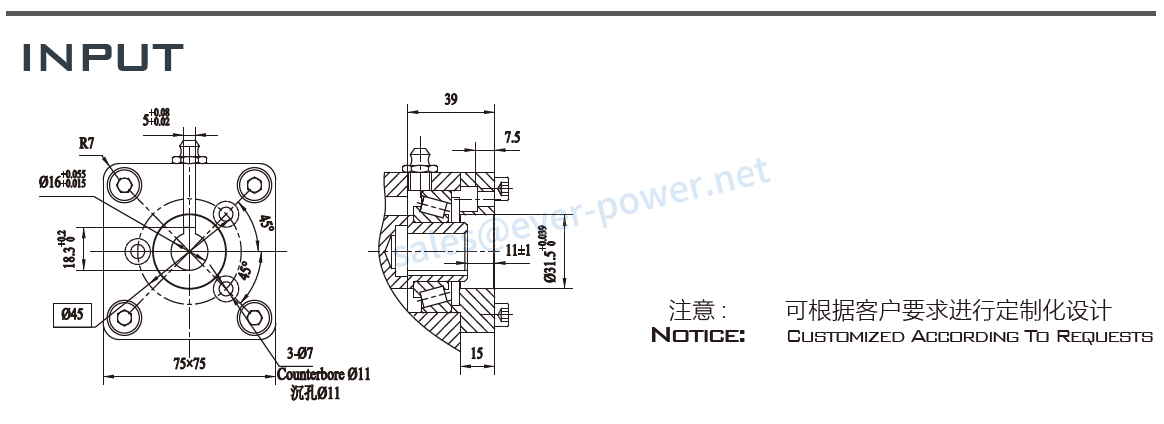

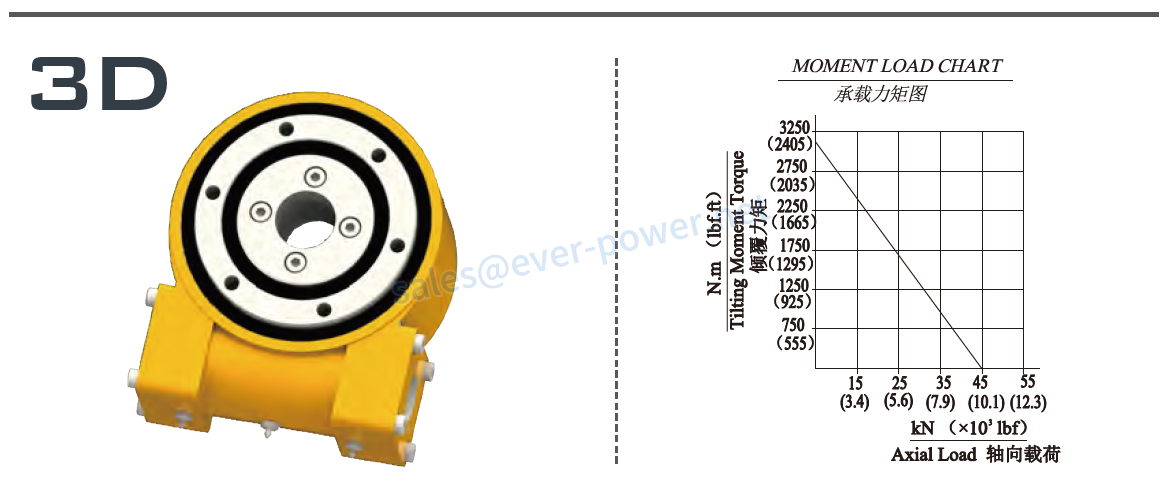

(2) EGA 5C Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
600 kN.m	2800 kN.m	5000 kN.m	45 KN	22 KN	62:1	<= 0.20 °	16Kg
443 Lbf.ft	2066 Lbf.ft	3.690 Lbf.ft	10116 Lbf	4945 Lbf

(3) EGE 5 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
600 kN.m	1800 kN.m	5200 kN.m	76 KN	23 KN	62:1	<= 0.20 °	16Kg
443 Lbf.ft	1328 Lbf.ft	3.837 Lbf.ft	17084 Lbf	5170 Lbf

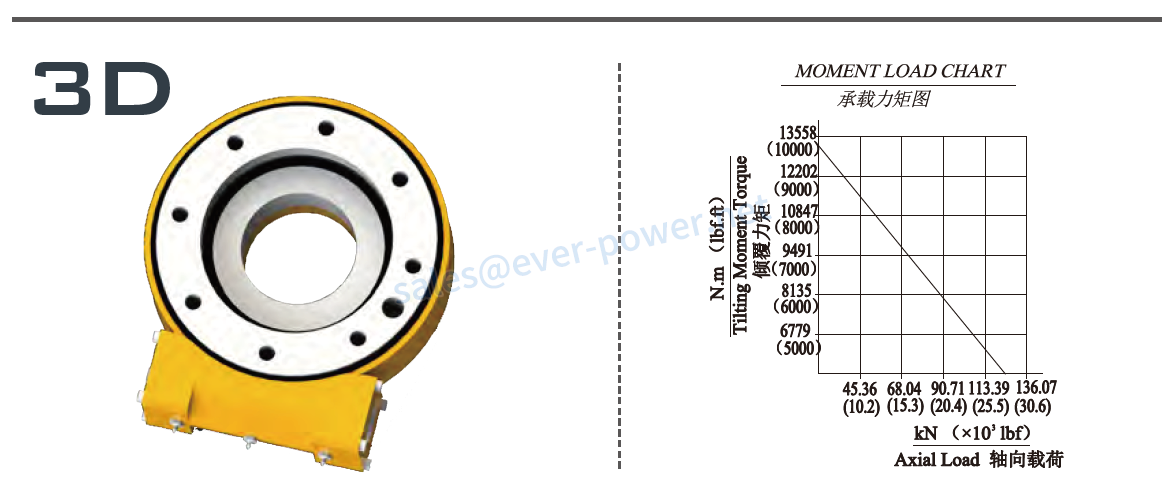

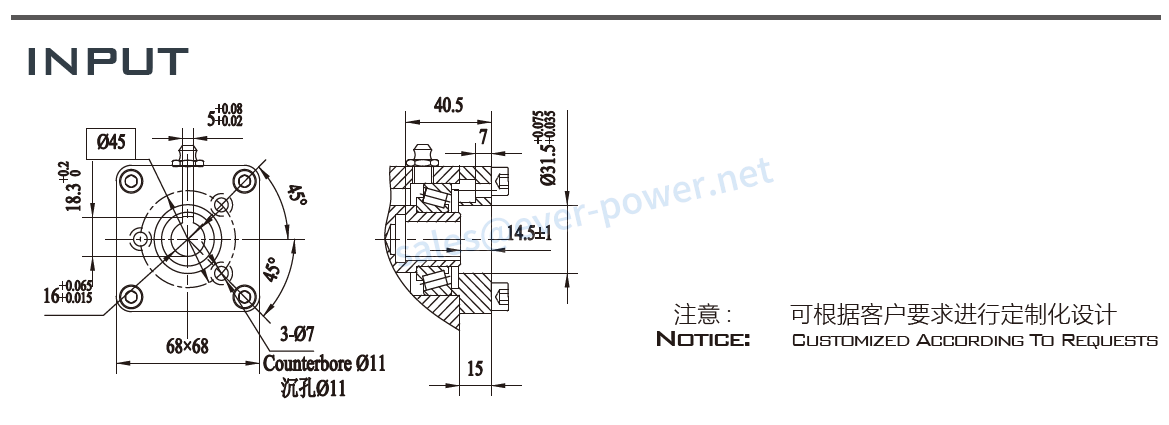

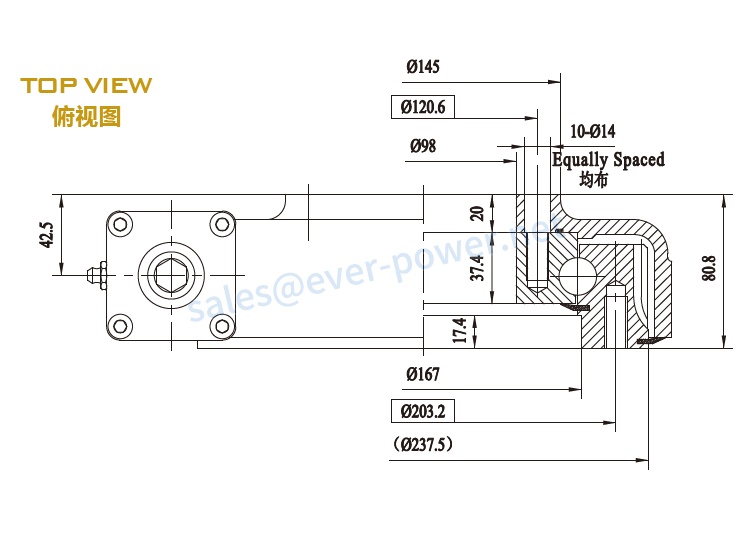

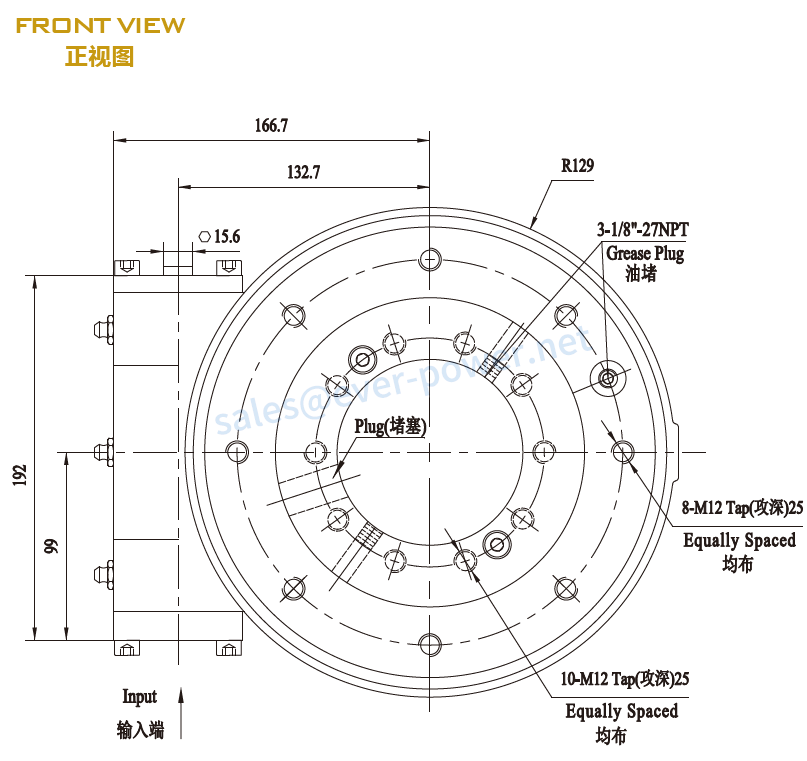

(4) EGE 7 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
1500 kN.m	13500 kN.m	10600 kN.m	135 KN	53 KN	73:1	<= 0.20 °	24Kg
1107 Lbf.ft	9957 Lbf.ft	7822 Lbf.ft	3.0348 Lbf	11915 Lbf

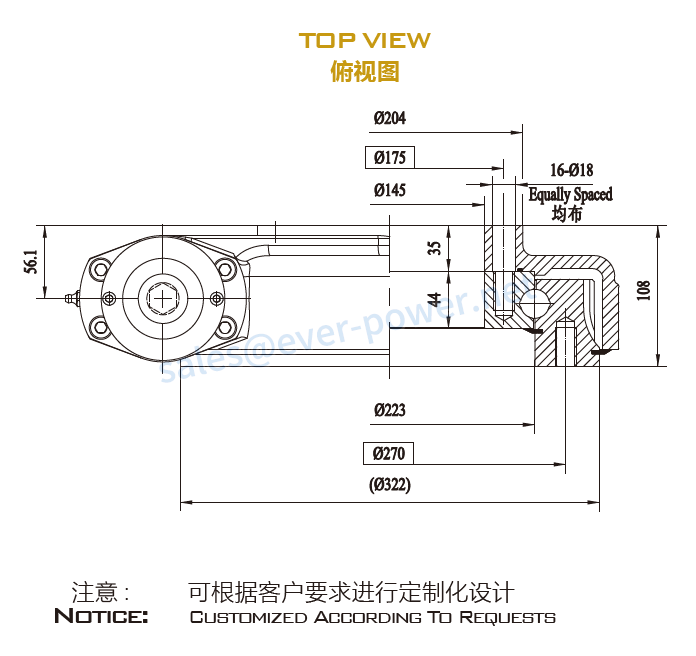

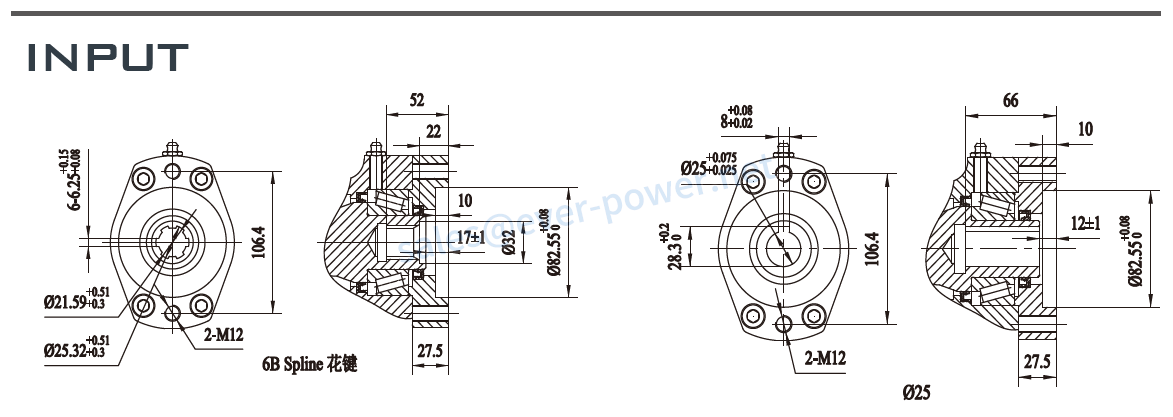

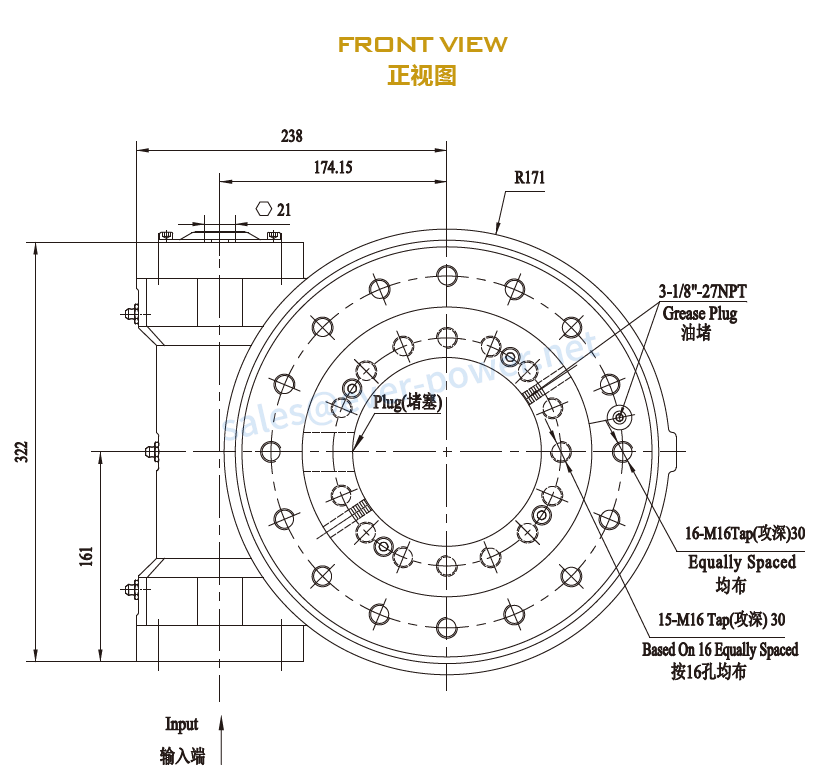

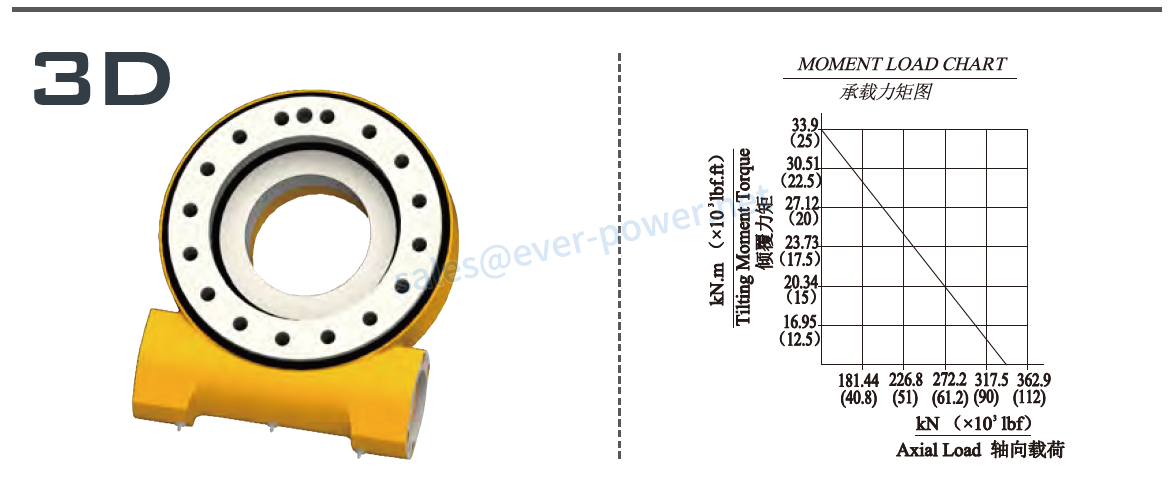

(5) EGE 9 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
6.5 kN.m	3.3..9 kN.m	40 kN.m	3.40 KN	138 KN	61:1	<= 0.17 °	49Kg
4794 Lbf.ft	25000 Lbf.ft	29500 Lbf.ft	76400 Lbf	3.1000 Lbf

(6) EGE 12 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
7.5 kN.m	54.3 kN.m	45 kN.m	475 KN	190 KN	78:1	<= 0.17 °	60Kg
5532 Lbf.ft	40000 Lbf.ft	3.3.200 Lbf.ft	106800 Lbf	42700 Lbf

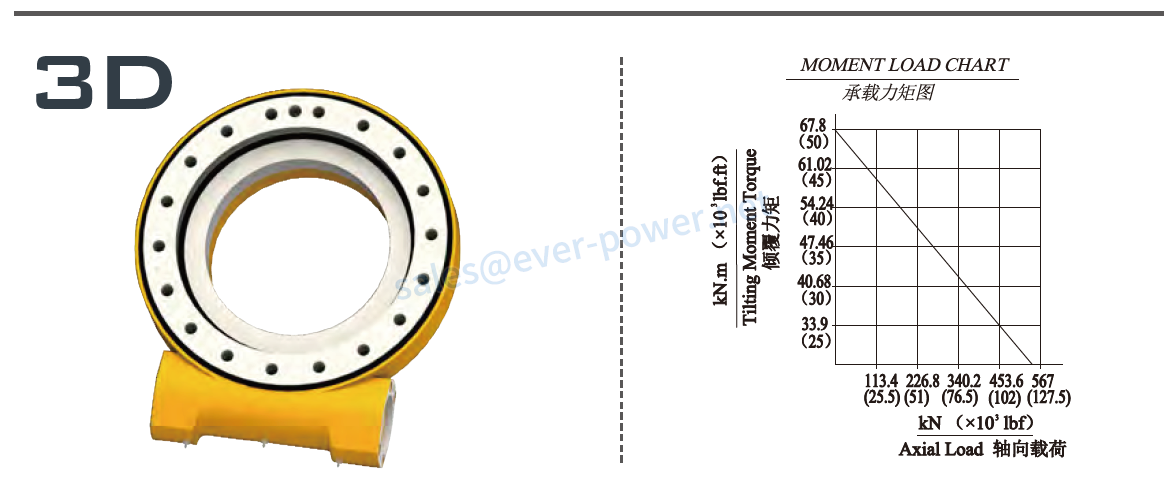

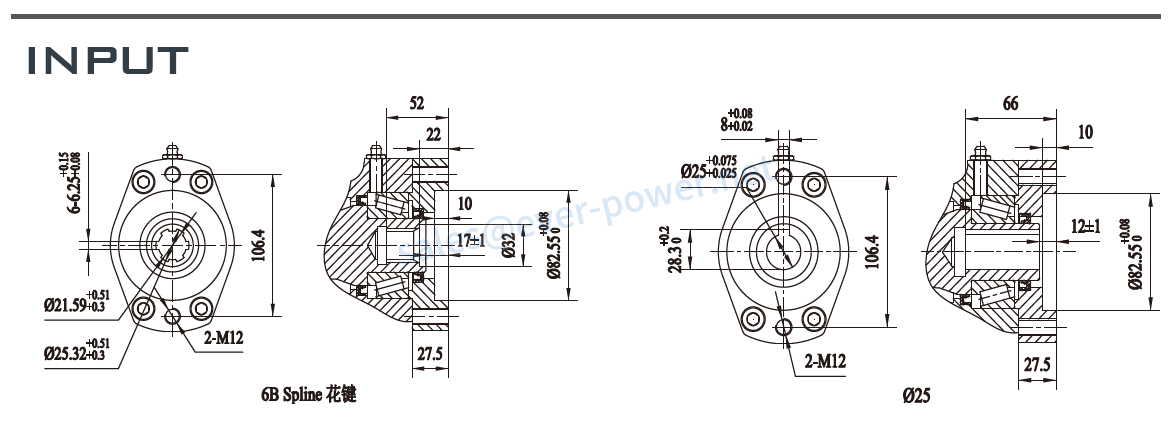

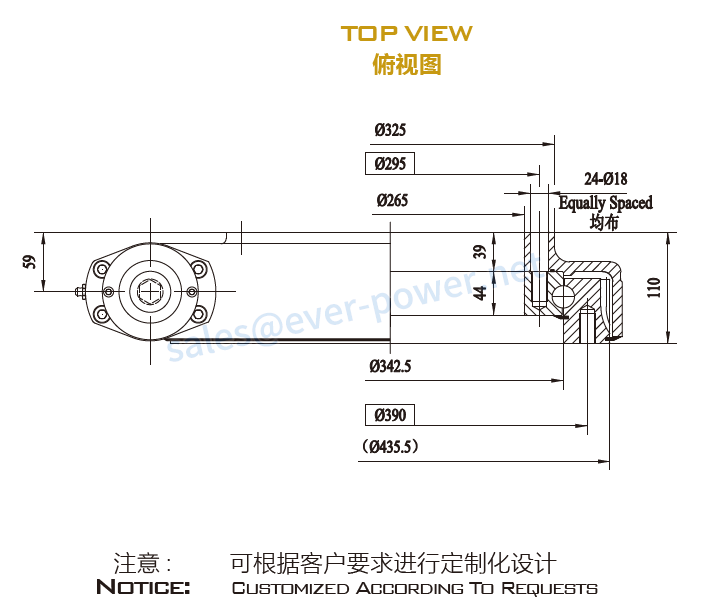

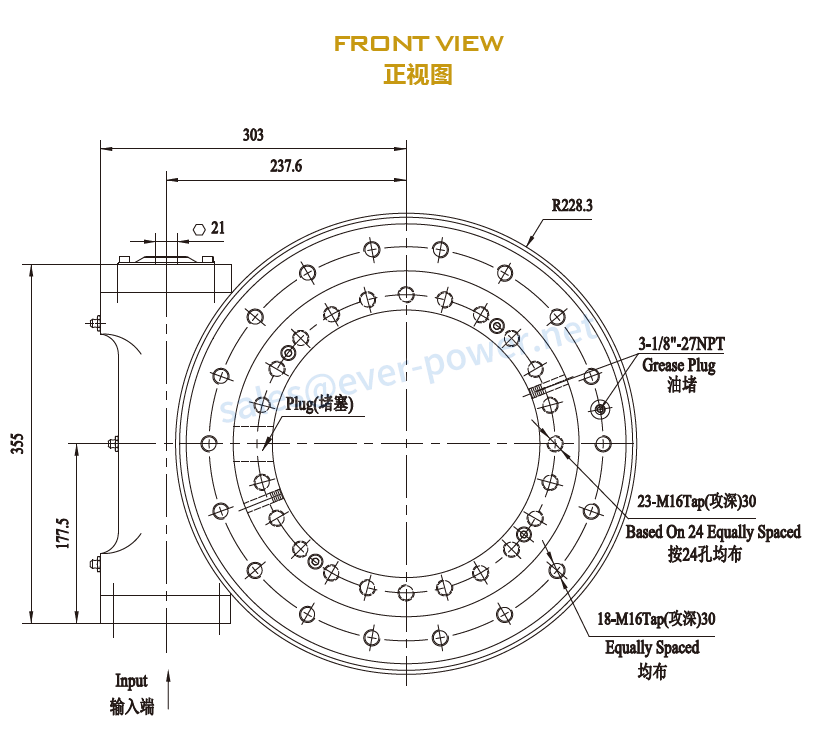

(7) EGE 14 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
8kN.m	67.8 kN.m	49 kN.m	555 KN	222 KN	85:1	<= 0.17 °	65Kg
5900 Lbf.ft	50000 Lbf.ft	3.6000 Lbf.ft	125000 Lbf	50000 Lbf

(8) EGE 17 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
10kN.m	135.6 kN.m	73 kN.m	980 KN	400 KN	102:1	<= 0.15 °	106Kg
7400 Lbf.ft	100000 Lbf.ft	53900 Lbf.ft	220000 Lbf	89900 Lbf

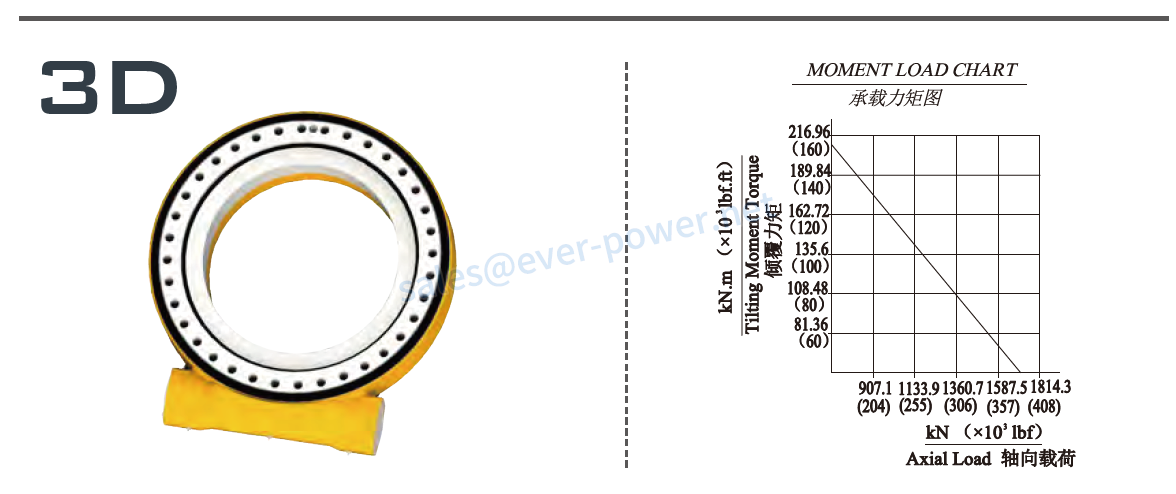

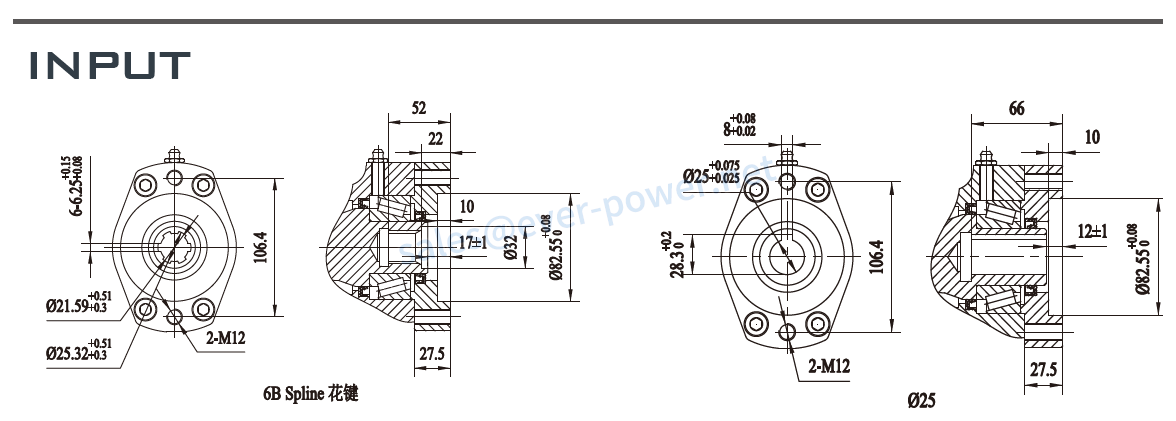

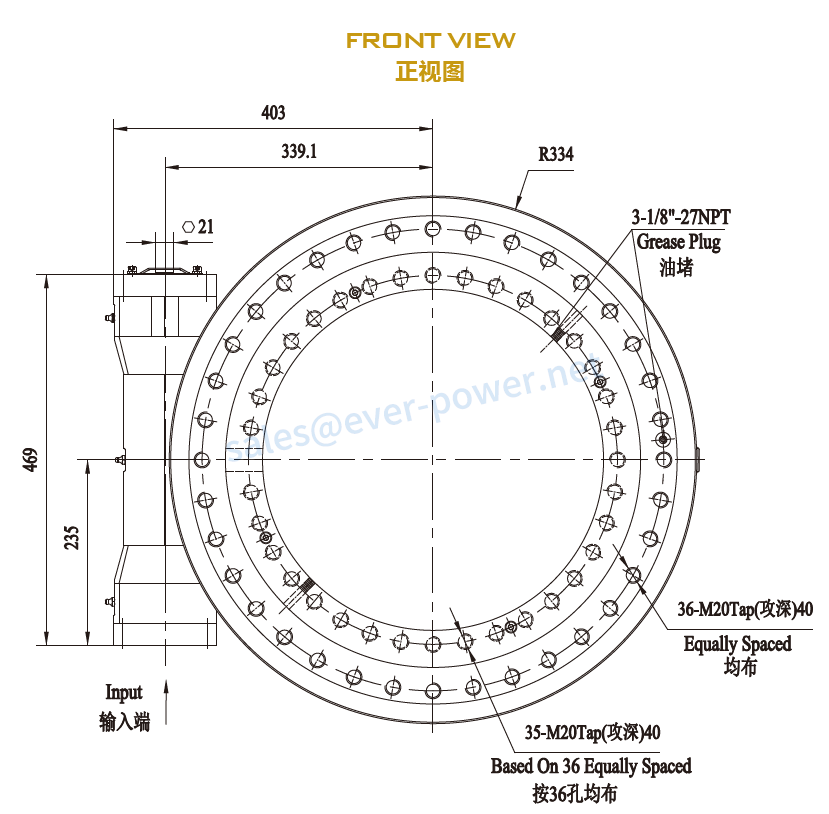

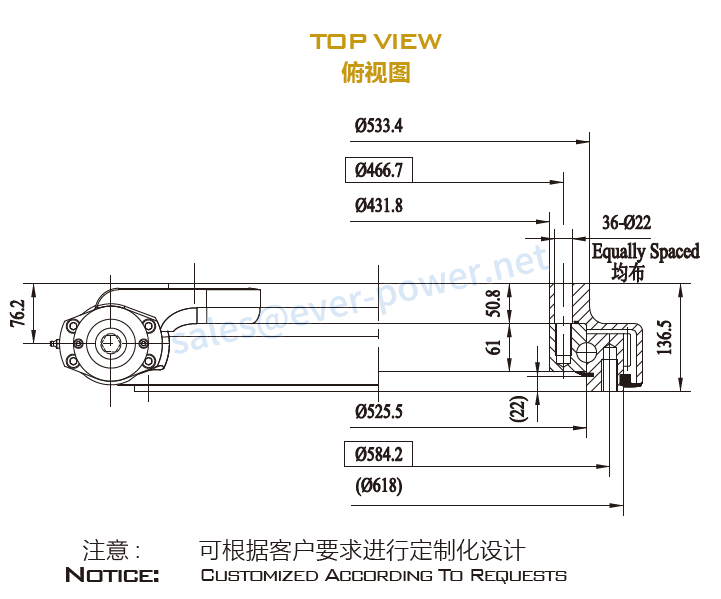

(9)针对21系列回转驱动器

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
15 kN.m	203 kN.m	106 kN.m	1600 KN	650 KN	125:1	<= 0.15 °	150Kg
11000 Lbf.ft	150000 Lbf.ft	78200 Lbf.ft	3.59700 Lbf	146100 Lbf

(10) EGE 25 Series Slewing Drive

Performance Parameters

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
18 kN.m	271 kN.m	159 kN.m	2400 KN	950 KN	150:1	<= 0.15 °	205Kg
13300 Lbf.ft	200000 Lbf.ft	117300 Lbf.ft	539500 Lbf	213600 Lbf

Application Case

Slewing drives are best suited for applications where high torque can produce precise positioning and rotational accuracy. This design results in a smooth working, powerful device with minimal backlash.

The list of active applications for slew drives is extensive. Several types of industries require some form of slewing drive to improve the efficiency of their operations. Mining, construction, metalworking, and other applications that require unrelenting strength and flawless precision use rotary technology for safety and accuracy.

Powerful equipment such as aerial lifts, rotary forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery, and utility equipment depends on the safety and strength of slewing drives. Precision equipment such as military equipment, satellite dishes, solar trackers, printing presses, and telescopic devices benefit from the adequate precision offered by slewing drives.
