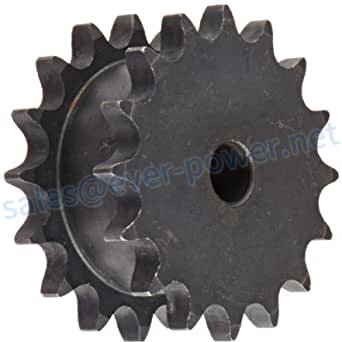

C2080H Double Pitch Sprockets
Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.
Below is a chart of all of the standard C2080H double pitch roller chain sprockets. We also stock a full line of high quality C2080H roller chain.
Stock C2080H Roller Chain Sprockets
| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
|
2080A17 |
17 | 5.950" | 15/16" | -- | -- | 3.4 LBS |
|
2080A18 |
18 | 6.270" | 15/16" | -- | -- | 3.8 LBS |
| 2080A19 | 19 | 6.590" | 15/16" | -- | -- | 4.3 LBS |
|
2080A20 |
20 | 6.910" | 15/16" | -- | -- | 4.8 LBS |
|
2080A21 |
21 | 7.230" | 15/16" | -- | -- | 5.3 LBS |
|
2080A22 |
22 | 7.560" | 15/16" | -- | -- | 5.8 LBS |
|
2080A23 |
23 | 7.880" | 15/16" | -- | -- | 6.4 LBS |
|
2080A24 |
24 | 8.200" | 15/16" | -- | -- | 7.1 LBS |
|
2080A25 |
25 | 8.520" | 15/16" | -- | -- | 7.5 LBS |
|
2080A26 |
26 | 8.840" | 1-3/16" | -- | -- | 8.3 LBS |
|
2080A28 |
28 | 9.480" | 1-3/16" | -- | -- | 9.2 LBS |
|
2080A30 |
30 | 10.110" | 1-3/16" | -- | -- | 10.7 LBS |
| 2080B11 | 11 | 4.010" | 1" | 1-1/2" | 1-5/8" | 2.5 LBS |
| 2080B12 | 12 | 4.330" | 1" | 1-11/16" | 1-5/8" | 3.2 LBS |
| 2080B13 | 13 | 4.660" | 1" | 1-25/32" | 1-1/2" | 3.3 LBS |
| 2080B14 | 14 | 4.980" | 1" | 2-1/8" | 1-1/2" | 4.0 LBS |
| 2080B15 | 15 | 5.300" | 1" | 2-9/32" | 1-1/2" | 4.8 LBS |
| 2080B16 | 16 | 5.630" | 1" | 2-17/32" | 1-1/2" | 5.7 LBS |
| 2080B17 | 17 | 5.950" | 1" | 2-3/4" | 1-1/2" | 6.4 LBS |
| 2080B18 | 18 | 6.270" | 1" | 2-3/4" | 1-1/2" | 7.4 LBS |
| 2080B19 | 19 | 6.590" | 1" | 2-3/4" | 1-1/2" | 7.7 LBS |
| 2080B20 | 20 | 6.910" | 1" | 2-3/4" | 1-1/2" | 8.3 LBS |
| 2080B21 | 21 | 7.230" | 1" | 2-3/4" | 1-3/4" | 9.4 LBS |
| 2080B22 | 22 | 7.560" | 1" | 2-3/4" | 1-3/4" | 10.0 LBS |
| 2080B23 | 23 | 7.880" | 1" | 2-3/4" | 1-3/4" | 10.5 LBS |
| 2080B24 | 24 | 8.200" | 1" | 2-3/4" | 1-3/4" | 11.1 LBS |
| 2080B25 | 25 | 8.520" | 1" | 2-3/4" | 1-3/4" | 12.0 LBS |
| 2080B26 | 26 | 8.840" | 1-1/4" | 3-1/4" | 2" | 14.8 LBS |
| 2080B28 | 28 | 9.480" | 1-3/16" | 3-1/4" | 2" | 16.6 LBS |
| 2080B30 | 30 | 10.110" | 9.620" | 3-1/4" | 2" | 17.8 LBS |
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
木箱/容器和托盘,或者按照习俗ized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
