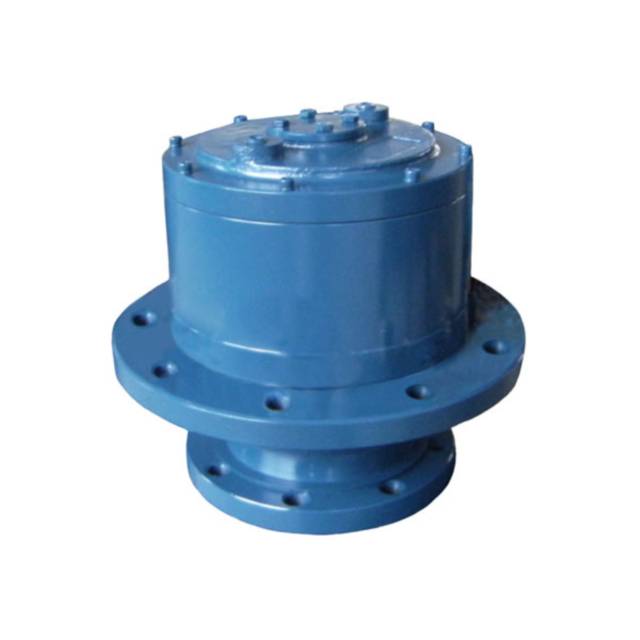

Wheel Drive Planetary Gearbox Bonfiglioli Replacement 600 Series 601R 603W 605W 606W 609W 611W 613W 615W
The installation dimensions of planetary gearbox,Wheel Drive Planetary Gearbox, winch drive gearbox and track drive gearbox produced by us are exactly the same as those of trasmital Bonfiglioli, and the performance parameters are very close to those of trasmital Bonfiglioli, which can be used instead of trasmital Bonfiglioli’s products.
Wheel Drive Planetary Gearbox Bonfiglioli Replacement 600 Series 601R 603W 605W 606W 609W 611W 613W 615W
Replacement gearbox for Bonfiglioli
 EP602L2-25 |
 EP602L2 |
 EP606L2 |
The installation dimensions of planetary gearbox, wheel drive gearbox, winch drive gearbox and track drive gearbox produced by us are exactly the same as those of trasmital Bonfiglioli, and the performance parameters are very close to those of trasmital Bonfiglioli, which can be used instead of trasmital Bonfiglioli's products.
|
bonfiglioli model |
601R |
603W |
605W |
606W |
609W |
611W |
613W, 615W |
|
our model |
EP601R |
EP603W |
EP605W |
EP606W |
EP609W |
EP611W |
EP613W, EP615W |
Superior Performance Of Wheel Drive Planetary Gearbox
The EPPG NB600L Serieswheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The EP600L planetary gear reducer for the wheeled vehicle has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
Key Features Of Wheel Drive Planetary Gearbox
Main options |
Dynamic & service brake |
Torque range |
3,000 ... 85,000 Nm (26,552 … 752,313 in-lb) |
Gear ratios |
4.3 ... 153 |
Input speed |
up to 4,000 rpm |
Brake options |
Hydraulically released parking brake on request |
Applicable motors |
- Cartridge axial piston hydraulic motors - Flanged axial piston hydraulic motors - Hydraulic orbit motors - DC electric motor brake |
|
Track drives type |
Max torque N.m
|
Range of ratio(i)
|
Max input speed(rpm)
|
Braking torque(N.m)
|
|
EP601L1A
|
1750 |
5.77 |
1000 |
450-600 |
|
EP603L2A
|
4000 |
19-23-32-40 |
3000 |
210 |
|
EP603L2B
|
4000 |
19-23-32-40 |
210 |
|
|
EP602L2
|
5000 |
12.4-25.8 |
- |
|
|
EP605L2
|
7000 |
22-27-30-42-53 |
220-310 |
|
|
EP606L2, L3
|
12000 |
30-35-43-68-79 |
300-800 |
|
|
EP607L2, L3
|
17000 |
33-75-108 |
300-600 |
|
|
EP609L2, L3
|
23000 |
33-142 |
300-800 |
|
|
EP610L2, L3
|
30000 |
20-111 |
300-800 |
|
|
EP611L2, L3
|
36000 |
41-47 |
300-800 |
|
|
EP613L3
|
45000 |
108 |
300-800 |
|
|
EP615L3
|
60000 |
108 |
300-1000 |
Application Of Wheel Drive Planetary Gearbox
Cold milling machines: track, wheel & cutter drives
Pavers: Wheel, auger & track drives
Access platforms: wheel & slew drives
Vertical, scissor, articulated and telescopic platforms
Self-propelled feed-mixers
Potato harvesters: wheel drives
Grape Harvesters: wheel drives
Sugar cane harvesters: wheel drives
Soil compactors: Drum & wheel drives
Road reclaimers: Wheel drives
Sprayers: wheel drives
Construction(dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling(gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment(rotating filters, thickeners, clarifiers, Warm hoists, agitators)
Mine and quarry machines(钻井和excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy(pitch drives, yaw drives)
Substructures(movable roofs, movable gantries, piling)
Steel processing machines(conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry(mixing machines, mixers, conveyors, fruit extractor machines)
Other Types of Planetary Gearboxes
 Gear Speed Reducer for Tracked Vehicle |
 Gear Speed Reducer for Winch |
Planetary Gear Reducer for Wheeled Vehicle |
 Planetary Slewing Drive |
 Gear Speed Reducer for Wind Turbines |
 Inline Planetary Gear Reducer |
 Right Angle Gear Drives |
 Power Wheel Planetary Gear Drive |
 Feed Mixer Drive |
Why Choose our Wheel Drive Planetary Gearbox
Strictly Quality Control bring Outstand Gearbox products
1: 100% testing for all the gears and Gear shaft and cast Iron Housing
Strong Production Capability & Advanced equipment &Faster delivery
1: More than 150 professional workers & 40000 Squre meter factory base
2: Imported Grinding machines(REISHAUER) ,ensure all gears we make are DIN 6 .
3: Fast delivery (Spare part stock for all series gearboxes)
4: 29 years experience since 1993
5: Customized gearbox according to client's requrement
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
我们承诺将提供最好的价格由高quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.根据你的要求OEM
Surface Treatment
退火,自然圣典,热处理,polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
