#40 Roller Chain Sprockets
ANSI standards are part of each design, including A-plate, SK-type and P-type varieties. Each #40 sprocket goes through extensive quality assurances so the teeth and hardening practices are up to standard. No other #40 chain sprocket can give you as much durability as our stock.
A #40 sprocket must meet and exceed your standards on the production floor. Try out a #40 chain sprocket with a chain of your choosing. Press the two components together to see a tight yet flexible connection. The chain rolls off each sprocket with ease and grace.

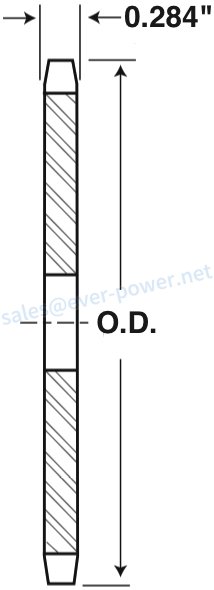

#40 A-Plate Sprockets
| Size | Tooth Count | Stock Bore | Weight (LBS) |
|---|---|---|---|
| 40A12 | 12 | 1/2" | 0.18 |
| 40A13 | 13 | 1/2" | 0.22 |
| 40A14 | 14 | 1/2" | 0.26 |
| 40A15 | 15 | 5/8" | 0.30 |
| 40A16 | 16 | 5/8" | 0.34 |
| 40A17 | 17 | 5/8" | 0.36 |
| 40A18 | 18 | 5/8" | 0.44 |
| 40A19 | 19 | 5/8" | 0.46 |
| 40A20 | 20. | 5/8" | 0.56 |
| 40A21 | 21 | 5/8" | 0.58 |
| 40A22 | 22 | 5/8" | 0.66 |
| 40A23 | 23 | 5/8" | 0.72 |
| 40A24 | 24 | 5/8" | 0.82 |
| 40A25 | 25 | 5/8" | 0.88 |
| 40A26 | 26 | 5/8" | 0.94 |
| 40A27 | 27 | 5/8" | 0.98 |
| 40A28 | 28 | 5/8" | 1.10 |
| 40A29 | 29 | 19/32" | 1.22 |
| 40A30 | 30 | 19/32" | 1.26 |
| 40A31 | 31 | 19/32" | 1.40 |
| 40A32 | 32 | 19/32" | 1.48 |
| 40A33 | 33 | 19/32" | 1.56 |
| 40A34 | 34 | 19/32" | 1.64 |
| 40A35 | 35 | 19/32" | 1.70 |
| 40A36 | 36 | 19/32" | 1.84 |
| 40A37 | 37 | 19/32" | 1.92 |
| 40A38 | 38 | 19/32" | 2.00 |
| 40A39 | 39 | 19/32" | 2.02 |
| 40A40 | 40 | 23/32" | 2.22 |
| 40A41 | 41 | 23/32" | 2.40 |
| 40A42 | 42 | 23/32" | 2.52 |
| 40A43 | 43 | 23/32" | 2.64 |
| 40A44 | 44 | 23/32" | 2.81 |
| 40A45 | 45 | 23/32" | 2.90 |
| 40A46 | 46 | 23/32" | 3.03 |
| 40A47 | 47 | 23/32" | 3.17 |
| 40A48 | 48 | 23/32" | 3.31 |
| 40A49 | 49 | 23/32" | 3.45 |
| 40A50 | 50 | 23/32" | 3.60 |
| 40A51 | 51 | 23/32" | 3.75 |
| 40A52 | 52 | 23/32" | 3.90 |
| 40A53 | 53 | 23/32" | 4.05 |
| 40A54 | 54 | 23/32" | 4.44 |
| 40A55 | 55 | 23/32" | 4.54 |
| 40A56 | 56 | 23/32" | 4.84 |
| 40A57 | 57 | 23/32" | 5.00 |
| 40A58 | 58 | 23/32" | 5.12 |
| 40A59 | 59 | 23/32" | 5.30 |
| 40A60 | 60 | 23/32" | 5.48 |
| 40A70 | 70 | 23/32" | 7.24 |
| 40A72 | 72 | 23/32" | 7.56 |
| 40A80 | 80 | 23/32" | 10.20 |
| 40A84 | 84 | 23/32" | 10.07 |
| 40A96 | 96 | 15/16" | 12.15 |
| 40A112 | 112 | 15/16" | 20..00 |

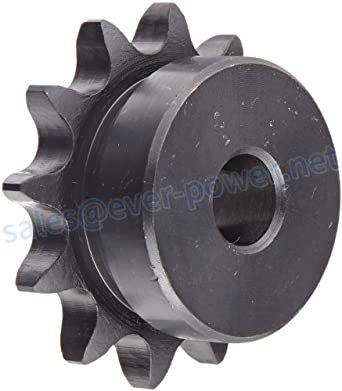

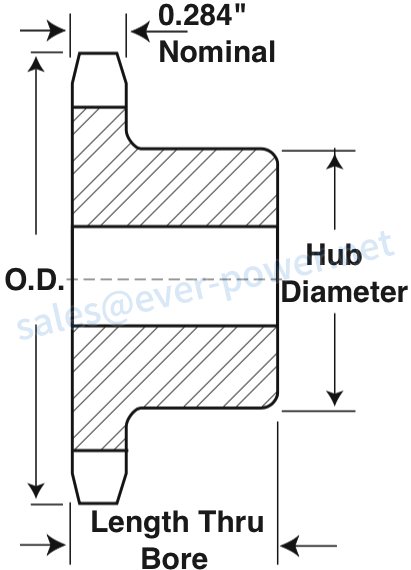

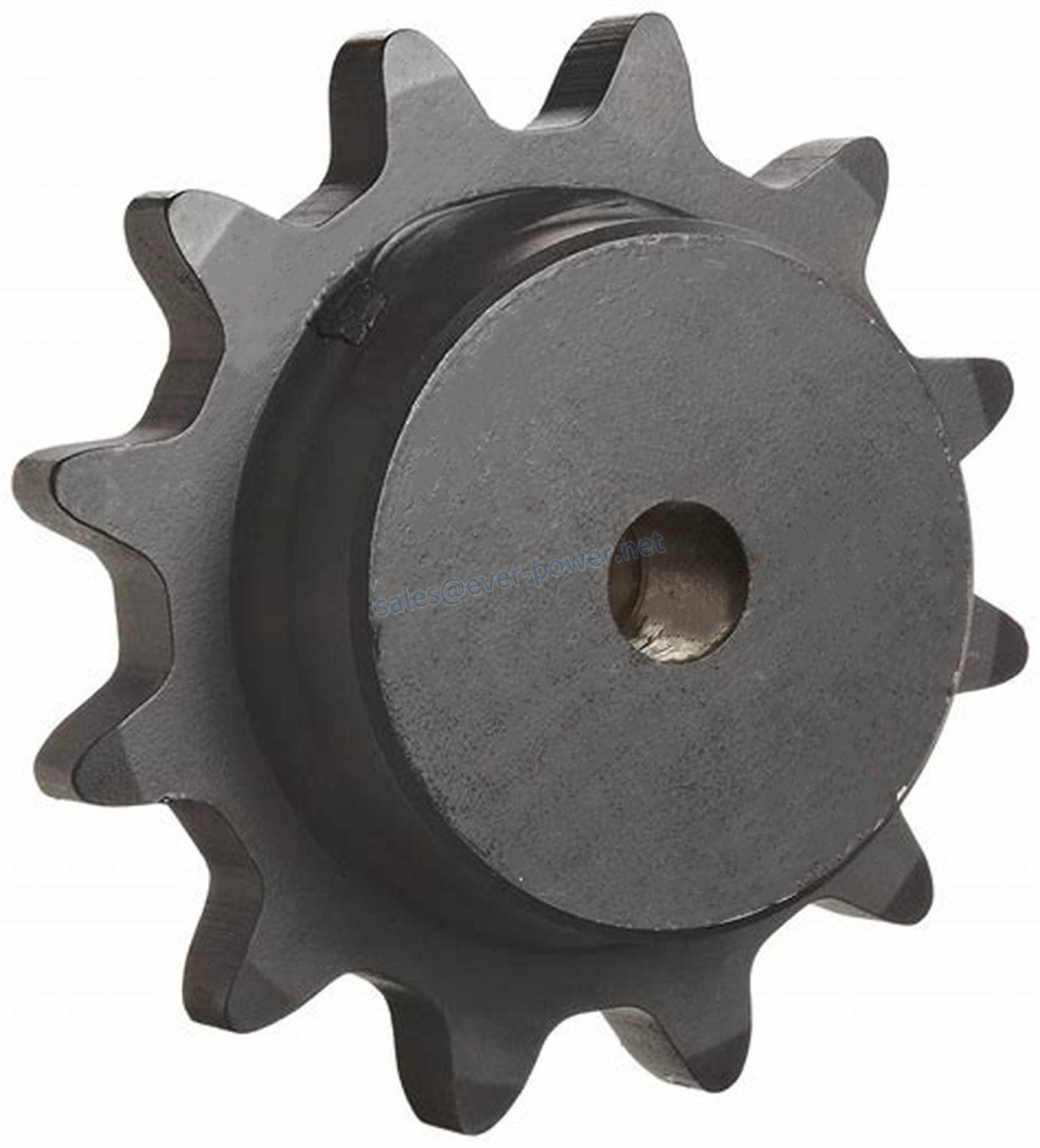

#40 B-Hub Sprockets
| Size | Tooth Count | Outside Diameter | Type | Stock Bore | Recommended Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| 41B6 | 6 | 1.510" | B | 1/2" | 1/2" | 63/64" | 7/8 | 0.18 |
| 40B9 | 9 | 1.670" | B | 1/2" | 9/16" | 1 1/10" | 7/8" | 0.20 |
| 40B10 | 10 | 1.840" | B | 1/2" | 3/4" | 1 1/4" | 7/8" | 0.27 |
| 40B11 | 11 | 2.000" | B | 1/2" | 7/8" | 1 3/8" | 7/8" | 0.35 |
| 40B12 | 12 | 2.170" | B | 1/2" | 1" | 1 9/16" | 7/8" | 0.45 |
| 40B13 | 13 | 2.330" | B | 1/2" | 1 1/16" | 1 9/16" | 7/8" | 0.50 |
| 40B14 | 14 | 2.490" | B | 1/2" | 1 1/8" | 1 11/16" | 7/8" | 0.59 |
| 40B15 | 15 | 2.650" | B | 1/2" | 1 1/4" | 1 13/16" | 7/8" | 0.70 |
| 40B16 | 16 | 2.810" | B | 5/8" | 1 3/8" | 2" | 7/8" | 0.79 |
| 40B17 | 17 | 2.980" | B | 5/8" | 1 7/16" | 2 1/8" | 1 | 1.04 |
| 40B18 | 18 | 3.140" | B | 5/8" | 1 1/2" | 2 5/16" | 1 | 1.22 |
| 40B19 | 19 | 3.300" | B | 5/8" | 1 3/4" | 2 1\2" | 1 | 1.43 |
| 40B20 | 20. | 3.460" | B | 5/8" | 1 7/8" | 2 5/8" | 1 | 1.56 |
| 40B21 | 21 | 3.620" | B | 5/8" | 1 7/8" | 2 3/4" | 1 | 1.73 |
| 40B22 | 22 | 3.780" | B | 5/8" | 1 7/8" | 2 7/8" | 1 | 1.96 |
| 40B23 | 23 | 3.940" | B | 5/8" | 2" | 3" | 1 | 2.13 |
| 40B24 | 24 | 4.100" | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 2.41 |
| 40B25 | 25 | 4.260" | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 2.54 |
| 40B26 | 26 | 4.420" | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 2.58 |
| 40B27 | 27 | 4.580" | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 2.66 |
| 40B28 | 28 | 4.740 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 2.73 |
| 40B29 | 29 | 4.900 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 2.80 |
| 40B30 | 30 | 5.060 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 2.98 |
| 40B31 | 31 | 5.220 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.10 |
| 40B32 | 32 | 5.380 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.16 |
| 40B33 | 33 | 5.540 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.22 |
| 40B34 | 34 | 5.700 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.30 |
| 40B35 | 35 | 5.860 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.46 |
| 40B36 | 36 | 6.020 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.58 |
| 40B37 | 37 | 6.180 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.62 |
| 40B38 | 38 | 6.330 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.70 |
| 40B39 | 39 | 6.490 | B | 5/8" | 2 1/4" | 3 1/4" | 1 | 3.76 |
| 40B40 | 40 | 6.650 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 4.69 |
| 40B41 | 41 | 6.810 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 4.76 |
| 40B42 | 42 | 6.970 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 4.82 |
| 40B43 | 43 | 7.130 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.12 |
| 40B44 | 44 | 7.290 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.15 |
| 40B45 | 45 | 7.450 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.30 |
| 40B46 | 46 | 7.610 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.57 |
| 40B47 | 47 | 7.770 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.44 |
| 40B48 | 48 | 7.930 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.84 |
| 40B49 | 49 | 8.090 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.90 |
| 40B50 | 50 | 8.250 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 5.96 |
| 40B51 | 51 | 8.410 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 6.08 |
| 40B52 | 52 | 8.570 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 6.28 |
| 40B53 | 53 | 8.730 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 6.33 |
| 40B54 | 54 | 8.890 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 6.42 |
| 40B55 | 55 | 9.040 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 6.46 |
| 40B56 | 56 | 9.200 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 6.89 |
| 40 b57 | 57 | 9.360 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 7.02 |
| 40 b58 | 58 | 9.520 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 7.36 |
| 40B59 | 59 | 9.680 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 7.45 |
| 40B60 | 60 | 9.840 | B | 3/4" | 2 3/8" | 3 1/2" | 1 1/8" | 7.86 |
| 40B70 | 70 | 11.430 | B | 3/4" | 2 3/4" | 4" | 1 1/4" | 11.00 |
| 40B72 | 72 | 11.750 | B | 3/4" | 2 3/4" | 4" | 1 1/4" | 11.50 |
| 40B80 | 80 | 13.030 | B | 3/4" | 2 3/4" | 4" | 1 1/4" | 13.40 |
| 40B84 | 84 | 13.660 | B | 3/4" | 2 3/4" | 4" | 1 1/4" | 14.04 |
| 40B96 | 96 | 15.570 | B | 1" | 2 3/4" | 4" | 1 1/4" | 17.56 |
| 40B112 | 112 | 18.120 | B | 1" | 2 3/4" | 4" | 1 1/4" | 22.56 |

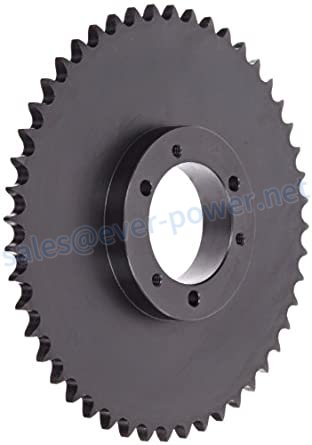

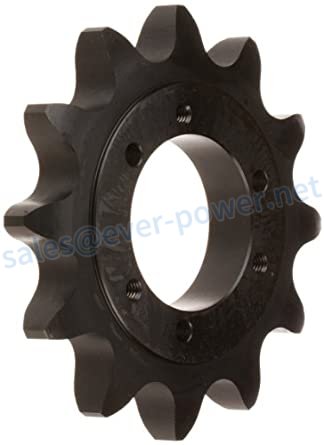

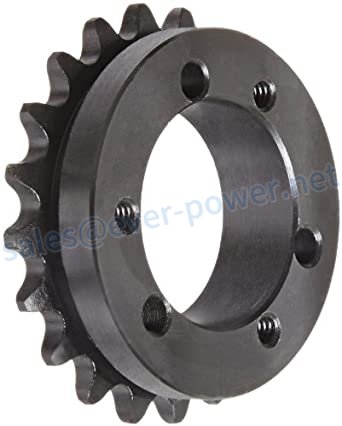

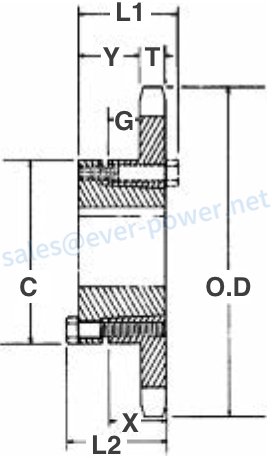

#40 QD Bushed Sprockets
| Size | Tooth Count | Outside Diameter | Pitch Diameter | Bushing Type | Max. Bore | Dimension (L1) | Dimension (L2) | Dimension (C) | Dimension (Y) | Dimension (G) | Dimension (X) | Dimension (T) | Sprocket Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40JA15 | 15 | 2.650 | 2.406 | B | 1/2" | 1 1/8" | 1 1/8" | 2 11/16" | 23/32" | 11/32" | 5/8" | 0.284 | 0.34 |
| 40JA16 | 16 | 2.810 | 2.563 | JA | 1 1/4" | 1 1/8" | 1 1/8" | 2 11/16" | 23/32" | 11/32" | 5/8" | 0.284 | 0.40 |
| 40JA17 | 17 | 2.980 | 2.721 | JA | 1 1/4" | 1 1/8" | 1 1/8" | 2 11/16" | 23/32" | 11/32" | 5/8" | 0.284 | 0.48 |
| 40JA18 | 18 | 3.140 | 2.879 | JA | 1 1/4" | 1 1/8" | 1 1/8" | 2 11/16" | 23/32" | 11/32" | 5/8" | 0.284 | 0.54 |
| 40JA19 | 19 | 3.300 | 3.038 | JA | 1 1/4" | 1 1/8" | 1 1/8" | 2 11/16" | 23/32" | 11/32" | 5/8" | 0.284 | 0.60 |
| 40SH20 | 20. | 3.460 | 3.196 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 0.76 |
| 40SH21 | 21 | 3.620 | 3.355 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 0.84 |
| 40SH22 | 22 | 3.780 | 3.513 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 0.92 |
| 40SH23 | 23 | 3.940 | 3.672 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.14 |
| 40SH24 | 24 | 4.100 | 3.831 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.22 |
| 40SH25 | 25 | 4.260 | 3.989 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.30 |
| 40SH26 | 26 | 4.420 | 4.148 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.44 |
| 40SH27 | 27 | 4.580 | 4.307 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.46 |
| 40SH28 | 28 | 4.740 | 4.466 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.54 |
| 40SH29 | 29 | -- | -- | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | -- |
| 40SH30 | 30 | 5.060 | 4.783 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.72 |
| 40SH32 | 32 | 5.380 | 5.101 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 2 11/16" | 31/32" | 17/32" | 13/16" | 0.284 | 1.90 |
| 40SH35 | 35 | 5.860 | 5.578 | SH | 1 5/8" | 1 7/16" | 1 7/16" | 3 | 31/32" | 17/32" | 13/16" | 0.284 | 2.22 |
| 40SDS36 | 36 | 6.020 | 5.737 | SDS | 2" | 1 1/2" | 1 1/2" | 3 3/16" | 1 1/32" | 15/32" | 3/4" | 0.284 | 2.20 |
| 40SDS40 | 40 | 6.650 | 6.373 | SDS | 2" | 1 1/2" | 1 1/2" | 3 3/16" | 1 1/32" | 15/32" | 3/4" | 0.284 | 2.72 |
| 40SDS42 | 42 | 6.970 | 6.691 | SDS | 2" | 1 1/2" | 1 1/2" | 3 3/16" | 1 1/32" | 15/32" | 3/4" | 0.284 | 2.92 |
| 40SDS45 | 45 | 7.450 | 7.168 | SDS | 2" | 1 1/2" | 1 1/2" | 3 3/16" | 1 1/32" | 15/32" | 3/4" | 0.284 | 3.32 |
| 40SDS48 | 48 | 7.930 | 7.645 | SDS | 2" | 1 1/2" | 1 1/2" | 3 3/16" | 1 1/32" | 15/32" | 3/4" | 0.284 | 3.70 |
| 40SDS54 | 54 | 8.890 | 8.599 | SDS | 2" | 1 1/2" | 1 1/2" | 3 3/16" | 1 1/32" | 15/32" | 3/4" | 0.284 | 4.78 |
| 40SDS60 | 60 | 9.840 | 9.554 | SDS | 2" | 1 1/2" | 1 1/2" | 3 3/16" | 1 1/32" | 15/32" | 3/4" | 0.284 | 5.86 |
| 40SK70 | 70 | 11.430 | 11.145 | SK | 2 5/8" | 2 1/8" | 2 1/8" | 3 7/8" | 1 19/32" | 31/32" | 1 1/4" | 0.284 | 8.68 |
| 40SK72 | 72 | 11.750 | 11.463 | SK | 2 5/8" | 2 1/8" | 2 1/8" | 3 7/8" | 1 19/32" | 31/32" | 1 1/4" | 0.284 | 8.84 |
| 40SK80 | 80 | 13.030 | 12.736 | SK | 2 5/8" | 2 1/8" | 2 1/8" | 3 7/8" | 1 19/32" | 31/32" | 1 1/4" | 0.284 | 11.20 |
| 40SK84 | 84 | 13.660 | 13.372 | SK | 2 5/8" | 2 1/8" | 2 1/8" | 3 7/8" | 1 19/32" | 31/32" | 1 1/4" | 0.284 | 11.56 |
| 40SK96 | 96 | 15.570 | 15.282 | SK | 2 5/8" | 2 1/8" | 2 1/8" | 3 7/8" | 1 19/32" | 31/32" | 1 1/4" | 0.284 | 15.76 |
| 40SK112 | 112 | 18.120 | 17.828 | SK | 2 5/8" | 2 1/8" | 2 1/8" | 3 7/8" | 1 19/32" | 31/32" | 1 1/4" | 0.284 | 20..28 |

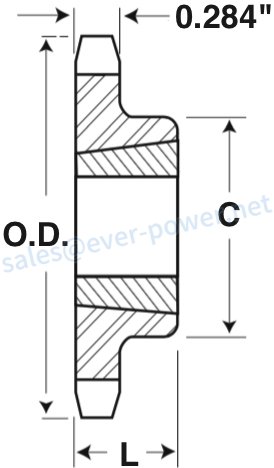

#40 BTB Sprockets
| Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Max. Bore | Dimension (L) | Dimension (C) | Type | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 40BTB14 | 14 | 1008 | 2.491 | 2.247 | 1' | 7/8" | 1 13/16" | B | 0.3 |
| 40BTB15 | 15 | 1008 | 2.652 | 2.405 | 1' | 7/8" | 1 13/16" | B | 0.4 |
| 40BTB16 | 16 | 1008 | 2.814 | 2.563 | 1" | 7/8" | 1 15/16" | B | 0.5 |
| 40BTB17 | 17 | 1210 | 2.975 | 2.721 | 1 1/4" | 1" | 2 3/8" | B | 0.5 |
| 40BTB18 | 18 | 1210 | 3.135 | 2.879 | 1 1/4" | 1" | 2 15/32" | B | 0.6 |
| 40BTB19 | 19 | 1210 | 3.296 | 3.038 | 1 1/4" | 1" | 2 15/32" | B | 0.7 |
| 40BTB20 | 20. | 1610 | 3.457 | 3.196 | 1 5/8" | 1" | 2 25/32" | B | 0.7 |
| 40BTB22 | 22 | 1610 | 3.778 | 3.513 | 1 5/8" | 1" | 2 25/32" | B | 0.9 |
| 40BTB23 | 23 | 1610 | 3.938 | 3.672 | 1 5/8" | 1" | 3 3/32" | B | 1.0 |
| 40BTB24 | 24 | 1610 | 4.098 | 3.831 | 1 5/8" | 1" | 3 1/4" | B | 1.4 |
| 40BTB25 | 25 | 1610 | 4.258 | 3.989 | 1 5/8" | 1" | 3 13/32" | B | 1.5 |
| 40BTB26 | 26 | 1610 | 4.418 | 4.148 | 1 5/8" | 1" | 3 1/2" | B | 1.7 |
| 40BTB28 | 28 | 1610 | 4.738 | 4.466 | 1 5/8" | 1" | 3 1/2" | B | 1.8 |
| 40BTB30 | 30 | 1610 | 5.057 | 4.783 | 1 5/8" | 1" | 3 1/2" | B | 1.9 |
| 40BTB32 | 32 | 1610 | 5.377 | 5.101 | 1 5/8" | 1" | 3 1/2" | B | 1.9 |
| 40BTB35 | 35 | 1610 | 5.855 | 5.578 | 1 5/8" | 1" | 3 1/2" | B | 2.3 |
| 40BTB36 | 36 | 1610 | 6.015 | 5.737 | 1 5/8" | 1" | 3" | B | 2.4 |
| 40BTB40 | 40 | 1610 | 6.653 | 6.373 | 1 5/8" | 1" | 3" | B | 2.8 |
| 40BTB42 | 42 | 1610 | 6.972 | 6.691 | 1 5/8" | 1" | 3" | B | 2.9 |
| 40BTB45 | 45 | 1610 | 7.4168 | 7.168 | 1 5/8" | 1" | 3" | B | 3.5 |
| 40BTB60 | 60 | 1610 | 9.841 | 9.554 | 1 5/8" | 1" | 3" | B | 6.0 |
| 40BTB70 | 70 | 20.12 | 11.434 | 11.145 | 2" | 1 1/4" | 3 9/16" | B | 8.2 |
| 40BTB72 | 72 | 20.12 | 11.752 | 11.463 | 2' | 1 1/4" | 3 9/16" | B | 9.0 |
| 40BTB80 | 80 | 20.12 | 13.026 | 12.739 | 2' | 1 1/4" | 3 9/16" | B | 10.8 |
| 40BTB84 | 84 | 20.12 | 13.663 | 13.372 | 2" | 1 1/4" | 3 9/16" | B | 11.3 |
| 40BTB96 | 96 | 20.12 | 15.573 | 15.282 | 2" | 1 1/4" | 3 9/16" | B | 14.6 |
| 40BTB112 | 112 | 2517 | 18.122 | 17.828 | 2 1/2" | 1 3/4" | 4 1/4 | B | 20..5 |

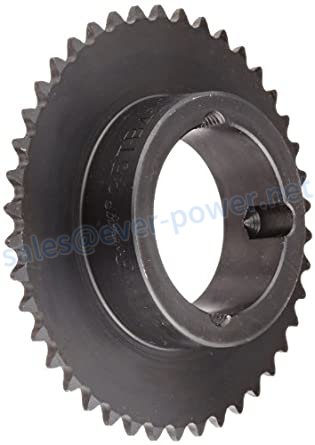

#40 Taper Bushed Sprockets
| Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Type | Max. Bore | Dimension (OL) | Dimension (L) | Dimension (C) | Dimension (H) | Dimension (P) | Dimension (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40H15H | 15 | H | 2.650 | 2.405 | 3 | 1-1/2" | 1-19/32" | 1-1/4" | 5/32" | 2-1/2" | 1-1/8" | .284 | 0.5 |
| 40H16H | 16 | H | 2.810 | 2.563 | 3 | 1-1/2" | 1-19/32" | 1-1/4" | 5/32" | 2-1/2" | 1-1/8" | .284 | 0.6 |
| 40H17H | 17 | H | 2.980 | 2.721 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2'' | 1-1/32" | .284 | 0.6 |
| 40H18H | 18 | H | 3.140 | 2.879 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2'' | 1-1/32" | .284 | 0.6 |
| 40P18H | 18 | P1 | 3.140 | 2.879 | 3 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3'' | 1-21/32" | .284 | 1.4 |
| 40H19H | 19 | H | 3.330 | 3.038 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 0.8 |
| 40P19H | 19 | P1 | 3.330 | 3.038 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 1.3 |
| 40H20H | 20. | H | 3.460 | 3.196 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 0.9 |
| 40P20H | 20. | P1` | 3.460 | 3.196 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 1.3 |
| 40H21H | 21 | H | 3.620 | 3.335 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 0.9 |
| 40P21H | 21 | P1 | 3.620 | 3.335 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 1.5 |
| 40H22H | 22 | H | 3.780 | 3.513 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 1.0 |
| 40P22H | 22 | P1 | 3.780 | 3.513 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 1.6 |
| 40H23H | 23 | H | 3.940 | 3.672 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-1/32" | .284 | 1.0 |
| 40H24H | 24 | H | 4.100 | 3.831 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 1.1 |
| 40P24H | 24 | P1 | 4.100 | 3.831 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 1.8 |
| 40H25H | 25 | H | 4.260 | 3.989 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 1.3 |
| 40P25H | 25 | P1 | 4.260 | 3.989 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 1.9 |
| 40H26H | 26 | H | 4.420 | 4.148 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 1.3 |
| 40P26H | 26 | P1 | 4.420 | 4.148 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 1.9 |
| 40H27H | 27 | H | 4.580 | 4.307 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 1.4 |
| 40H28H | 28 | H | 4.740 | 4.466 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 1.4 |
| 40P28H | 28 | P1 | 4.740 | 4.466 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 2.1 |
| 40P29H | 29 | P1 | 4.900 | 4.625 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 2.3 |
| 40H30H | 30 | H | 5.060 | 40783 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-1/32" | .284 | 1.6 |
| 40P31 | 31 | P1 | 5.220 | 4.942 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 2.5 |
| 40H32H | 32 | H | 5.380 | 5.101 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-1/32" | .284 | 7.8 |
| 40P32 | 32 | P1 | 5.380 | 5.101 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 2.6 |
| 40H33H | 33 | H | 5.540 | 5.260 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 1.9 |
| 40P33 | 33 | P1 | 5.540 | 5.260 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 2.6 |
| 40P34 | 34 | P1 | 5.700 | 5.419 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3 | 1-21/32" | .284 | 2.8 |
| 40H35H | 35 | H | 5.860 | 5.578 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2 | 1-1/32" | .284 | 2.1 |
| 40P35 | 35 | P1 | 5.860 | 5.578 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 2.9 |
| 40H36H | 36 | H | 6.020 | 5.737 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-1/32" | .284 | 2.3 |
| 40P36 | 36 | P1 | 6.020 | 5.737 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3'' | 1-21/32" | .284 | 3.1 |
| 40P37 | 37 | P1 | 6.180 | 5.896 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 3.3 |
| 40H38H | 38 | H | 6.330 | 6.055 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-1/32" | .284 | 2.6 |
| 40P38 | 38 | P1 | 6.330 | 6.055 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 3.3 |
| 40H40H | 40 | H | 6.650 | 6.373 | 3 | 1-1/2" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-1/32" | .284 | 2.8 |
| 40P40 | 40 | P1 | 6.650 | 6.373 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 3.5 |
| 40P41 | 41 | P1 | 6.810 | 6.532 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 3.6 |
| 40P42 | 42 | P1 | 6.970 | 6.691 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 3.9 |
| 40P44 | 44 | P1 | 7.290 | 7.009 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 4.0 |
| 40P45 | 45 | P1 | 7.450 | 7.168 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 4.2 |
| 40P47 | 47 | P1 | 7.770 | 7.486 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 4.6 |
| 40P48 | 48 | P1 | 7.930 | 7.645 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 4.8 |
| 40P50 | 50 | P1 | 8.250 | 7.963 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3'' | 1-21/32" | .284 | 5.0 |
| 40意味着 | 54 | P1 | 8.890 | 8.599 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 5.5 |
| 40P56 | 56 | P1 | 9.200 | 8.917 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 5.9 |
| 40P60 | 60 | P1 | 9.840 | 9.554 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1-21/32" | .284 | 6.6 |
| 40Q60 | 60 | Q1 | 9.840 | 9.554 | 4 | 2-11/16" | 2-25/32" | 2-1/2" | 0 | 4-1/8" | 2-7/32" | .284 | 8.8 |
| 40P70 | 70 | P1 | 11.430 | 11.145 | 4 | 1-3/4" | 2-3/16" | 1-15/16" | 0 | 3" | 1/21/32" | .284 | 8.6 |
| 40Q70 | 70 | Q1 | 11.430 | 11.145 | 4 | 2-11/16" | 2-25/32" | 2-1/2" | 0 | 4-1/8" | 2-7/32" | .284 | 11.0 |
| 40Q72 | 72 | Q1 | 11.750 | 11.463 | 4 | 2-11/16" | 2-25/32" | 2-1/2" | 0 | 4-1/8" | 2-7/32" | .284 | 11.2 |
| 40Q80 | 80 | Q1 | 13.030 | 12.736 | 4 | 2-11/16" | 2-25/32" | 2-1/2" | 0 | 4-1/8" | 2-7/32" | .284 | 13.1 |
| 40Q84 | 84 | Q1 | 13.660 | 13.372 | 4 | 2-11/16" | 2-25/32" | 2-1/2" | 0 | 4-1/8" | 2-7/32" | .284 | 14.1 |
| 40Q96 | 96 | Q1 | 15.570 | 15.281 | 4 | 2-11/16" | 2-25/32" | 2-1/2" | 0 | 4-1/8" | 2-7/32" | .284 | 12.8 |
#40 A-Plate Sprockets
#40 B-Hub Sprockets
#40 C-Hub Sprockets
#40 H Type Sprockets
#40 P Type Sprockets
#40 Q Type Sprockets
#40 SDS Type Sprockets
#40 SH Type Sprockets
#40 SK Type Sprockets
#40 JA Type Sprockets
#40 Weld-On Hub Sprockets
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
