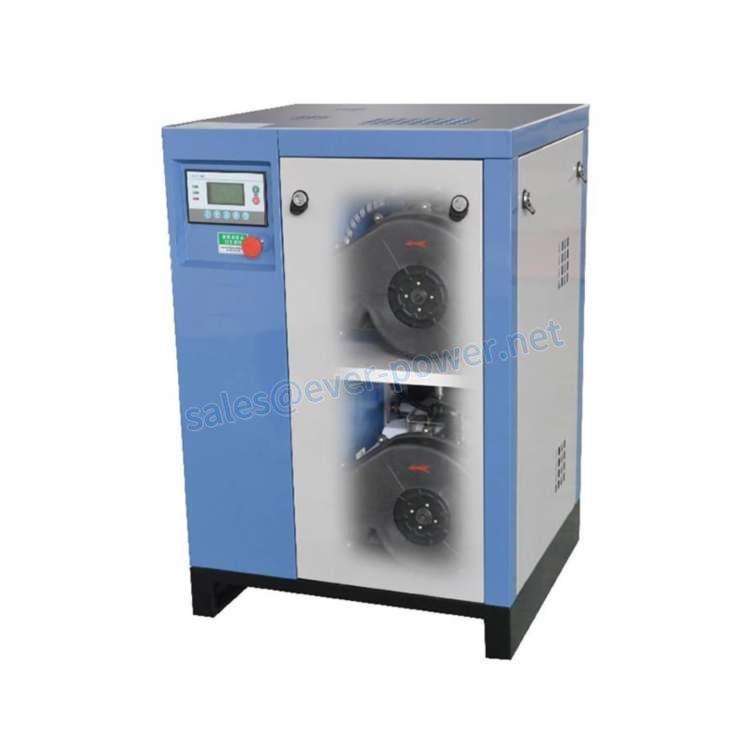

Mini Laboratory used high quality 200 ltr air compressor 7 cfm 8 cfm 9 cfm

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Printing Shops, Construction works, Food & Beverage Shops, dental, lab, food, drink, laboratory, school
Showroom Location: None
Condition: New
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Oil-free
Mute: Yes
Voltage: customized
Dimension(L*W*H): 720*680*1050
Weight: 132kg
Warranty: 5 years
Working Pressure: 8 bar, 12 bar, 10 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2022
Warranty of core components: 2 years
Core Components: SCROLL AIR END
Gas Type: Air
Motor power: 2.2kw 3hp
Working pressure: 10bar
Capacity: 215L
Noise: 49±3
Driven method: Direct Driven
Application: medical, food, dental, lab, bio-fermentation,new energy bus
Feature: 100% oil free, low energy consumption
Power: Permanent magnet variable speed
Certification: CE/ISO/TUV
Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Printing Shops, Construction works, Food & Beverage Shops, dental, lab, food, drink, laboratory, school
Showroom Location: None
Warranty: 5 years
Working Pressure: 8 bar, 12 bar, 10 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2022
Warranty of core components: 2 years
Core Components: SCROLL AIR END
Gas Type: Air
Condition: New
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Oil-free
Mute: Yes
Voltage: customized
Dimension(L*W*H): 720*680*1050
Weight: 132kg
Motor power: 2.2kw 3hp
Working pressure: 10bar
Capacity: 215L
Noise: 49±3
Driven method: Direct Driven
Application: medical, food, dental, lab, bio-fermentation,new energy bus
Feature: 100% oil free, low energy consumption
Power: Permanent magnet variable speed
Certification: CE/ISO/TUV
Packaging Details: Standard export carton/wooden structure. Customized packing is available.
Port: SHANGHAI

Product ApplicationElectric bus, High-speed train, Precision machine tool, Precision spray production line, Medical apparatus, Dental chairs, Laboratory and so on.
Product Features精密空气结束(2年保修)精度高,stiffness and durable square air-end ensure pressure can reach 12bar.IP65 protection level, F insulation level, Efficiency is improved 10%PM motor & Variable frequency inverterVSD soft no current impact. Inverter adjusts motor speed automatically, save energy and long service life.Direct driveMotor is connected with air-end directly, without belt, coupling, no need adjustment, super low noiseIndividual cooling fan:Low discharge compressed air temperature after cooled by individual fan to ensure the low pressure dew point.Purity stainless steel air tankStainless Steel pipe and connectionSuper quiet:Smart structure and advanced soundproof casing to reduce the noise to 49dB(A)Intelligent PLC controller.Display operation situation of air-endRemind maintenance timely Product ParametersTechnical Specifications.Direct drive oil free scroll air compressor with pm inverter

Capacity FAD m3/min	0.21m3/min ~ 1.64m3/min
Working Pressure	8bar ~ 12bar
Motor Power	2.2kw ~18kw

Product detailsScroll Air end
Air end.1) Oil free: no need any lubrication oil
2) Stable and reliable: oil grease is added one time per year
3) Low consumable: only air filter and sealing element
4) Super quiet design
5) World first innovating of high stiffness air end, air pressure can reach 12 bar
6) individual air end set can be match with any devices which need compressed air, simple and convenient
Working PrinciplePrinciple---The orbiting scroll and fixed scroll housing are mated to create the compression chambers.--- The continual movement of the orbiting scroll moves atmospheric air from the intake toward to the center, compressing the air into progressively smaller areas.--- The compressed air is discharged from the exhaust port at the center of the fixed scroll plant. Multi air-ends.
2-4 sets of scroll air-ends built in one.
To save energy, we consider many kinds of using situation and set main air end and slave air end start, stop and self-rotation automatically are according with the air demand.
Maximum prolong the compressor service time and save the energy cost.
single air end with air tank
Multi air-ends modular design
2-4 pcs scroll air-end built in one
