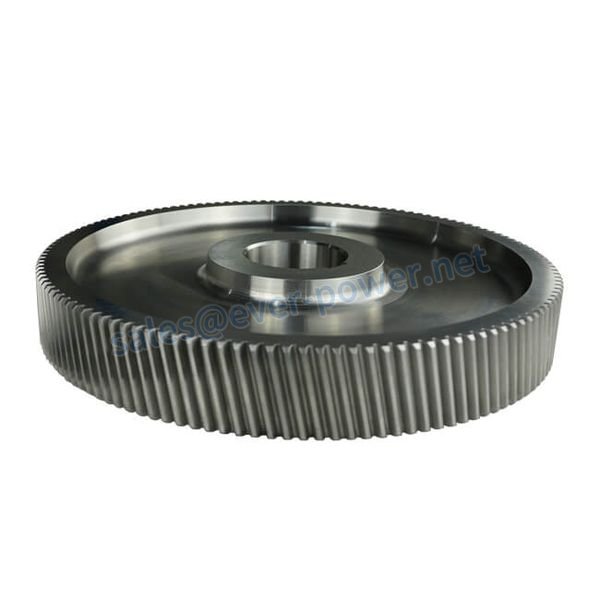

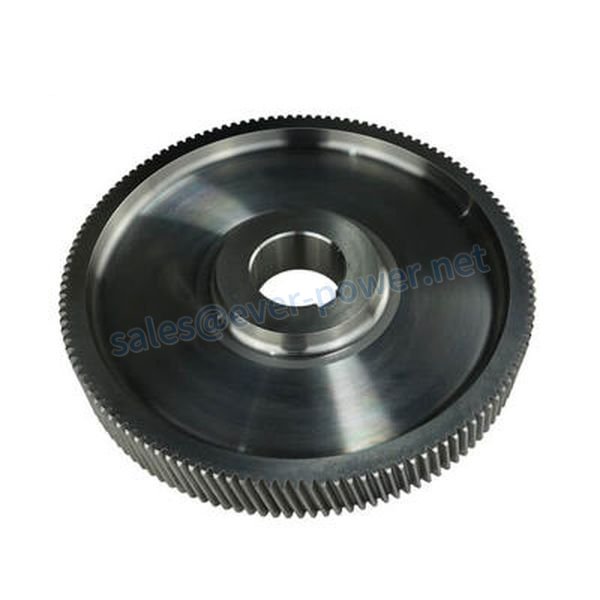

Metallurgy Machinery Soft Tooth Flank Helical Gear

Gear Basic Data
Gear Tooth Shape	involute
Gear Material	45
Gear Process	forging, lathing, hobbing, external grinding, keyway milling, tooth grinding
Pressure Angle	20°
Quality level	DIN 3962 class 6
Gear Type	Mn=3, Z=128, β=11.5°, α=20°, left-handed

Internal Gears and Internal Splines
	铣	SHAPING	TOOTH GRINDING
Maximum O.D.	2500 mm	2500 mm	2500 mm
Minimum I.D.	650 mm	50 mm	100 mm
Maximum Face Width	500 mm	500 mm	500 mm
Maximum Diametral Pitch	D.P. 1	D.P. 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±22.5°	±22.5°	±45°
External Gears and External Splines
	HOBBING	铣	TOOTH GRINDING
Maximum O.D.	1250 mm	2500 mm	2500 mm
Minimum O.D.	20 mm	200 mm	20 mm
Maximum Face Width	500 mm	500 mm	1480 mm
Maximum Diametral Pitch	D.P. 1	D.P. 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±45°	±45°	±45°

产品展示

Why choose our custom gear service?

One 、HZPT Machinery established the R&D center with certain famous national universities and introduced the world-famous top-leveled design software. With a powerful technical team, We have the professional design capability of gears and gear cases.

Two 、Our company has tooth production equipment for tooth forming, such as tooth milling, tooth shaping, and tooth hobbing. A good selection of equipment can get more stable quality and maximum efficiency. We have German HÖFLER gear grinding machines that can make the spur cylindrical gear, helical cylindrical gear, herringbone gear, inner spur gear, and the inner helical gear. With reasonable frock clamp and gear datum precision, we could make gears in a small batch with precision class DIN 2 to DIN 3 or mass production with precision class DIN 5 to DIN 6.

Three 、We have a professional fluorescent magnetic particle flaw detector to inspect 100% magnetic powder for all grinding surfaces. It will ensure the parts have no surface flaws, such as grinding cracks.

FAQ

Q: What should I do if I cannot identify the gear?

A: Please send us your damaged gear! We specialize in reverse engineering.

Q: Do you have a minimum order quantity?

A: Our minimum requirements depend on the parts ordered. Send us your drawings, pictures, sample gears, or specifications, and we will let you know the minimum requirements for the position.

Q: If there is no stock, how can HZPT Machinery provide such fast delivery?

A: Our unique manufacturing process, coupled with a large stock of tools, raw materials, and semi-finished products, allows us to complete orders in the shortest possible time.

Q: How to get the lowest price?

A: Increase the quantity. The more parts you order, the lower the price you get.

Q: Can I use other materials besides steel to manufacture rack and pinion?

A: The price of racks is not fixed. Generally, we need to quote according to the customer's required parameters such as material, tooth type, module, length, accuracy, style, spiral angle, and unique customization!

Q: How to get the lowest price?

A: Increase the quantity. The more parts you order, the lower the price you get.

Q: Is there a rack and pinion on your website in stock?

A: Everything we do is made to order. All parts on our website are pre-designed and will be manufactured when ordering, so you can request different sizes of end face widths, eyelets, wheels, etc.

Q: Can HZPT Machinery manufacture Gears that are not on this site?

A: Of course! We can provide custom gears with excellent delivery options as standard gears.

Q: Can HZPT Machinery manufacture metric gears?

A: Of course! We have the tools to manufacture any metric size.
