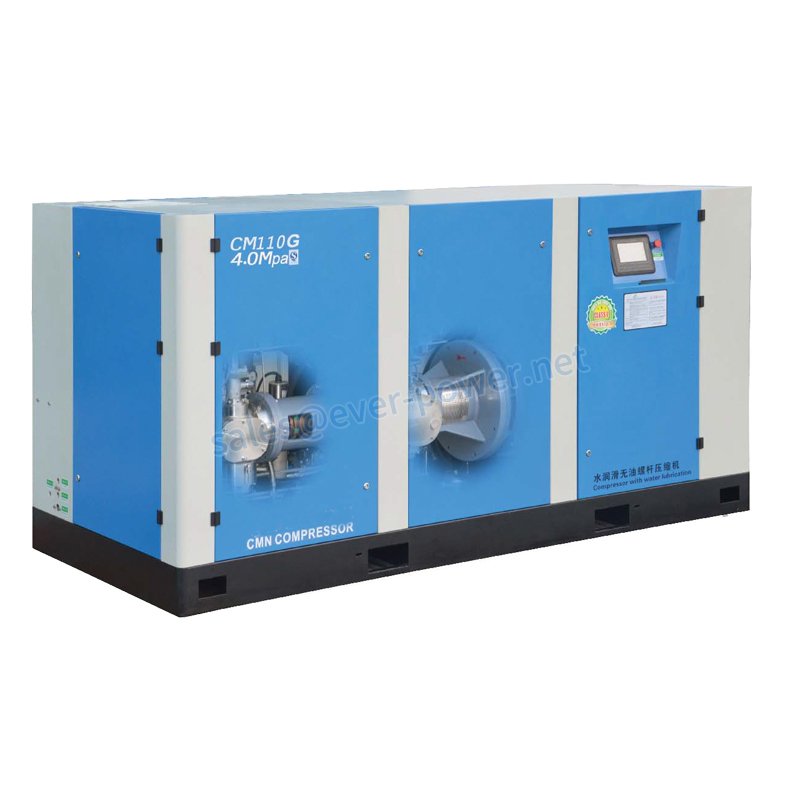

Low Noise 30 bar ~40 bar High Pressure Water-injected Oil-free PM VSD Two-stage Screw Air Compressor For PET Plastic Bottle Blow

Applicable Industries: water and beverage, pet blowing
Showroom Location: None
Condition: New
Type: Screw
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Oil-free
Mute: Yes
Voltage: 380V/50Hz
Warranty: 5 years
Working Pressure: 35 bar, 25 BAR, 30 BAR, 40 BAR
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2022
Warranty of core components: 2 years
Core Components: SCREW AIR END
Gas Type: Air
After-sales Service Provided: Engineers available to service machinery overseas
Motor power: 45-210KW
Pressure: 30-40 BAR
Capacity: 4.5-28 m3/min
Cooling method: Air Cooling/Water Cooling
Experience: Single screw air end(30 years),water-lubricated oil free(20 years)
Air compressor parts: Air end,motor,inverter,cooler,filter,pressure switch,safety value
Starting mode: Variable frequency/permanent magnetism variable frequency
Application: PET bottle blowing/Medical industry/Food industry
Consumable parts: Air filter and Water filter(<$500/year)
Applicable Industries: water and beverage, pet blowing
Showroom Location: None
Warranty: 5 years
Working Pressure: 35 bar, 25 BAR, 30 BAR, 40 BAR
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2022
Warranty of core components: 2 years
Core Components: SCREW AIR END
Gas Type: Air
Condition: New
Type: Screw
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Oil-free
Mute: Yes
Voltage: 380V/50Hz
After-sales Service Provided: Engineers available to service machinery overseas
Motor power: 45-210KW
Pressure: 30-40 BAR
Capacity: 4.5-28 m3/min
Cooling method: Air Cooling/Water Cooling
Experience: Single screw air end(30 years),water-lubricated oil free(20 years)
Air compressor parts: Air end,motor,inverter,cooler,filter,pressure switch,safety value
Starting mode: Variable frequency/permanent magnetism variable frequency
Application: PET bottle blowing/Medical industry/Food industry
Consumable parts: Air filter and Water filter(<$500/year)
Packaging Details: Standard export carton/wooden structure. Customized packing is available.
Port: Shanghai

30-40 bar High-pressure Water-injected Oil-freeScrew-type Air-compressor (PM VSD)for PET Bottle Blowing Industry, water and beverage, food and medical.Not Piston, not Booster, but Screw type.SINCE 1988Product Parameters

Series	Air Pressure	Air Capacity
High Pressure Series	13~40 bar	4.5~20.0 m3/min
Regular Series	7~10 bar	1.0~40.0 m3/min
Low Pressure Series	2~5 bar	3.0~60.0 m3/min
Two-stage Energy-saving Series	8~10 bar	20.0~60.0 m3/min

Comparison AdvantagesPET 30~40 BAR Screw type air compressor VS Piston type air compressorFamous Patented Product: Single Screw air end( 30 years experience)1) Balance Structure :The star wheels on both sides, counteract the radial and axial force.2) High Efficiency :Every rotation of the screw results in 12 compression cycles with 35280 times of exhaling.Fully use the channel space and achieve more volume compared with the same dimension air compressor.3)No Vibration and Low noise:The exhaling process is free from pulses, so a coin can stand still on a running machine.4)Extended Maintenance Cycle:Lifetime >50,000 hours due to its particular Balance Structure and less than 50℃ Operation Temperature.Product advantages1) Food and Pharmaceutical Standard100% OIL-FREE(20 years experience)- TUV Class 0 Oil-free Certificate- Clean air: purified by water, without dust2) At Least30% Energy-saving- Single screw air compressor theoretically doesn’t have any clearance volume- The water used as a lubricating medium also seals gaps inside the compression chamber, and enables highly efficient operation at low speeds(about 3000r/min)- Using water as a cooling method keep compressor Ideal isothermal compression- Variable frequency inverter(Permanent magnetism variable frequency) 15 years experiences- Two-stage compression medium pressure screw air compressor: domestic initiative patent product(application number: ZL 2016 20206277.4)3) Environment protection :0 Emission- No discharge of three wastes; Low vibration and less noise4) Reliability :(50000 hours lifetime)- Simple and balanced structure and the temperature of the unit is less than 50℃, so maintenance period > 50000 hours- Lowest cost and maintenance (Only air filter and water filter < $500)5) The Lowest noise in similar products(min: 57db)- A superior dynamic balanced system can effectively control the vibration source- The motor and screw are directly connected without any rotation gear to cause gear noise- Sound-absorbing materials are also used in the equipment shell to reduce noise Comparison Advantagesbetween oil-free air compressors of water lubricated Single screw air compressor and dry double screw air compressor Related Products7~10 bar Series 2~5 bar Series
