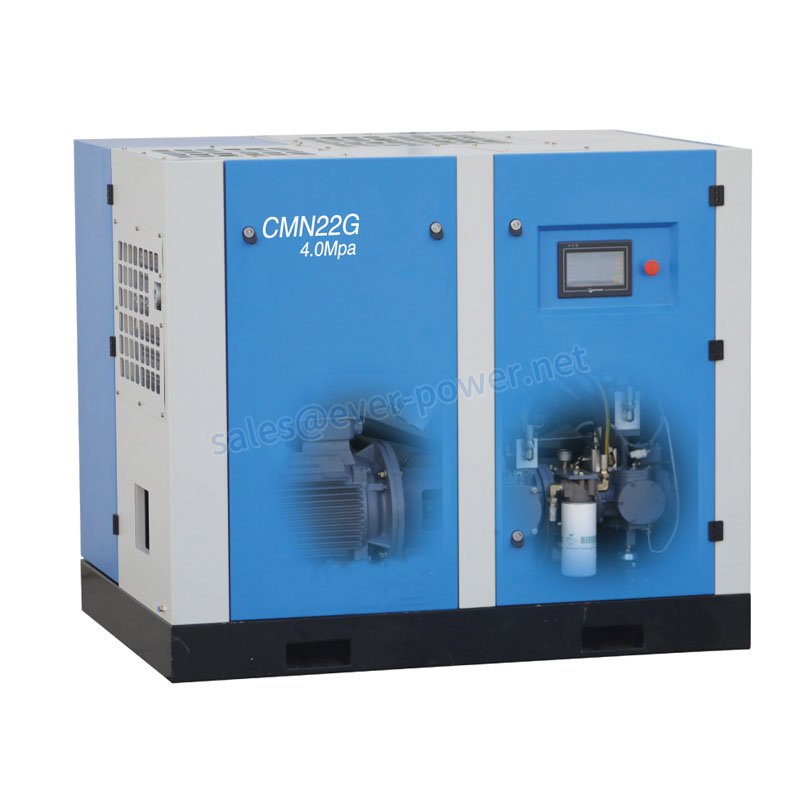

Industry advanced air compressor 10-20HP 7-10BAR 7.5-75KW 1.15-2.0m3/min air compressor

Applicable Industries: Advertising Company, Building Material Shops, Construction works, Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Restaurant, Retail
Showroom Location: Argentina, Egypt, Indonesia, Japan, Malaysia, South Africa, Sri Lanka, United Kingdom, United States
Condition: New
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Model Number: SCR30PM, SCR40PM, SCR50PM, SCR60PM
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1200*800*1100mm
Weight: 450-1280kg
Warranty: 1 Year
Working Pressure: 10 bar, 6 bar, 7 bar, 8 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: 2 years
Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump
Gas Type: Air
Color: Blue
Power(KW): 22-75
Porsepower(HP): 30-100
Capacity(m3/min): 1.06-11.8
Presssure(BAR): 7/8/10
Size: RC1,R1/1/2
Protection Grade: IP65
Operating Ambient Temp: 1-45℃ {28.8℉-114℉}
Cooling method: Air Cooling
Applicable Industries: Advertising Company, Building Material Shops, Construction works, Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Restaurant, Retail
Showroom Location: Argentina, Egypt, Indonesia, Japan, Malaysia, South Africa, Sri Lanka, United Kingdom, United States
Warranty: 1 Year
Working Pressure: 10 bar, 6 bar, 7 bar, 8 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: 2 years
Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump
Gas Type: Air
Condition: New
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Model Number: SCR30PM, SCR40PM, SCR50PM, SCR60PM
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1200*800*1100mm
Weight: 450-1280kg
Color: Blue
Power(KW): 22-75
Porsepower(HP): 30-100
Capacity(m3/min): 1.06-11.8
Presssure(BAR): 7/8/10
Size: RC1,R1/1/2
Protection Grade: IP65
Operating Ambient Temp: 1-45℃ {28.8℉-114℉}
Cooling method: Air Cooling
Port: shanghai

Products Description

Model :	Energy Saving Series (PM)
Type:	Oil Injected Permanent Magnetic Screw Compressor
Voltage:	380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements
Working Pressure:	7~13bar
Installed Motor Power:	20~75 Kw
Color:	Blue
Driven Method:	Taper Connection Direct Driven
Air End:	Original Ally-win Air End from Germany.
Trademark:	EPT
Transport Package:	Standard Wooden Packing
Available Certificate:	CE, ISO, UL, ASME, GHOST
Origin:	Shanghai, China
application:	Packing,Painting,Precision Electroplating,Peparing

Model	Pressure	Capacity	Power	Horse Power(HP)	L*H*W	Weight	Size
				(m3/min)	(KW)	HP		(mm)	(kg)
EPT30PM	7/8/10	3.7/3.6/3.2	22	30	1200*800*1100	450	Rc1
EPT40PM	7/8/10	5.2/5.0/4.2	30	40	1200*800*1100	510	Rc1
EPT50PM	7/8/10	6.4/6.3/5.6	37	50	1300*900*1270	680	Rc11/2
EPT60PM	7/8/10	7.3/7.2/7.1	45	60	1300*950*1370	730	Rc11/2
EPT75PM	7/8/10	10.2/10.1/8.4	55	75	1800*1200*1550	1230	Rc2
EPT100PM	7/8/10	13.3/12.9/11.8	75	100	1800*1200*1550	1280	Rc2

Advantages:1. China-Japan latest technology cooperation, high reliability.2. Oil Cooling Permanent Magnetic Motor.3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.4. IE4 Efficiency motor efficiency.5. Most energy saving mode, Only work at loading.6. Wide frequency range 25%-100%.7. Premium Magnetic material resist more than 180℃ temp.8. Reliable PM motor supplier from Italy.9. Direct Taper connection, no transmission power loss, easy maintenance.10.Touch Screen PLC with preset running schedule, more intelligent control.11. Both main motor and fan motor are inverter control, more accurate control.12. Easy for installation and service.13. Fantastic Energy Saving, save up to more than 30-40%. Details Images Oil cooling PM motorThe motor widing take use of new technology vacuum expoxy potting process, it increase the thermal conductivity and motor insulation protection EPT heavy duty air filter OVERSIZE COOLEROversize cooler to make sure the compressor run max up to 46 degrees without any problem. LATEST TOUCH EPTEEN PLC* 7” Inch touch screen display.* Full feature protection.* Multi intelligent control, like running schedule. * Support Modbus RTU.* Remote monitoring is option. HIGH EFFICIENCY SEPARATION SYSTEMCyclone oil tank design ensure the high separation efficiency.First stage is mechanical centrifugal separation.Second stage is high efficiency oil separator.4000 hours life-span of oil separator.The oil content is lower than 3PPM. LATEST V/F Inverter* Latest V/F technology inverter.* CE/UL certificed inverter.* Both motor are inverter control.* High reliable inverter brand proofed in the market.* Professional service support.* Adjust airend speed to match your air demand automatically , help good energy saving.

Model			EPT100PM-7	EPT100PM-8	EPT100PM-10
Capacity/Pressure(m3/min,/BAR)			13.3/7	12.9/8	11.8/10
PM Motor	Power(KW)	75KW(100H.P)
		Speed(r/min)	3000
		Starting way	VSD Startup
		Volt(V)	380/400/415(220)
		Motor safety grade	IP65
		Motor isolation grade	F
Electrical Supply			380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Outlet Temperature(ºC)			≤ ambient Temperature+10ºC
Driven way			Direct Driven
Noise level at 1 meter			76±3dB(A)
Cooling method			Oil cooling
Oil content			1~3 ppm
Outlet Connection			Rc 2
Dimension	Length(mm)	1800
		Width(mm)	1200
		Height(mm)	1550
Weight(KG)			1280
