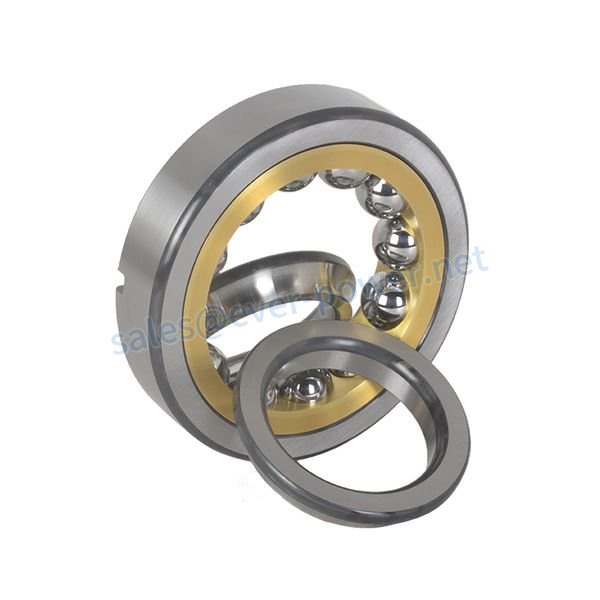

Four-point Contact Ball Bearing

Four Point contact ball bearings are radial single row angular contact ball bearings with raceways designed to support axial loads in both directions. For a given axial load, a limited radial load can also be supported (Load ratio). The bearings are separable, i.e., the outer ring with ball and cage assembly can be mounted separately from the two inner ring halves.

A four-point contact ball bearing can accommodate axial loads in both directions, in combination with radial loads up to a certain level, and provides a very tight axial shaft position tolerance. The bearing also saves space because it can be seen as combining two single-row angular contact ball bearings into one. Therefore, it is an excellent choice in applications such as industrial gearboxes, locomotive drives, and compressors.

Product parameter

Features of Four-point Contact Ball Bearings

-Accommodates axial loads in both directions

-Less axial space

-These bearings take up considerably less axial space than double row bearings.

-High load-carrying capacity

-A large number of balls are incorporated, giving the bearing its high load-carrying capacity.

Separable design

-The split inner ring leads to easier mounting and dismounting of the bearing.

Improved oil flow

-Limited inner ring deformation when subjected to high clamping forces

Applications of Four Point Contact Ball Bearings

A four-point contact ball bearing simplifies machine designs that combine radial, thrust, and moment loads because it can handle all three simultaneously. They are primarily used for slow to moderate-speed applications or where oscillatory movement is predominant.

Four-point contact ball bearings are used in various applications, for example:

- agricultural machinery;

- earthmoving machinery;

- pumps;

- industrial machinery for cleaning and bottling;

- electric motors;

- fitness machines;

- machining equipment (steel, glass, marble, wood);

- automatic opening systems;

- etc.
