Description

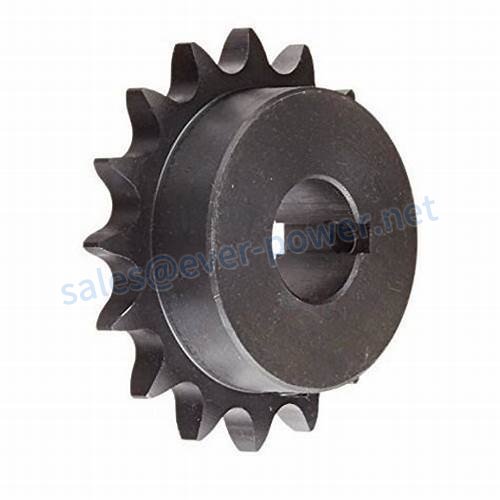

Double single sprockets are manufactured to run two strands of single roller chain. Our metric double-single sprockets are made from premium quality steel and conform to all ISO and DIN specifications.

Double single sprockets are manufactured to run two strands of single roller chain. Our metric double-single sprockets are made from premium quality steel and conform to all ISO and DIN specifications. We also produce these sprockets in stainless steel material for food-grade and corrosive applications.

06B Double Single Sprockets

Type A:

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)
DS06A14	14	46.30	42.80	10	20	23.5	18.17	31.0	5.31	0.17
DS06A15	15	49.30	45.81	10	23	23.5	18.17	34.0	5.31	0.20
DS06A16	16	52.30	48.82	10	25	23.5	18.17	37.0	5.31	0.23
DS06A17	17	55.30	51.83	10	27	23.5	18.17	40.0	5.31	0.27
DS06A18	18	58.30	54.85	10	29	23.5	18.17	43.0	5.31	0.30
DS06A19	19	61.30	57.87	10	31	23.5	18.17	46.0	5.31	0.35
DS06A20	20	64.30	60.89	10	33	23.5	18.17	48.0	5.31	0.39
DS06A21	21	68.00	63.91	10	35	23.5	18.17	52.0	5.31	0.44
DS06A22	22	71.00	66.93	12	36	23.5	18.17	55.0	5.31	0.50
DS06A23	23	73.50	69.95	12	38	23.5	18.17	58.0	5.31	0.55
DS06A24	24	77.00	72.97	12	40	23.5	18.17	61.0	5.31	0.61
DS06A25	25	80.00	76.02	12	43	23.5	18.17	64.0	5.31	0.67

Type ATB:

Sprocket Size	Tooth Count	Bushing Size	Outside Diameter	Pitch Diameter	Minimum Bore	Maximum Bore	(L1)	(C)	(E)	(L2)	(F)	Weight (kg)
DS06ATB18H	18	1008	58.30	54.85	9	25	23.5	18.17	43.0	22.2	5.31	0.19
DS06ATB19H	19	1008	61.30	57.87	9	25	23.5	18.17	46.0	22.2	5.31	0.23
DS06ATB20H	20	1108	64.30	60.89	9	28	23.5	18.17	48.0	22.2	5.31	0.25
DS06ATB21H	21	1108	68.00	63.91	9	28	23.5	18.17	52.0	22.2	5.31	0.31
DS06ATB22H	22	1108	71.00	66.93	9	28	23.5	18.17	55.0	22.2	5.31	0.36
DS06ATB23H	24	1108	73.50	69.95	9	28	23.5	18.17	58.0	22.2	5.31	0.41
DS06ATB24H	24	1108	77.00	72.97	9	28	23.5	18.17	61.0	22.2	5.31	0.47

08B Double Single Sprockets

Type A:

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)
DS08A12	12	53.00	49.07	12	24	35.7	28.58	35	7.2	0.35
DS08A13	13	57.40	53.06	12	26	35.7	28.58	38	7.2	0.41
DS08A14	14	61.80	57.07	12	27	35.7	28.58	41	7.2	0.49
DS08A15	15	65.50	61.09	12	30	35.7	28.58	46	7.2	0.55
DS08A16	16	69.50	65.10	12	34	35.7	28.58	50	7.2	0.64
DS08A17	17	73.60	69.11	12	36	35.7	28.58	54	7.2	0.73
DS08A18	18	77.80	73.14	12	38	35.7	28.58	58	7.2	0.82
DS08A19	19	81.70	77.16	12	41	35.7	28.58	63	7.2	1.00
DS08A20	20	85.80	81.18	12	44	35.7	28.58	66	7.2	1.18
DS08A21	21	89.70	85.22	16	46	35.7	28.58	70	7.2	1.32
DS08A22	22	93.80	89.24	16	48	35.7	28.58	74	7.2	1.36
DS08A23	23	98.20	93.27	16	52	35.7	28.58	78	7.2	1.59
DS08A24	24	101.80	97.29	16	54	35.7	28.58	82	7.2	1.70
DS08A25	25	105.80	101.33	16	57	35.7	28.58	86	7.2	1.82

Type ATB:

Sprocket Size	Tooth Count	Bushing Size	Outside Diameter	Pitch Diameter	Minimum Bore	Maximum Bore	(L1)	(C)	(E)	(L2)	(F)	Weight (kg)
DS08ATB14H	14	1008	61.80	57.07	9	25	35.7	28.58	41	22.2	7.2	0.32
DS08ATB15H	15	1008	65.30	61.09	9	25	35.7	28.58	45	22.2	7.2	0.40
DS08ATB16H	16	1108	69.50	65.10	9	28	35.7	28.58	49	22.2	7.2	0.44
DS08ATB17H	17	1215	73.60	69.11	11	32	35.7	28.58	53	38.1	7.2	0.43
DS08ATB18H	18	1215	77.80	73.14	11	32	35.7	28.58	58	38.1	7.2	0.46
DS08ATB19H	19	1215	81.70	77.15	11	32	35.7	28.58	63	38.1	7.2	0.50
DS08ATB20H	20	1215	85.80	81.18	11	32	35.7	28.58	66	38.1	7.2	0.59
DS08ATB21H	21	1615	89.70	85.22	14	42	35.7	28.58	70	38.1	7.2	0.59
DS08ATB22H	22	1615	93.80	89.24	14	42	35.7	28.58	74	38.1	7.2	0.64
DS08ATB23H	23	1615	98.20	93.27	14	42	35.7	28.58	78	38.1	7.2	0.68
DS08ATB24H	24	1615	101.80	97.29	14	42	35.7	28.58	82	38.1	7.2	0.77
DS08ATB25H	25	2012	105.80	101.33	14	50	35.7	28.58	86	31.8	7.2	0.86

10B Double Single Sprockets

Type A:

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)	(F)	Weight (kg)
DS10A12	12	68.00	61.34	16	30	42.0	33.34	45.0	9.1	0.59	7.2	0.32
DS10A13	13	73.00	66.32	16	34	42.0	33.34	50.0	9.1	0.70	7.2	0.40
DS10A14	14	78.00	71.34	16	36	42.0	33.34	55.0	9.1	0.83	7.2	0.44
DS10A15	15	83.00	76.36	16	40	42.0	33.34	60.0	9.1	0.95	7.2	0.43
DS10A16	16	88.00	81.37	16	42	42.0	33.34	64.0	9.1	1.09	7.2	0.46
DS10A17	17	93.00	86.39	16	44	42.0	33.34	68.0	9.1	1.32	7.2	0.50
DS10A18	18	98.00	91.42	16	47	42.0	33.34	73.0	9.1	1.50	7.2	0.59
DS10A19	19	103.30	96.45	16	52	42.0	33.34	78.0	9.1	1.68	7.2	0.59
DS10A20	20	108.40	101.49	16	57	42.0	33.34	83.0	9.1	1.91	7.2	0.64
DS10A21	21	113.40	106.52	16	57	42.0	33.34	88.0	9.1	2.18	7.2	0.68
DS10A22	22	118.00	111.55	16	61	42.0	33.34	93.0	9.1	2.41	7.2	0.77
DS10A23	23	123.40	116.58	16	65	42.0	33.34	98.0	9.1	2.64	7.2	0.86

Type ATB:

Sprocket Size	Tooth Count	Bushing Size	Outside Diameter	Pitch Diameter	Minimum Bore	Maximum Bore	(L1)	(C)	(E)	(L2)	(F)	Weight (kg)
DS10A12	12	68.00	61.34	16	30	42.0	33.34	45.0	9.1	0.59	7.2	0.32
DS10A13	13	73.00	66.32	16	34	42.0	33.34	50.0	9.1	0.70	7.2	0.40
DS10A14	14	78.00	71.34	16	36	42.0	33.34	55.0	9.1	0.83	7.2	0.44
DS10A15	15	83.00	76.36	16	40	42.0	33.34	60.0	9.1	0.95	7.2	0.43
DS10A16	16	88.00	81.37	16	42	42.0	33.34	64.0	9.1	1.09	7.2	0.46
DS10A17	17	93.00	86.39	16	44	42.0	33.34	68.0	9.1	1.32	7.2	0.50
DS10A18	18	98.00	91.42	16	47	42.0	33.34	73.0	9.1	1.50	7.2	0.59
DS10A19	19	103.30	96.45	16	52	42.0	33.34	78.0	9.1	1.68	7.2	0.59
DS10A20	20	108.40	101.49	16	57	42.0	33.34	83.0	9.1	1.91	7.2	0.64
DS10A21	21	113.40	106.52	16	57	42.0	33.34	88.0	9.1	2.18	7.2	0.68
DS10A22	22	118.00	111.55	16	61	42.0	33.34	93.0	9.1	2.41	7.2	0.77
DS10A23	23	123.40	116.58	16	65	42.0	33.34	98.0	9.1	2.64	7.2	0.86

12B Double Single Sprockets

Type A:

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)
DS12A12	12	81.50	73.61	19	35	49.2	38.1	53	11.1	1.08
DS12A13	13	87.50	79.59	19	38	49.2	38.1	59	11.1	1.29
DS12A14	14	93.60	85.62	19	42	49.2	38.1	65	11.1	1.52
DS12A15	15	99.80	91.61	19	38	49.2	38.1	72	11.1	1.73
DS12A16	16	105.50	97.63	19	46	49.2	38.1	77	11.1	2.09
DS12A17	17	111.50	103.67	19	55	49.2	38.1	82	11.1	2.41
DS12A18	18	118.00	109.71	19	58	49.2	38.1	88	11.1	2.95
DS12A19	19	124.20	115.75	19	62	49.2	38.1	94	11.1	3.09
DS12A20	20	129.70	121.78	19	65	49.2	38.1	100	11.1	3.30
DS12A21	21	136.00	127.82	24	70	49.2	38.1	106	11.1	3.62
DS12A22	22	141.80	133.86	24	73	49.2	38.1	112	11.1	4.00
DS12A23	23	149.00	139.90	24	77	49.2	38.1	118	11.1	4.60
DS12A24	24	153.90	145.94	24	81	49.2	38.1	124	11.1	4.95
DS12A25	25	160.32	151.94	24	85	49.2	38.1	130	11.1	5.30

151.94Type ATB:

Sprocket Size	Tooth Count	Bushing Size	Outside Diameter	Pitch Diameter	Minimum Bore	Maximum Bore	(L1)	(C)	(E)	(L2)	(F)	Weight (kg)
DS12ATB12H	12	1215	81.50	73.61	11	32	49.2	38.1	53	38.1	11.1	0.95
DS12ATB13H	13	1215	87.50	79.59	11	32	49.2	38.1	59	38.1	11.1	1.19
DS12ATB14H	14	1215	93.60	85.62	11	32	49.2	38.1	65	38.1	11.1	1.32
DS12ATB15H	15	1215	99.80	91.61	14	42	49.2	38.1	72	38.1	11.1	1.44
DS12ATB16H	16	1215	105.50	97.63	14	42	49.2	38.1	77	38.1	11.1	1.74
DS12ATB17H	17	1215	111.50	103.67	14	42	49.2	38.1	82	38.1	11.1	2.05
DS12ATB18H	18	2012	118.00	109.71	14	50	49.2	38.1	84	31.8	11.1	2.27
DS12ATB19H	19	2012	124.20	115.75	14	50	49.2	38.1	94	31.8	11.1	2.64
DS12ATB20H	20	2517	129.70	121.78	16	65	49.2	38.1	100	44.5	11.1	2.55
DS12ATB21H	21	2517	136.00	127.82	16	65	49.2	38.1	106	44.5	11.1	2.91
DS12ATB22H	22	2517	141.80	133.86	16	65	49.2	38.1	112	44.5	11.1	3.11
DS12ATB23H	23	2517	149.00	139.90	16	65	49.2	38.1	118	44.5	11.1	3.32
DS12ATB24H	24	2517	153.90	145.94	16	65	49.2	38.1	124	44.5	11.1	3.53
DS12ATB25H	25	2517	160.32	151.94	16	65	49.2	38.1	130	44.5	11.1	3.73

16B Double Single Sprockets

Type A:

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)
DS16A12	12	109.00	98.14	25	46	63.5	46.5	72	16.2	2.48
DS16A13	13	117.00	106.12	25	50	63.5	46.5	76	16.2	3.09
DS16A14	14	125.00	114.15	25	57	63.5	46.5	84	16.2	3.70
DS16A15	15	133.00	122.17	25	60	63.5	46.5	96	16.2	4.35
DS16A16	16	141.00	130.20	25	68	63.5	46.5	101	16.2	5.00
DS16A17	17	149.00	138.22	25	71	63.5	46.5	109	16.2	5.75
DS16A18	18	157.00	146.28	25	79	63.5	46.5	117	16.2	6.50
DS16A19	19	165.20	154.33	25	82	63.5	46.5	125	16.2	7.40
DS16A20	20	173.20	162.38	25	88	63.5	46.5	135	16.2	8.30
DS16A21	21	181.20	170.43	25	95	63.5	46.5	142	16.2	9.20
DS16A22	22	189.30	178.48	25	100	63.5	46.5	151	16.2	10.15
DS16A23	23	197.50	186.59	25	107	63.5	46.5	160	16.2	11.20
DS16A24	24	205.50	194.59	25	111	63.5	46.5	168	16.2	12.80
DS16A25	25	213.50	178.49	25	115	63.5	46.5	176	16.2	14.40

Type ATB:

Sprocket Size	Tooth Count	Bushing Size	Outside Diameter	Pitch Diameter	Minimum Bore	Maximum Bore	(L1)	(C)	(E)	(L2)	(F)	Weight (kg)
DS16ATB12H	12	1615	109.00	98.14	14	42	63.5	46.5	72	38.1	16.2	1.92
DS16ATB13H	13	1615	117.00	106.12	14	42	63.5	46.5	80	38.1	16.2	2.53
DS16ATB14H	14	2012	125.00	114.15	14	50	63.5	46.5	88	31.8	16.2	2.53
DS16ATB15H	15	2012	133.00	122.17	14	50	63.5	46.5	96	31.8	16.2	3.10
DS16ATB16H	16	2012	141.00	130.20	14	50	63.5	46.5	104	31.8	16.2	3.68
DS16ATB17H	17	2517	149.00	138.22	16	65	63.5	46.5	112	44.5	16.2	3.89
DS16ATB18H	18	2517	157.00	146.28	16	65	63.5	46.5	120	44.5	16.2	4.65
DS16ATB19H	19	3020	165.20	154.33	25	75	63.5	46.5	128	50.8	16.2	4.50
DS16ATB20H	20	3020	173.20	162.38	25	75	63.5	46.5	135	50.8	16.2	5.10
DS16ATB21H	21	3020	181.20	170.43	25	75	63.5	46.5	142	50.8	16.2	6.00
DS16ATB22H	22	3020	189.30	178.48	25	75	63.5	46.5	151	50.8	16.2	6.20
DS16ATB23H	23	3525	197.50	186.59	35	90	63.5	46.5	160	63.5	16.2	7.15
DS16ATB24H	24	3525	205.50	194.59	35	90	63.5	46.5	168	63.5	16.2	8.10
DS16ATB25H	25	3525	213.50	178.49	35	90	63.5	46.5	176	63.5	16.2	9.00

Product Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
包装按客户的德mand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
