998 Drop Forged Rivetless Chain Sprockets
998A Sprocket

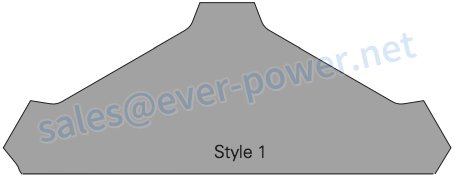

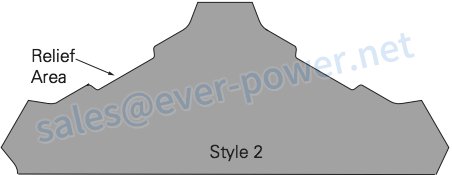

This 998A5 drop forged rivetless A-plate sprocket has 5 teeth, is manufactured specifically for 998 chain, and is designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area". We offer both styles as shown below, make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application. We offer some of the best pricing in the industry while supplying you with a high quality and durable sprocket.
- High Quality Sprocket
- Manufactured For 998 Chain
- Two Styles To Choose From
- Extremely Durable
- Optimum Performance
| Sprocket Number | Tooth Count | Pitch | Style | Stock Bore | Weight (LBS) |
|---|---|---|---|---|---|
| 998A5 | 5 | 9.031" | A-Plate | 1.500" | 211 LBS |
| 998A6 | 6 | 9.031" | A-Plate | 1.500" | 274.00 LBS |
| 998A7 | 7 | 9.031" | A-Plate | 1.500" | 345.00 LBS |
| 998A8 | 8 | 9.031" | A-Plate | 1.500" | 397.00 LBS |
| 998A9 | 9 | 9.031" | A-Plate | 1.500" | 518.00 LBS |
| 998A10 | 10 | 9.031" | A-Plate | 1.500" | 583.00 LBS |
998C Sprocket
This 998C drop forged rivetless C-hub sprocket is manufactured specifically for 998 chain, and is designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area". We offer both styles as shown below, make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application. We offer some of the best pricing in the industry while supplying you with a high quality and durable sprocket.
- High Quality Sprocket
- Manufactured For 998 Chain
- C-Hub Style (Hub On Both Sides)
- Two Styles To Choose From
- Extremely Durable
- Optimum Performance
| Sprocket Number | Tooth Count | Pitch Diameter | Style | Hub Diameter | Length Thru Bore | Maximum Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| 998C5 | 7 | 29.225" | C-Hub | 9.000" | 6.500" | 5.940" | 302 LBS |
| 998C6 | 8 | 34.893" | C-Hub | 9.000" | 6.500" | 5.940" | 366 LBS |
| 998C7 | 7 | 40.585" | C-Hub | 10.000” | 6.750" | 6.500" | 465 LBS |
| 998C8 | 8 | 46.291" | C-Hub | 10.000” | 6.750" | 6.500" | 516 LBS |
| 998C9 | 9 | 52.007" | C-Hub | 10.000” | 6.750" | 6.500" | 638 LBS |
| 998C10 | 10 | 57.730" | C-Hub | 10.000” | 6.750" | 6.500" | 703 LBS |
We aslo offer a full range of both precisionroller chainand engineered.
Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 ISO14001:2001, ISO / TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days样本。30-45days关员秩序
Port: Shanghai/Ningbo port
