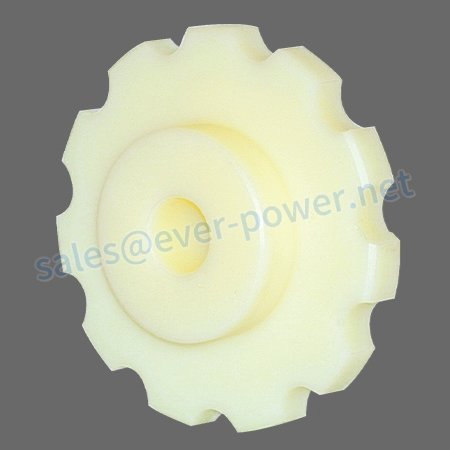

#80 Plastic Sprockets
We are premier supplier of plastic power transmission components. We have plastic sprockets available in ANSI sized #25 - #80 and in a UHMW, Nylatron, or Nylon material. Other materials such as Repro and Acetal can be used as well, and we can produce the plastic metric, double pitch, duplex, engineer class, and custom designed sprockets. Some of the main benefits of using a plastic roller chain sprocket are that they run quieter and produce a much better wear life on the roller chain. These sprockets are also highly anti-corrosive, extremely lightweight, have high impact resistance, and are FDA approved.
Our plastic sprockets have a much greater tooth deflection than a standard steel sprocket does. This means that several teeth will bear the load of the roller chain. With several teeth in contact, this means that the load capacity of the sprocket will match approximately to the full working load of the chain.
Stock #25 Plastic Sprockets
| Sprocket Size | Tooth Count | Material | Pitch Diameter | Stock Bore | Length Thru Bore |
|---|---|---|---|---|---|
|
80B15
|
15 | UHMW | 4.810" | 1" | 1-1/2" |
|
80B16 |
16 | UHMW | 5.126" | 1" | 1-1/2" |
|
80B17 |
17 | UHMW | 5.442" | 1" | 1-1/2" |
|
80B18 |
18 | UHMW | 5.759" | 1" | 1-1/2" |
|
80B19 |
19 | UHMW | 6.076" | 1" | 1-1/2" |
|
80B20 |
20 | UHMW | 6.392" | 1" | 1-1/2" |
|
80B21 |
21 | UHMW | 6.710" | 1" | 1-3/4" |
|
80B22 |
22 | UHMW | 7.027" | 1" | 1-3/4" |
|
80B23 |
23 | UHMW | 7.344" | 1" | 1-3/4" |
|
80B24 |
24 | UHMW | 7.661" | 1" | 1-3/4" |
|
80B25 |
25 | UHMW | 7.979" | 1" | 1-3/4" |
|
80B26 |
26 | UHMW | 8.296" | 1" | 2" |
|
80B27 |
27 | UHMW | 8.614" | 1" | 2" |
|
80B28 |
28 | UHMW | 8.931" | 1" | 2" |
|
80B29 |
29 | UHMW | 9.249" | 1" | 2" |
|
80B30 |
30 | UHMW | 9.567" | 1" | 2" |
|
80B31 |
31 | UHMW | 9.885" | 1" | 2" |
|
80B32 |
32 | UHMW | 10.202" | 1" | 2" |
|
80B33 |
33 | UHMW | 10.520" | 1" | 2" |
|
80B34 |
34 | UHMW | 10.838" | 1" | 2" |
|
80B35 |
35 | UHMW | 11.156" | 1" | 2" |
|
80B36 |
36 | UHMW | 11.474" | 1" | 2" |
|
80B37 |
37 | UHMW | 11.792" | 1" | 2" |
|
80B38 |
38 | UHMW | 12.110" | 1" | 2" |
|
80B40 |
40 | UHMW | 12.746" | 1" | 2" |
|
80B41 |
41 | UHMW | 13.063" | 1" | 2" |
|
80B42 |
42 | UHMW | 13.382" | 1" | 2" |
|
80B45 |
45 | UHMW | 14.336" | 1" | 2" |
|
80B48 |
48 | UHMW | 15.290" | 1" | 2" |
|
80B49 |
49 | UHMW | 15.608" | 1" | 2" |
|
80B50 |
50 | UHMW | 15.926" | 1" | 2" |
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
