#25 Stainless Steel Sprockets

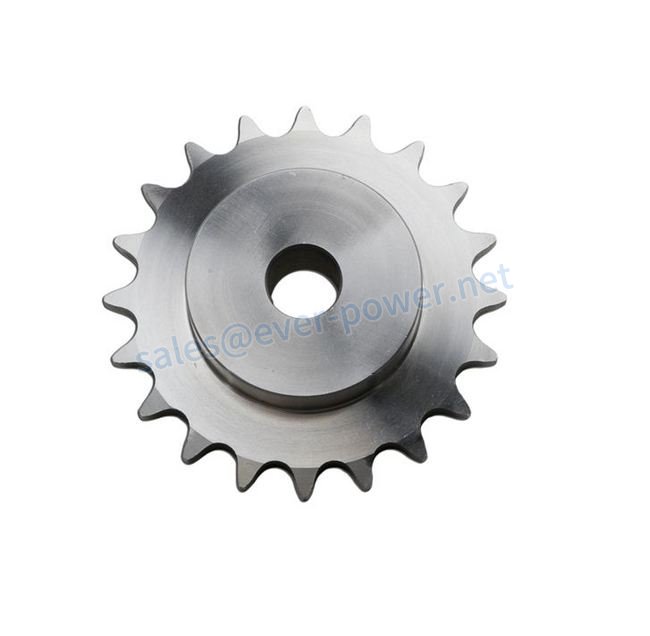

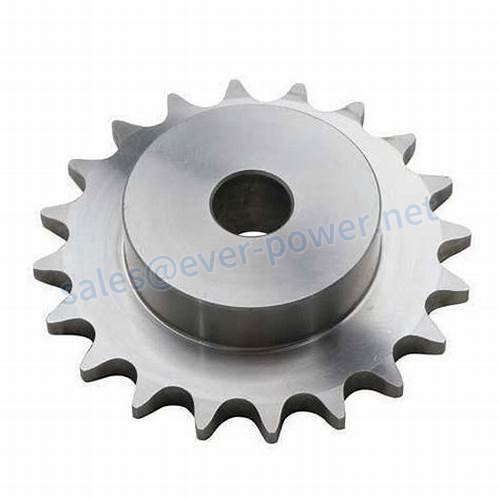

This 25 stainless steel sprocket is manufactured to ANSI specifications and is constructed out of 304-grade stainless steel for corrosion resistance, strength, durability, and to be able to work in low to high temperatures. We can supply these sprockets bored to size if needed and as A-Plate Style or even C-Hub (hub on both sides) style. We offer some of the best pricing in the industry without sacrificing quality! For pricing and availability please contact us and we will be happy to assist you.
- High Quality Sprocket
- Corrosion Resistan And Durable
- Constructed Out Of 304-Grade Stainless Steel
- Will Operate In Low And High Temperatures
| Sprocket Size | Number Of Teeth | Outside Diameter | Stock Bore Size | Maximum Bore | Hub Diameter | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|---|
| 25B09 | 9 | 0.837" | 1/4" | 1/4" | 7/16" | 1/2" | 0.03lbs |
| 25B10 | 10 | 0.919" | 1/4" | 1/4" | 1/2" | 1/2" | 0.03lbs |
| 25B11 | 11 | 1.001" | 1/4" | 5/16" | 9/16" | 1/2" | 0.03lbs |
| 25B12 | 12 | 1.083" | 1/4" | 3/8" | 5/8" | 1/2" | 0.06lbs |
|
25B13 |
13 | 1.164" | 1/4" | 7/16" | 23/32" | 1/2" | 0.07lbs |
|
25B14 |
14 | 1.245" | 1/4" | 9/16" | 13/16" | 1/2" | 0.08lbs |
|
25B15 |
15 | 1.326" | 1/4" | 9/16" | 57/64" | 1/2" | 0.1lbs |
|
25B16 |
16 | 1.407" | 1/4" | 9/16" | 31/32" | 1/2" | 0.12lbs |
|
25B17 |
17 | 1.487" | 1/4" | 5/8" | 1-1/32" | 1/2" | 0.14lbs |
|
25B18 |
18 | 1.568" | 1/4" | 3/4" | 1-1/8" | 1/2" | 0.16lbs |
|
25B19 |
19 | 1.648" | 1/4" | 13/16" | 1-7/32" | 1/2" | 0.19lbs |
|
25B20 |
20 | 1.728" | 1/4" | 7/8" | 1-9/32" | 5/8" | 0.25lbs |
|
25B21 |
21 | 1.809" | 1/4" | 7/8" | 1-3/8" | 5/8" | 0.28lbs |
|
25B22 |
22 | 1.889" | 1/4" | 15/16" | 1-7/16" | 5/8" | 0.31lbs |
| 25B23 | 23 | 1.969" | 1/4" | 1" | 1-1/2" | 5/8" | 0.32lbs |
| 25B24 | 24 | 2.049" | 3/8" | 1" | 1-1/2" | 5/8" | 0.33lbs |
| 25B25 | 25 | 2.129" | 3/8" | 1" | 1-1/2" | 5/8" | 0.34lbs |
| 25B26 | 26 | 2.209" | 3/8" | 1" | 1-1/2" | 5/8" | 0.35lbs |
|
25B28 |
28 | 2.369" | 3/8" | 1" | 1-1/2" | 5/8" | 0.36lbs |
|
25B30 |
30 | 2.529" | 3/8" | 1" | 1-1/2" | 5/8" | 0.38lbs |
|
25B32 |
32 | 2.688" | 3/8" | 1" | 1-1/2" | 5/8" | 0.4lbs |
|
25B35 |
35 | 2.928" | 3/8" | 1" | 1-1/2" | 3/4" | 0.48lbs |
|
25B36 |
36 | 3.008" | 3/8" | 1" | 1-1/2" | 3/4" | 0.5lbs |
|
25B40 |
40 | 3.327" | 1/2" | 1-3/8" | 2" | 3/4" | 0.53lbs |
|
25B45 |
45 | 3.725" | 1/2" | 1-3/8" | 2" | 3/4"" | 0.56lbs |
|
25B60 |
60 | 4.92" | 1/2" | 1-3/8" | 2" | 3/4" | 1.1lbs |
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1.SS304不锈钢:SS201 SS303, SS316,党卫军416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 ISO14001:2001, ISO / TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
