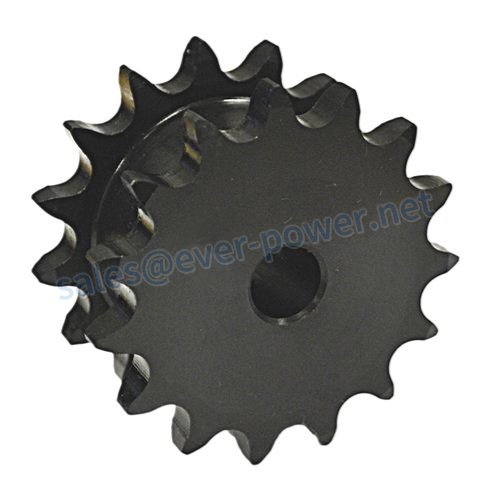

16B-2 Metric Roller Chain Sprockets

Get a Free Quote

Description

16 b - 2滚子链链轮制造metric 16B-2 roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufactures, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request.

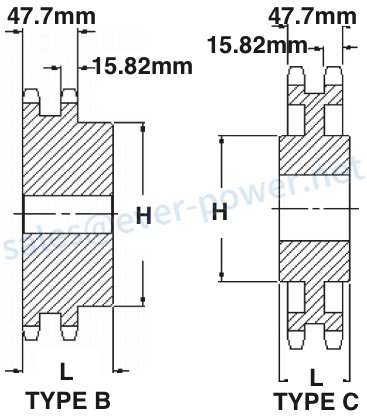

16B-2 B-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter (H)	Length Thru Bore (L)	Sprocket Weight (kg)
D16B11	11	90.16mm	20mm	42mm	63mm	70mm	1.82
D16B12	12	98.14mm	20mm	45mm	72mm	70mm	2.36
D16B13	13	106.14mm	20mm	52mm	80mm	70mm	2.95
D16B14	14	114.15mm	20mm	53mm	88mm	70mm	3.50
D16B15	15	122.17mm	20mm	62mm	96mm	70mm	4.18
D16B16	16	130.20mm	20mm	66mm	104mm	70mm	5.22
D16B17	17	138.23mm	20mm	74mm	112mm	70mm	5.99
D16B18	18	146.27mm	20mm	80mm	120mm	70mm	6.81
D16B19	19	154.32mm	20mm	84mm	128mm	70mm	7.71
D16B20	20	162.37mm	20mm	85mm	130mm	70mm	8.26
D16B21	21	170.42mm	25mm	85mm	130mm	70mm	8.85
D16B22	22	178.28mm	25mm	85mm	130mm	70mm	9.53
D16B23	23	186.54mm	25mm	85mm	130mm	70mm	10.43
D16B24	24	194.60mm	25mm	85mm	130mm	70mm	11.44
D16B25	25	202.66mm	25mm	85mm	130mm	70mm	12.47
D16B26	26	210.72mm	25mm	85mm	130mm	70mm	13.62
D16B27	27	218.79mm	25mm	85mm	130mm	70mm	14.75
D16B28	28	226.86mm	25mm	85mm	130mm	70mm	15.89
D16B29	29	234.93mm	25mm	85mm	130mm	70mm	17.02
D16B30	30	243.00mm	25mm	95mm	145mm	75mm	18.16
D16B32	32	259.14mm	32mm	95mm	145mm	75mm	19.86
D16B35	35	283.36mm	32mm	95mm	145mm	75mm	22.27
D16B36	36	291.43mm	32mm	95mm	145mm	80mm	28.04
D16B38	38	307.58mm	32mm	95mm	145mm	80mm	29.60
D16B42	42	339.89mm	40mm	95mm	145mm	80mm	32.20
D16C45	45	364.12mm	40mm	95mm	145mm	95mm	34.35
D16C57	57	361.07mm	40mm	95mm	145mm	95mm	38.18
D16C60	60	485.33mm	40mm	95mm	145mm	95mm	42.77
D16C68	68	549.98mm	40mm	96mm	153mm	102mm	43.86
D16C76	76	614.64mm	40mm	96mm	152mm	102mm	68.11
D16C80	80	646.64mm	40mm	102mm	152mm	108mm	54.88
D16C95	95	768.22mm	40mm	102mm	152mm	108mm	72.57
D16C114	114	921.81mm	40mm	102mm	152mm	108mm	78.22
D12C96	96	582.23mm	40mm	93mm	140mm	85mm	39.65
D12C114	114	691.36mm	40mm	93mm	140mm	85mm	41.86

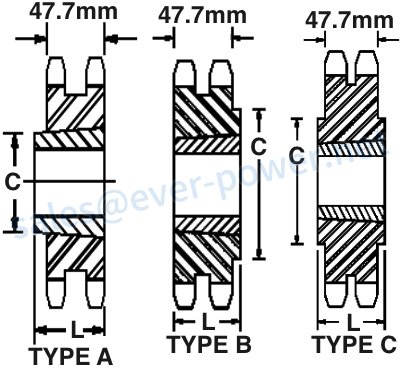

16B-2 Taper Bushed Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Bushing Number	Bushing Max. Bore	Dimension (L)	Dimension (C)	Sprocket Weight (kg)	Bushing Weight (kg)
D16ATB13	13	106.14mm	1615	41.28mm	38.10mm	--	1.54	0.77
D16ATB14	14	114.15mm	2012	50.80mm	31.75mm	--	1.68	0.77
D16ATB15	15	122.17mm	2012	50.80mm	31.75mm	--	2.04	0.77
D16ATB16	16	130.20mm	2012	50.80mm	31.75mm	--	2.27	0.77
D16ATB17	17	138.23mm	2517	63.50mm	44.45mm	--	2.50	1.59
D16ATB18	18	146.27mm	2517	63.50mm	44.45mm	--	2.64	1.59
D16BTB19	19	154.32mm	3020	76.20mm	50.80mm	127.0mm	3.18	2.95
D16BTB20	20	162.37mm	3020	76.20mm	50.80mm	133.35mm	3.45	2.95
D16BTB21	21	170.42mm	3020	76.20mm	50.80mm	141.28mm	4.09	2.95
D16BTB22	22	178.48mm	3020	76.20mm	50.80mm	149.23mm	4.73	2.95
D16BTB23	23	186.54mm	3020	76.20mm	50.80mm	158.34mm	5.48	2.95
D16BTB24	24	194.60mm	3020	76.20mm	50.80mm	166.68mm	6.34	2.95
D16BTB25	25	202.66mm	3020	76.20mm	50.80mm	174.63mm	7.72	2.95
D16BTB26	26	210.72mm	3020	76.20mm	50.80mm	182.56mm	8.36	2.95
D16BTB27	27	218.79mm	3020	76.20mm	50.80mm	133.35mm	10.22	2.95
D16BTB28	28	226.86mm	3020	76.20mm	50.80mm	133.35mm	10.59	2.95
D16CTB30	30	243.00mm	3020	76.20mm	50.80mm	133.35mm	11.35	2.95
D16CTB35	35	283.36mm	3020	76.20mm	50.80mm	133.35mm	17.88	2.95
D16CTB38	38	307.58mm	3020	76.20mm	50.80mm	133.35mm	21.79	2.95
D16CTB42	42	339.89mm	3020	76.20mm	50.80mm	133.35mm	22.94	2.95
D16CTB45	45	364.12mm	3020	76.20mm	50.80mm	133.35mm	23.80	2.95
D16CTB57	57	461.08mm	3020	76.20mm	50.80mm	133.35mm	27.24	2.95
D16CTB76	76	614.64mm	3020	76.20mm	50.80mm	133.35mm	37.68	2.95
D16CTB95	95	768.22mm	3020	76.20mm	50.80mm	133.35mm	43.13	2.95
D16CTB114	114	921.81mm	3020	76.20mm	50.80mm	133.35mm	48.58	2.95

Product Quick Detail:

标准和非标准
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
