10B-3 Metric Roller Chain Sprockets

Get a Free Quote

Description

10B-3 roller chain sprockets are manufactured for metric 10B-3 roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufactures, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request.

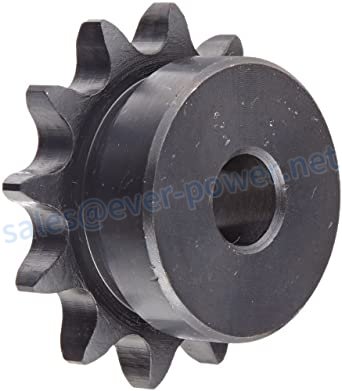

10B-3 B-Hub & C-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter (H)	Length Thru Bore (L)	Sprocket Weight (kg)
E10B11	11	56.34mm	16mm	24mm	37mm	55mm	0.68
E10B12	12	61.34mm	16mm	29mm	43mm	55mm	0.82
E10B13	13	66.32mm	16mm	34mm	48mm	55mm	1.05
E10B14	14	71.34mm	16mm	35mm	53mm	55mm	1.23
E10B15	15	76.36mm	16mm	38mm	58mm	55mm	1.36
E10B16	16	81.37mm	16mm	42mm	63mm	60mm	1.55
E10B17	17	86.36mm	16mm	45mm	68mm	60mm	1.81
E10B18	18	91.41mm	16mm	48mm	73mm	60mm	2.09
E10B19	19	96.45mm	16mm	52mm	79mm	60mm	2.40
E10B20	20	101.49mm	16mm	56mm	84mm	60mm	2.72
E10B21	21	106.52mm	20mm	56mm	85mm	60mm	3.04
E10B22	22	111.55mm	20mm	60mm	90mm	60mm	3.36
E10B23	23	116.58mm	20mm	62mm	95mm	60mm	3.67
E10B24	24	121.62mm	20mm	64mm	100mm	60mm	4.00
E10B25	25	126.66mm	20mm	68mm	105mm	60mm	4.31
E10B26	26	131.70mm	20mm	73mm	110mm	60mm	5.18
E10B27	27	136.75mm	20mm	73mm	110mm	60mm	5.63
E10B28	28	141.78mm	20mm	76mm	115mm	60mm	6.04
E10B29	29	146.83mm	20mm	76mm	115mm	60mm	6.22
E10B30	30	151.87mm	20mm	80mm	120mm	60mm	6.36
E10B32	32	161.95mm	20mm	80mm	120mm	60mm	7.26
E10B35	35	177.10mm	20mm	80mm	120mm	60mm	8.60
E10B36	36	182.15mm	25mm	80mm	120mm	60mm	9.34
E10B38	38	192.24mm	25mm	80mm	120mm	60mm	11.03
E10B45	45	227.58mm	30mm	80mm	120mm	75mm	14.94
E10B48	48	242.73mm	30mm	80mm	120mm	75mm	16.62
E10B57	57	288.18mm	32mm	80mm	120mm	75mm	21.77
E10B60	60	303.32mm	32mm	80mm	120mm	75mm	22.22
E10C76	76	384.16mm	32mm	80mm	120mm	89mm	23.13
E10C80	80	404.35mm	32mm	80mm	120mm	89mm	25.14
E10C95	95	480.14mm	32mm	80mm	120mm	95mm	32.66
E10C114	114	576.13mm	32mm	80mm	120mm	95mm	44.76

Product Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
