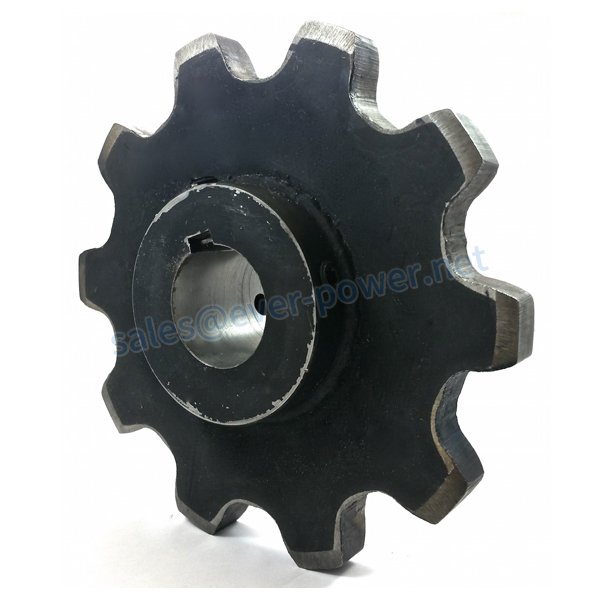

1030-Series Sprockets
1030 series engineer class sprocket is used for a wide verity of chain sizes. These sizes include 1030, ROA40 HYPER, ROA1031, R1033, R1035, R1037, SJLR1037, 1359, RS1539, CHAMP3, MXS40, MXS1031, MSR1539, MXS3075, SS554, SS40, R1033, 1037, CHAMP 3, JS-1030 and US-1030 size chains. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts as well as dimensions for each size.
Cast 1030-Series Sprockets
Tooth Face at Pitch Line: 1.250" - Roller Diameter: 1.250"
| Sprocket Size | Tooth Count | Pitch Diameter | Style | Hub Diameter | Length Thru Bore | Maximum Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| 1030C6 | 6 | 6.15" | C | 3.00" | 3.00" | 2.44" | 21.0 LBS |
| 1030C8 | 8 | 8.04" | C | 3.00" | 3.00" | 2.44" | 24.0 LBS |
| 1030C9 | 9 | 8.99" | C | 4.00" | 4.00" | 2.44" | 44.0 LBS |
| 1030C10 | 10 | 9.95" | C | 4.00" | 4.00" | 2.44" | 43.0 LBS |
| 1030C11 | 11 | 10.92" | C | 5.00" | 4.00" | 3.44" | 51.0 LBS |
| 1030C12 | 12 | 11.88" | C | 5.00" | 4.00" | 3.44" | 50.0LBS |
| 1030C13 | 13 | 12.85" | C | 5.00" | 4.00" | 3.44" | 64.0 LBS |
| 1030C14 | 14 | 13.82" | C | 5.00" | 4.00" | 3.44" | 73.0 LBS |
| 1030C15 | 15 | 14.79" | C | 6.00" | 4.00" | 3.94" | 76.0 LBS |
| 1030C16 | 16 | 15.76" | C | 6.00" | 4.00" | 3.94" | 82.0 LBS |
| 1030C17 | 17 | 16.73" | C | 6.00" | 4.00" | 3.94" | 100.0 LBS |
| 1030C18 | 18 | 17.71" | C | 6.00" | 4.00" | 3.94" | 105.0 LBS |
| 1030C19 | 19 | 18.86" | C | 6.00" | 4.00" | 3.94" | 112.0 LBS |
| 1030C20 | 20 | 19.66" | C | 6.00" | 4.00" | 3.94" | 100.0 LBS |
| 1030C21 | 21 | 20.63" | C | 7.50" | 5.00" | 4.88" | 105.0 LBS |
| 1030C22 | 22 | 21.61" | C | 7.50" | 5.00" | 4.88" | 130.0 LBS |
| 1030C23 | 23 | 22.57" | C | 7.50" | 5.00" | 4.88" | 132.0 LBS |
| 1030C24 | 24 | 23.56" | C | 7.50" | 5.00" | 4.88" | 145.0 LBS |
| 1030C26 | 26 | 25.51" | C | 7.50" | 5.00" | 4.88" | 148.0 LBS |
| 1030C27 | 27 | 26.49" | C | 7.50" | 5.00" | 4.88" | 165.0 LBS |
| 1030C28 | 28 | 27.46" | C | 7.50" | 5.00" | 4.88" | 171.0 LBS |
| 1030C30 | 30 | 29.42" | C | 8.00" | 5.00" | 4.94" | 180.0 LBS |
| 1030C31 | 31 | 30.39" | C | 8.00" | 5.00" | 4.94" | 189.0 LBS |
| 1030C32 | 32 | 31.37" | C | 8.00" | 5.00" | 4.94" | 193.0 LBS |
| 1030C33 | 33 | 32.35" | C | 8.00" | 5.00" | 4.94" | 215.0 LBS |
| 1030C34 | 34 | 33.33" | C | 8.00" | 5.00" | 4.94" | 217.0 LBS |
| 1030C35 | 35 | 34.31" | C | 9.50" | 6.50" | 5.88" | 220.0 LBS |
| 1030C36 | 36 | 35.28" | C | 9.50" | 6.50" | 5.88" | 229.0 LBS |
| 1030C37 | 37 | 36.26" | C | 9.50" | 6.50" | 5.88" | 234.0 LBS |
| 1030C38 | 38 | 37.24" | C | 9.50" | 6.50" | 5.88" | 252.0 LBS |
| 1030C39 | 39 | 38.25" | C | 9.50" | 6.50" | 5.88" | 250.0 LBS |
| 1030C40 | 40 | 39.19" | C | 9.50" | 6.50" | 5.88" | 261.0 LBS |
| 1030C42 | 42 | 41.15" | C | 9.50" | 6.50" | 5.88" | 300.0 LBS |
| 1030C44 | 44 | 43.10" | C | 9.50" | 6.50" | 5.88" | 321.0 LBS |
| 1030C46 | 46 | 45.06" | C | 9.50" | 6.50" | 5.88" | 330.0 LBS |
Steel 1030A-Series Sprockets
Plate Thickness: 1.25" - Roller Diameter: 1.25"
| Sprocket Size | Tooth Count | Pitch Diameter | Style | Stock Bore | Sprocket Weight |
|---|---|---|---|---|---|
| 1030A8 | 8 | 8.05" | A | 1.5" | 17.9 LBS |
| 1030A9 | 9 | 8.99" | A | 1.5" | 22.4 LBS |
| 1030A10 | 10 | 9.95" | A | 1.5" | 28.0 LBS |
| 1030A11 | 11 | 10.91" | A | 1.5" | 33.0 LBS |
| 1030A12 | 12 | 11.88" | A | 1.5" | 39.0 LBS |
| 1030A13 | 13 | 12.85" | A | 1.5" | 46.0 LBS |
| 1030A15 | 15 | 14.79" | A | 1.5" | 60.0 LBS |
| 1030A17 | 17 | 16.73" | A | 1.5" | 78.0 LBS |
| 1030A19 | 19 | 18.68" | A | 1.5" | 97.0 LBS |
| 1030A21 | 21 | 20.63" | A | 1.5" | 118.0 LBS |
| 1030A24 | 24 | 23.56" | A | 1.5" | 154.0 LBS |
| 1030A25 | 25 | 24.53" | A | 1.5" | 167.0 LBS |
| 1030A28 | 28 | 27.46" | A | 1.5" | 210.0 LBS |
| 1030A30 | 30 | 29.42" | A | 1.5" | 240.0 LBS |
| 1030A35 | 35 | 34.30" | A | 1.5" | 327.0 LBS |
| 1030A40 | 40 | 39.19" | A | 1.5" | 427.0 LBS |
| 1030A42 | 42 | 41.15" | A | 1.5" | 343.0 LBS |
| 1030A48 | 48 | 47.03" | A | 1.5" | 384.0 LBS |
| 1030A54 | 54 | 52.89" | A | 1.5" | 432.0 LBS |
| 1030A60 | 60 | 58.75" | A | 1.5" | 506.0 LBS |
Steel 1030C-Series Sprockets
Plate Thickness: 1.25" - Roller Diameter: 1.25"
| Sprocket Size | Tooth Count | Pitch Diameter | Style | Hub Diameter | Length Thru Bore | Maximum Bore | Sprocket Weight |
|---|---|---|---|---|---|---|---|
| 1030C8 | 8 | 8.05" | C | 5.00" | 3.875" | 3.25" | 31.0 LBS |
| 1030C9 | 9 | 8.99" | C | 5.00" | 3.875" | 3.25" | 36.0 LBS |
| 1030C10 | 10 | 9.95" | C | 5.00" | 3.875" | 3.25" | 40.0 LBS |
| 1030C11 | 11 | 10.91" | C | 5.5" | 4.25" | 3.75" | 51.0 LBS |
| 1030C12 | 12 | 11.88" | C | 5.5" | 4.25" | 3.75" | 57.0 LBS |
| 1030C13 | 13 | 12.85" | C | 5.5" | 4.25" | 3.75" | 64.0 LBS |
| 1030C15 | 15 | 14.79" | C | 6.00" | 5.125" | 4.00" | 91.0 LBS |
| 1030C17 | 17 | 16.73" | C | 6.00" | 5.125" | 4.00" | 109.0 LBS |
| 1030C19 | 19 | 18.68" | C | 6.5" | 5.75" | 4.5" | 137.0 LBS |
| 1030C21 | 21 | 20.63" | C | 6.5" | 5.75" | 4.5" | 158.0 LBS |
| 1030C24 | 24 | 23.56" | C | 6.5" | 5.75" | 4.5" | 176.0 LBS |
| 1030C25 | 25 | 24.53" | C | 7.5" | 5.875" | 5.375" | 206.0 LBS |
| 1030C28 | 28 | 27.46" | C | 7.5" | 5.875" | 5.375" | 236.0 LBS |
| 1030C30 | 30 | 29.42" | C | 7.5" | 5.875" | 5.375" | 254.0 LBS |
| 1030C35 | 35 | 34.30" | C | 8.0" | 6.125" | 5.5" | 313.0 LBS |
| 1030C40 | 40 | 39.19" | C | 8.0" | 6.125" | 5.5" | 360.0 LBS |
| 1030C42 | 42 | 41.15" | C | 8.0" | 6.125" | 5.5" | 410.0 LBS |
| 1030C48 | 48 | 47.03" | C | 9.5" | 6.75" | 6.5" | 501.0 LBS |
| 1030C54 | 54 | 52.89" | C | 9.5" | 6.75" | 6.5" | 549.0 LBS |
| 1030C60 | 60 | 58.75" | C | 10.0" | 7.5" | 7.0" | 642.0 LBS |
We aslo offer a full range of both precisionroller chainand engineered.
Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
我们承诺将提供最好的价格由高quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
我们的大部分产品都是出口到欧洲或Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
