#100 Roller Chain Sprockets
Our premium quality 100 roller chain sprockets utilize a high-grade carbon steel material and follow through with an anti-corrosive black oxide coating and feature hardened teeth. The combination of premium features and precision tolerance manufacturing make these size 100 sprockets a high-quality, reliable, and durable component for any conveyor or drive system. Being manufactured dimensionally in accordance with ANSI B29.1 Standards from the American National Standards Institute means that our sprocket is compatible with any ANSI 100 roller chain and directly replaces out any ANSI 100 sprocket with its equivalent size.
#100 A-Plate Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | (D) | Weight (LBS) |
|---|---|---|---|---|---|---|
| 100A7 | 7 | A | 3.350 | 1'' | - | 1.2 |
| 100A8 | 8 | A | 3.770 | 1'' | 2-7/16'' | 1.4 |
| 100A9 | 9 | A | 4.180 | 1'' | 2-13/16'' | 1.6 |
| 100A10 | 10 | A | 4.600 | 1'' | 3-1/4”' | 2.0 |
| 100A11 | 11 | A | 5.010 | 4-1/4'' | 3-9/16'' | 2.5 |
| 100A12 | 12 | A | 5.420 | 4-1/4'' | 4'' | 3.0 |
| 100A13 | 13 | A | 5.820 | 4-1/4'' | 3-7/8'' | 3.5 |
| 100A14 | 14 | A | 6.230 | 4-1/4'' | 4-3/16'' | 4.1 |
| 100A15 | 15 | A | 6.630 | 4-1/4'' | 4-1/2'' | 4.7 |
| 100A16 | 16 | A | 7.030 | 4-1/4'' | 4-1/2'' | 5.4 |
| 100A17 | 17 | A | 7.440 | 4-1/4'' | 4-1/2'' | 6.1 |
| 100A18 | 18 | A | 7.840 | 4-1/4'' | 4-1/2'' | 7.0 |
| 100A19 | 19 | A | 8.240 | 4-1/4'' | 4-1/2'' | 7.8 |
| 100A20 | 20 | A | 8.620 | 4-1/4'' | 4-1/2'' | 8.8 |
| 100A21 | 21 | A | 9.040 | 4-1/4'' | 4-1/2'' | 9.8 |
| 100A22 | 22 | A | 9.440 | 4-1/4'' | 4-1/2'' | 10.5 |
| 100A23 | 23 | A | 9.840 | 4-1/4'' | 4-1/2'' | 11.8 |
| 100A24 | 24 | A | 10.250 | 4-1/4'' | 4-1/2'' | 12.8 |
| 100A25 | 25 | A | 10.650 | 4-1/4'' | 4-1/2'' | 13.9 |
| 100A26 | 26 | A | 11.050 | 4-1/4'' | 5'' | 15.0 |
| 100A27 | 27 | A | 11.440 | 4-1/4'' | 5'' | 16.0 |
| 100A28 | 28 | A | 11.840 | 4-1/4'' | 5'' | 17.4 |
| 100A29 | 29 | A | 12.240 | 4-1/4'' | 5'' | 19.6 |
| 100A30 | 30 | A | 12.640 | 4-1/4'' | 5'' | 20.1 |
| 100A31 | 31 | A | 13.040 | 4-1/4'' | 5'' | 21.5 |
| 100A32 | 32 | A | 13.440 | 4-1/4'' | 5'' | 22.6 |
| 100A33 | 33 | A | 13.840 | 4-1/4'' | 5'' | 24.1 |
| 100A34 | 34 | A | 14.240 | 4-1/4'' | 5'' | 26.0 |
| 100A35 | 35 | A | 14.640 | 4-1/4'' | 5'' | 27.2 |
| 100A36 | 36 | A | 15.040 | 4-1/4'' | 5'' | 30.0 |
| 100A37 | 37 | A | 15.440 | 4-1/4'' | 5'' | 31.0 |
| 100A38 | 38 | A | 15.840 | 4-1/4'' | 5'' | 33.0 |
| 100A39 | 39 | A | 16.230 | 4-1/4'' | 5'' | 35.0 |
| 100A40 | 40 | A | 16.630 | 4-1/4'' | 5'' | 36.0 |
| 100A41 | 41 | A | 17.030 | 4-1/4'' | 5'' | 39.0 |
| 100A42 | 42 | A | 17.430 | 4-1/4'' | 5'' | 40.0 |
| 100A43 | 43 | A | 17.830 | 1-1/2'' | 5'' | 43.0 |
| 100A44 | 44 | A | 18.230 | 1-1/2'' | 5'' | 45.0 |
| 100A45 | 45 | A | 18.630 | 1-1/2'' | 5'' | 47.0 |
| 100A46 | 46 | A | 19.020 | 1-1/2'' | 5'' | 48.0 |
| 100A47 | 47 | A | 19.420 | 1-1/2'' | 5'' | 52.0 |
| 100A48 | 48 | A | 19.820 | 1-1/2'' | 6'' | 54.0 |
| 100A49 | 49 | A | 20.220 | 1-1/2'' | 6'' | 56.0 |
| 100A50 | 50 | A | 20.620 | 1-1/2'' | 6'' | 57.0 |
| 100A51 | 51 | A | 21.020 | 1-1/2'' | 6'' | 63.0 |
| 100A52 | 52 | A | 21.420 | 1-1/2'' | 6'' | 64.0 |
| 100A53 | 53 | A | 21.810 | 1-1/2'' | 6'' | 64.2 |
| 100A54 | 54 | A | 22.210 | 1-1/2'' | 6'' | 68.0 |
| 100A55 | 55 | A | 22.610 | 1-1/2'' | 6'' | 70.0 |
| 100A56 | 56 | A | 23.010 | 1-1/2'' | 6'' | 72.0 |
| 100A57 | 57 | A | 23.410 | 1-1/2'' | 6'' | 75.8 |
| 100A58 | 58 | A | 23.810 | 1-1/2'' | 6'' | 76.0 |
| 100A59 | 59 | A | 24.200 | 1-1/2'' | 6'' | 77.0 |
| 100A60 | 60 | A | 24.600 | 1-1/2'' | 6'' | 80.0 |
| 100A70 | 70 | A | 28.580 | 1-1/2'' | 7'' | 113.0 |
| 100A72 | 72 | A | 29.380 | 1-1/2'' | 7'' | 119.0 |
| 100A76 | 76 | A | 30.973 | 1-1/2'' | 7'' | 133.0 |
| 100A80 | 80 | A | 32.570 | 1-1/2'' | 7'' | 146.0 |
| 100A84 | 84 | A | 34.160 | 1-1/2'' | 7'' | 162.0 |
| 100A90 | 90 | A | 36.550 | 1-1/2'' | 7'' | 193.0 |
| 100A96 | A | 38.930 | 1-1/2'' | 7'' | 215.0 |
#100 B-Hub Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | Recommend Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| 100B8 | 8 | B | 3.770 | 1'' | 1-1/4'' | 2-7/16'' | 1-7/8'' | 2.3 |
| 100B9 | 9 | B | 4.180 | 1'' | 1-5/8'' | 2-13/16'' | 1-7/8'' | 3.2 |
| 100B10 | 10 | B | 4.600 | 1'' | 1-7/8'' | 3-1/4”' | 1-7/8'' | 4.1 |
| 100B11 | 11 | B | 5.010 | 1'' | 2-1/4'' | 3-9/16'' | 1-7/8'' | 5.3 |
| 100B12 | 12 | B | 5.420 | 1'' | 2-1/4'' | 4'' | 1-7/8'' | 6.4 |
| 100B13 | 13 | B | 5.820 | 1'' | 2-3/8'' | 3-7/8'' | 1-5/8'' | 6.6 |
| 100B14 | 14 | B | 6.230 | 1 -/4'' | 2-3/4'' | 4-3/16'' | 1-5/8'' | 7.4 |
| 100B15 | 15 | B | 6.630 | 1-1/4'' | 3'' | 4-1/2'' | 1-3/4'' | 9.2 |
| 100B16 | 16 | B | 7.030 | 1-5/16'' | 3'' | 4-1/2'' | 1-3/4'' | 9.9 |
| 100B17 | 17 | B | 7.440 | 1-5/16'' | 3'' | 4-1/2'' | 1-3/4'' | 10.8 |
| 100年的energisk b18 | 18 | B | 7.840 | 1-5/16'' | 3'' | 4-1/2'' | 1-3/4'' | 11.5 |
| 100年b19 | 19 | B | 8.240 | 1-5/16'' | 3'' | 4-1/2'' | 2'' | 13.1 |
| 100B20 | 20 | B | 8.620 | 1-5/16'' | 3'' | 4-1/2'' | 2'' | 14.2 |
| 100B21 | 21 | B | 9.040 | 1-5/16'' | 3'' | 4-1/2'' | 2'' | 15.3 |
| 100B22 | 22 | B | 9.440 | 1-5/16'' | 3'' | 4-1/2'' | 2'' | 16.1 |
| 100B23 | 23 | B | 9.840 | 1-1/4'' | 3'' | 4-1/2'' | 2'' | 17.2 |
| 100B24 | 24 | B | 10.250 | 1-1/4'' | 3'' | 4-1/2'' | 2'' | 19.2 |
| 100B25 | 25 | B | 10.650 | 1-1/4'' | 3'' | 4-1/2'' | 2'' | 19.5 |
| 100B26 | 26 | B | 11.050 | 1-1/4'' | 3-5/16'' | 5'' | 2'' | 21.7 |
| 100B27 | 27 | B | 11.440 | 1-1/4'' | 3-5/16'' | 5'' | 2'' | 23.0 |
| 100B28 | 28 | B | 11.840 | 1-1/4'' | 3-5/16'' | 5'' | 2'' | 24.4 |
| 100B29 | 29 | B | 12.240 | 1-1/4'' | 3-5/16'' | 5'' | 2'' | 25.0 |
| 100B30 | 30 | B | 12.640 | 1-1/4'' | 3-5/16'' | 5'' | 2'' | 26.9 |
| 100B32 | 32 | B | 13.440 | 1-1/4'' | 3-5/16'' | 5'' | 2'' | 29.8 |
| 100B35 | 35 | B | 14.640 | 1-1/4'' | 3-5/16'' | 5'' | 2-1/2'' | 36.9 |
| 100B36 | 36 | B | 15.040 | 1-1/4'' | 3-5/16'' | 5'' | 2-1/2'' | 38.6 |
| 100B38 | 38 | B | 15.840 | 1-1/4'' | 3-5/16'' | 5'' | 2-1/2'' | 41.5 |
| 100B39 | 39 | B | 16.230 | 1-1/4'' | 3-5/16'' | 5'' | 2-1/2'' | 43.6 |
| 100B40 | 40 | B | 16.630 | 1-1/4'' | 3-5/16'' | 5'' | 2-1/2'' | 46.9 |
| 100B42 | 42 | B | 17.430 | 1-1/4'' | 3-5/16'' | 5'' | 2-1/2'' | 50.4 |
| 100B45 | 45 | B | 18.630 | 1-1/2'' | 3-5/16'' | 5'' | 2-1/2'' | 54.0 |
| 100B48 | 48 | B | 19.820 | 1-1/2'' | 4'' | 6'' | 2-1/2'' | 66.0 |
#100 C-Hub Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | Recommend Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| 100C10 | 10 | C | 4.600 | 1'' | 1-7/8'' | 3-9/32 | 2-7/8'' | 6.13 |
| 100C11 | 11 | C | 5.010 | 1'' | 2-1/4'' | 3-9/16'' | 2-7/8'' | 7.12 |
| 100C12 | 12 | C | 5.420 | 1'' | 2-1/46'' | 4'' | 2-7/8'' | 8.37 |
| 100C13 | 13 | C | 5.820 | 1'' | 2-3/8'' | 3-57/64'' | 2-7/8'' | 10.00 |
| 100C14 | 14 | C | 6.230 | 1'' | 2-3/4'' | 43/16'' | 2-7/8'' | 12.19 |
| 100C54 | 54 | C | 22.210 | 1-1/2'' | 4'' | 6'' | 3-1/4”' | 78.0 |
| 100C60 | 60 | C | 24.600 | 1-1/2'' | 4'' | 6'' | 3-1/4”' | 89.0 |
| 100C70 | 70 | C | 28.580 | 1-1/2'' | 5-1/4'' | 7'' | 3-3/4'' | 125.0 |
| 100C72 | 72 | C | 29.380 | 1-1/2'' | 5-1/4'' | 7'' | 3-3/4'' | 134.0 |
| 100C76 | 76 | C | 30.973 | 1-1/2'' | 5-1/4'' | 7'' | 3-3/4'' | 143.0 |
| 100C80 | 80 | C | 32.570 | 1-1/2'' | 5-1/4'' | 7'' | 3-3/4'' | 151.0 |
| 100C84 | 84 | C | 34.160 | 1-1/2'' | 5-1/4'' | 7'' | 3-3/4'' | 170.0 |
| 100C90 | 90 | C | 36.550 | 1-1/2'' | 5-1/4'' | 7'' | 3-3/4'' | 184.0 |
| 100C96 | 96 | C | 38.930 | 1-1/2'' | 5-1/4'' | 7'' | 4-1/2'' | 203.0 |

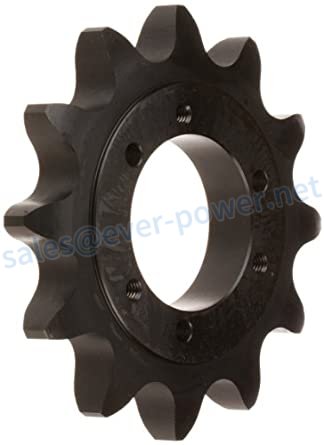

#100 QD Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Type | Max. Bore | Dimension (L1) | Dimension (L2) | Dimension (C) | Dimension (Y) | Dimension (G) | Dimension (T) | Weight (LBS) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100SDS11 | 11 | SDS | 5.010 | 4.437 | B | 2'' | 1-1/2'' | 1-1/2'' | 3-3/16'' | 5/8'' | 1/16'' | 0.692 | 2.0 | 1.36 |
| 100SDS12 | 12 | SDS | 5.420 | 4.830 | B | 2'' | 1-1/2'' | 1-1/2'' | 3-7/8'' | 5/8'' | 1/16'' | 0.692 | .459 | 2.6 |
| 100SK13 | 13 | SK | 5.820 | 5.223 | B | 2-5/8'' | 2-1/8'' | 2-1/8'' | 3-7/8'' | 1-13/64'' | 9/16'' | 0.692 | .459 | 3.3 |
| 100SK14 | 14 | SK | 6.230 | 5.617 | B | 2-5/8'' | 2-1/8'' | 2-1/8'' | 4-5/8'' | 1-13/64'' | 9/16'' | 0.692 | .459 | 4.1 |
| 100SF15 | 15 | SF | 6.630 | 6.012 | B | 2-15/16 | 2-1/4'' | 2-1/4'' | 4-5/8'' | 1-19/64'' | 9/16'' | 0.692 | .459 | 4.8 |
| 100SF16 | 16 | SF | 7.030 | 6.407 | B | 2-15/16 | 2-1/4'' | 2-1/4'' | 4-5/8'' | 1-19/64'' | 9/16'' | 0.692 | .459 | 5.6 |
| 100SF17 | 17 | SF | 7.440 | 6.803 | B | 2-15/16 | 2-1/4'' | 2-1/4'' | 6'' | 1-19/64'' | 9/16'' | 0.692 | .459 | 6.5 |
| 100E18 | 18 | E | 7.840 | 7.198 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 9.0 |
| 100E19 | 19 | E | 8.240 | 7.595 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 10.2 |
| 100E20 | 20 | E | 8.640 | 7.991 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 11.6 |
| 100E21 | 21 | E | 9.040 | 8.387 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 12.54 |
| 100E22 | 22 | E | 9.440 | 8.783 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 13.5 |
| 100E23 | 23 | E | 9.840 | 9.180 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 14.6 |
| 100E24 | 24 | E | 10.250 | 9.557 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 15.7 |
| 100E25 | 25 | E | 10.650 | 9.973 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | .459 | 16.8 |
| 100E26 | 26 | E | 11.050 | 10.370 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | .459 | 18.1 |
| 100E27 | 27 | E | 11.440 | 10.767 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 19.2 |
| 100E28 | 28 | E | 11.840 | 11.164 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 20.7 |
| 100E30 | 30 | E | 12.640 | 11.958 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 23.2 |
| 100E32 | 32 | E | 13.440 | 12.753 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 25.4 |
| 100E35 | 35 | E | 14.640 | 13.945 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 30.5 |
| 100E36 | 36 | E | 15.040 | 14.342 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | .459 | 32.3 |
| 100E40 | 40 | E | 16.630 | 15.935 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | .459 | 39.1 |
| 100E42 | 42 | E | 17.430 | 16.727 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 43.4 |
| 100E45 | 45 | E | 18.630 | 17.920 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | 6'' | 1-13/16'' | 15/16'' | 0.692 | - | 48.9 |
| 100E48 | 48 | E | 19.820 | 19.112 | B1 | 3-1/2'' | 2-5/8'' | 2-15/16'' | - | 1-13/16'' | 15/16'' | 0.692 | - | 54.0 |
#100 Taper Bushed Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Max. Bore | Dimension (L) | Dimension (C) | Type | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 100BTB11 | 11 | 1615 | 5.007 | 4.437 | 1-5/8'' | 1-1/2'' | 3'' | B | 2.7 |
| 100BTB12 | 12 | 1615 | 5.415 | 4.830 | 1-5/8'' | 1-1/2'' | 3-1/4”' | B | 3.5 |
| 100BTB13 | 13 | 2012 | 5.821 | 5.223 | 2'' | 1-1/4'' | 3-9/16'' | B | 3.6 |
| 100BTB14 | 14 | 2012 | 6.227 | 5.617 | 2'' | 1-1/4'' | 3 -9/16'' | B | 3.9 |
| 100BTB15 | 15 | 2517 | 6.631 | 6.012 | 2-1/2'' | 1-3/4'' | 4-1/4'' | B | 5.0 |
| 100BTB16 | 16 | 2517 | 7.034 | 6.407 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 6.4 |
| 100BTB17 | 17 | 2517 | 7.437 | 6.803 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 7.1 |
| 100BTB18 | 18 | 2517 | 7.839 | 7.198 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 7.8 |
| 100BTB19 | 19 | 2517 | 8.241 | 7.594 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 8.7 |
| 100BTB20 | 20 | 2517 | 8.642 | 7.991 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 9.6 |
| 100BTB21 | 21 | 2517 | 9.043 | 8.387 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 10.6 |
| 100BTB22 | 22 | 2517 | 9.444 | 8.783 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 11.0 |
| 100BTB24 | 24 | 2517 | 10.245 | 9.577 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 13.0 |
| 100BTB26 | 26 | 2517 | 44.045 | 10.370 | 2-1/2'' | 1-3/4'' | 4-1/2'' | B | 15.0 |
| 100BTB28 | 28 | 3020 | 11.844 | 11.164 | 3'' | 2'' | 5-1/4'' | B | 16.5 |
| 100BTB30 | 30 | 3020 | 12.643 | 11.958 | 3'' | 2'' | 5-1/4'' | B | 22.0 |
| 100BTB32 | 32 | 3020 | 13.442 | 12.753 | 3'' | 2'' | 5-1/4'' | B | 23.0 |
| 100BTB35 | 35 | 3020 | 14.639 | 13.945 | 3'' | 2'' | 5-1/4'' | B | 28.0 |
| 100BTB36 | 36 | 3020 | 15.038 | 14.342 | 3'' | 2'' | 5-1/4'' | B | 31.0 |
| 100BTB40 | 40 | 3020 | 16.633 | 15.932 | 3'' | 2'' | 5-1/4'' | B | 37.0 |
| 100BTB45 | 45 | 3020 | 18.626 | 17.919 | 3'' | 2'' | 5-1/4'' | B | 46.0 |
| 100BTB48 | 48 | 3020 | 19.821 | 19.112 | 3'' | 2'' | 5-1/4'' | B | 53.0 |
| 100BTB54 | 54 | 3020 | 22.212 | 21.498 | 3'' | 2'' | 5-1/4'' | B | 62.0 |
| 100BTB60 | 60 | 3020 | 24.601 | 23.884 | 3'' | 2'' | 5-1/4'' | B | 72.0 |
#100 Taper Bushed Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Type | Max. Bore | Dimension (OL) | Dimension (L) | Dimension (C) | Dimension (H) | Dimension (P) | Dimension (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100P11H | 11 | P1 | 5.010 | 4.437 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | - | 3'' | 1-1/4'' | 0.692 | 2.8 |
| 100Q12H | 12 | Q1 | 5.420 | 4.830 | 4 | 2-11/16'' | 2-27/32'' | 2-1/2'' | 1/16'' | 4-1/8'' | 1-7/8'' | 0.692 | 3.5 |
| 100Q13H | 13 | Q1 | 5.820 | 5.223 | 4 | 2-11/16'' | 2-27/32'' | 2-1/2'' | 1/16'' | 4-1/8'' | 1-7/8'' | 0.692 | 4.3 |
| 100Q14H | 14 | Q1 | 6.230 | 5.617 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 5.6 |
| 100Q15H | 15 | Q1 | 6.630 | 6.012 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 6.6 |
| 100Q16H | 16 | Q1 | 7.030 | 6.407 | 4 | 2 -11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 7.4 |
| 100Q17H | 17 | Q1 | 7.440 | 6.803 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 8.2 |
| 100Q18H | 18 | Q1 | 7.840 | 7.198 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 9.0 |
| 100Q19H | 19 | Q1 | 8.240 | 7.595 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 9.8 |
| 100Q20H | 20 | Q1 | 8.640 | 7.991 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 10.9 |
| 100Q21H | 21 | Q1 | 9.040 | 8.387 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 11.8 |
| 100R21H | 21 | R1 | 9.040 | 8.387 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 13.3 |
| 100Q22H | 22 | Q1 | 9.440 | 8.783 | 4 | 2 -1/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 12.6 |
| 100Q23H | 23 | Q1 | 9.840 | 9.180 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 13.8 |
| 100Q24H | 24 | Q1 | 10.250 | 9.577 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 15.4 |
| 100R24H | 24 | R1 | 10.250 | 9.577 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 15.6 |
| 100Q25H | 25 | Q1 | 10.650 | 9.973 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 16.0 |
| 100R25H | 25 | R1 | 10.650 | 9.973 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 17.0 |
| 100Q26H | 26 | Q1 | 11.050 | 10.370 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 17.3 |
| 100R26H | 26 | R1 | 11.050 | 10.370 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 17.9 |
| 100Q27H | 27 | Q1 | 11.440 | 10.767 | 4 | 2-11/16'' | 2 25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 18.2 |
| 100R27H | 27 | R1 | 11.440 | 10.767 | 4 | 3-3/4'' | 3 3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 19.6 |
| 100Q28H | 28 | Q1 | 11.840 | 11.164 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 19.6 |
| 100R28H | 28 | R1 | 11.840 | 11.164 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 21.0 |
| 100Q30H | 30 | Q1 | 12.640 | 11.958 | 4 | 2-11/16'' | 2 -25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 22.4 |
| 100R30H | 30 | R1 | 12.640 | 11.958 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 24.5 |
| 100Q32 | 32 | Q1 | 13.440 | 12.753 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 25.3 |
| 100R32 | 32 | R1 | 13.440 | 12.753 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 26.5 |
| 100Q35 | 35 | Q1 | 14.640 | 13.945 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | - | 4-1/8'' | 1-13/16'' | 0.692 | 30.2 |
| 100R35 | 35 | R1 | 14.640 | 13.945 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 29.8 |
| 100R36 | 36 | R1 | 15.040 | 14.342 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 33.0 |
| 100R40 | 40 | R1 | 16.630 | 15.932 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 40.9 |
| 100R42 | 42 | R1 | 17.430 | 16.727 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 44.3 |
| 100R45 | 45 | R1 | 18.630 | 17.920 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 50.5 |
| 100年r48 | 48 | R1 | 19.820 | 19.112 | 4 | 3-3/4'' | 3-3/4'' | 2-7/8'' | - | 5-3/8'' | 2-3/16'' | 0.692 | 57.5 |
| 100R54 | 54 | R1 | 22.210 | 21.498 | 5 | 3-3/4'' | 3-3/4'' | 2-7/8'' | 1-5/16'' | 5-3/8'' | 7/8'' | 0.692 | 69.0 |
| 100R60 | 60 | R1 | 24.600 | 23.884 | 5 | 3-3/4'' | 3-3/4'' | 2-7/8'' | 1-5/16'' | 5-3/8'' | 7/8'' | 0.692 | 54.0 |
| 100R70 | 70 | R1 | 28.580 | 27.862 | 5 | 3-3/4'' | 3-3/4'' | 2-7/8'' | 1-5/16'' | 5-3/8'' | 7/8'' | 0.692 | 104.0 |
| 100R72 | 72 | R1 | 29.380 | 28.657 | 5 | 3-3/4'' | 3-3/4'' | 2-7/8'' | 1-5/16'' | 5-3/8'' | 7/8'' | 0.692 | 106.0 |
| 100R80 | 80 | R1 | 32.570 | 31.839 | 5 | 3-3/4'' | 3-3/4'' | 2-7/8'' | 1-5/16'' | 5-3/8'' | 7/8'' | 0.692 | 135.0 |
| 100R84 | 84 | R1 | 34.160 | 33.430 | 5 | 3-3/4'' | 3-3/4'' | 2-7/8'' | 1-5/16'' | 5-3/8'' | 7/8'' | 0.692 | 138.0 |
#100 A-Plate Sprockets
#100 B-Hub Sprockets
#100 BTB Type Sprockets
#100 C-Hub Sprockets
#100 E Type Sprockets
#100 F Type Sprockets
#100 P Type Sprockets
#100 Q Type Sprockets
#100 R Type Sprockets
#100 SD Type Sprockets
#100 SF Type Sprockets
#100 SK Type Sprockets
#100 Weld-On Hub Sprockets
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
