06B-2 Metric Roller Chain Sprockets
We stock a wide range of metric roller chain sprockets right off the shelf for immediate delivery. Our metric sprockets are typically supplied as standard steel with heat-treated teeth (up to 30 teeth) and stock bores. When a sprocket has heat-treated hardened teeth, it typically lasts longer and performs better than those that don't.
All of our metric roller chain sprockets are manufactured to ISO or DIN specifications so they directly interchange with other brands of metric chain sprockets. This also ensures the proper contact between the roller chain and sprocket, which will prevent premature wear.
06B-2 B-Hub Sprockets:
|
Sprocket Size |
Tooth Count |
Pitch Diameter |
Stock Bore |
Maximum Recommended Bore |
Hub Diameter (H) |
Length Thru Bore (L) |
Weight (KG) |
|---|---|---|---|---|---|---|---|
| D06B12 | 12 | 36.80mm | 10mm | 16mm | 25mm | 25mm | 0.16 |
| D06B13 | 13 | 39.79mm | 10mm | 18mm | 28mm | 25mm | 0.20 |
| D06B14 | 14 | 42.80mm | 10mm | 18mm | 31mm | 25mm | 0.25 |
| D06B15 | 15 | 45.81mm | 10mm | 20mm | 34mm | 25mm | 0.29 |
| D06B16 | 16 | 48.82mm | 12mm | 20mm | 37mm | 30mm | 0.34 |
| D06B17 | 17 | 51.83mm | 12mm | 24mm | 40mm | 30mm | 0.39 |
| D06B18 | 18 | 54.85mm | 12mm | 25mm | 43mm | 30mm | 0.45 |
| D06B19 | 19 | 57.87mm | 12mm | 28mm | 46mm | 30mm | 0.52 |
| D06B20 | 20 | 60.89mm | 12mm | 30mm | 49mm | 30mm | 0.59 |
| D06B21 | 21 | 63.91mm | 12mm | 30mm | 52mm | 30mm | 0.68 |
| D06B22 | 22 | 66.93mm | 12mm | 35mm | 55mm | 30mm | 0.75 |
| D06B23 | 23 | 69.95mm | 12mm | 38mm | 58mm | 30mm | 0.80 |
| D06B24 | 24 | 72.97mm | 12mm | 39mm | 61mm | 30mm | 0.84 |
| D06B25 | 25 | 76.00mm | 12mm | 40mm | 64mm | 30mm | 0.89 |
| D06B26 | 26 | 79.02mm | 12mm | 42mm | 67mm | 30mm | 0.91 |
| D06B27 | 27 | 82.05mm | 12mm | 45mm | 70mm | 30mm | 1.00 |
| D06B28 | 28 | 85.07mm | 12mm | 48mm | 73mm | 30mm | 1.07 |
| D06B29 | 29 | 88.10mm | 12mm | 50mm | 76mm | 30mm | 1.14 |
| D06B30 | 30 | 91.12mm | 12mm | 52mm | 80mm | 30mm | 1.22 |
| D06B32 | 32 | 98.18mm | 16mm | 52mm | 80mm | 30mm | 1.30 |
| D06B35 | 35 | 106.26mm | 16mm | 52mm | 80mm | 30mm | 1.42 |
| D06B36 | 36 | 109.29mm | 16mm | 60mm | 90mm | 30mm | 1.58 |
| D06B38 | 38 | 115.35mm | 16mm | 60mm | 90mm | 30mm | 1.72 |
| D06B40 | 40 | 121.40mm | 16mm | 52mm | 80mm | 35mm | 1.81 |
| D06B42 | 42 | 127.46mm | 19mm | 60mm | 90mm | 35mm | 2.05 |
| D06B45 | 45 | 136.55mm | 19mm | 60mm | 90mm | 35mm | 2.35 |
| D06B48 | 48 | 145.64mm | 19mm | 60mm | 90mm | 35mm | 2.75 |
| D06B52 | 52 | 157.75mm | 19mm | 60mm | 90mm | 35mm | 3.13 |
| D06B57 | 57 | 172.91mm | 19mm | 60mm | 90mm | 35mm | 3.47 |
| D06B60 | 60 | 182.00mm | 19mm | 60mm | 90mm | 35mm | 3.78 |
| D06B68 | 68 | 206.24mm | 19mm | 60mm | 90mm | 35mm | 4.43 |
| D06B70 | 70 | 212.30mm | 19mm | 60mm | 90mm | 35mm | 4.56 |
| D06B72 | 72 | 218.37mm | 19mm | 60mm | 90mm | 35mm | 4.89 |
| D06B76 | 76 | 230.49mm | 19mm | 60mm | 90mm | 38mm | 5.67 |
| D06B84 | 84 | 254.74mm | 19mm | 60mm | 90mm | 38mm | 7.10 |
| D06B95 | 95 | 288.08毫米 | 25mm | 62mm | 95mm | 38mm | 8.64 |
| D06B96 | 96 | 291.11mm | 25mm | 62mm | 95mm | 38mm | 8.75 |
| D06B114 | 114 | 345.68mm | 25mm | 62mm | 95mm | 38mm | 11.12 |

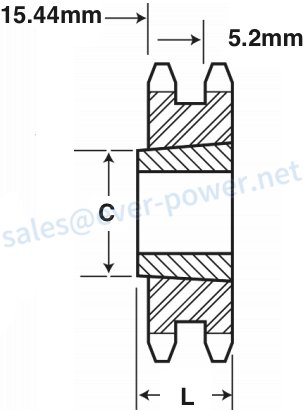

06B-2 Taper Bushed Sprockets:
|
Sprocket Size |
Tooth Count |
Pitch Diameter |
Bushing Number |
Maximum Bushing Bore |
(L) |
(C) |
Sprocket Weight (KG) |
Bushing Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| D06BTB19 | 19 | 57.87mm | 1008 | 25.40mm | 22.23mm | 46.43mm | 0.6 | 0.14 |
| D06BTB20 | 20 | 60.89mm | 1008 | 25.40mm | 22.23mm | 49.20mm | 0.8 | 0.14 |
| D06BTB21 | 21 | 63.91mm | 1008 | 25.40mm | 22.23mm | 52.39mm | 1.4 | 0.14 |
| D06BTB22 | 22 | 66.93mm | 1008 | 25.40mm | 22.23mm | 55.56mm | 1.7 | 0.14 |
| D06BTB24 | 24 | 72.97mm | 1210 | 31.75mm | 25.40mm | 61.91mm | 1.8 | 0.27 |
| D06BTB25 | 25 | 76.00mm | 1210 | 31.75mm | 25.40mm | 61.91mm | 1.9 | 0.27 |
| D06BTB26 | 26 | 79.02mm | 1210 | 31.75mm | 25.40mm | 66.68mm | 2.0 | 0.27 |
| D06BTB30 | 30 | 91.12mm | 1610 | 41.28mm | 25.40mm | 79.38mm | 1.8 | 0.41 |
| D06BTB32 | 32 | 97.18mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.0 | 0.41 |
| D06BTB35 | 35 | 106.26mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.3 | 0.41 |
| D06BTB38 | 38 | 115.34mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.5 | 0.41 |
| D06BTB40 | 40 | 121.40mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 2.9 | 0.41 |
| D06BTB45 | 45 | 136.55mm | 1610 | 41.28mm | 25.40mm | 82.55mm | 3.2 | 0.41 |
| D06BTB48 | 48 | 145.64mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 3.5 | 0.41 |
| D06BTB54 | 54 | 163.82mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 3.9 | 0.41 |
| D06BTB57 | 57 | 172.91mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 4.1 | 0.41 |
| D06BTB60 | 60 | 182.00mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 4.9 | 0.41 |
| D06BTB70 | 70 | 212.30mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 6.3 | 0.41 |
| D06BTB76 | 76 | 230.49mm | 1610 | 41.28mm | 25.40mm | 92.08mm | 6.8 | 0.41 |
| D06BTB95 | 95 | 288.08毫米 | 1610 | 41.28mm | 25.40mm | 92.08mm | 6.9 | 0.41 |
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
我们的大部分产品都是出口到欧洲或Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
