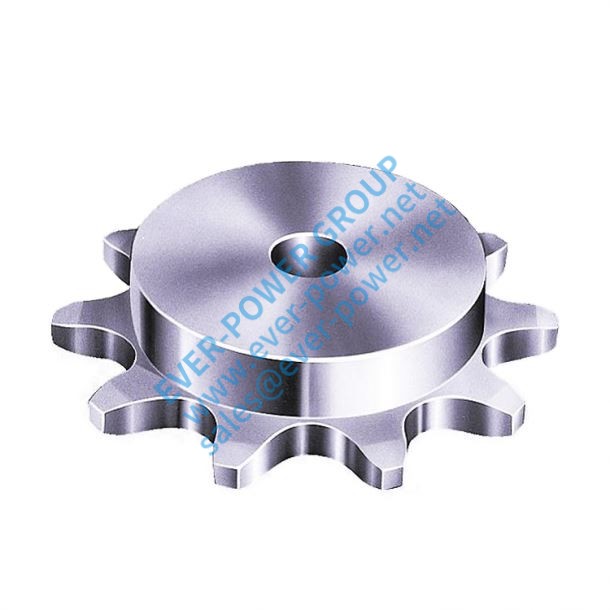

钢链轮
钢链轮
| 编号25链条- B型链轮-轮毂一侧-芯轴孔-不锈钢- 1/4″节距 | ||||||
| 代码 | 节圆直径 | 最大孔 | 股票了 | 中心直径 | 通过孔长度 | |
| 25B9s. | 0.731 | .250” | .250” | .59“R | .625“ | .03磅 |
| 25B10S. | 0.809 | .312“ | .250” | 正“R | .625“ | .03磅 |
| 25 b11ss | 0.887 | .375” | .250” | .75“R. | .625“ | .04lbs |
| 25b12s. | 0.966 | .437” | .250” | .82“R | .625“ | .06磅 |
| 25 b13ss | 1.045 | 洋基” | .250” | .90“R | .625“ | .07lbs |
| 25b14s. | 1.124 | 洋基” | .250” | 点” | .625“ | .08lbs |
| 25 b15ss | 1.203 | .562“ | .250” | .92“ | .625“ | .10lbs |
| 25b16s. | 1.282 | .625“ | .250” | 1.01” | .625“ | .10lbs |
| 25 b17ss | 1.361 | .750“ | .250” | 1.09” | .625“ | .10lbs |
| 25 b18ss | 1.44 | .750“ | .250” | 1.17“ | .625“ | .20lbs |
| 25 b19ss | 1.519 | .875” | .250” | 1.25” | .625“ | .20lbs |
| 25 b20ss | 1.598 | .875” | .250” | 1.32“ | .625“ | .20lbs |
| 25b21s. | 1.678 | 1.000“ | .250” | 1.40“ | .625“ | .30lbs |
| 25 b22ss | 1.757 | 1.000“ | .250” | 1.48” | .625“ | .30lbs |
| 25b23s. | 1.836. | 1.062“ | .250” | 1.56“ | .625“ | .30lbs |
| 25 b24ss | 1.915 | 1.125” | .375” | 1.62“ | .625“ | .30lbs |
| 25B25s. | 1.995 | 1.125” | .375” | 1.62“ | .625“ | .30lbs |
| 25 b26ss | 2.074 | 1.125” | .375” | 1.62“ | .625“ | .30lbs |
| 25 b28ss | 2.233 | 1.125” | .375” | 1.62“ | .625“ | .40lbs |
| 25B30s. | 2.392 | 1.250” | .375” | 1.75” | .625“ | .40lbs |
| 25b32ss. | 2.551 | 1.250” | .375” | 1.75” | .625“ | .40lbs |
| 25 b35ss | 2.789 | 1.250” | .375” | 1.75” | .750“ | .50磅 |
| 25b36s. | 2.869 | 1.250” | .375” | 1.75” | .750“ | .50磅 |
| 25 b40ss | 3.187 | 1.375“ | 洋基” | 2.00” | .750“ | .50磅 |
| 25b45s. | 3.584 | 1.375“ | 洋基” | 2.00” | .750“ | .60磅 |
| 25 b60ss | 4.777 | 1.375“ | 洋基” | 2.00” | .750“ | 1.10磅 |
| A.N.S.I.No. 35链 - B型链轮 - 轮毂一侧 - 心轴孔 - 不锈钢 - 3/8“音高 | ||||||
| 35B9s. | 1.096 | .375” | .375” | .87点“R | .750“ | .20lbs |
| B型不锈钢链轮 | ||||||
| 35 b10ss | 1.214 | 洋基” | .375” | 1.00“R | .750“ | .20lbs |
| 35 b11ss | 1.331 | .625“ | .375” | 1.10“R | .750“ | .20lbs |
| 35 b12ss | 1.449 | .750“ | 洋基” | 1.23“R | .750“ | .30lbs |
| 35 b13ss | 1.567 | .875” | 洋基” | 1.34“R | .750“ | .30lbs |
| 35 b14ss | 1.685 | .875” | 洋基” | 1.25” | .750“ | .30lbs |
| 35B15s. | 1.804 | .875” | 洋基” | 1.37“ | .750“ | .40lbs |
| 35 b16ss | 1.922 | 1.000“ | 洋基” | 1.50” | .750“ | .40lbs |
| 35B17SS. | 2.041 | 1.125” | 洋基” | 1.62“ | .750“ | .50磅 |
| 35 b18ss | 2.159 | 1.187” | 洋基” | 1.73” | .750“ | .50磅 |
| 35B19SS. | 2.278 | 1.312” | 洋基” | 1.85“ | .750“ | .70磅 |
| 35 b20ss | 2.397 | 1.375“ | 洋基” | 1.98” | .875” | .80lbs |
| 35b21s. | 2.516 | 1.375“ | 洋基” | 2.09” | .875” | .90lbs |
| 35 b22ss | 2.635 | 1.500” | 洋基” | 2.21” | .875” | 1.00磅 |
| 35 b23ss | 2.754 | 1.500” | 洋基” | 2.34“ | .875” | 1.10磅 |
| 35 b24ss | 2.873 | 1.500” | 洋基” | 2.45” | .875” | 1.10磅 |
| 35 b25ss | 2.992 | 1.500” | 洋基” | 2.57“ | .875” | 1.10磅 |
| 35b26s. | 3.111 | 1.500” | 洋基” | 2.70” | .875” | 1.20磅 |
| 35b28s. | 3.349 | 1.500” | 洋基” | 2.93” | .875” | 1.20磅 |
| 35b30s. | 3.588 | 1.500” | 洋基” | 3.00“ | .875” | 1.30磅 |
| 35b32s. | 3.826 | 1.500” | 洋基” | 3.00“ | .875” | 1.40磅 |
| 35 b35ss | 4.183 | 1.750” | 洋基” | 3.00“ | .875” | 1.60磅 |
| 35 b36ss | 4.303 | 1.750” | 洋基” | 3.00“ | .875” | 1.70磅 |
| 35 b40ss | 4.78 | 1.750” | 洋基” | 3.00“ | 1.000“ | 1.80磅 |
| 35 b45ss | 5.376 | 1.750” | 洋基” | 3.00“ | 1.000“ | 2.10磅 |
| 35 b60ss | 7.165 | 1.750” | .625“ | 2.50” | 1.000“ | 2.90磅 |
| No. 41链条- B型链轮-轮毂一侧-芯轴孔-不锈钢- 1/2″节距(.306卷) | ||||||
| 41b9s. | 1.462 | .625“ | 洋基” | 1.14“R | .875” | .20lbs |
| B型不锈钢链轮 | ||||||
| 41b10s. | 1.618 | .812” | 洋基” | 1.29“R | .875” | .20lbs |
| 41 b11ss | 1.775 | .875” | 洋基” | 1.45“R | .875” | .20lbs |
| 41b12s. | 1.932 | 1.062“ | 洋基” | 1.60“R | .875” | .30lbs |
| 41 b13ss | 2.089 | 1.187” | 洋基” | 1.76“R | .875” | .50磅 |
| 41b14s. | 2.247 | 1.250” | 洋基” | 1.75” | .875” | .60磅 |
| 41 b15ss | 2.405 | 1.312” | 洋基” | 1.92” | .875” | .70磅 |
| 41b16s. | 2.563 | 1.375“ | 洋基” | 2.07” | .875” | .80lbs |
| 41b17s. | 2.721 | 1.500” | .625“ | 2.23” | .875” | .90lbs |
| 41 b18ss | 2.879 | 1.687” | .625“ | 2.40“ | .875” | 1.00磅 |
| 41B19S | 3.038 | 1.750” | .625“ | 2.56” | .875” | 1.20磅 |
| 41 b20ss | 3.196 | 1.750” | .625“ | 2.71” | 1.000“ | 1.30磅 |
| A.N.S.I.40号链条 - B型链轮 - 轮毂一侧 - 心轴孔 - 不锈钢 - 1/2“音高（.312卷） | ||||||
| 40 b8ss | 1.307 | 洋基” | 洋基” | .98“R | .875” | .20lbs |
| B型不锈钢链轮 | ||||||
| 40 b9ss | 1.462 | .625“ | 洋基” | 1.14“R | .875” | .20lbs |
| 40 b10ss | 1.618 | .815” | 洋基” | 1.29“R | .875” | .20lbs |
| 40 b11ss | 1.775 | .875” | 洋基” | 1.45“R | .875” | .30lbs |
| 40 b12ss | 1.932 | 1.062“ | 洋基” | 1.60“R | .875” | .40lbs |
| 40 b13ss | 2.089 | 1.187” | 洋基” | 1.76“R | .875” | .50磅 |
| 40 b14ss | 2.247 | 1.250” | 洋基” | 1.68” | .875” | .60磅 |
| 40 b15ss | 2.405 | 1.312” | 洋基” | 1.85“ | .875” | .70磅 |
| 40 b16ss | 2.563 | 1.375“ | 洋基” | 2.01” | .875” | .80lbs |
| 40 b17ss | 2.721 | 1.500” | .625“ | 2.17“ | .875” | .90lbs |
| 40B18S | 2.879 | 1.687” | .625“ | 2.34“ | .875” | 1.00磅 |
| 40 b19ss | 3.038 | 1.750” | .625“ | 2.50” | .875” | 1.20磅 |
| 40b20s. | 3.196 | 1.750” | .625“ | 2.65“ | 1.000“ | 1.40磅 |
| 40 b21ss | 3.355 | 1.750” | .625“ | 2.81” | 1.000“ | 1.90磅 |
| 40 b22ss | 3.513 | 1.750” | .625“ | 2.98” | 1.000“ | 2.00磅 |
| 40 b23ss | 3.672 | 2.000“ | .625“ | 3.14“ | 1.000“ | 2.10磅 |
| 40 b24ss | 3.831 | 2.000“ | .625“ | 3.29” | 1.000“ | 2.10磅 |
| 40 b25ss | 3.989 | 2.000“ | .625“ | 3.00“ | 1.000“ | 2.20磅 |
| 40 b26ss | 4.148 | 2.000“ | .625“ | 3.00“ | 1.000“ | 2.30磅 |
| 40 b28ss | 4.466 | 2.000“ | .625“ | 3.00“ | 1.000“ | 2.50磅 |
| 40 b30ss | 4.783 | 2.000“ | .625“ | 3.00“ | 1.000“ | 2.60磅 |
| 40 b32ss | 5.101 | 2.000“ | .625“ | 3.00“ | 1.000“ | 2.80磅 |
| 40 b35ss | 5.578 | 2.000“ | .625“ | 3.00“ | 1.000“ | 3.20磅 |
| 40 b36ss | 5.737 | 2.000“ | .625“ | 3.00“ | 1.000“ | 3.30磅 |
| 40B40s. | 6.373 | 1.750” | .750“ | 2.75” | 1.000“ | 3.80磅 |
| 40 b45ss | 7.168 | 1.750” | .750“ | 2.75” | 1.000“ | 4.50磅 |
| 40 b48ss | 7.645 | 1.750” | .750“ | 2.75” | 1.000“ | 4.90磅 |
| 40 b54ss | 8.599 | 1.750” | .750“ | 2.75” | 1.000“ | 5.90磅 |
| 40b60s. | 9.554 | 1.750” | .750“ | 2.75” | 1.000“ | 7.00磅 |
| A.N.S.I.编号50链轮- B型链轮-轮毂一侧-芯轴孔-不锈钢- 5/8″节距 | ||||||
| 50b8s. | 1.633 | .625“ | .625“ | 1.20“R | 1.000“ | .20lbs |
| B型不锈钢链轮 | ||||||
| 50B9s. | 1.827 | .812” | .625“ | 1.40“R. | 1.000“ | .30lbs |
| 50 b10ss | 2.023 | .937” | .625“ | 1.60“R | 1.000“ | .50磅 |
| 50B11S. | 2.219 | 1.187” | .625“ | 1.81“R. | 1.000“ | .60磅 |
| 50b12s. | 2.415 | 1.250” | .625“ | 2.00“R. | 1.000“ | .70磅 |
| 50 b13ss | 2.612 | 1.312” | .625“ | 1.93” | 1.000“ | .80lbs |
| 50B14S. | 2.809 | 1.375“ | .625“ | 2.14“ | 1.000“ | 1.00磅 |
| 50 b15ss | 3.006 | 1.562” | .625“ | 2.34“ | 1.000“ | 1.20磅 |
| 50b16s. | 3.204 | 1.750” | .625“ | 2.53” | 1.000“ | 1.40磅 |
| 50 b17ss | 3.401 | 1.750” | .625“ | 2.73” | 1.000“ | 1.70磅 |
| 50b18s. | 3.599 | 1.937” | .625“ | 2.93” | 1.000“ | 2.00磅 |
| 50 b19ss | 3.797 | 2.125” | .625“ | 3.12” | 1.000“ | 2.20磅 |
| 50B20SS. | 3.995 | 2.250” | .625“ | 3.32” | 1.000“ | 2.40磅 |
| 50 b21ss | 4.193 | 2.250” | .625“ | 3.25” | 1.000“ | 2.80磅 |
| 50b22ss. | 4.392 | 2.250” | .625“ | 3.25” | 1.000“ | 2.90磅 |
| 50b23s. | 4.59 | 2.250” | .625“ | 3.50” | 1.000“ | 3.00磅 |
| 50 b24ss | 4.788 | 2.250” | .625“ | 3.50” | 1.000“ | 3.20磅 |
| 50B25S | 4.987 | 2.250” | .750“ | 3.50” | 1.000“ | 3.40磅 |
| 50 b26ss | 5.185 | 2.250” | .750“ | 3.50” | 1.000“ | 3.50磅 |
| 50 b28ss | 5.582 | 2.250” | .750“ | 3.50” | 1.000“ | 3.80磅 |
| 50 b30ss | 5.979 | 2.250” | .750“ | 3.50” | 1.250” | 4.80磅 |
| 50 b32ss | 6.376 | 2.250” | .750“ | 3.50” | 1.250” | 5.10磅 |
| 50 b35ss | 6.972 | 2.250” | .750“ | 3.25” | 1.250” | 5.80磅 |
| 50b36s. | 7.171 | 2.250” | .750“ | 3.25” | 1.250” | 5.90磅 |
| 50 b40ss | 7.966 | 2.250” | .750“ | 3.25” | 1.250” | 6.90磅 |
| 50 b45ss | 8.96 | 2.250” | 1.000“ | 3.25” | 1.250” | 8.20磅 |
| 50 b48ss | 9.556 | 2.250” | 1.000“ | 3.25” | 1.250” | 8.70磅 |
| 50 b54ss | 10.749 | 2.250” | 1.000“ | 3.25” | 1.250” | 10.00磅 |
| 50b60s. | 11.942 | 2.250” | 1.000“ | 3.25” | 1.250” | 13.00磅 |
| 编号60链条- B型链轮-轮毂一侧-芯轴孔-不锈钢- 3/4″节距 | ||||||
| 60 b8ss | 1.96 | .750“ | .625“ | 1.46“R | 1.250” | .50磅 |
| B型不锈钢链轮 | ||||||
| 60B9s. | 2.193 | 1.000“ | .750“ | 1.70“R. | 1.250” | .60磅 |
| 60 b10ss | 2.427 | 1.187” | .750“ | 1.93“R | 1.250” | .70磅 |
| 60B11S. | 2.662 | 1.375“ | .750“ | 2.17“R. | 1.250” | .90lbs |
| 60 b12ss | 2.898 | 1.500” | .750“ | 2.40“R | 1.250” | 1.30磅 |
| 60B13S. | 3.134 | 1.562” | .750“ | 2.31” | 1.250” | 1.80磅 |
| 60 b14ss | 3.371 | 1.750” | .750“ | 2.56” | 1.250” | 2.00磅 |
| 60 b15ss | 3.607 | 1.750” | .750“ | 2.79” | 1.250” | 2.40磅 |
| 60 b16ss | 3.844 | 2.000“ | .750“ | 3.03” | 1.250” | 2.80磅 |
| 60 b17ss | 4.082 | 2.250” | .750“ | 3.28” | 1.250” | 3.30磅 |
| 60 b18ss | 4.319 | 2.250” | .750“ | 3.53” | 1.250” | 3.80磅 |
| 60B19S. | 4.557 | 2.500” | .750“ | 3.76” | 1.250” | 4.30磅 |
| 60B20SS. | 4.794 | 2.750” | .750“ | 3.95” | 1.250” | 4.50磅 |
| 60 b21ss | 5.032 | 2.750” | .750“ | 4.00“ | 1.250” | 5.30磅 |
| 60b22s. | 5.27 | 2.750” | .750“ | 4.00“ | 1.250” | 5.60磅 |
| 60 b23ss | 5.508 | 2.750” | .750“ | 4.00“ | 1.250” | 5.80磅 |
| 60 b24ss | 5.746 | 2.750” | .750“ | 4.00“ | 1.250” | 6.10磅 |
| 60 b25ss | 5.984 | 2.750” | 1.000“ | 4.00“ | 1.250” | 6.30磅 |
| 60 b26ss | 6.222 | 2.250” | 1.000“ | 3.50” | 1.250” | 6.40磅 |
| 60b28s. | 6.699 | 2.250” | 1.000“ | 3.50” | 1.250” | 6.60磅 |
| 60B30s. | 7.175 | 2.250” | 1.000“ | 3.50” | 1.250” | 7.30磅 |
| 60 b32ss | 7.652 | 2.250” | 1.000“ | 3.50” | 1.250” | 8.00磅 |
| 60b35s. | 8.367 | 2.500” | 1.000“ | 3.75” | 1.250” | 9.50磅 |
| 60 b36ss | 8.605 | 2.500” | 1.000“ | 3.75” | 1.250” | 9.90磅 |
| 60 b40ss | 9.559 | 2.500” | 1.000“ | 3.75” | 1.250” | 12.00磅 |
| 60 b45ss | 10.752 | 2.500” | 1.000“ | 3.75” | 1.250” | 14.00磅 |
| 60 b60ss | 14.33 | 2.500” | 1.250” | 3.75” | 1.500” | 23.00磅 |
| A.N.S.I.号80链轮- B型链轮-轮毂一侧-芯轴孔-不锈钢- 1″节距 | ||||||
| 80年b10ss | 3.236 | 1.562” | 1.000“ | 2.59“R. | 1.500” | 2.00磅 |
| B型不锈钢链轮 | ||||||
| 80b11s. | 3.549 | 1.812“ | 1.000“ | 2.90“R. | 1.500” | 2.60磅 |
| 80年b12ss | 3.864 | 1.812“ | 1.000“ | 2.78” | 1.500” | 3.00磅 |
| 80b13s. | 4.179 | 2.125” | 1.000“ | 3.10” | 1.500” | 3.60磅 |
| 80年b14ss | 4.494 | 2.250” | 1.000“ | 3.43“ | 1.500” | 4.40磅 |
| 80B15s. | 4.81 | 2.500” | 1.000“ | 3.78” | 1.500” | 5.20磅 |
| 80年b16ss | 5.126 | 2.750” | 1.000“ | 4.09” | 1.500” | 6.20磅 |
| 80B17S. | 5.442 | 2.750” | 1.000“ | 4.00“ | 1.500” | 6.90磅 |
| 80年b18ss | 5.759 | 2.750” | 1.000“ | 4.00“ | 1.500” | 7.40磅 |
| 80年b19ss | 6.076 | 2.750” | 1.000“ | 4.00“ | 1.500” | 7.90磅 |
| 80b20ss. | 6.392 | 2.750” | 1.000“ | 4.00“ | 1.500” | 8.30磅 |
| 80年b21ss | 6.71 | 2.750” | 1.000“ | 4.00“ | 1.500” | 9.20磅 |
| 80b22s. | 7.027 | 2.750” | 1.000“ | 4.00“ | 1.500” | 9.70磅 |
| 80年b23ss | 7.344 | 2.750” | 1.000“ | 4.00“ | 1.500” | 10.00磅 |
| 80b2ss. | 7.661 | 2.750” | 1.000“ | 4.00“ | 1.500” | 11.00磅 |
| 80年b25ss | 7.979 | 2.750” | 1.000“ | 4.00“ | 1.500” | 12.00磅 |
| A.N.S.I.号100链轮- B型链轮-轮毂一侧-芯轴孔-不锈钢- 1/4″节距 | ||||||
| 100年b11ss | 4.437 | 2.000“ | 1.000“ | 3.07” | 1.750” | 4.50磅 |
| B型不锈钢链轮 | ||||||
| 100年b12ss | 4.83 | 2.250” | 1.250” | 3.48“ | 1.750” | 5.50磅 |
| 100b13s. | 5.223 | 2.625” | 1.250” | 3.89“ | 1.750” | 6.80磅 |
| 100年b14ss | 5.617 | 2.750” | 1.250” | 4.29” | 1.750” | 8.20磅 |
| 100b15s. | 6.012 | 2.750” | 1.250” | 4.25“ | 1.750” | 9.00磅 |
| 100年b16ss | 6.407 | 2.750” | 1.250” | 4.25“ | 1.750” | 10.00磅 |
| 100b17s. | 6.803 | 2.750” | 1.250” | 4.25“ | 1.750” | 11.00磅 |
| 100年b18ss | 7.198 | 2.750” | 1.250” | 4.25“ | 1.750” | 12.00磅 |
随着我们一贯关注全球击中趋势，我们自豪地推出各种各样的不锈钢链链轮。不锈钢链链轮的齿根据最新标准加工，从而确保最大的链寿命和高效的动力传输。
产品快速详情：
- 可提供标准和非标准产品
- 质量高，价格高
- 即期交货
- 根据客户要求包装。
我们承诺将在中国的高质量提供最优惠的价格！我们还接受关于产品的特殊订单。如果您对我们的产品感兴趣。请不要犹豫，让我们知道。我们很高兴为您提供详细信息。我们承诺我们的产品将是安全的，高质量和合理的价格。如果您对我们的产品感兴趣，请尽快与我们联系。我们真诚地寻找您的合作。
我们的大部分产品出口到欧洲或美洲，标准和非标准产品均可。我们可以根据您的图纸或样品生产。材料可以是标准的或根据您的特殊要求。如果你选择了我们，你就选择了可靠。
材料可用
1.不锈钢:SS201、SS303、SS304、SS316、SS416、SS420
2.钢:C45 (K1045) C46 (K1046),甜
3.黄铜：C36000（C26800），C37700（HPB59），C38500（HPB58），C27200（CUZN37），C28000（CUZN40）
4.青铜:C51000、C52100、C54400等
5.铁：1213,12L14,1215
6.铝:Al6061 Al6063
7.OEM根据您的要求
表面处理
退火、自然硫化、热处理、抛光、镀镍、镀铬、镀锌、黄钝化、金钝化、缎面、涂黑等。
处理方法
CNC加工，冲床，车削，铣削，钻孔，研磨，拉削，焊接和组装
质量控制及证书
生产时由技术人员自检，包装前由专业质检员进行终检
ISO9001：2008，ISO14001：2001，ISO / TS 16949：2009
包裹和交货时间
大小:图纸
木箱/集装箱和托盘，或根据客户定制的规格。
15-25days样本。30-45days关员秩序
港口：上海/宁波港
常见问题解答
您是贸易公司还是制造商?
我们集团由3个工厂和2个海外销售公司组成。
问:你们提供样品吗?这是免费的还是额外的?
A:是的，我们可以免费提供样品，但不付运费。
问:你们的交货时间是多长?你们的付款条件是什么?
一般是40-45天。根据产品和定制级别的不同，时间可能会有所不同。标准产品:预付30% T/T，余款出货。
问:你们产品的最小起订量或价格是多少?
答：作为一个OEM公司，我们可以为我们的产品提供和调整到广泛的需求。，MoQ和价格可能会随着尺寸，材料和更多规格而变化。例如，昂贵的产品或标准产品通常会有较低的Moq。请与我们联系，并提供所有相关详情，以获得最准确的报价。
