Single Row Cylindrical Roller Bearings

The single-row cylindrical roller bearing is one separable type of bearing. Generally, a single-row cylindrical roller ring consists of four major components: inner ring, outer ring, rollers, and cage. Series Type: NU, NJ, N, NF series bearing.

Category:Cylindrical Roller Bearing

Get a Free Quote

描述

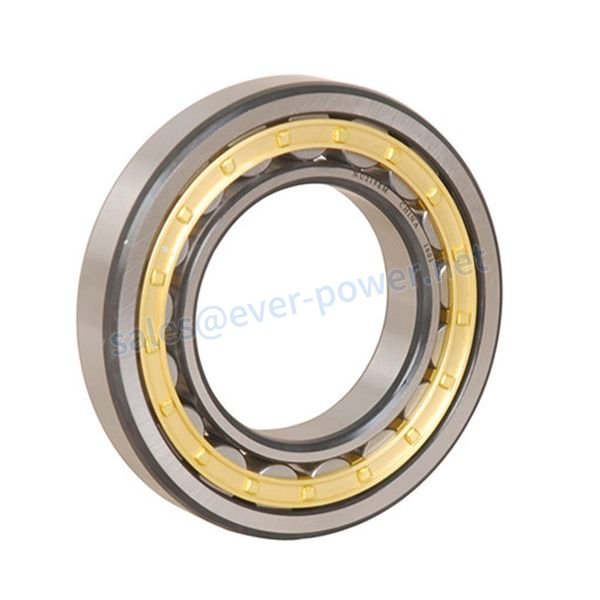

Single Row Cylindrical Roller Bearings

Single row cylindrical roller bearings are a kind of cylindrical roller bearings manufactured with snap ring grooves on the outer rings. This design simplifies the bearing joint as the bearings are located in the housing using the snap rings. These single-row cylindrical roller bearings feature separable bearing rings, rollers, and cage assembly units. The design helps simplify mounting and dismounting, particularly when load conditions require both rings to have an interference fit.

Product parameter

Boundary dimensions (mm)			Load ratings (KN)		限制速度 (r/min)		大量的 (kg)	否。
d	D	B	Cr	Cor	Grease	oil	大量的 (kg)	永远的力量
15	35	11	12.5	10.2	22000	26000	0.047	NU 202 E
15	35	11	12.5	10.2	22000	26000	0.048	NJ 202 e
17	40	12	17.2	14.3	19000	22000	0.068	NU 203 E
17	40	12	17.2	14.3	19000	22000	0.07	NJ 203 e
17	40	12	17.2	14.3	19000	22000	0.072	NUP 203 E
17	40	12	17.2	14.3	19000	22000	0.066	N 203 E
17	40	16	23.8	21.6	19000	22000	0.087	NU 2203 e
17	40	16	23.8	21.6	19000	22000	0.093	NJ 2203 E
17	40	16	23.8	21.6	19000	22000	0.097	NUP 2203 E
17	47	14	24.6	20.4	15000	20000	0.12	NU 303 E
17	47	14	24.6	20.4	15000	20000	0.12	NJ 303 E
17	47	14	24.6	20.4	15000	20000	0.12	N 303 E
20	47	14	25.1	22	16000	19000	0.11	NU 204 EM
20	47	14	25.1	22	16000	19000	0.11	NJ 204 EM
20	47	14	25.1	22	16000	19000	0.12	NUP 204 em
20	47	14	25.1	22	16000	19000	0.11	N 204 EM
20	47	18	29.7	27.5	16000	19000	0.14	NU 2204 EM
20	47	18	29.7	27.5	16000	19000	0.14	NJ 2204 EM
20	52	15	35.5	26	15000	18000	0.15	NU 304 EM
20	52	15	35.5	26	15000	18000	0.15	NJ 304 EM

单行圆柱辊轴承的特征：

-Wide variety of configurations

-Multiple cage designs

- 工业标准和特殊功能

- 以ISO度量和英寸格式可用

-Customizable to meet specific application requirements.

Applications of Single row cylindrical roller bearings:

Single Row Cylindrical Roller Bearings are designed to support heavy radial loads and are some of the most common approaches used around the world. These roller bearings consist of an Outer Race, Bronze or Steel Cage, a complement of rollers, and usually an Inner Race.

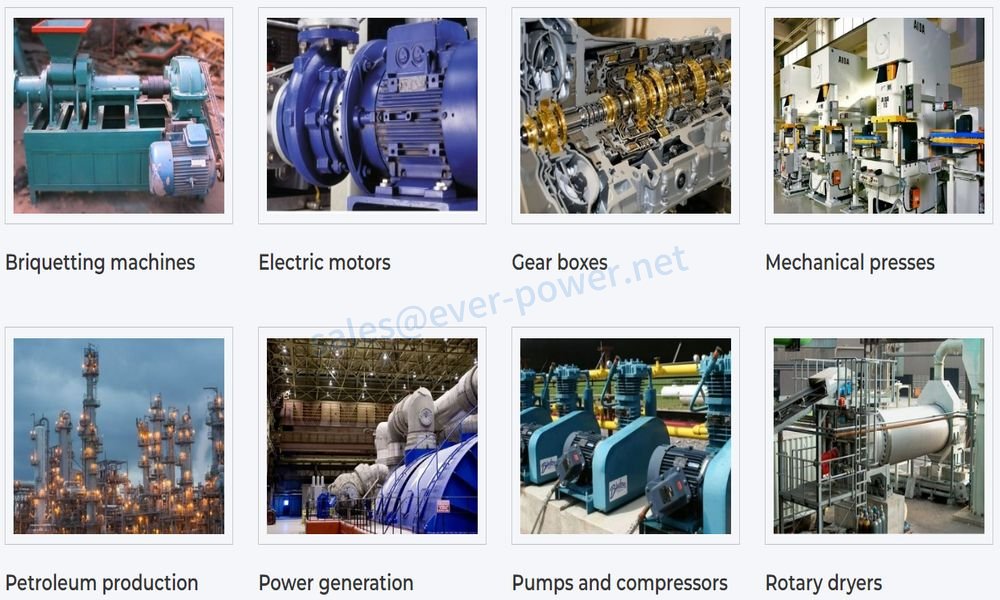

The use of Single row cylindrical roller bearings has benefited many industries:

- 泵和压缩机

-mechanical presses

- 电动机

-gearboxes

- 铁路车辆的牵引电动机和车轴轴承

-steelworks and in many other industrial applications.

Company Information

We are a professional bearing exporter in China, producing many bearings in different sizes and sizes. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, spherical ball/roller bearings, and cylindrical roller bearings, tapered roller bearings, angular contact Ball bearings, etc. Bearings can also provide OEM services according to customer requirements. We adhere to strict global standards, which is why we can provide you with a wide range of bearings of world-class quality. We have always adhered to the principle of “integrity-based, quality first, customer foremost.” We are ready to use our sincerity to serve every global customer for long-term and win-win cooperation.

产品快速细节：

Standard and non-standard available
高质量和有竞争力的价格
Prompt delivery
Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

可用的材料

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4.青铜：C51000，C52100，C54400等
5.铁：1213，12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request

Surface Treatment

退火，自然典范，热处理，抛光，镀镍，镀铬，镀锌，黄色钝化，金钝化，缎面，黑色表面涂漆等。

处理方法

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

尺寸：图纸
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port

常问问题

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

问：您的产品的确切订价或价格是多少？
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
