单向推力球轴承

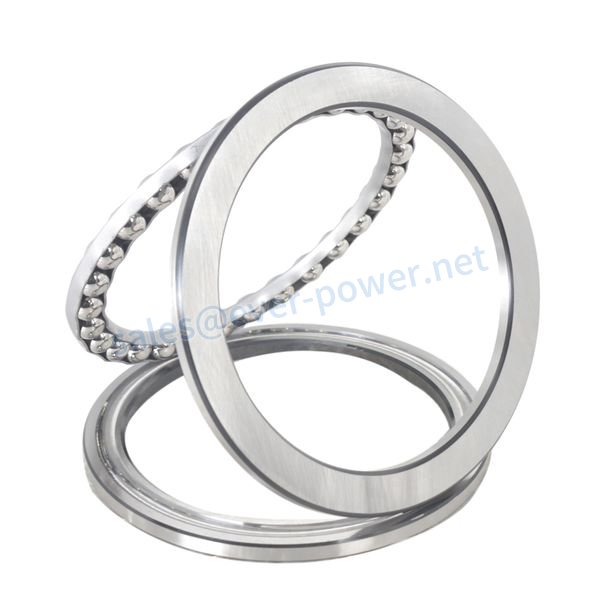

Single-direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only. Single direction thrust ball bearings consist of a shaft washer, a housing washer, and a ball and cage assembly.

类别：推力滚珠轴承

免费报价

Description

单向推力球轴承

单向推力滚珠轴承是推力球轴承的常见类型。顾名思义，单向推力滚珠轴承可以容纳轴向载荷，并仅在一个方向上轴向定位轴。单向推力球轴承由轴洗衣机，壳垫圈以及球和笼子组成。轴承不是自我保留；可以分别安装球，笼子组件和轴承垫圈。根据其系列和尺寸，推力球轴承配备了其中一个笼子，例如钢板笼或固体黄铜窗笼。

Product parameter

边界尺寸 (mm)			Mass (kg)	否。
d	D	T	Mass (kg)	永远的力量
10	24	9	0.018	51100
10	26	11	0.029	51200
10	26	11.6	0.028	53200
12	26	9	0.021	51101
12	28	11	0.032	51201
12	28	11.4	0.03	53201
15	28	9	0.024	51102
15	32	12	0.043	51202
15	32	13.3	0.046	53202
17	30	9	0.024	51103
17	35	12	0.05	51203
17	35	13.2	0.052	53203
20	35	10	0.037	51104
20	40	14	0.082	51204
20	40	14.7	0.081	53204
25	42	11	0.055	51105
25	47	15	0.114	51205
25	47	16.7	0.121	53205
25	52	18	0.154	51305
25	52	19.8	0.203	53305

Single direction thrust ball bearings application

Single direction thrust ball bearings are mainly used to bear a part of the axial load and low speed, such as crane hooks, vertical pumps, vertical centrifuges, jacks, low-speed reducers, etc.

公司信息

We are a professional bearing exporter in China, producing many bearings in different sizes and sizes. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, spherical ball/roller bearings, and cylindrical roller bearings, tapered roller bearings, angular contact Ball bearings, etc. Bearings can also provide OEM services according to customer requirements. We adhere to strict global standards, which is why we can provide you with a wide range of bearings of world-class quality. We have always adhered to the principle of “integrity-based, quality first, customer foremost.” We are ready to use our sincerity to serve every global customer for long-term and win-win cooperation.

Product Quick Detail:

标准和非标准可用
高质量和有竞争力的价格
交货及时
包装按customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

我们的大多数产品都出口到欧洲或美洲，包括标准产品和非标准产品。我们可以按照您的图纸或样品生产。材料可以是标准的，也可以根据您的特殊要求。如果您选择我们，则选择可靠。

Materials Available

1.不锈钢：SS201，SS303，SS304，SS316，SS416，SS420
2.钢：C45（K1045），C46（K1046），C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6.铝：AL6061，AL6063
7.EEM根据您的要求

表面处理

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly

QC和证书

技术人员在生产中进行自我检查，在专业质量检查员的包装前进行最终检查
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
木箱/容器和托盘，或根据定制规格。
15-25天样本。30-45天的偏差订单
港口：上海/宁波港口

常问问题

Q: Are you trading company or manufacturer ?
答：我们的小组包括3家工厂和2家国外销售公司。

问：您提供样品吗？是免费的还是额外的？
答：是的，我们可以免费提供样品，但不支付货运费用。

问：您的交货时间多长时间？您的付款条款是什么？
答：通常是40-45天。时间可能会根据产品和自定义级别而有所不同。对于标准产品，付款为：提前30％T/T，在运输前的余额。

问:什么是确切的MOQ或你们产品的价格?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

单向推力球轴承
