Overrunning Clutch RA/RAS Series for PTO Drive Shafts

Overrunning Clutch for PTO Shaft

The overrunning clutch prevents the transfer of inertia loads to the tractor during deceleration or stopping of the PTO.
The overrunning clutches of the RA series produced by WLY, a reliable PTO shaft factory, do not require lubrication and are not equipped with oil filler nozzles.

Category: Tag:
Get a Free Quote

Overrunning Clutch RA/RAS Series for PTO Drive Shafts

The device is used to transmit the motion in a single rotation direction when the tractor drives the implement. During the stopping phase, with the tractor PTO disengaged and the implement still moving, the transmission is disconnected. This device is useful for operating machinery with high rotation inertia because, during the stopping phase, thetractor PTO shaftis disengaged from the driven machine.

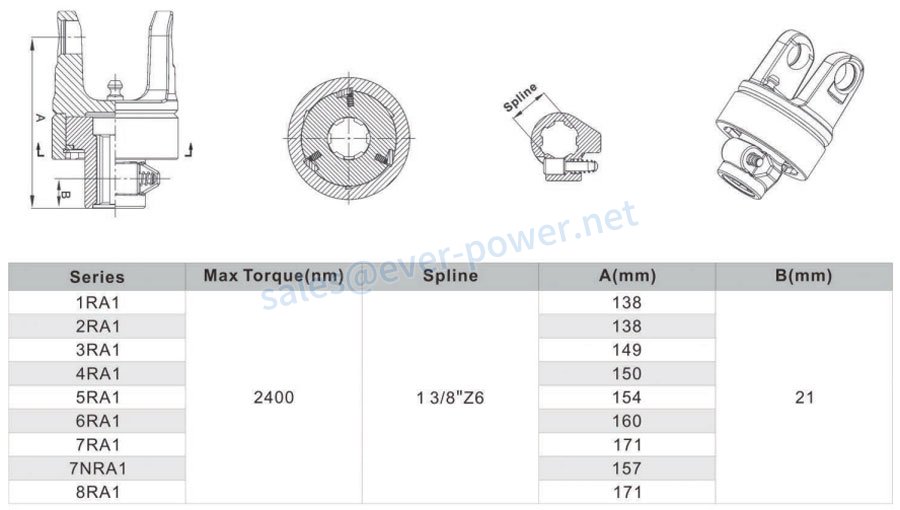

RA1 Series Overrunning Clutch Specification

RA1 Series Overrunning Clutch Specification RA1 Series Overrunning Clutch Specification

  1. Circlip
  2. Retaining washer
  3. Push pin kit
  4. Hub
  5. Prong kit (Qty.=3)
  6. Housing with yoke
  7. Grease nipple

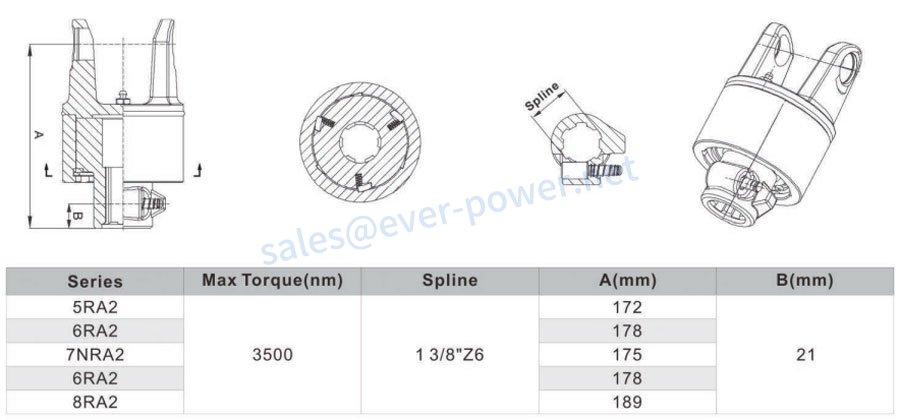

RA2 Series Overrunning Clutch Specification

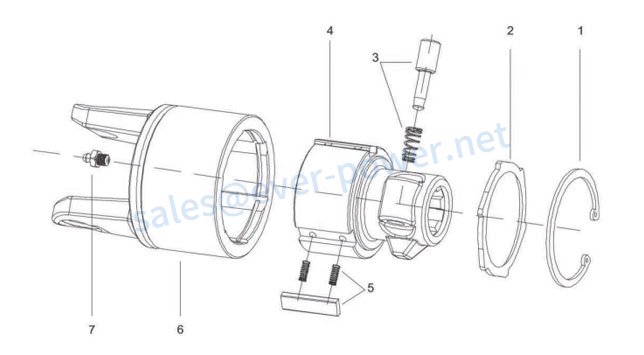

RA2 Series Overrunning Clutch RA2 Series Overrunning Clutch

  1. Circlip
  2. Retaining washer
  3. Push pin kit
  4. Hub
  5. Prong kit (Qty.=3)
  6. Housing with yoke
  7. Grease nipple

RAS Series Overrunning Clutch年代pecification

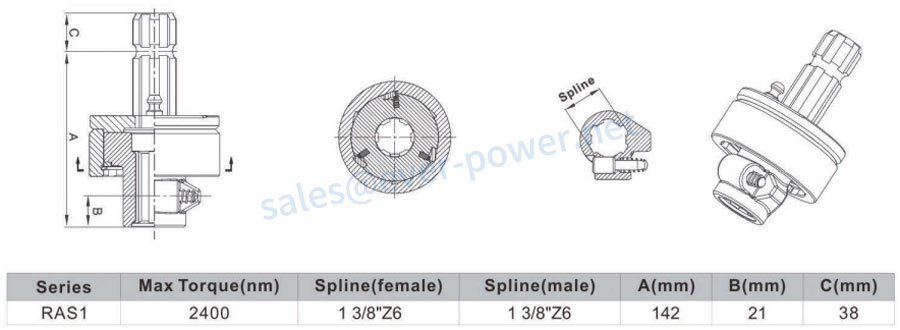

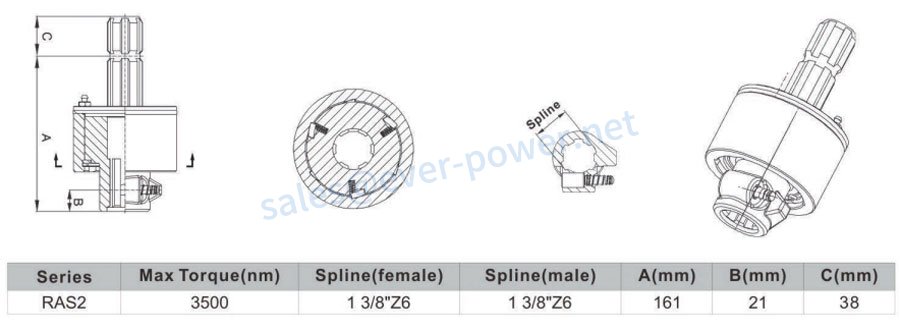

RAS Series Overrunning Clutch RAS Series Overrunning Clutch

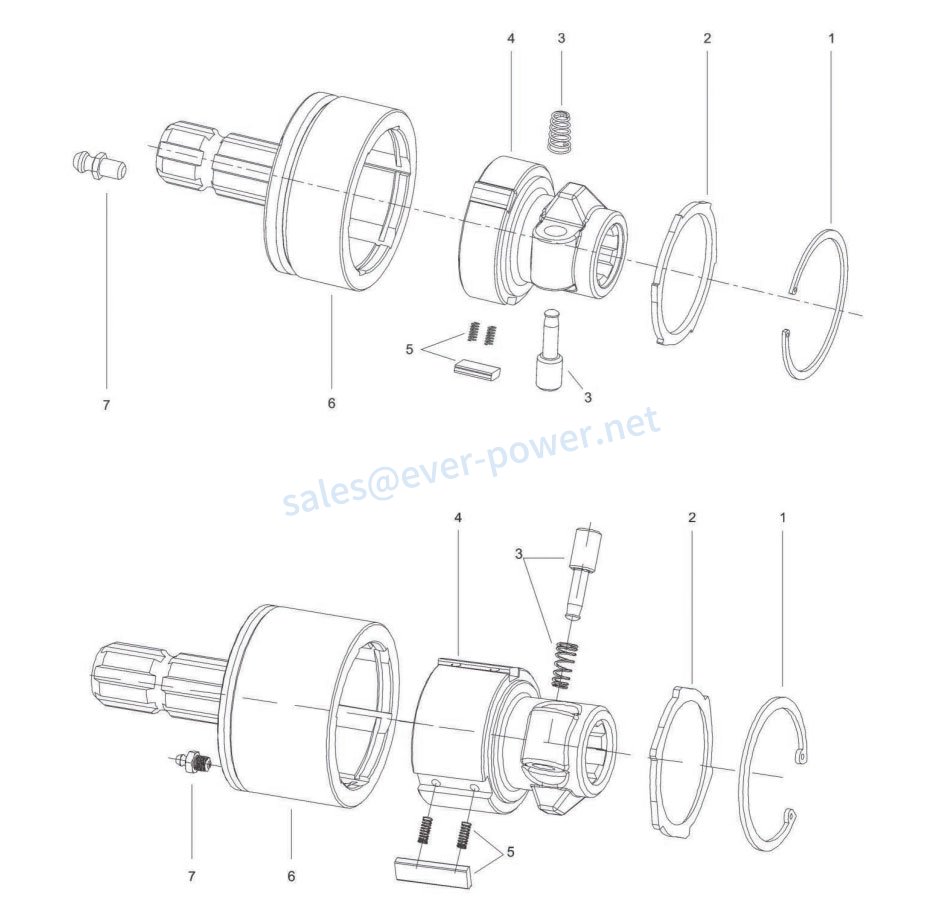

Overrunning Clutch for PTO Shaft

  1. Circlip
  2. Retaining washer
  3. Push pin kit
  4. Hub
  5. Prong kit (Qty.=3)
  6. Housing with the splined yoke
  7. Grease nipple

Performance Advantage of Overrunning Clutch

◆ Allows inertia from implementation to dissipate without putting load back through the tractor or system.
◆ Easy maintenance.
◆ Smooth operation.
◆ Offered in various driveshaft sizes and hub configurations.
◆ Easier connection by enabling the shaft to be aligned with the tractor PTO spline.

Design Features ofOverrunning Clutch

◆ Overrunning clutch is offered in two different configurations – for both clockwise (R) and counter-clockwise (L) overrunning directions.
◆The counterclockwise version is recognized by the groove.

Overrunning Clutch

Edited by Zqq.

Related products

Product Quick Detail:

  • 年代tandard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • 包装按customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

年代urface Treatment

退火,自然圣典,热处理,polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

年代ize: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
