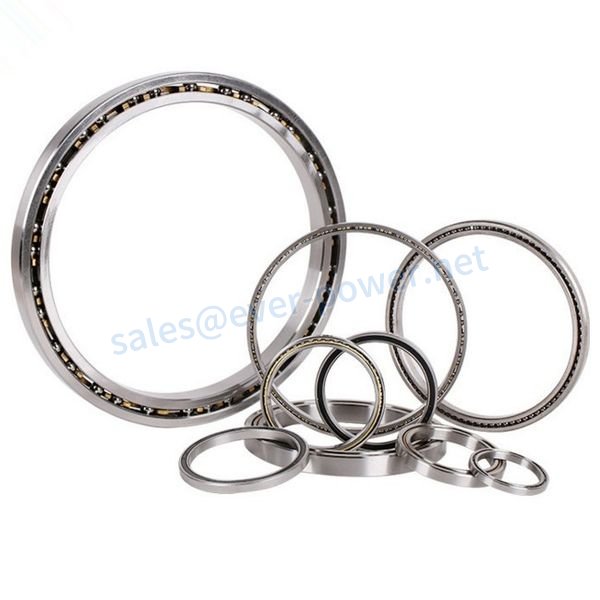

Metric Series Thin Section Bearings

HZPT can do metric series thin section bearings, including three types: Radial contact (type C), Angular contact (type A), and Four-point contact (type X).
8mm Series: Inner Diameter from 25 mm to 360mm; 13mm Series: Inner Diameter from 25 mm to 360mm; 20mm Series: Inner Diameter from 25 mm to 360mm; The Accuracy class: P0-P6-P5-P4-P2 Available. In addition, we also can customize nonstandard bearings (special size and particular type) according to customer needs.

Advantages of thin-section bearings

Thin-section bearingshave a large bore diameter with a smaller bearing cross-section.
Solid shafts can be replaced with hollow shafts.
The complimentary interior of the thin-section bearings can be used for air ducts, hydraulic piping, electrical wiring, or slip rings.
Thin-section bearings are small, light, and compact.
Despite miniaturization, the performance of thin-section bearings is comparable to that of standard bearings.

Technical data

(1) 8mm Series

8mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
Bearing Model	d	D	B	Radial	Axial	Radial	Axial	kg
K02508AR0	25 mm	41 mm	8 mm	2667	5502	3648	10523	0.06
K05008AR0	50 mm	66 mm	8 mm	3599	8032	6433	18574	0.08
K06008AR0	60 mm	76 mm	8 mm	4001	9071	7718	22291	0.09
K07008AR0	70 mm	86 mm	8 mm	4315	9895	8787	25380	0.1
K08008AR0	80 mm	96 mm	8 mm	4609	10689	9865	28469	0.12
K09008AR0	90 mm	106 mm	8 mm	4952	11591	11150	32185	0.13
K10008AR0	100 mm	116 mm	8 mm	5227	12327	12219	35284	0.14
K11008AR0	110 mm	126 mm	8 mm	5502	13033	13298	38383	0.15
K12008AR0	120 mm	136 mm	8 mm	5757	13729	14367	41472	0.16
K13008AR0	130 mm	146 mm	8 mm	6061	14533	15651	45189	0.17
K14008AR0	140 mm	156 mm	8 mm	6306	15191	16730	48278	0.18
K15008AR0	150 mm	166 mm	8 mm	6541	15838	17799	51377	0.2
K16008AR0	160 mm	176 mm	8 mm	6825	16583	19084	55094	0.2
K17008AR0	170 mm	186 mm	8 mm	7061	17201	20153	58183	0.21
K18008AR0	180 mm	196 mm	8 mm	7277	17809	21231	61282	0.22
K19008AR0	190 mm	206 mm	8 mm	7541	18525	22516	64998	0.23
K20008AR0	200 mm	216 mm	8 mm	7757	19103	23585	68097	0.23
K25008AR0	250 mm	266 mm	8 mm	8797	22006	29165	84190	0.28
K30008AR0	300 mm	316 mm	8 mm	9797	24830	34951	100901	0.33
K32008AR0	320 mm	336 mm	8 mm	10189	25939	37314	107706	0.36
K34008AR0	340 mm	356 mm	8 mm	10523	26919	39452	113894	0.38
K36008AR0	360 mm	376 mm	8 mm	10885	27988	41816	120710	0.4

8mm Series - Deep Groove Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic	Stastic	Weight
Bearing Model	d	D	B	Radial	Radial	kg
K02508CP0	25 mm	41 mm	8 mm	2501	2971	0.06
K05008CP0	50 mm	66 mm	8 mm	3432	5452	0.08
K06008CP0	60 mm	76 mm	8 mm	3766	6433	0.09
K07008CP0	70 mm	86 mm	8 mm	4089	7433	0.1
K08008CP0	80 mm	96 mm	8 mm	4393	8424	0.11
K09008CP0	90 mm	106 mm	8 mm	4688	9405	0.13
K10008CP0	100 mm	116 mm	8 mm	4972	10405	0.14
K11008CP0	110 mm	126 mm	8 mm	5237	11395	0.15
K12008CP0	120 mm	136 mm	8 mm	5502	12376	0.16
K13008CP0	130 mm	146 mm	8 mm	5766	13376	0.17
K14008CP0	140 mm	156 mm	8 mm	6011	14367	0.18
K15008CP0	150 mm	166 mm	8 mm	6257	15347	0.2
K16008CP0	160 mm	176 mm	8 mm	6492	16338	0.2
K17008CP0	170 mm	186 mm	8 mm	6727	17328	0.2
K18008CP0	180 mm	196 mm	8 mm	6953	18319	0.21
K19008CP0	190 mm	206 mm	8 mm	7110	19064	0.21
K20008CP0	200 mm	216 mm	8 mm	7335	20055	0.22
K25008CP0	250 mm	266 mm	8 mm	8365	25007	0.28
K30008CP0	300 mm	316 mm	8 mm	9307	29959	0.35
K32008CP0	320 mm	336 mm	8 mm	9660	31940	0.39
K34008CP0	340 mm	356 mm	8 mm	9660	31940	0.39
K36008CP0	360 mm	376 mm	8 mm	10297	35657	0.46

8mm Series - Four Point Contact Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic			Static			Weight
Bearing Model	d	D	B	Radial	Thrust	Moment	Radial	Thrust	Moment	kg
K02508XP0	25 mm	41 mm	8 mm	3246	4599	40	3275	7433	49	0.06
K05008XP0	50 mm	66 mm	8 mm	4511	6531	98	5443	13621	158	0.08
K06008XP0	60 mm	76 mm	8 mm	4962	7306	127	6433	16093	219	0.09
K07008XP0	70 mm	86 mm	8 mm	5384	8032	158	7424	18574	290	0.1
K08008XP0	80 mm	96 mm	8 mm	5796	8728	191	8424	21045	370	0.11
K09008XP0	90 mm	106 mm	8 mm	6188	9405	228	9405	23526	461	0.13
K10008XP0	100 mm	116 mm	8 mm	6570	10052	266	10395	25997	562	0.14
K11008XP0	110 mm	126 mm	8 mm	6933	10689	307	11395	28469	672	0.15
K12008XP0	120 mm	136 mm	8 mm	7286	11297	350	12376	30950	792	0.16
K13008XP0	130 mm	146 mm	8 mm	7630	11886	395	13366	33431	923	0.18
K14008XP0	140 mm	156 mm	8 mm	7963	12464	442	14367	35902	1063	0.19
K15008XP0	150 mm	166 mm	8 mm	8296	13033	492	15347	38383	1213	0.2
K16008XP0	160 mm	176 mm	8 mm	8610	13592	543	16338	40855	1373	0.2
K17008XP0	170 mm	186 mm	8 mm	8924	14131	596	17328	43326	1543	0.2
K18008XP0	180 mm	196 mm	8 mm	9228	14661	651	18319	45807	1722	0.21
K19008XP0	190 mm	206 mm	8 mm	9444	15063	701	19064	47660	1888	0.21
K20008XP0	200 mm	216 mm	8 mm	9728	15573	759	20055	50141	2086	0.22
K25008XP0	250 mm	266 mm	8 mm	11111	18044	1075	25007	62517	3226	0.28
K30008XP0	300 mm	316 mm	8 mm	12366	20359	1429	29959	74903	4614	0.35
K32008XP0	320 mm	336 mm	8 mm	12847	21241	1580	31940	79856	5238	0.39
K34008XP0	340 mm	356 mm	8 mm	13239	22114	1728	33921	84808	5859	0.42
K36008XP0	360 mm	376 mm	8 mm	13690	22849	1890	35657	89133	6561	0.46

(2) 13mm Series

13mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
Bearing Model	d	D	B	Radial	Axial	Radial	Axial	kg
K02513AR0	25 mm	51 mm	13 mm	5433	10542	6041	17346	0.13
K05013AR0	50 mm	76 mm	13 mm	7110	15171	10434	30106	0.2
K06013AR0	60 mm	86 mm	13 mm	7669	16730	12082	34863	0.22
K07013AR0	70 mm	96 mm	13 mm	8434	18691	14278	41198	0.25
K08013AR0	80 mm	106 mm	13 mm	8953	20104	15916	45954	0.28
K09013AR0	90 mm	116 mm	13 mm	9454	21477	17564	50710	0.31
K10013AR0	100 mm	126 mm	13 mm	9934	22791	19211	55466	0.34
K11013AR0	110 mm	136 mm	13 mm	10405	24075	20859	60223	0.37
K12013AR0	120 mm	146 mm	13 mm	10866	25331	22506	64969	0.39
K13013AR0	130 mm	156 mm	13 mm	11484	26949	24703	71314	0.42
K14013AR0	140 mm	166 mm	13 mm	11915	28135	26350	76070	0.45
K15013AR0	150 mm	176 mm	13 mm	12337	29292	27998	80817	0.48
K16013AR0	160 mm	186 mm	13 mm	12758	30440	29646	85573	0.51
K17013AR0	170 mm	196 mm	13 mm	13161	31548	31293	90239	0.54
K18013AR0	180 mm	206 mm	13 mm	13553	32646	32941	95085	0.56
K19013AR0	190 mm	216 mm	13 mm	13945	33725	34588	99842	0.59
K20013AR0	200 mm	226 mm	13 mm	14475	35137	36775	106177	0.62
K25013AR0	250 mm	276 mm	13 mm	16269	40207	45013	129948	0.76
K30013AR0	300 mm	326 mm	13 mm	18044	45287	53799	155308	0.9
K32013AR0	320 mm	346 mm	13 mm	18672	47111	57094	164811	0.96
K34013AR0	340 mm	366 mm	13 mm	19398	49200	60929	175902	1.02
K36013AR0	360 mm	386 mm	13 mm	19986	50955	64234	185414	1.07

13mm Series - Deep Groove Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic	Stastic	Weight
Bearing Model	d	D	B	Radial	Radial	kg
K02513CP0	25 mm	51 mm	13 mm	5247	5070	0.11
K05013CP0	50 mm	76 mm	13 mm	6835	8875	0.18
K06013CP0	60 mm	86 mm	13 mm	7600	10778	0.21
K07013CP0	70 mm	96 mm	13 mm	8032	12043	0.24
K08013CP0	80 mm	106 mm	13 mm	8453	13317	0.26
K09013CP0	90 mm	116 mm	13 mm	9130	15210	0.29
K10013CP0	100 mm	126 mm	13 mm	9522	16485	0.32
K11013CP0	110 mm	136 mm	13 mm	10150	18387	0.35
K12013CP0	120 mm	146 mm	13 mm	10523	19653	0.38
K13013CP0	130 mm	156 mm	13 mm	10885	20918	0.41
K14013CP0	140 mm	166 mm	13 mm	11464	22820	0.44
K15013CP0	150 mm	176 mm	13 mm	11807	24085	0.46
K16013CP0	160 mm	186 mm	13 mm	12150	25360	0.49
K17013CP0	170 mm	196 mm	13 mm	12690	27262	0.52
K18013CP0	180 mm	206 mm	13 mm	13013	28528	0.55
K19013CP0	190 mm	216 mm	13 mm	13337	29793	0.58
K20013CP0	200 mm	226 mm	13 mm	13837	31695	0.61
K25013CP0	250 mm	276 mm	13 mm	15671	39305	0.75
K30013CP0	300 mm	326 mm	13 mm	17201	46278	0.89
K32013CP0	320 mm	346 mm	13 mm	17878	49445	0.95
K34013CP0	340 mm	366 mm	13 mm	18525	52613	1.01
K36013CP0	360 mm	386 mm	13 mm	19162	55780	1.06

13mm Series - Four Point Contact Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic			Static			Weight
Bearing Model	d	D	B	Radial	Thrust	Moment	Radial	Thrust	Moment	kg
K02513XP0	25 mm	51 mm	13 mm	6757	8522	96	6825	12680	96	96
K05013XP0	50 mm	76 mm	13 mm	8924	12023	211	9012	22192	280	0.2
K06013XP0	60 mm	86 mm	13 mm	9944	14082	272	10778	26939	393	0.23
K07013XP0	70 mm	96 mm	13 mm	10532	15171	328	12043	30106	500	0.26
K08013XP0	80 mm	106 mm	13 mm	11111	16210	388	13317	33274	619	0.28
K09013XP0	90 mm	116 mm	13 mm	12003	17730	464	15210	38030	784	0.31
K10013XP0	100 mm	126 mm	13 mm	12543	18691	532	16485	41198	931	0.34
K11013XP0	110 mm	136 mm	13 mm	13376	20104	617	18387	45954	1131	0.37
K12013XP0	120 mm	146 mm	13 mm	13876	21025	693	19672	49131	1307	0.4
K13013XP0	130 mm	156 mm	13 mm	14377	21918	771	20918	52299	1496	0.43
K14013XP0	140 mm	166 mm	13 mm	15141	23222	869	22820	57045	1746	0.46
K15013XP0	150 mm	176 mm	13 mm	15612	24075	954	24085	60223	1963	0.48
K16013XP0	160 mm	186 mm	13 mm	16073	24919	1043	25360	63390	2193	0.51
K17013XP0	170 mm	196 mm	13 mm	16779	26145	1152	27262	68146	2494	0.54
K18013XP0	180 mm	206 mm	13 mm	17220	26949	1247	28528	71314	2753	0.57
K19013XP0	190 mm	216 mm	13 mm	17652	27743	1344	29793	74482	3024	0.6
K20013XP0	200 mm	226 mm	13 mm	18319	28910	1464	31695	79238	3375	0.63
K25013XP0	250 mm	276 mm	13 mm	20780	33372	2050	39305	98253	5168	0.77
K30013XP0	300 mm	326 mm	13 mm	22820	37206	2680	46278	115679	7242	0.91
K32013XP0	320 mm	346 mm	13 mm	23722	38893	2963	49445	123613	8232	0.97
K34013XP0	340 mm	366 mm	13 mm	24595	40531	3257	52613	131527	9286	1.02
K36013XP0	360 mm	386 mm	13 mm	25438	42149	3560	55780	139451	10403	1.08

(3) 20mm Series

20mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
Bearing Model	d	D	B	Radial	Axial	Radial	Axial	kg
K02520AR0	25 mm	65 mm	20 mm	11327	20741	11121	32087	0.31
K05020AR0	50 mm	90 mm	20 mm	14318	29155	18525	53485	0.49
K06020AR0	60 mm	100 mm	20 mm	15171	31685	20996	60615	0.56
K07020AR0	70 mm	110 mm	20 mm	16014	34127	23467	67744	0.62
K08020AR0	80 mm	120 mm	20 mm	16838	36481	25939	74874	0.69
K09020AR0	90 mm	130 mm	20 mm	18152	39884	29646	85573	0.77
K10020AR0	100 mm	140 mm	20 mm	18917	42071	32117	92702	0.84
K11020AR0	110 mm	150 mm	20 mm	19662	44199	34588	99842	0.91
K12020AR0	120 mm	160 mm	20 mm	20398	46278	37050	106971	0.97
K13020AR0	130 mm	170 mm	20 mm	21124	48317	39521	114100	1.04
K14020AR0	140 mm	180 mm	20 mm	21830	50308	41992	121230	1.11
K15020AR0	150 mm	190 mm	20 mm	22938	53221	45699	131929	1.19
K16020AR0	160 mm	200 mm	20 mm	23605	55123	48170	139058	1.26
K17020AR0	170 mm	210 mm	20 mm	24262	56986	50465	146188	1.32
K18020AR0	180 mm	220 mm	20 mm	24909	58830	53113	153317	1.39
K19020AR0	190 mm	230 mm	20 mm	25546	60635	55584	160447	1.46
K20020AR0	200 mm	240 mm	20 mm	26537	63302	59281	171146	1.54
K25020AR0	250 mm	290 mm	20 mm	29822	72648	72873	210372	1.89
K30020AR0	300 mm	340 mm	20 mm	32529	80630	85230	246029	2.23
K32020AR0	320 mm	360 mm	20 mm	33872	84484	91408	263858	2.37
K34020AR0	340 mm	380 mm	20 mm	34872	87505	96341	278117	2.51
K36020AR0	360 mm	400 mm	20 mm	36138	91202	102519	295945	2.66

20mm Series - Deep Groove Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic	Stastic	Weight
Bearing Model	d	D	B	Radial	Radial	kg
K02520CP0	25 mm	65 mm	20 mm	11552	9983	0.34
K05020CP0	50 mm	90 mm	20 mm	13827	15691	0.51
K06020CP0	60 mm	100 mm	20 mm	14239	17113	0.58
K07020CP0	70 mm	110 mm	20 mm	15426	19966	0.65
K08020CP0	80 mm	120 mm	20 mm	15857	21388	0.72
K09020CP0	90 mm	130 mm	20 mm	16966	24252	0.8
K10020CP0	100 mm	140 mm	20 mm	17387	25674	0.86
K11020CP0	110 mm	150 mm	20 mm	18437	28528	0.94
K12020CP0	120 mm	160 mm	20 mm	19437	31381	1.01
K13020CP0	130 mm	170 mm	20 mm	19839	32803	1.08
K14020CP0	140 mm	180 mm	20 mm	20800	35657	1.15
K15020CP0	150 mm	190 mm	20 mm	21192	37079	1.2
K16020CP0	160 mm	200 mm	20 mm	22104	39933	1.3
K17020CP0	170 mm	210 mm	20 mm	22487	42786	1.4
K18020CP0	180 mm	220 mm	20 mm	23369	44208	1.5
K19020CP0	190 mm	230 mm	20 mm	24222	47072	1.5
K20020CP0	250 mm	290 mm	20 mm	24585	48494	1.6
K25020CP0	250 mm	290 mm	20 mm	27665	59899	2.1
K30020CP0	300 mm	340 mm	20 mm	30508	71314	2.3
K32020CP0	320 mm	360 mm	20 mm	31509	75590	2.42
K34020CP0	340 mm	380 mm	20 mm	32480	79865	2.54
K36020CP0	360 mm	400 mm	20 mm	33421	84151	2.7

20mm Series - Four Point Contact Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic			Static			Weight
Bearing Model	d	D	B	Radial	Thrust	Moment	Radial	Thrust	Moment	kg
K02520XP0	25 mm	65 mm	20 mm	14739	17544	225	14886	24958	225	0.34
K05020XP0	50 mm	90 mm	20 mm	17917	23712	470	18093	39217	549	0.52
K06020XP0	60 mm	100 mm	20 mm	18505	25215	556	18691	42786	685	0.59
K07020XP0	70 mm	110 mm	20 mm	20104	27841	679	20310	49916	899	0.66
K08020XP0	80 mm	120 mm	20 mm	20702	29155	777	21388	53485	1070	0.73
K09020XP0	90 mm	130 mm	20 mm	22192	31685	916	24252	60615	1334	0.08
K10020XP0	100 mm	140 mm	20 mm	22781	32921	1026	25674	64185	1540	0.87
K11020XP0	110 mm	150 mm	20 mm	24183	35314	1179	28528	71314	1854	0.94
K12020XP0	120 mm	160 mm	20 mm	25527	37628	1341	31381	78443	2196	1.01
K13020XP0	130 mm	170 mm	20 mm	26086	38766	1468	32803	82013	2460	1.07
K14020XP0	140 mm	180 mm	20 mm	27370	40982	1643	35657	89142	2852	1.15
K15020XP0	150 mm	190 mm	20 mm	27900	42071	1779	37079	92702	3152	1.22
K16020XP0	160 mm	200 mm	20 mm	29126	44199	1967	39933	99832	3594	1.3
K17020XP0	170 mm	210 mm	20 mm	29646	46278	2113	42786	106961	3929	1.37
K18020XP0	180 mm	220 mm	20 mm	30822	47297	2312	44208	110531	4421	1.44
K19020XP0	190 mm	230 mm	20 mm	31970	49318	2519	47072	117670	4942	1.51
K20020XP0	200 mm	240 mm	20 mm	32450	50308	2678	48494	121230	5334	1.57
K25020XP0	250 mm	290 mm	20 mm	36589	57918	3706	59899	149757	8087	2.1
K30020XP0	300 mm	340 mm	20 mm	40394	65048	4849	71314	178275	11410	2.3
K32020XP0	320 mm	360 mm	20 mm	41727	67636	5323	75590	188974	12850	2.44
K34020XP0	340 mm	380 mm	20 mm	43032	70157	5812	79865	199673	14376	2.58
K36020XP0	360 mm	400 mm	20 mm	44306	72648	6316	84151	210372	15988	2.73

Lubrication method of metric thin section bearing:

Bearing lubrication methods are divided into grease lubrication and oil lubrication. In order to make the bearing function well, the metric thin section bearing must first choose a lubrication method suitable for the use conditions and purpose. If only lubrication is considered, the lubricity of oil lubrication is dominant. However, grease lubrication has the advantage of simplifying the structure around the bearing. The advantages and disadvantages of grease lubrication and oil lubrication are compared.

FAQ

Q. Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: How long is your crossed roller bearings delivery time?

A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples for crossed roller bearings? Is it free or extra?

A: Yes, we could offer the sample for free but do not pay the freight cost.

问:你能接受OEM和定制了er bearings?

A: We can customize it for you according to the sample or drawing.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

Q: Will you check these products before shipment?

A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.

Q: What will we do if you are unsatisfied with the product?

A: If you have any abnormalities, please get in touch with us for the first time, and we will immediately process them.

Q: How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way, and payment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirmed the PI;

4. Confirm Payment and arrange the production.

If you need crossed roller bearings or any models of bearings, please contact me!

Product Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
包装as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port

FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

Metric Series Thin Section Bearings
