Light Duty Offset Vs Tandem Disc Harrow

H53634d57b720465da9a2b6c8824c1acf8
Category:
Get a Free Quote

Machine Type: Disc Harrow
Power Type: Diesel
Type: Farm Cultivator
Condition: New
Warranty: 1 Year
Use: Breaking the hardened field surface
Weight: 200 KG, 200kg
Dimension(L*W*H): 1905*1550*1118mm
Key Selling Points: High Productivity
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, disc blade, square shaft
Applicable Industries: Farms
Showroom Location: None
Model: 1BQX-1.1
Product name: Light Duty Offset Vs Tandem Disc Harrow
Working width: 1100mm
Working depth: 10-18CM
Diameter of harrow disc: 18''(460mm)
No. of harrow disc: 12pcs
Matched power: 12-15hp
Bearing pedestal: sealed
Linkage: Three-point Suspension
Machine Type: Disc Harrow
Condition: New
Warranty: 1 Year
Weight: 200 KG
Key Selling Points: High Productivity
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, disc blade, square shaft
Applicable Industries: Farms
Showroom Location: None
Power Type: Diesel
Type: Farm Cultivator
Use: Breaking the hardened field surface
Dimension(L*W*H): 1905*1550*1118mm
Model: 1BQX-1.1
Product name: Light Duty Offset Vs Tandem Disc Harrow
Working width: 1100mm
Working depth: 10-18CM
Diameter of harrow disc: 18''(460mm)
No. of harrow disc: 12pcs
Weight: 200kg
Matched power: 12-15hp
Bearing pedestal: sealed
Linkage: Three-point Suspension
Packaging Details: iron case or as your demand
Port: SHANGHAI/NINGBO/QINGDAO CHINA

Light Duty Offset Vs Tandem Disc Harrow
Connect person : Lyna zhang , WhatsApp : 0086-15165936190
Company InformationFactory name : EVER-POWER Group Co., Ltd.
Factory address :, Hangzhou City , Zhejiang province ,China
We are a factory , we have our own workshop , now we have 4 pcs professional farm machine production line. All the disc harrow parts are made by ourselves, so we can guarantee the quality of the disc harrow , please be assures. Of course ! The price will be the lowest !

1BQX-1.1 Offset Disc Harrow For Sale description:

  • Wide space operation
  • Narrow space transportation
  • Reasonable structure
  • Durable service
  • Convenient to operat and maintain
  • Disc blades : 460mm x 3mm
  • Material of disc : 65Mn Spring Steel
  • Hardness of disc : 38-46HRC
  • Bearing : sealed bearing

    • Specification1BQX-1.1 Offset Disc Harrow For Sale specification :
    Items
    		 Unit
    		 1BQX-1.1
    Working width
    		 Mm
    		 1100
    Working depth
    		 Mm
    		 100~140
    Diameter Of harrow disc
    		 Mm
    		 460
    No. of disc blade
    		 Pcs
    		 12
    Matched power
    		 Hp
    		 12-15
    Linkage
    		three-point mounted
    Productivity
    		 Ha/h
    		 0.5

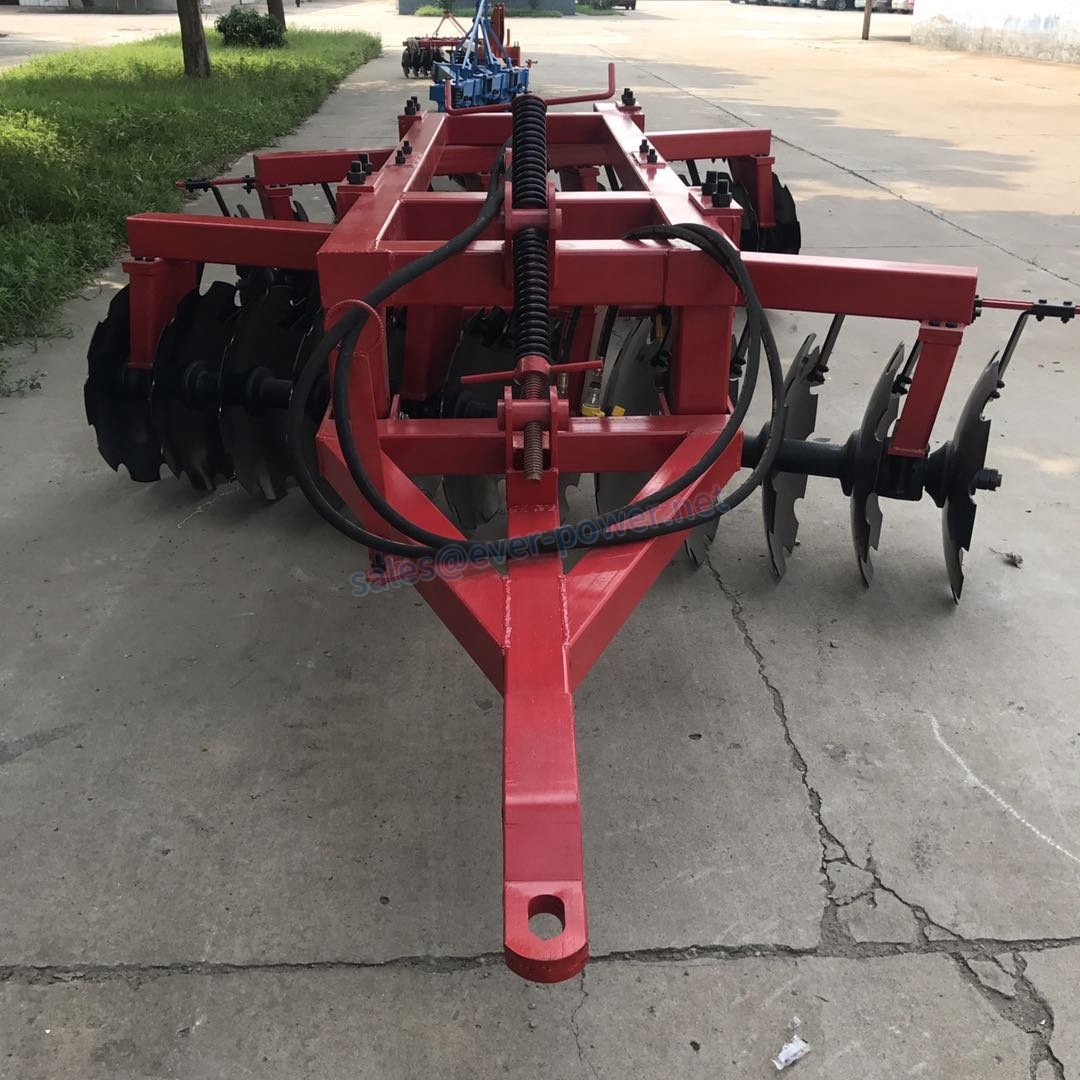

    Product picture show1BQX-1.1 Light duty disc harrow with 12pcs harrow disc blade .

    Packaging & Shipping
    1BQX-1.1 Offset Disc Harrow For Sale package :
    Iron case , 10 units full set packed in one iron case,the size is 2200*900*950mm .
    The 20'' containter can pack 100sets .
    The package picture is as follows:

    Advantages1. Disc blade : made of 65Mn Spring Steel , with quenching and tempering , has 38-46HRC hardness , good toughness and wear resisting .
    2. Square shaft : 45# steel , with tempering , has hardness.
    3. Bearing : with sealed bearing , can add the oil , so it will have long time to work .

    Related Products

    Our Services1. Warranty time
    1.We can supply samples for customers.
    2.We supply you 2 years warranty time.
    2. Spare Parts
    The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
    3.Payment way
    1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
    2. We alos accept L/C at sight
    4.More information, please contact us

    Related products

    Product Quick Detail:

    • Standard and non-standard available
    • With high quality and competitive price
    • Prompt delivery
    • 包装一个s per customer’s demand.

    We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

    Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

    pruduct quality report

    Materials Available

    1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
    2. Steel:C45(K1045), C46(K1046),C20
    3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
    4. Bronze: C51000, C52100, C54400, etc
    5. Iron: 1213, 12L14,1215
    6. Aluminum: Al6061, Al6063
    7.OEM according to your request
    product materials available

    Surface Treatment

    Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

    Processing Method

    CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
    product finishing

    QC & Certificate

    Technicians self-check in production,final-check before package by professional Quality inspector
    ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

    Package & Lead Time

    Size: Drawings
    Wooden Case/Container and pallet, or as per customized specifications.
    15-25days samples. 30-45days offcial order
    Port: Shanghai/Ningbo port
    product packages
