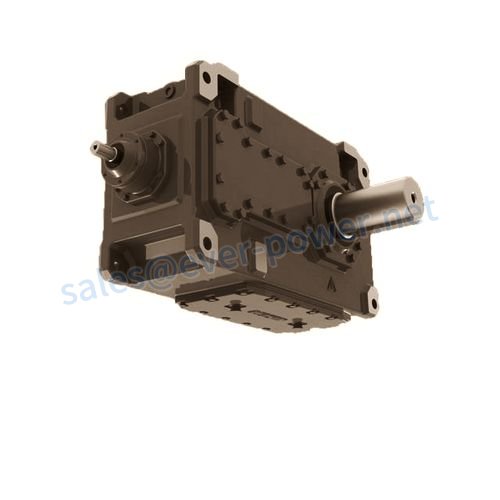

EPBH series bevel helical high quality speed reducer gearbox for all machines

优势：

1.高模块化设计
2. High load support, stable transmission, and low noise.
3. Good sealing performance and wide range of industrial applications.
4.高效率和节能。
5. Cost saving and low maintenance.

main application:

1.化学搅拌器
2. Lifting and transportation
3. Iron and steel metallurgy
4. Electricity
5. Coal mining
6. Cement and construction
7.纸和轻型行业

Product Data

Housing material	Cast iron HT250
Housing hardness	HBS190-240
齿轮材料	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62 °
齿轮芯硬度	HRC33~40
Input / Output shaft material	40crmnti合金钢
输入 /输出轴硬度	HRC25~30
齿轮的加工精度	准确的研磨，6〜5级
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
热处理	tempering, cementing, quenching, etc.
Efficiency	94%~96% (depends on the transmission stage)
噪声（最大）	60〜68dB
Tem p。上升（最大）	40°C
温度。上升（油）（最大）	50°C
振动	≤20µm
Backlash	≤20Arcmin

Click and check out more products you're looking for.

Why choose us

1.广泛选择还原器

我们公司为运动控制和机械传输的应用提供了最广泛的标准和自定义解决方案。我们提供精确的内联行星变速箱和直角行星变速箱，90度直角伺服电动机变速箱，谐波驱动变速箱，机器人的RV还原器，地面精密架子和齿轮，销售机架，伺服电动机，钢制电动机，步进电动机，无刷电机，S等。公司还可以提供蠕虫齿轮齿轮，齿轮电动机，螺丝千斤顶，转向齿轮以及其他相关的还原齿轮箱和配件。这意味着您可以在这里获得想要的东西，并从我们的一站式服务中受益，从而节省了时间和金钱。

2.有吸引力的价格和顶级品牌质量

We offer our customers very attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.

3.全方位专业技术支持

Don't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4.提供定制服务

If you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.
