Drawn Cup Needle Roller Bearings
Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.
Drawn Cup Needle Roller Bearings

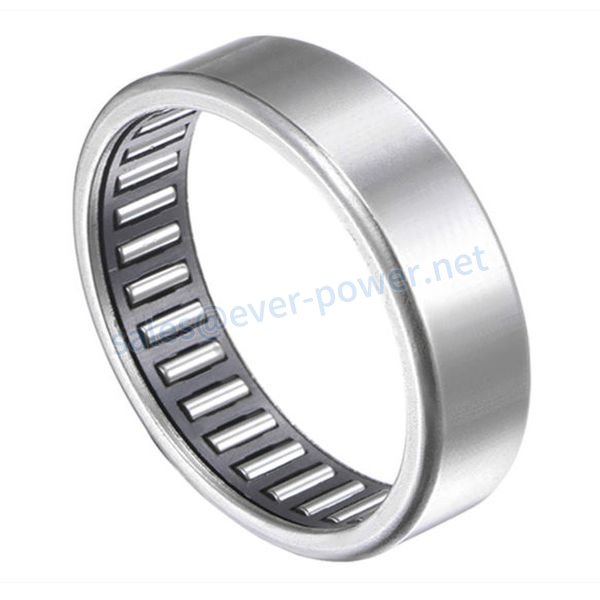

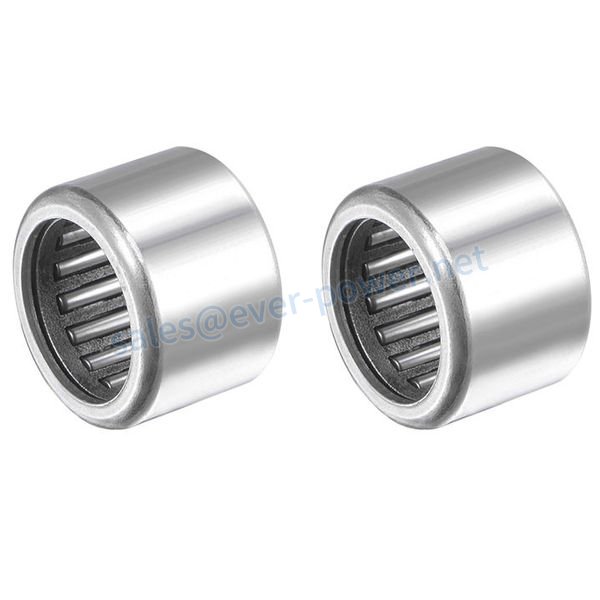

Drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends or a closed-end. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economical design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially. They are characterized by low sectional height and high load-carrying capacity.
Product Specification
| Bearing No.: | HK3026 |
| Main dimensions | 30x37x26mm |
| Inside diameter(ID d) | 30mm |
| Outside diameter(OD D) | 37 mm |
| Thickness/width(T/B/H) | 26mm |
| Reference speed | 8000 r/min |
| Limiting speed | 9000 r/min |
| Mass(kg) | 0.051 |
| Type | Needle Roller Bearings |
| Description | Drawn cup needle roller bearings |

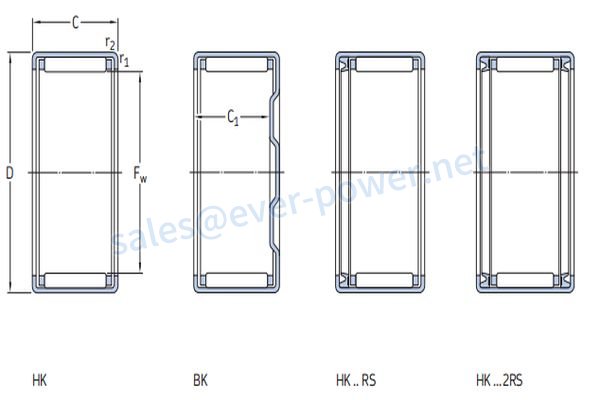

Types of Drawn cup needle roller bearings
Drawn cup needle roller bearings with open ends:
- are available open (without seals) or sealed on one or both sides.
Drawn cup needle roller bearings with a closed-end:
- are available open or sealed.
- Are suitable for bearing arrangements situated at the end of a shaft.
- Accommodate small axial guidance forces because of the profiled design of their closed-end.
Full complement bearings with open ends:
- are suitable for hefty radial loads at moderate speeds.
- They are available with open ends and without seals only.
Features of Drawn cup needle roller bearings
- Low cross-section
In applications with less space, drawn cup needle roller bearings enable downsizing. - High load-carrying capacity and stiffness
Owing to their large number of rollers, drawn cup needle roller bearings have a high load-carrying capacity and stiffness. - Good running properties
Applications of Drawn cup needle roller bearings
Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly but where a very compact and economical bearing arrangement is required.
- gearboxes
- pulleys
- valve trains
- power tools
- transfer cases
- others
Company Information
We are a professional bearing exporter in China, producing many bearings in different sizes and sizes. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, spherical ball/roller bearings, and cylindrical roller bearings, tapered roller bearings, angular contact Ball bearings, etc. Bearings can also provide OEM services according to customer requirements. We adhere to strict global standards, which is why we can provide you with a wide range of bearings of world-class quality. We have always adhered to the principle of "integrity-based, quality first, customer foremost." We are ready to use our sincerity to serve every global customer for long-term and win-win cooperation.
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- 包装按customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
FAQ
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
