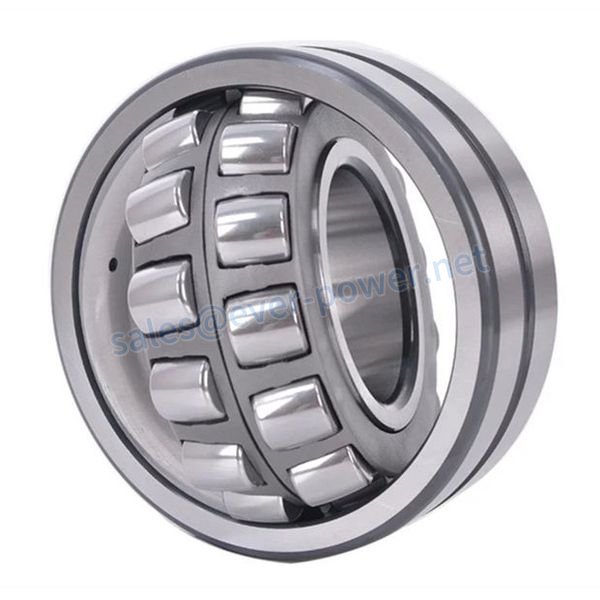

CC Type Spherical Roller Bearings
CC型球形辊轴承是一种球形滚子轴承，具有两个盖章的窗户式钢笼，一个无法兰的内环和一个以内圆为中心的浮动导圈。CC指的是轴承类型代码中的后缀。CC意味着冲压钢笼。盖板钢笼由低碳钢制成。
CC Type Spherical Roller Bearings
CC型球形辊轴承是一种球形滚子轴承，具有两个盖章的窗户式钢笼，一个无法兰的内环和一个以内圆为中心的浮动导圈。CC指的是轴承类型代码中的后缀。CC意味着冲压钢笼。盖板钢笼由低碳钢制成。这些轻巧的笼子具有相对较高的强度，对于某些轴承类型，可以进行表面处理以进一步减少摩擦并在临界条件下磨损。
产品参数
| boundary dimensions (mm) |
负载等级 (KN) |
限制速度 （r/min） |
Mass （公斤） |
bearing NO. | |||||
| d | d | b | cr | Cor | 润滑脂 | oil | EVER-POWER | ||
| 25 | 52 | 18 | 43.2 | 45 | 9000 | 11000 | 0.18 | 22205 CC/W33 | |
| 25 | 52 | 18 | 43.2 | 45 | 9000 | 11000 | 0.18 | 22205 CCK/W33 | |
| 30 | 62 | 20 | 56 | 61 | 7200 | 8600 | 0.28 | 22206 CC/W33 | |
| 30 | 62 | 20 | 56 | 61 | 7200 | 8600 | 0.28 | 22206 CCK/W33 | |
| 35 | 72 | 23 | 73.2 | 83.1 | 6800 | 8300 | 0.44 | 22207 CC/W33 | |
| 35 | 72 | 23 | 73.2 | 83.1 | 6800 | 8300 | 0.44 | 22207 CCK/W33 | |
| 40 | 80 | 23 | 86.9 | 93.5 | 6500 | 7600 | 0.52 | 22208 CC/W33 | |
| 40 | 80 | 23 | 86.9 | 93.5 | 6500 | 7600 | 0.52 | 22208 CCK/W33 | |
| 40 | 90 | 23 | 90 | 99 | 5000 | 6000 | 0.74 | 21308 CC/W33 | |
| 40 | 90 | 23 | 90 | 99 | 5000 | 6000 | 0.74 | 21308 CCK/W33 | |
| 40 | 90 | 33 | 123.6 | 142.1 | 5000 | 7000 | 1.02 | 22308 CC/W33 | |
| 40 | 90 | 33 | 123.6 | 142.1 | 5000 | 7000 | 1.02 | 22308 CCK/W33 | |
| 45 | 85 | 23 | 93 | 102 | 5500 | 7000 | 0.571 | 22209 CC/W33 | |
| 45 | 85 | 23 | 93 | 102 | 5500 | 7000 | 0.571 | 22209 CCK/W33 | |
| 45 | 100 | 25 | 114.7 | 120.3 | 4000 | 5000 | 1 | 21309 CC/W33 | |
| 45 | 100 | 25 | 114.7 | 120.3 | 4000 | 5000 | 1 | 21309 CCK/W33 | |
| 45 | 100 | 36 | 156 | 175 | 5000 | 6300 | 1.37 | 22309 CC/W33 | |
| 45 | 100 | 36 | 156 | 175 | 5000 | 6300 | 1.37 | 22309 CCK/W33 | |
| 50 | 90 | 23 | 95 | 112 | 4800 | 5500 | 0.61 | 22210 CC/W33 | |
| 50 | 90 | 23 | 95 | 112 | 4800 | 5500 | 0.61 | 22210 CCK/W33 | |
CC类型球形辊轴承的功能
- 滚筒是对称的。内环没有中肋骨和末端肋骨，笼子被划分，材料是盖章的钢框架笼，并且在辊子和滚筒之间设计了可移动的中间环。
- It can effectively reduce the internal friction of the bearing, can effectively assist the rolling elements in the non-stressed area to enter the load area correctly, and also increase the limit speed of the bearing.
- Can withstand greater axial load capacity than CA structure design, CC structure should be used more frequently under heavy load and high speed working conditions.
Applications of CC type Spherical Roller Bearing
There are various designs and applications for CC-type spherical roller bearings, and their design is specific to their industrial application and load type. CC type spherical roller bearings with high load capacities are suitable for many applications that are widely used in heavy applications like:
- 风能
- Mining, mineral processing, and cement
- 材料处理
- Pulp and paper
- Industrial transmission
- Metals
- 海洋
Company Information
我们是中国的职业轴承出口商，生产许多不同尺寸和尺寸的轴承。我们可以为您提供具有世界一流质量的各种轴承的优质服务，例如深凹槽滚珠轴承，球形滚子轴承，球形球/滚子轴承和圆柱滚筒轴承，锥形滚子轴承，斜体接触滚珠轴承，呈斜接触滚珠轴承，等等。轴承还可以根据客户要求提供OEM服务。我们遵守严格的全球标准，这就是为什么我们可以为您提供各种世界一流质量的轴承。我们始终遵守“基于诚信，质量首先，客户最重要的原则”。我们准备利用我们的诚意为每个全球客户提供长期和双赢的合作。
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- 按照客户的需求包装。
我们保证将通过中国的高品质提供最优惠的价格！我们还接受有关产品的特殊订单。如果您对我们的产品感兴趣。请不要犹豫，让我们知道。我们很高兴为您提供详细的信息。我们保证我们的产品将是安全的，而且价格高质量和合理。如果您对我们的产品感兴趣，请尽快与我们联系。我们真诚地寻找您的合作。
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3.黄铜：C36000（C26800），C37700（HPB59），C38500（HPB58），C27200（CUZN37），C28000（CUZN40）
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC加工，打孔，转弯，铣削，钻孔，研磨，开支，焊接和组装
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001：2008，ISO14001：2001，ISO/TS 16949：2009
软件包和交货时间
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
FAQ
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.
Q: What is the exact MOQ or price for your product ?
答：作为一家OEM公司，我们可以提供并适应我们的产品，以满足各种需求。因此，量，价格和价格可能会随规模，材料和进一步规格而变化。例如，昂贵的产品或标准产品通常具有较低的量量。请通过所有相关详细信息与我们联系，以获取最准确的报价。
