Atv disc harrow for sale
Machine Type: Disc Harrow
Power Type: Diesel
Type: Farm Cultivator
Condition: New
Warranty: 1 years
Use: Breaking hardend surface and cutting up straws
Weight: 200 KG
Dimension(L*W*H): 1590*1230*830mm
Key Selling Points: High Productivity
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: disc blade
Applicable Industries: Farms
Showroom Location: None
After-sales Service Provided: Engineers available to service machinery overseas
Product name: atv disc harrow for sale
Machine Type: Disc Harrow
Condition: New
Warranty: 1 years
Weight: 200 KG
Key Selling Points: High Productivity
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: disc blade
Applicable Industries: Farms
Showroom Location: None
Power Type: Diesel
Type: Farm Cultivator
Use: Breaking hardend surface and cutting up straws
Dimension(L*W*H): 1590*1230*830mm
After-sales Service Provided: Engineers available to service machinery overseas
Product name: atv disc harrow for sale
Packaging Details: iron case or as your demand. one or three packed in one iron case , the dimension is 1700mm*720mm*400mm or 1700mm*720mm*650mm
Port: SHANGHAI/NINGBO/QINGDAO CHINA
Atv disc harrow for sale
Company Information{ atv disc harrow for sale } Company information :
Company name : EVER-POWER Group Co., Ltd.
Main products :disc harrow , disc plough , cultivator, rotary tiller , trailer , sprayer , fertilizer spreader and so on.
{atv disc harrow for sale} Disc harrow description :
1BQX series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.
Specification{atv disc harrow for sale} 1BQX series light duty disc harrow specification is as following :
| Model | 1 bz - 3.8-71 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.2 | 1BQ-3.4 |
| Working width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 3400 |
| Working depth (cm) | 10-14 | 10-14 | 14-16 | 14-16 | 14-16 | 14-16 | 16日至18日 |
| No, of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 24 | 42 |
| Diameter of disc (mm / inch) | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 |
| Weight (kg) | 200 | 220 | 240 | 260 | 290 | 350 | 1100 |
| Matched power (hp) | 12-15 | 15-18 | 25 - 30 | 30-35 | 35-40 | 55-60 | 80-100 |
| Model | 1BJX-1.3 | 1BJX-1.6 | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working width (mm) | 1300 | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 |
| Working depth (cm) | 12-16 | 14-16 | 16日至18日 | 18-20 | 18-20 | 18-20 | 18-20 |
| No, of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Diameter of disc (mm / inch) | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 |
| Weight (kg) | 330 | 370 | 400 | 440 | 465 | 520 | 760 |
| Matched power (hp) | 35-40 | 40-45 | 45 | 50-55 | 55-60 | 60-65 | 75-100 |
{atv disc harrow for sale} 1BZ series heavy duty disc harrow specification is as following :
| Model | 1BZ-1.8 | 1BZ-2.0 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1 bz - 3.8 |
| Working width (mm) | 1800 | 2000 | 2200 | 2500 | 3000 | 3400 | 3800 |
| Working depth (cm) | 20-25 | 20-25 | 20-25 | 20-25 | 25-28 | 25 - 30 | 25 - 30 |
| No, of disc (pcs) | 16 | 18 | 20 | 24 | 28 | 32 | 36 |
| Diameter of disc (mm / inch) | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 |
| Weight (kg) | 1150 | 1250 | 1350 | 1500 | 1600 | 1800 | 2100 |
| Matched power (hp) | 60-70 | 70-80 | 80-90 | 90-100 | 100-120 | 120-140 | 140-180 |
Product picture show {atv disc harrow for sale} Linght duty disc harrow picture :
{atv disc harrow for sale} Middle duty disc harrow picture :

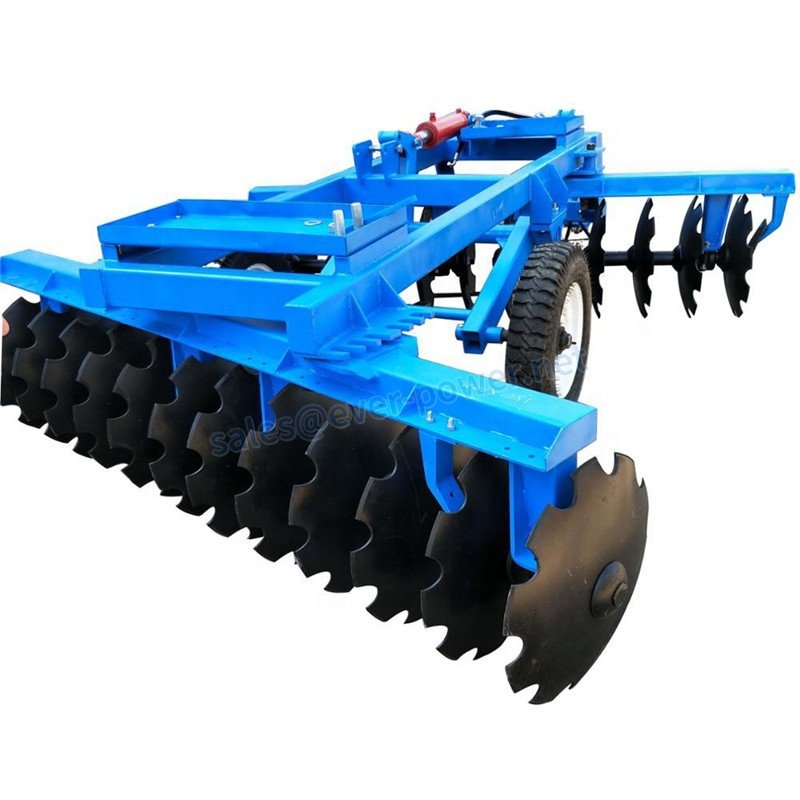

{atv disc harrow for sale} Heavy duty disc harrow picture :
Packaging & Shipping{atv disc harrow for sale} Package is as following :
The light duty disc harrow package is 10sets packed in one iron case ,the package size is 2200*1000*720mm. so one 20'' containter can hold 90sets or 110sets.
The heavy duty disc harrow is packed in pallet and iron case, and if you want to hold more sets, i will suggest you to do the nude package, so one 20 feet containter will hold 16sets .
My name is Lyna zhang .
Connect with me ... Add Whatsapp : 86-15165936190
