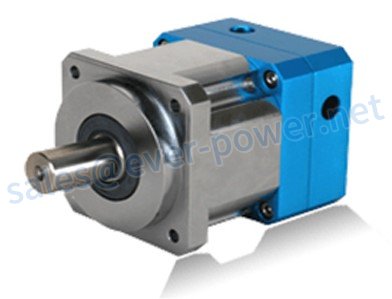

Precision Planetary Gearbox
The high precision planetary gearboxes that Ever-power provided are widely used in various motion control applications and are also found in a variety of industrial sectors. Its high precision planetary gear units are ideal for applications where high torque and precision are required. In addition to being highly reliable, these gear units also offer excellent performance, low maintenance costs, and compact size.
Components of Precision Planetary Gearbox
1. Gearbox Housing & Flange: Aluminum-alloy Die Casting ADC12
2. Gearset: Precision Planetary Gear Set
Ring Gears: 40Cr
Planetary Gears: 20CrMnTi, Surface Hardness HRC58~62, Inner Hardness HRC33~40
3. Input Configurations:
Keyed Hollow Shaft with Motor Adaptor
4. Output Configurations:
Keyed Solid Shaft Output
Keyless Solid Shaft Output
5. Applicable Motors:
Servo Motors, Stepper Motors
Precision Planetary Gearbox Features
The precision planetary gearbox is a new generation of product developed by us, with a compromise of advanced technology both at home and abroad, its main features are as follows:
1.Low Noise: Under 65db.
2.Low Backlash: Backlash is under 3 arcmin. Backlash for 2-stage speed reduction is within 5 arcmin.
3.High Efficiency: Efficiency for 1-stage model exceeds 95%, For 2-stage model exceeds 92%.
4.High Input Speed: Input speed allows for up to 8000 RPM.
5.High Torque: Higher torque output than that of conventional planetary gear reducers.
b.High Stability: Employs high tensile strength alloy steel. Gear hardening is made for the entire gear instead of only surface hardening, which extends gear service life and maintain high accuracy as new after a long period of operation.
7.High Speed Reduction Ratio: The gear reducer is a modular design. The precision planetary gearbox can be connected.
Speed reduction ratio is over 1/1000.
Precision Planetary Gearbox Usage
Precision Planetary Gearbox is widely used in the following fields:
- Aerospace, military industry.
- Medical health, electronic information industry.
- Industrial robots, Production automation, CNC machine tool manufacturing industry.
- Motor, textile, printing, food, metallurgical, environmental protection engineering, warehouse logistics industry.
Types of Precision Planetary Gearbox at Ever-power

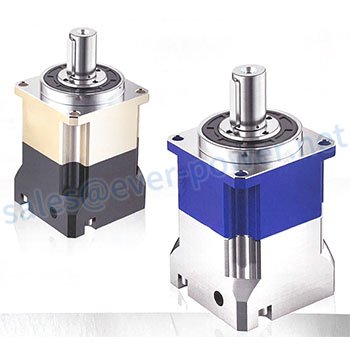

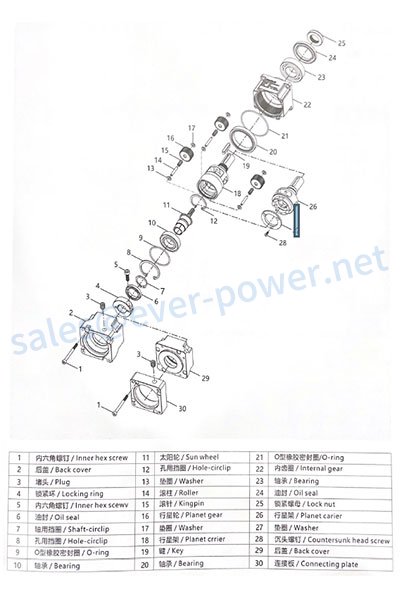

BAB Series

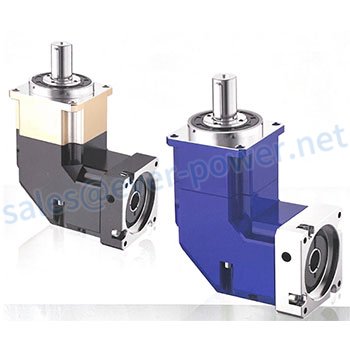

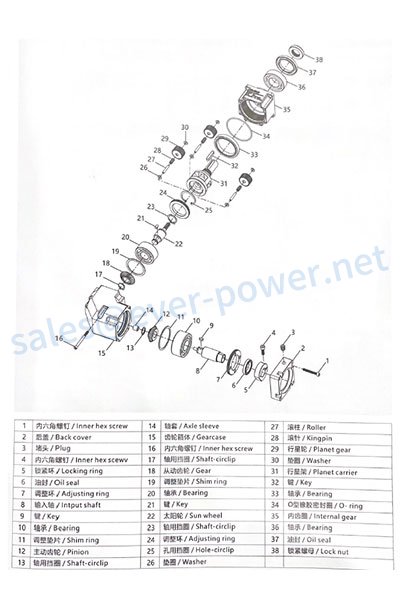

BABR Series

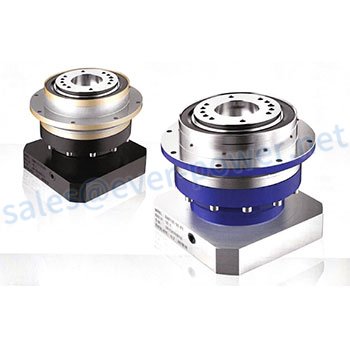

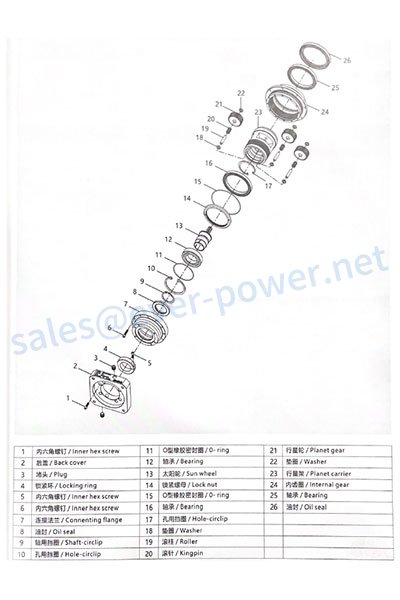

BAD Series

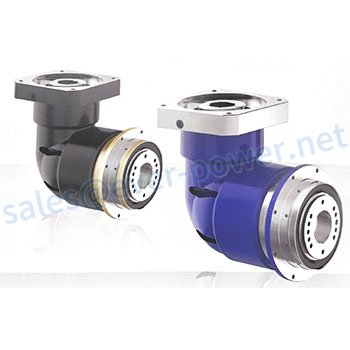

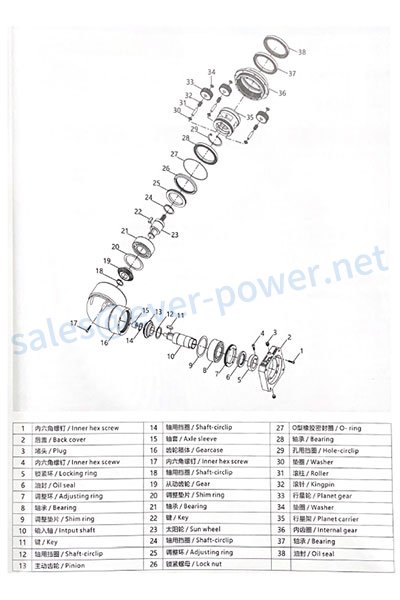

BADR Series
BAE Series

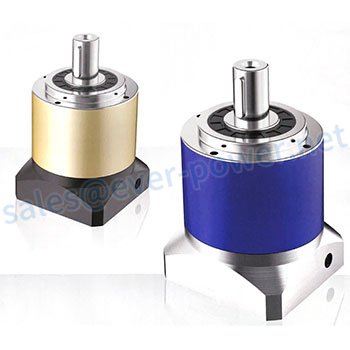

BAF Series

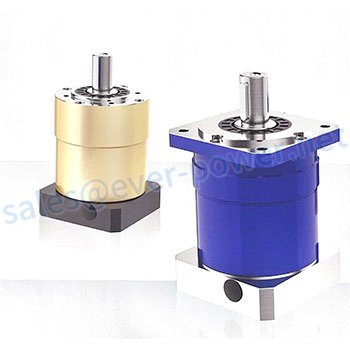

BPG/BPGA Series
Other information about Precision Planetary Gearbox
精密行星齿轮箱安装Instructions
Jointing with reducer in case of jointing a reducer with the device, make sure that the combining site is plane without inconsistency, and when assembling reducer onto equipment, ensuring assembly surface smooth and without burt.
Exterior Color of Precision Planetary Gearbox
Shell + back cover:
- Champagne gold + black.
- Innovative blue + pearl silver.
Conclusion
Gearboxes are important pieces of machinery that are used in a variety of industrial and commercial applications. Are you looking for a planetary gearbox for sale?
Ever-Power have years of experience in the gearbox manufacturing & supplying, we have the knowledge and expertise to provide you with the best products and services. We also offer a wide range of customization options to ensure that you get the perfect gearbox for your needs. We are the trusted supplier ofservo motor gearbox, precision gearbox , planetary gear motor and more.
Contact us today to learn more about our products and services!
