PTO轴T系列-三角PTO轴

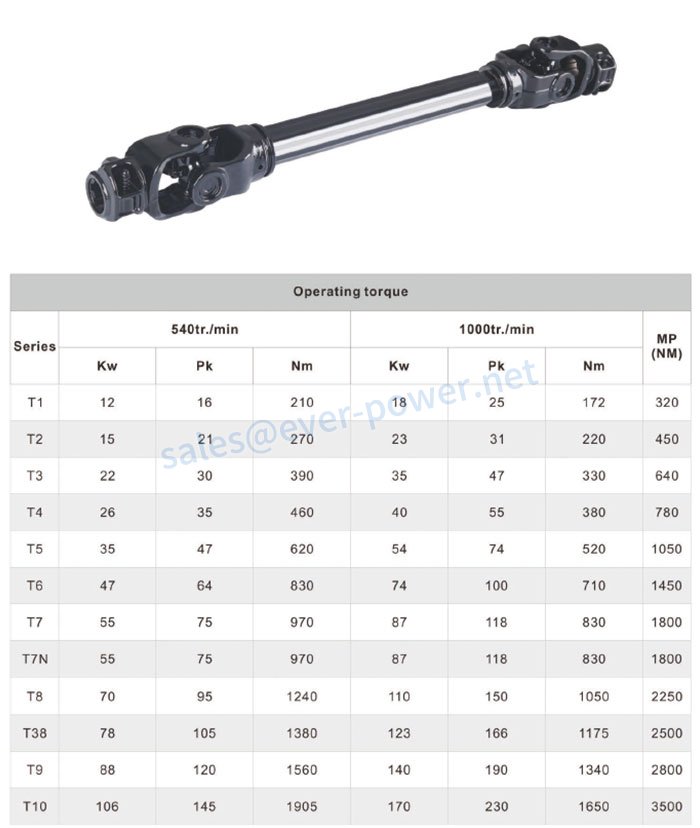

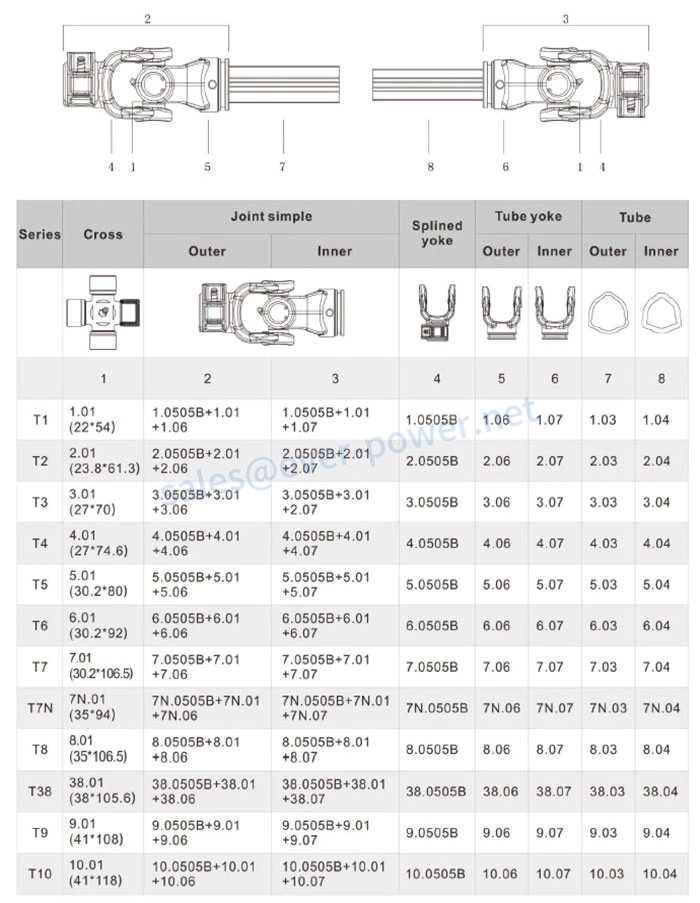

Triangular PTO Shaft Specifications

Here are the specifications of Ever-power triangular PTO shafts. You can check and choose the right triangular PTO shaft series which is suitable for your agricultural machinery.

Triangular PTO Shaft Features

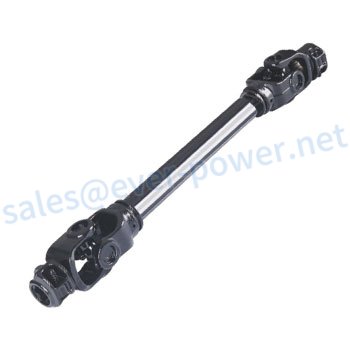

• Robust and durable. Ever-power triangular PTO shaft is a CE certified, well-forged drive shaft. It consists of a strong universal joint and a triangular steel tube inside a shield. The triangular PTO shaft is durable and robust when working with a variety of agricultural machinery.
• Easy to assemble, safer to use. Ever-power PTO extension shaft is an efficient power transmission tool that is easy to assemble and easy to replace straight away. Safety chains and plastic guards eliminate potential hazards during transmission with this triangular PTO shaft.
• Wide range of applications. These triangular PTO shafts transmit power from the tractor to the PTO power attachment. It is widely used in lawn mowers, loggers, rototillers, rotary cutters, irrigation cutters, hush hug, tractors, fertilizer spreaders, etc. Effective control of machine speed and power can be realized.
• Powerful torque conversion and reliability.

安装三角PTO Shaft

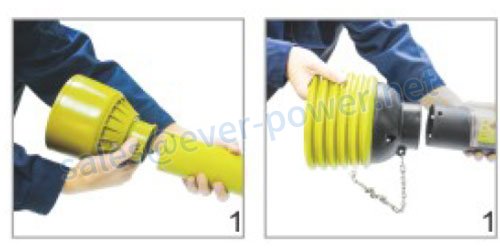

1. Press-fit the plastic tubes and plastic cones.

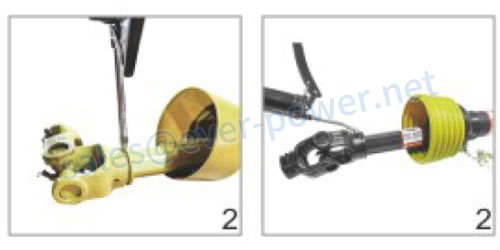

2. Grease the groove on the yoke.

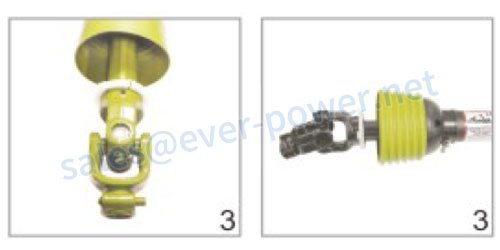

3. Slide the nylon bearings into the grooves.

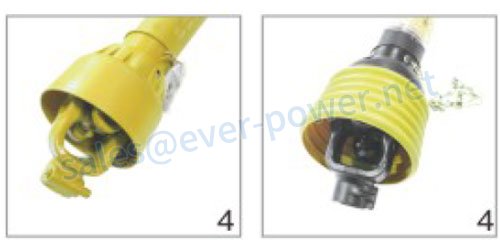

4. Align the nylon bearing on the plastic shield.

Disassembly Triangular PTO Shaft

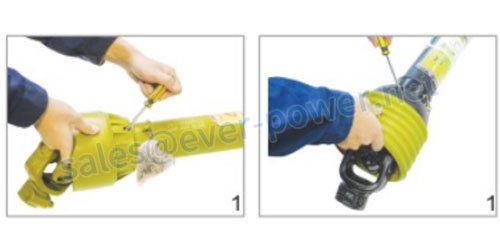

1. Remove the 3 nylon bearing buckles with a screwdriver one by one, then take the inner and outer tubes apart from the plastic cone.

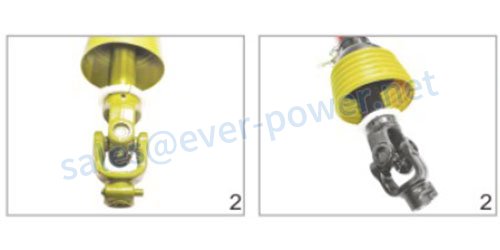

2. Take off the nylon bearings from the groove of the yokes.

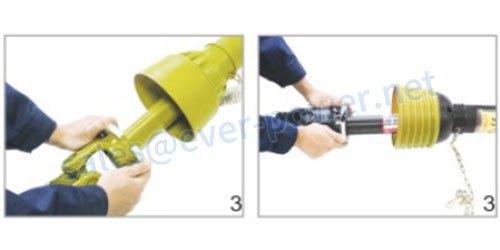

3. Repeat the above-mentioned steps for the other side.

Related Triangular PTO Shaft Products

As a professionalPTO驱动轴supplier, Ever-Power Transmission is specialized in offering various types of PTO shaft parts including torque limiters, u-joints, yokes as well asagricultural PTO gearboxes which is a good partner of PTO shaft. Contact us now to get more info!

Edited by Ever-power Zqq.
