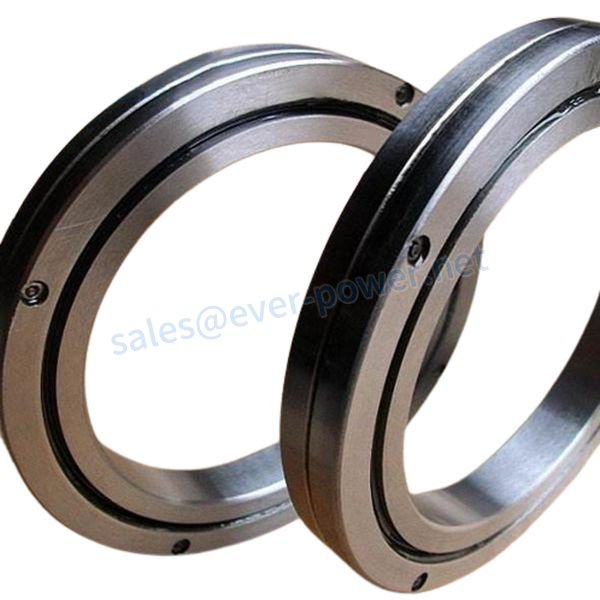

SX Series Crossed Roller Bearings

SX series crossed roller bearings are designed for high-precision applications. Unlike the CRB series crossed roller bearing, the SX series crossed roller bearing split outer ring is fixed by three locking rings instead of screws.SX crossed roller bearings have higher rigidity and running accuracy. Its clearance can be divided into average, small, and preload(VSP type). Besides, SX0118 series crossed roller bearings’ dimensions are the same as some deep groove ball bearings, making the replacement very convenient if the customer wants to improve the current bearings’ loading capacity, rotation accuracy, and stability. There is no need to change the design of the applications.

SX series crossed roller bearing characteristics:

1. Have average clearance or are preloaded

2. Fixed the adjacent construction using clamping rings

3. Suitable with average clearance for circumferential

4. Shaft diameters from 70 mm to 500 mm

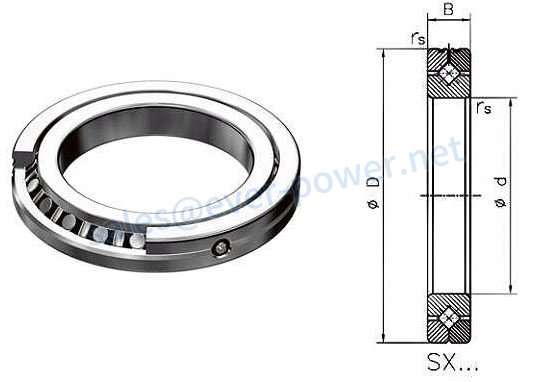

Technical data

Model number	Main dimensions (mm)						Shoulder height		Basic load rating(axial)		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D	DP	width B		chamfer r(min)	de	Di	Ca kN	Coa kN	Cr kN	Cor kN	Kg
		(mm)			Greasing hole
SX011814	70	90	80	10	1.2	0.6	79.5	80.5	15.4	51	11	20	0.3
SX011818	90	115	102	13	1.2	1	101.5	102.5	26	91	18	37	0.4
SX011820	100	125	112	13	1.2	1	111.5	112.5	28	102	19	41	0.5
SX011824	120	150	135	16	1.5	1	134.4	135.6	41	146	27	59	0.8
SX011828	140	175	157	18	1.5	1.1	156.3	157.7	64	240	45	96	1.1
SX011832	160	200	180	20	1.5	1.1	179.2	180.8	69	275	49	111	1.7
SX011836	180	225	202	22	2	1.1	201.2	202.8	96	381	69	153	2.3
SX011840	200	250	225	24	2	1.5	224.2	225.8	102	425	72	170	3.1
SX011848	240	300	270	28	2	2	269.2	270.8	148	640	105	255	5.3
SX011860	300	380	340	38	2.5	2.1	339.2	340.8	243	1070	173	425	12
SX011868	340	420	380	38	2.5	2.1	379.2	380.8	260	1220	185	485	13.5
SX011880	400	500	450	46	2.5	2.5	449	451	385	1800	275	720	24
SX0118/500	500	620	560	56	2.5	3	558.8	561.2	560	2750	395	1100	44

Our product advantages:

1. Diversified category combination

Rich and complete product categories, extensive size range, many forms, free combination.

2. Excellent quality

Small friction coefficient, high limit speed, high precision, and long service life.

3. Superb craftsmanship

Exquisite artistry, high fatigue strength, good wear resistance, high elastic limit, suitable strength.

Installation instructions for cross rollers bearings

The cross roller bearing should be mounted with the following steps:

1. Inspection before mounting the parts:

Wash and clean the bearing base or other mounting parts to remove the dirt and confirm that the burr on the details has been removed.

2. Mount the bearing into the bearing base or onto the shaft. Because the thin-walled bearing may be mounted tilt, it should be leveled and mounted by beating it evenly with a plastic hammer in the circumferential direction until it is fully contacted with the contact surface can be confirmed with the sound.

3. Side pressing flange mounting

(1) Place the side pressing flange in place, and shake it back and forth several times in the circumferential direction to adjust the positions of the mounting bolts.

(2) Mount the pressing bolts. Tighten the bolts manually and ensure no deviation from the bolt holes.

(3) The pressing bolts can be tightened progressively and diagonally in 3~4 stages. Slightly rotate the integrated inner or outer ring to correct the two divided parts.

Приложения

SX series crossed roller bearings are especially suitable for applications where space is limited. At the same time, high rigidity and high rotation accuracy are required—such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments, and IC manufacturing machines.
