Gear Couplings

Gear Coupling

Couplings are three pieces of a flexible shaft, used to connect two shafts together at its two ends- to transmit power. The coupling joins the two pieces of swivelling equipment while authorizing some degree of misalignment and end movement. The gear coupling joins the drive motor to the gearbox in the hoist machine, with the help of a flanged half, it can further connect the gearbox directly to the smaller wire rope drum.

The couplings do not generally get severed or permit the coupling to disconnect from the shafts during the operation although there are few torque-limited couplings which might slip off or get disconnect when the torque limit surpasses.

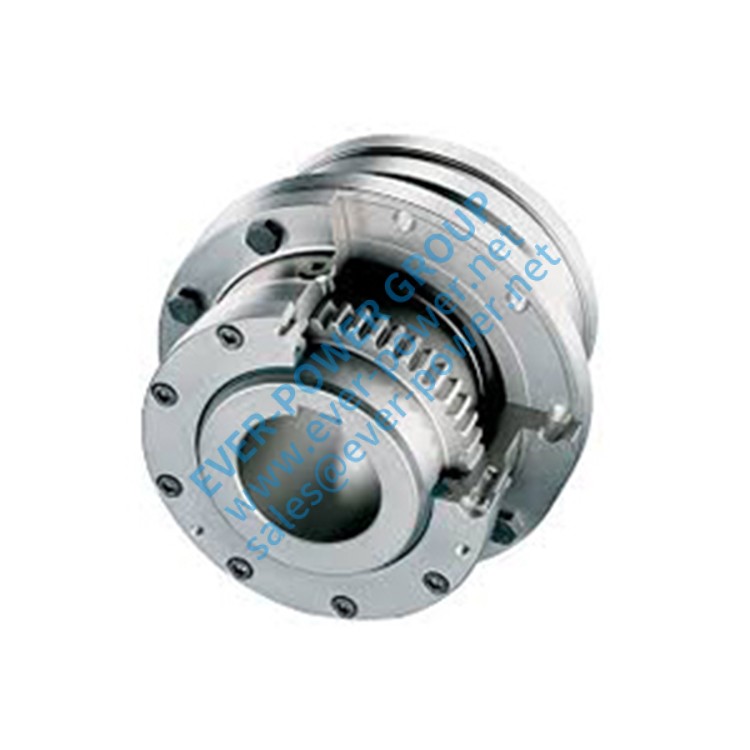

Agear couplingis a mechanical tool which delivers torque between two non-collinear shafts. It comprises a flexible joint which connects the drive motor to the shafts- which are further connected by a third shaft, known as the spindle.

The couplings are competent in transmitting high torques, they essentially belong to the category of flexible couplings.

伪造的联轴器由袖子就走了and right hand external toothed components that are associated through the sleeve having a matching number of teeth cut inside. The sleeves generally consist of two parts having inward gears.

Whereas in applications which require to bear more load, the outer tooth profiles are delegated. The external teeth are carved straight intending to keep the contact between external and internal gear in line of contact. They transmit torque through hubs with crown gear teeth which permanently mesh with the straight teeth of the sleeves. This design advantages in providing the highest torque transmission for a small size gearbox.

The proficiency of tolerating axial growth is another advantage of a gear coupling.

The couplings require lubrication on a routine interval time to function properly and prevent the risk of failing prematurely.

The couplings are generally employed on hefty machines like pumps, blowers, compressor, mixers, etc. They are also used to reduce backlash accompanying polymer sleeves, another use of coupling is the smaller control system. They are also often used in power transmission applications where motors might happen to be larger than 200HP.

We are among one of the largest as well as finest gear coupling manufacturers and gear coupling suppliers, our gears are produced from best quality steel and nylon. Apart from choosing the best raw material we also focus on cutting the teeth of accurate diameter.

To book your ideal type gear coupling call now 86-571-88220653 or visit us at[email protected]
