RB Series Crossed Roller Bearings

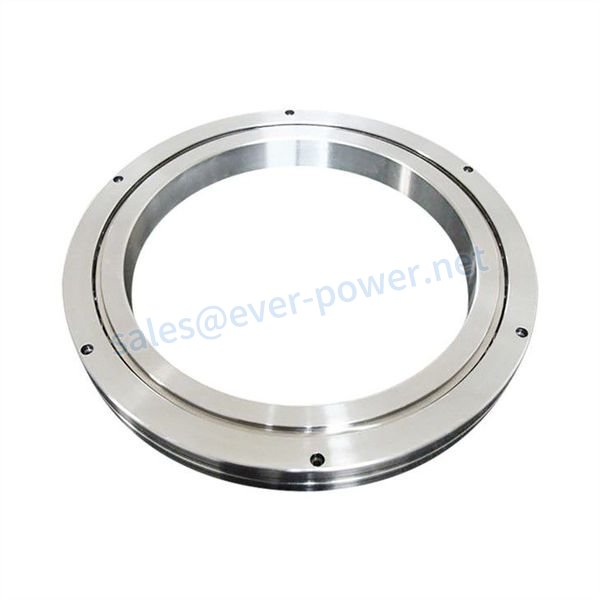

RB series crossed roller bearing is the basic model of crossed roller bearing. It has a detachable outer ring and a united inner ring. So it is widely used for internal ring accuracy rotation. Model RB is the primary type of crossed roller bearings. The outer ring is divided into two pieces, and the inner circle is an integral structure, which is most suitable for occasions that require the rotation accuracy of the inner circle.
RB Series Crossed Roller Bearings
RB series crossed roller bearing is the basic model of crossed roller bearing. It has a detachable outer ring and a united inner ring. So it is widely used for internal ring accuracy rotation. Model RB is the primary type ofcrossed roller bearings. The outer ring is divided into two pieces. The inner ring is an integral structure, which is most suitable for occasions requiring the inner circle's rotation accuracy.
The outer ring of this type of bearing is divided into two parts in the axial direction and the inner ring as a whole; the cylindrical rollers are arranged in two 90°V-shaped raceways at a 90° included angle of 1:1, and spaces separate the cylindrical rollers. In the future, this kind of bearing will have a compact structure so that a set of bearings can bear radial load, axial load, and overturning hurdle at the same time while ensuring structural rigidity, greatly simplifying the design of the shafting structure; Can be preloaded to facilitate installation and maintenance work further.
At the same time, this type of bearing has the characteristics of High precision, High load, and high rigidity, which is very suitable for robot rotating parts, manipulator joint parts, CNC indexing workbenches, medical equipment, and measuring instruments. It is especially ideal for features requiring the inner ring's rotation accuracy.
 |
 |
Technical data
| Bearing number | Main dimensions | Shoulder height | Basic load rating（radial） | weight | ||||||
| inner ring d (mm) | outer ring D(mm) | Roller pitch circle diameter DP(mm) | width B B1 (mm) | Chamfer r(min) | ds | Dh | C kN | C0 kN | Kg | |
| RB3010 | 30 | 55 | 41.5 | 10 | 0.6 | 37 | 47 | 7.35 | 8.36 | 0.12 |
| RB3510 | 35 | 60 | 46.5 | 10 | 0.6 | 41 | 51.5 | 7.64 | 9.12 | 0.13 |
| RB4010 | 40 | 65 | 51.5 | 10 | 0.6 | 47.5 | 57.5 | 8.33 | 10.6 | 0.16 |
| RB4510 | 45 | 70 | 56.5 | 10 | 0.6 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
| RB5013 | 50 | 80 | 64 | 13 | 0.6 | 57.4 | 72 | 16.7 | 20.9 | 0.27 |
| RB6013 | 60 | 90 | 74 | 13 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
| RB7013 | 70 | 100 | 84 | 13 | 0.6 | 78 | 92 | 19.4 | 27.7 | 0.35 |
| RB8016 | 80 | 120 | 98 | 16 | 0.6 | 91 | 111 | 30.1 | 42.1 | 0.7 |
| RB9016 | 90 | 130 | 108 | 16 | 1 | 98 | 118 | 31.4 | 45.3 | 0.75 |
| RB10016 | 100 | 140 | 119.3 | 16 | 1 | 109 | 129 | 31.7 | 48.6 | 0.83 |
| RB10020 | 150 | 123 | 20 | 1 | 113 | 133 | 33.1 | 50.9 | 1.45 | |
| RB11012 | 110 | 135 | 121.8 | 12 | 0.6 | 117 | 127 | 12.5 | 24.1 | 0.4 |
| RB11015 | 145 | 126.5 | 15 | 0.6 | 122 | 136 | 23.7 | 41.5 | 0.75 | |
| RB11020 | 110 | 160 | 133 | 20 | 1 | 120 | 143 | 34 | 54 | 1.56 |
| RB12016 | 120 | 150 | 134.2 | 16 | 1.6 | 127 | 141 | 24.2 | 43.2 | 0.72 |
| RB12025 | 180 | 148.7 | 25 | 1.5 | 133 | 164 | 66.9 | 100 | 2.62 | |
| RB13015 | 130 | 160 | 144.5 | 15 | 0.6 | 137 | 152 | 25 | 46.7 | 0.72 |
| RB13025 | 190 | 158 | 15 | 1.5 | 143 | 174 | 69.5 | 107 | 2.82 | |
| RB14016 | 140 | 175 | 154.8 | 16 | 1 | 147 | 162 | 25.9 | 50.1 | 1 |
| RB14025 | 200 | 168 | 25 | 1.5 | 154 | 185 | 74.8 | 121 | 2.96 | |
| RB15013 | 150 | 180 | 164 | 13 | 0.6 | 157 | 172 | 27 | 53.5 | 0.68 |
| RB15025 | 210 | 178 | 25 | 1.5 | 164 | 194 | 76.8 | 128 | 3.16 | |
| RB15030 | 230 | 188 | 30 | 1.5 | 173 | 211 | 100 | 156 | 5.3 | |
| RB16025 | 160 | 220 | 188.6 | 25 | 1.5 | 173 | 204 | 81.7 | 135 | 3.14 |
| RB17020 | 170 | 220 | 191 | 20 | 1.5 | 184 | 198 | 29 | 62.1 | 2.21 |
| RB18025 | 180 | 240 | 210 | 25 | 1.5 | 195 | 225 | 84 | 143 | 3.44 |
| RB19025 | 190 | 2 | 211.9 | 25 | 1 | 202 | 222 | 41.7 | 82.9 | 2.99 |
| RB20025 | 200 | 2 | 230 | 25 | 2 | 245 | 245 | 84.2 | 157 | 4 |
| RB20030 | 2 | 240 | 30 | 2 | 258 | 258 | 114 | 200 | 6.7 | |
| RB20035 | 2 | 247.7 | 35 | 2 | 270 | 270 | 151 | 252 | 9.6 | |
| RB22025 | 220 | 280 | 250.1 | 25 | 2 | 235 | 265 | 92.3 | 171 | 4.1 |
| RB24025 | 240 | 300 | 269 | 25 | 2.5 | 256 | 281 | 68.3 | 145 | 4.5 |
| RB25025 | 250 | 310 | 277.5 | 25 | 2.5 | 265 | 290 | 69.3 | 150 | 5 |
| RB25030 | 330 | 287.5 | 30 | 2.5 | 269 | 306 | 126 | 244 | 8.1 | |
| RB25040 | 355 | 300.7 | 40 | 2.5 | 275 | 326 | 195 | 348 | 14.8 | |
| RB30025 | 300 | 360 | 328 | 25 | 2.5 | 315 | 340 | 76.3 | 178 | 5.9 |
| RB30035 | 395 | 345 | 35 | 2.5 | 322 | 368 | 183 | 367 | 13.4 | |
| RB30040 | 300 | 405 | 351.6 | 40 | 2.5 | 326 | 377 | 212 | 409 | 17.2 |
| RB35020 | 350 | 400 | 373.4 | 20 | 2.5 | 363 | 383 | 54.1 | 143 | 3.9 |
| RB40035 | 400 | 480 | 440.3 | 35 | 2.5 | 422 | 459 | 156 | 370 | 14.5 |
| RB40040 | 510 | 453.4 | 40 | 2.5 | 428 | 479 | 241 | 531 | 23.5 | |
| RB45025 | 450 | 500 | 474 | 25 | 1 | 464 | 484 | 61.7 | 182 | 6.6 |
| RB50025 | 500 | 550 | 524.2 | 25 | 1 | 514 | 534 | 65.5 | 201 | 7.3 |
| RB50040 | 600 | 548.8 | 40 | 2.5 | 526 | 572 | 239 | 607 | 26 | |
| RB50050 | 625 | 561.6 | 50 | 2.5 | 536 | 587 | 267 | 653 | 41.7 | |
| RB60040 | 600 | 700 | 650 | 40 | 3 | 627 | 673 | 264 | 721 | 29 |
| RB70045 | 700 | 815 | 753.5 | 45 | 3 | 731 | 777 | 281 | 836 | 46 |
| RB80070 | 800 | 950 | 868.1 | 70 | 4 | 836 | 900 | 468 | 1330 | 105 |
| RB90070 | 900 | 1050 | 969 | 70 | 4 | 937 | 1001 | 494 | 1490 | 120 |
| RB1000110 | 1000 | 1250 | 1114 | 110 | 5 | 1057 | 1171 | 1220 | 3220 | 360 |
| RB1250110 | 1250 | 1500 | 1365.8 | 110 | 5 | 1308 | 1423 | 1350 | 1970 | 440 |
RB Series Crossed Roller Bearing Features
1. Sustain radial, axial, and moment loads at the same time.
2. High rotation accuracy is ensured by adjusting the bearing clearance to preload.
3. Stable rotation, spacer retainer keeps rollers in the proper position, preventing them from skewing, thus eliminating friction between rollers.
Applications of RB Series Crossed Roller Bearing
RB Series crossed roller bearings are especially suitable for applications where space is limited. At the same time, high rigidity and high rotation accuracy are required—such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments, and IC manufacturing machines.
Product process and test
1. Surface: Make sure the machine is cooled, and control the surface bending and parallel difference. Pickling flaw detection for the first product to see whether there is burning damage or crack.
2. Outer ring: Control ellipse, triangle, and size. Repeated grinding if it is high.
3. Inner ring: Control ellipse, wall thickness, and taper. The vertical difference should meet the requirements if it is high.
4. Raceway: Because of the particularity of this product, it needs to grind at a fixed distance and ensure that cooling is in place.
Company Information
We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings,spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, thrust roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need crossed roller bearings, please get in touch with us.
FAQ
Q. Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: How long is your crossed roller bearings delivery time?
A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.
Q: Do you provide samples for crossed roller bearings? Is it free or extra?
A: Yes, we could offer the sample for free but do not pay the freight cost.
问:有限公司uld you accept OEM and customize crossed roller bearings?
A: We can customize it for you according to the sample or drawing.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
Q: Will you check these products before shipment?
A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.
Q: What will we do if you are unsatisfied with the product?
A: If you have any abnormalities, please get in touch with us for the first time, and we will immediately process them.
If you need crossed roller bearings or any models of bearings, please contact me!
Detalhe rápido do produto:
- Padrão e não padrão disponíveis
- Com alta qualidade e preço competitivo
- Entrega rápida
- Embalagem de acordo com a demanda do cliente.
Prometemos oferecer o melhor preco com alta定性idade da China! Também aceitamos pedidos especiais sobre os produtos. Se estiver interessado em nossos produtos, não hesite em nos informar. Temos o prazer de lhe fornecer informações detalhadas e prometemos que nossos produtos serão seguros, de alta qualidade e com preços razoáveis. Se estiver interessado em nossos produtos, entre em contato conosco o mais rápido possível, pois estamos sinceramente à procura de sua cooperação.
A maioria dos nossos produtos é exportada para a Europa ou para as Américas, com produtos padrão e não padrão disponíveis. Podemos produzir de acordo com seu desenho ou amostra. O material pode ser padrão ou de acordo com sua solicitação especial. Se você nos escolher, você escolhe a confiança.
Materiais disponíveis
1. Aço inoxidável: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Latão: C36000 (C26800), C37700 (HPb59), C38500 (HPb58), C27200 (CuZn37), C28000 (CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Ferro: 1213, 12L14,1215
6. Alumínio: Al6061, Al6063
7. OEM de acordo com sua solicitação
Tratamento de superfície
Recozimento, canonização natural, tratamento térmico, polimento, niquelagem, cromagem, zincagem, passivação amarela, passivação dourada, cetim, pintura de superfície preta etc.
Método de processamento
Usinagem CNC, puncionamento, torneamento, fresagem, perfuração, retificação, brochamento, soldagem e montagem
CQ e certificado
Os técnicos fazem a autoverificação na produção e a verificação final antes da embalagem é feita por um inspetor de qualidade profissional
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Pacote e prazo de entrega
Tamanho: Desenhos
储备银行的维e madeira/contêiner e palete, ou conforme especificações personalizadas.
Amostras de 15 a 25 dias. 30 a 45 dias para pedidos comerciais
Porto: Porto de Xangai/Ningbo
