WRC110 Straight Sidebar Welded Steel Chain Sprockets

WRC110 Welded Sprocket

Welded steel chain sprockets are often used in conveying, driving, or elevating applications. In addition to operating on sprockets, these chains can withstand high speeds. Read this article to learn more about these chain types. Also, learn about the fabrication and applications of these chains.

Welded steel chain is a popular option for heavy-duty conveyors, agricultural applications, and industrial machinery. Its offset sidebar construction is extremely durable, making it suitable for abrasion-resistant and high-impact conveying applications. Welded steel chain has welded barrels that are joined to the chain sidebars using riveted or cottered pins. Some welded steel chain spikets are induction-hardened to ensure durability. These chains are highly versatile and are available in a variety of sizes, styles, and types.

The WRC110 sprocket is a high quality and durable sprocket. We offer this sprocket in a wide range of configurations including; A-plate, B-hub, C-hub, roller, split construction, brass, nylon, or ultra High power inserts and more.

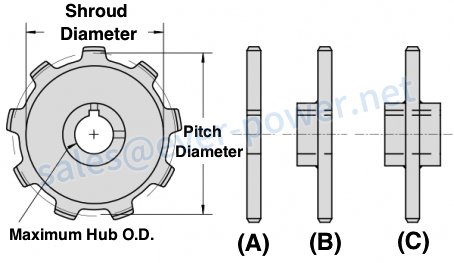

Sprocket Number	ピッチ	Number of Teeth	ピッチ径	最大ボア	シュラウド径	トゥース・フェイス
WRC110-6	6.00"	6	12.00"	5-15/16"	8.892"	1-1/2"
WRC110-7	6.00"	7	13.83"	5-15/16"	10.760"	1-1/2"
WRC110-8	6.00"	8	15.68"	5-15/16"	12.990"	1-1/2"
WRC110-9	6.00"	9	17.54"	5-15/16"	14.990"	1-1/2"
WRC110-10	6.00"	10	19.42"	5-15/16"	16.970"	1-1/2"
WRC110-11	6.00"	11	21.30"	5-15/16"	18.900"	1-1/2"
WRC110-12	6.00"	12	23.18"	5-15/16"	20.740"	1-1/2"
WRC110-13	6.00"	13	25.07"	5-15/16"	22.824"	1-1/2"

私たちはまた、精度の高い、そして、優れた製品を幅広く提供しています。ローラーチェーンそしてエンジニアリング。

農業用ギアボックス、PTOシャフト、スプロケット、流体継手、ウォームギア減速機、ギアとラック、ローラーチェーン、シーブとプーリー、遊星ギアボックス、タイミングプーリー、シャフトカラーなどの生産を専門としています。

We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service.We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information and cooperate with us.
