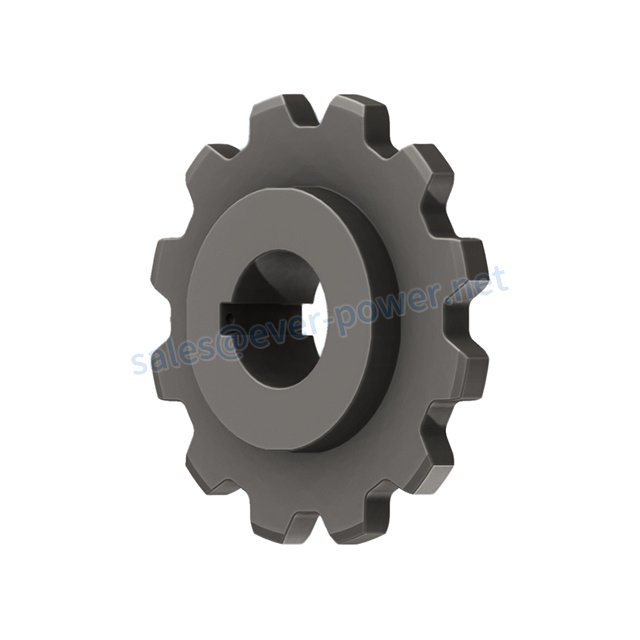

WR150/WH150 Welded Steel Chain B-Hub Sprockets

WH150-B Welded Steel Chain Sprockets

Welded steel chain spikets are manufactured using a process that involves the welding of two pieces of metal together without the use of filler materials. After the welding process, the excess material is removed and the welded chain is then calibrated for length. To ensure a high degree of strength, welded chains are tested by cutting a sample from a production run. This is done several times a shift and the data is recorded electronically. Some chains are twisted and used as tire chains.
Welded steel chain has an offset sidebar construction and no rollers. These chains are great for applications requiring high impact and abrasion resistance. The welded steel chain features a pin that is fully 360-degree heat-treated for optimum wear life. Its distinctive offset style sidebars are welded to the sidebars and are riveted to a steel core.

WH150 sprockets can be used with WR150 welded steel chain and WH150 welded steel chain.We can supply this sprocket made of mild steel or QT400 hardened steel and any rigid construction, split bolted and structurally welded as required. We can also offer this sprocket machining or precision hob for high speed applications. Additionally, we can supply this sprocket as a grease tank filler and grease aid for brass, nylon or UHMW idlers.

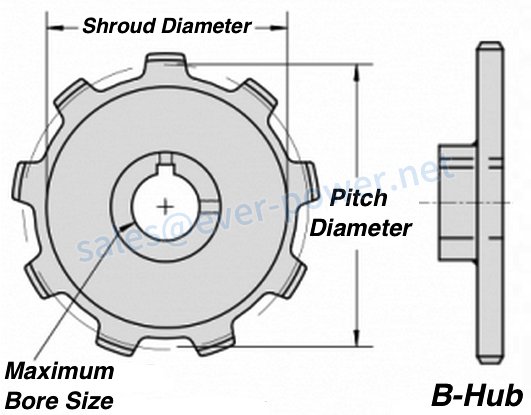

スプロケット番号	歯の本数	ピッチ	ピッチ径	スタイル	シュラウド径	バレル径	トゥース・フェイス	最大ボア
WH150-B8	8	6.050"	15.810"	ビーハブ	12.108"	1.750"	2.750"	5.9375"
WH150-B9	9	6.050"	17.690"	ビーハブ	14.128"	1.750"	2.750"	6.9375"
WH150-B10	10	6.050"	19.580"	ビーハブ	16.120"	1.750"	2.750"	6.9375"
WH150-B11	11	6.050"	21.470"	ビーハブ	18.068"	1.750"	2.750"	6.9375"
WH150-B12	12	6.050"	23.380"	ビーハブ	20.086"	1.750"	2.750"	6.9375"
WH150-B12	13	6.050"	25.280"	ビーハブ	22.086"	1.750"	2.750"	6.9375"
WH150-B14	14	6.050"	27.19"	ビーハブ	24.010"	1.750"	2.750"	6.9375"
WH150-B15	15	6.050"	29.100"	ビーハブ	26.960"	1.750"	2.750"	6.9375"

私たちはまた、精度の高い、そして、優れた製品を幅広く提供しています。ローラーチェーンそしてエンジニアリング。

農業用ギアボックス、PTOシャフト、スプロケット、流体継手、ウォームギア減速機、ギアとラック、ローラーチェーン、シーブとプーリー、遊星ギアボックス、タイミングプーリー、シャフトカラーなどの生産を専門としています。
